| A0 |
Color code key |
80L |
| A98 |
Panoramic sliding roof control module |
38L |
| CAN B |
Interior CAN |
43K |
| Code 359 |
TELEAID emergency call system |
7G |
| Code 483 |
ADVANCED AGILITY package |
62H |
| Code 531 |
COMAND APS |
44G |
| Code 580 |
Automatic air conditioning |
22J |
| Code 580 |
Automatic air conditioning |
49G |
| Code 581 |
Comfort automatic air conditioning |
22J |
| Code 581 |
Comfort automatic air conditioning |
49G |
| Code B03 |
ECO start/stop function |
1K |
| Code B03 |
ECO start/stop function |
71G |
| Code B54 |
Live Traffic Information |
13G |
| E17/15 |
Right front footwell lamp |
31L |
| E17/16 |
Left front footwell lamp |
29L |
| E17/17 |
Right rear footwell lamp |
21L |
| E17/18 |
Left rear footwell lamp |
17L |
| F25/1 |
Additional battery relay circuit 30 additional fuse |
69L |
| G1/13 |
ECO start/stop function additional battery |
67L |
| M4/13 |
COMAND fan motor |
46L |

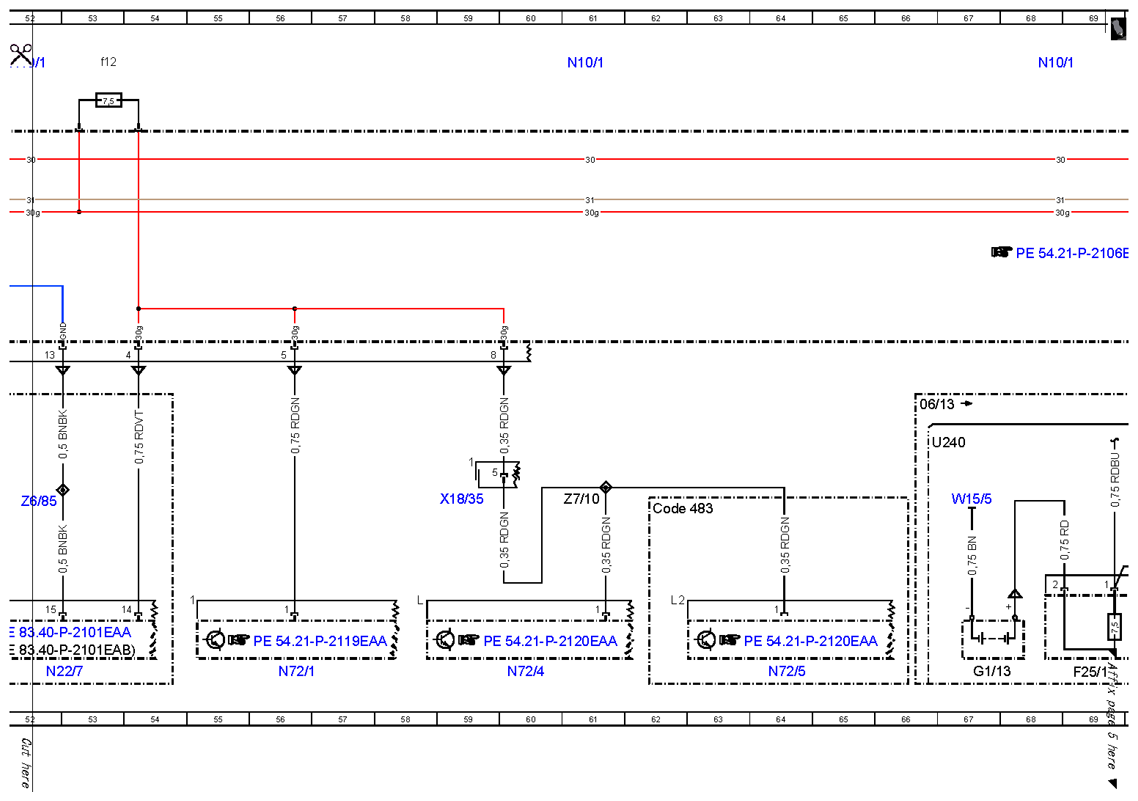

| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
45A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1 |
Front SAM control unit with fuse and relay module |
52A |
| N10/1 |
Front SAM control unit with fuse and relay module |
61A |
| N10/1f12 |
Fuse 12 |
53A |
| N10/1f17 |
Fuse 17 |
40A |
| N22/7 |
Automatic air conditioning control and operating unit |
52L |
| N70/3 |
Overhead control panel electronics |
34L |
| N70/3 |
Overhead control panel electronics |
14L |
| N70/3b1 |
Interior temperature sensor with integrated fan |
35L |
| N72/1 |
Upper control panel control unit |
56L |
| N72/4 |
Left lower control panel |
60L |
| N72/5 |
Right lower control panel |
64L |

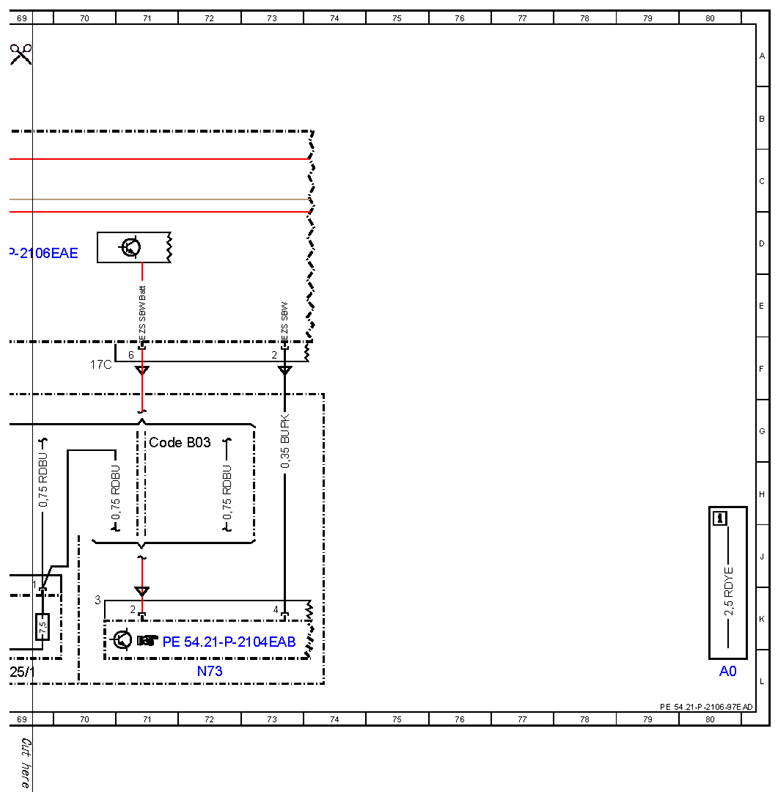

| N73 |
Electronic ignition switch control unit |
72L |
| R3 |
Front cigarette lighter with ashtray illumination |
5L |
| R3 |
Front cigarette lighter with ashtray illumination |
8L |
| R3e1 |
Ashtray illumination |
5L |
| R3e1 |
Ashtray illumination |
8L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
4J |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
7J |

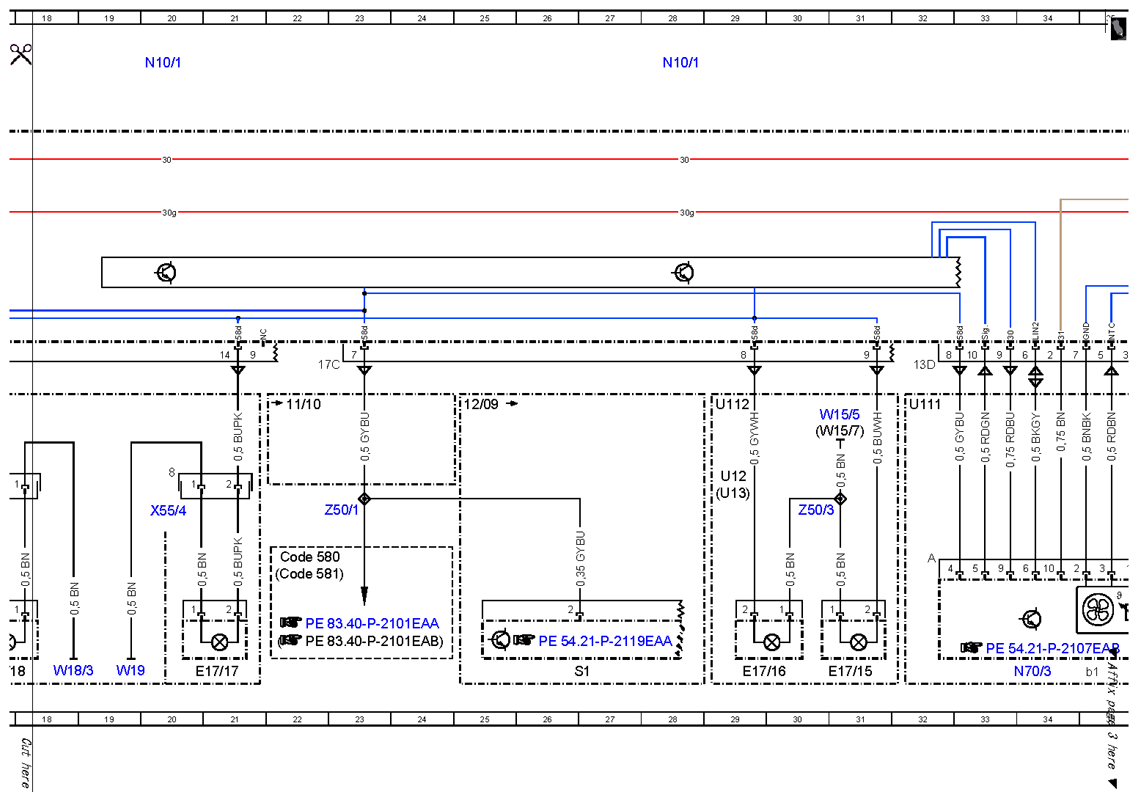

| S1 |
Exterior lights switch |
26L |
| U111 |
Valid for overhead control panel without CAN |
32G |
| U112 |
Valid for footwell lamps |
16G |
| U112 |
Valid for footwell lamps |
29G |
| U12 |
Valid for left-hand drive vehicles |
29H |
| U129 |
Valid for panoramic sliding roof |
36G |
| U13 |
Valid for right-hand drive vehicles |
29H |
| U240 |
Valid for all except ECO start/stop function |
1K |
| U240 |
Valid for all except ECO start/stop function |
66G |
| U325 |
Valid for smoker package |
4G |
| U325 |
Valid for smoker package |
7G |
| U326 |
Valid for nonsmoker package |
6G |
| U326 |
Valid for nonsmoker package |
8G |
| W15/5 |
Left front footwell ground point |
31G |
| W15/5 |
Left front footwell ground point |
67H |
| W15/7 |
Right front footwell ground point |
30G |
| W18/3 |
Left front seat crossmember ground point 2 |
18L |
| W19 |
Right front seat crossmember ground point |
19L |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
59H |

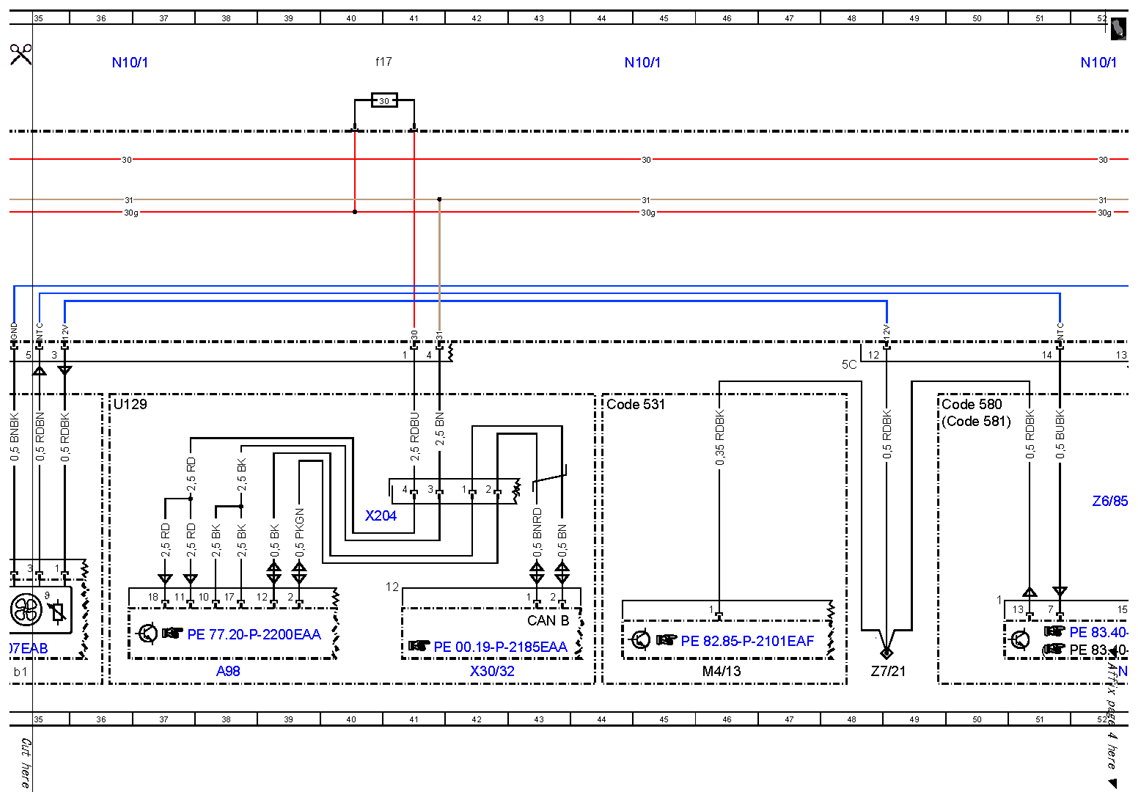

| X204 |
Panoramic sliding roof electrical connector |
41H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
42L |
| X55/3 |
Driver seat connector block |
17H |
| X55/4 |
Front passenger seat connector block |
20H |
| X58/17 |
Front vehicle interior power outlet |
6L |
| X58/17 |
Front vehicle interior power outlet |
9L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
6J |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
9J |

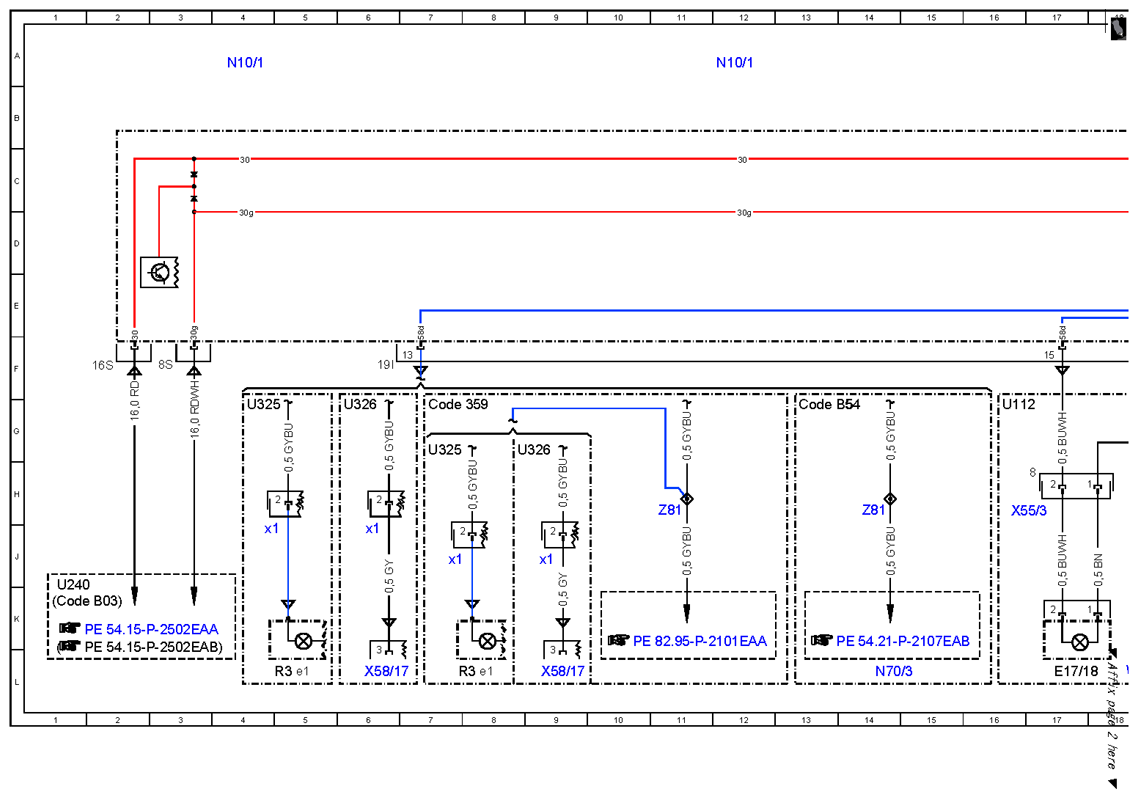

| Z50/1 |
Circuit 58d instrument panel connector sleeve |
23H |
| Z50/3 |
Circuit 31 instrument panel connector sleeve |
30H |
| Z6/85 |
Sensor ground connector sleeve |
52H |
| Z7/10 |
Circuit 30 g connector sleeve for center console |
61H |
| Z7/21 |
Air conditioning circuit 30 connector sleeve |
48L |
| Z81 |
Circuit 58d connector sleeve |
11H |
| Z81 |
Circuit 58d connector sleeve |
14H |
