| A0 |
Color code key |
96L |
| A1 |
Instrument cluster |
81L |
| A70/1 |
Analog clock |
77L |
| B22/7 |
Left rear level sensor |
14L |
| B29/4 |
Left rear bumper intelligent radar sensor |
5L |
| B29/5 |
Right rear bumper intelligent radar sensor |
5L |
| CAN E2 |
Chassis CAN 2 |
9K |
| CAN G |
Front end CAN |
6K |
| Code 494 |
USA version |
83G |
| Code 631 |
Static LED headlamp, left-hand traffic |
11H |
| Code 631 |
Static LED headlamp, left-hand traffic |
19G |
| Code 631 |
Static LED headlamp, left-hand traffic |
27G |
| Code 631 |
Static LED headlamp, left-hand traffic |
34G |
| Code 631 |
Static LED headlamp, left-hand traffic |
41G |
| Code 631 |
Static LED headlamp, left-hand traffic |
48G |
| Code 632 |
Static LED headlamp, right-hand traffic |
11H |
| Code 632 |
Static LED headlamp, right-hand traffic |
19H |
| Code 632 |
Static LED headlamp, right-hand traffic |
27H |
| Code 632 |
Static LED headlamp, right-hand traffic |
34H |
| Code 632 |
Static LED headlamp, right-hand traffic |
41H |
| Code 632 |
Static LED headlamp, right-hand traffic |
48H |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
11H |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
19H |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
41H |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
48H |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
11H |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
19H |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
41H |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
48H |
| Code B03 |
ECO start/stop function |
1K |
| E1 |
Left front lamp unit |
32K |
| E1 |
Left front lamp unit |
47J |
| E1 |
Left front lamp unit |
56K |
| E1 |
Left front lamp unit |
56K |

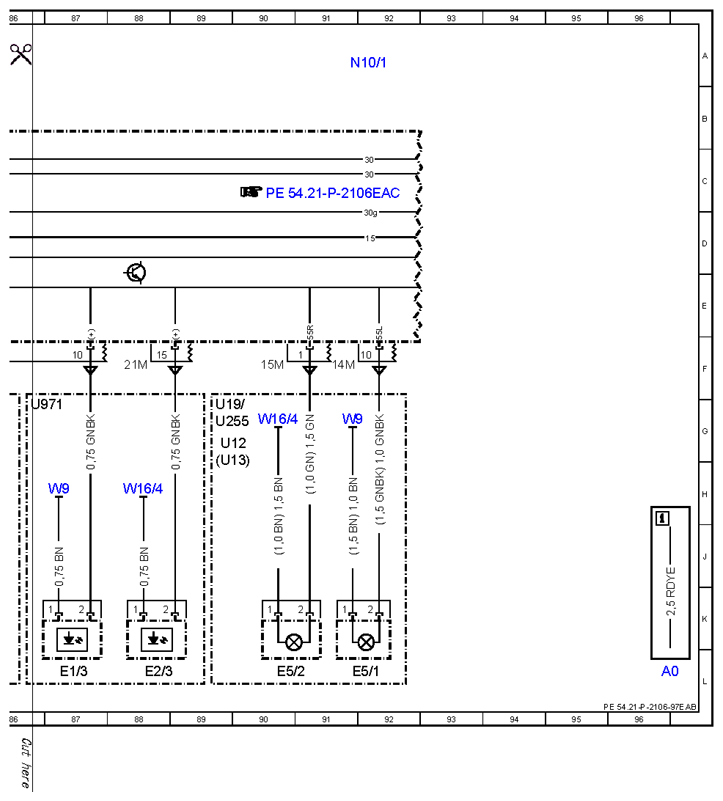

| E1/3 |
Left daytime running lamps headlamp |
87L |
| E1m1 |
Left headlamp range adjustment actuator motor |
58K |
| E1n1 |
Left xenon lamp control unit |
17J |
| E1n1 |
Left xenon lamp control unit |
19J |
| E1n1 |
Left xenon lamp control unit |
25K |
| E1n1 |
Left xenon lamp control unit |
46J |
| E1n1 |
Left xenon lamp control unit |
49J |
| E1n1 |
Left xenon lamp control unit |
53K |

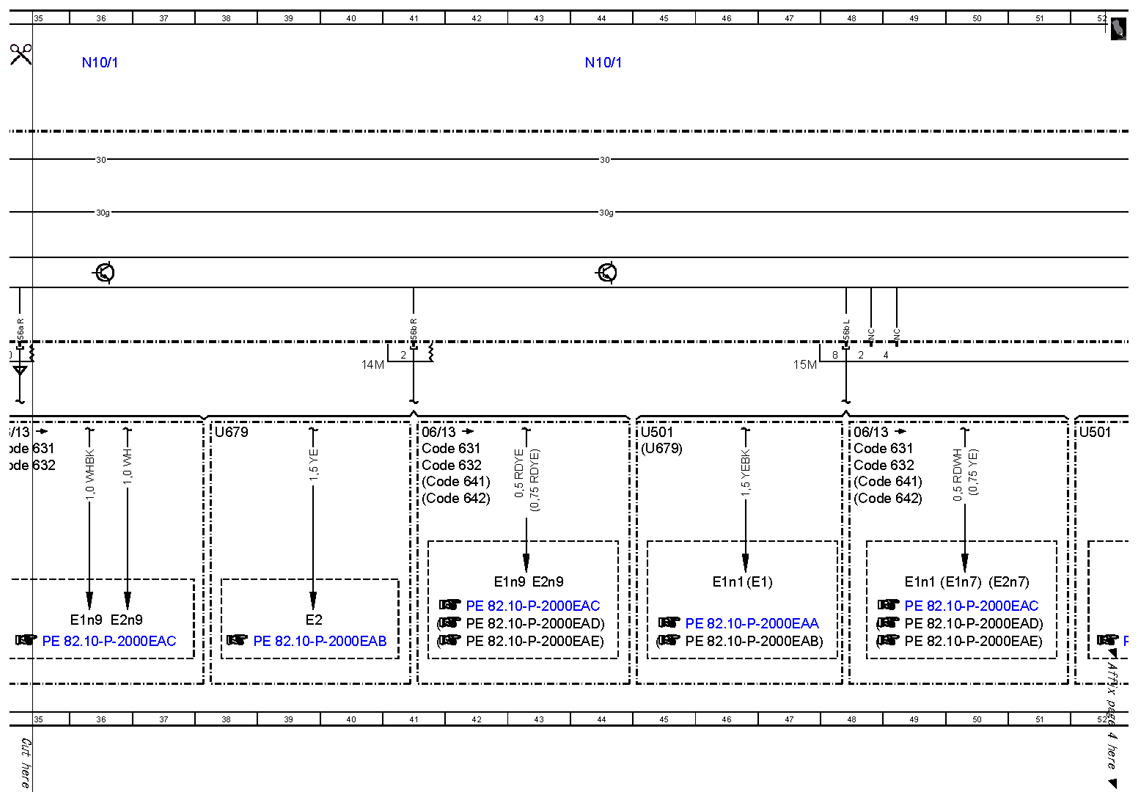

| E1n7 |
Actuation module for left front exterior lights LED |
50J |

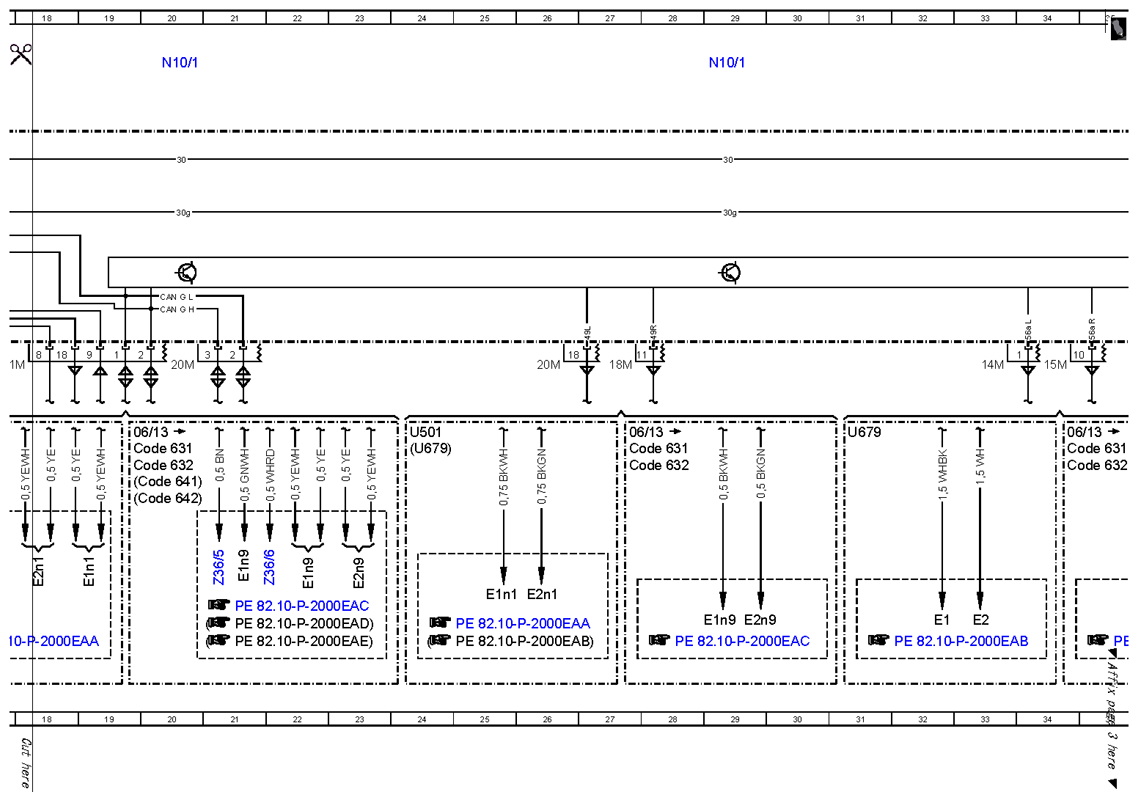

| E1n9 |
Left headlamp control unit |
22J |
| E1n9 |
Left headlamp control unit |
21J |
| E1n9 |
Left headlamp control unit |
29K |
| E1n9 |
Left headlamp control unit |
36K |
| E1n9 |
Left headlamp control unit |
43J |
| E2 |
Right front lamp unit |
33K |
| E2 |
Right front lamp unit |
39K |
| E2 |
Right front lamp unit |
57K |
| E2/3 |
Right daytime running lamps headlamp |
88L |
| E2m1 |
Right headlamp range adjustment actuator motor |
57K |
| E2m1 |
Right headlamp range adjustment actuator motor |
59K |
| E2n1 |
Right xenon light control unit |
18J |
| E2n1 |
Right xenon light control unit |
26K |
| E2n1 |
Right xenon light control unit |
54K |
| E2n7 |
Actuation module for right front exterior lights LED |
51J |
| E2n9 |
Right headlamp control unit |
23J |
| E2n9 |
Right headlamp control unit |
29K |
| E2n9 |
Right headlamp control unit |
36K |
| E2n9 |
Right headlamp control unit |
43J |
| E5/1 |
Left fog lamp |
91L |
| E5/2 |
Right fog lamp |
90L |
| E6/1 |
Left front side-marker lamp |
85L |
| E6/2 |
Right front side-marker lamp |
84L |

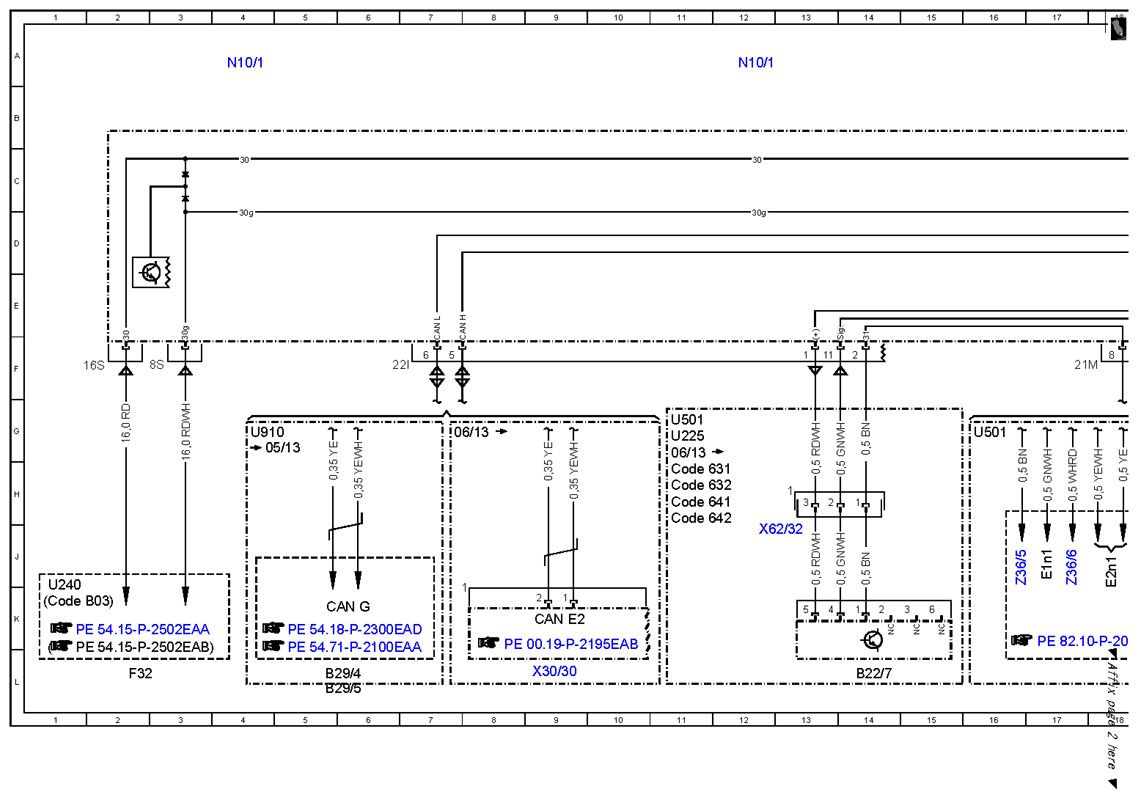

| F32 |
Front electrical prefuse box |
2L |
| LIN 1 |
Instrument panel LIN |
66J |
| LIN 1 |
Instrument panel LIN |
67F |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
29A |
| N10/1 |
Front SAM control unit with fuse and relay module |
36A |
| N10/1 |
Front SAM control unit with fuse and relay module |
44A |
| N10/1 |
Front SAM control unit with fuse and relay module |
60A |
| N10/1 |
Front SAM control unit with fuse and relay module |
68A |
| N10/1 |
Front SAM control unit with fuse and relay module |
76A |
| N10/1 |
Front SAM control unit with fuse and relay module |
84A |
| N10/1 |
Front SAM control unit with fuse and relay module |
92A |

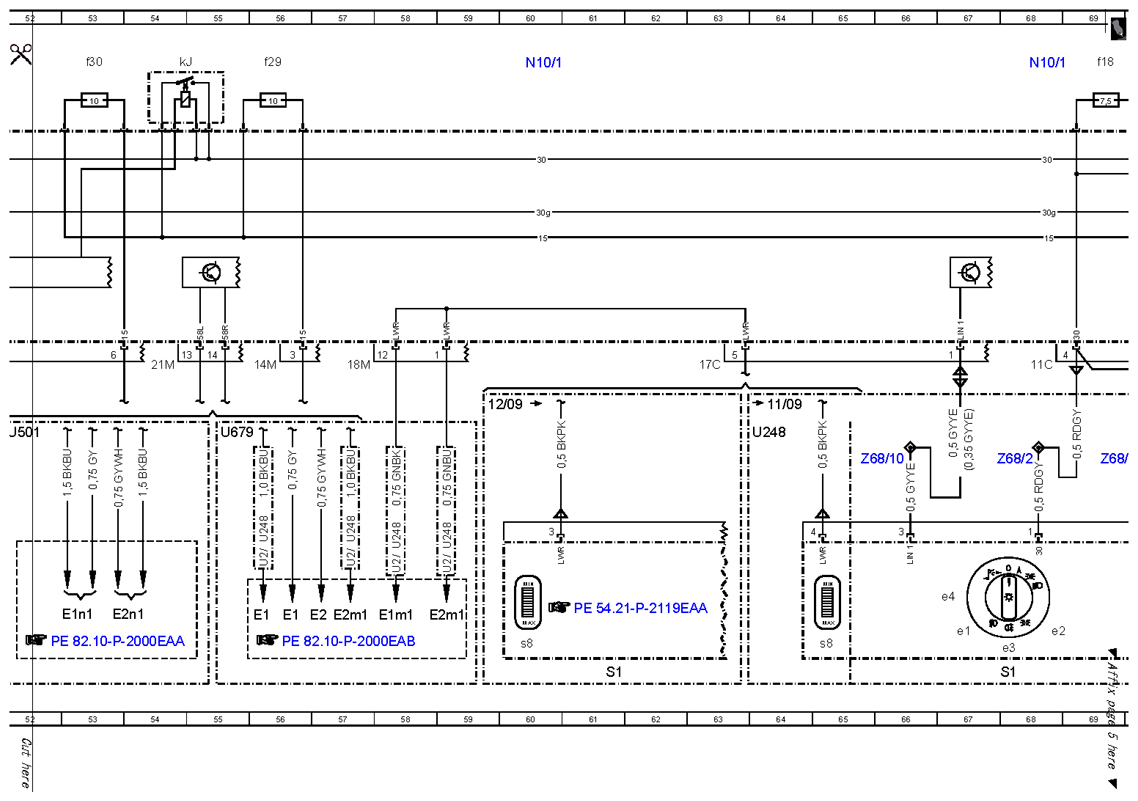

| N10/1f18 |
Fuse 18 |
69A |
| N10/1f28 |
Fuse 28 |
78A |
| N10/1f29 |
Fuse 29 |
56A |
| N10/1f30 |
Fuse 30 |
53A |
| N10/1kJ |
Circuit 15 relay |
54A |

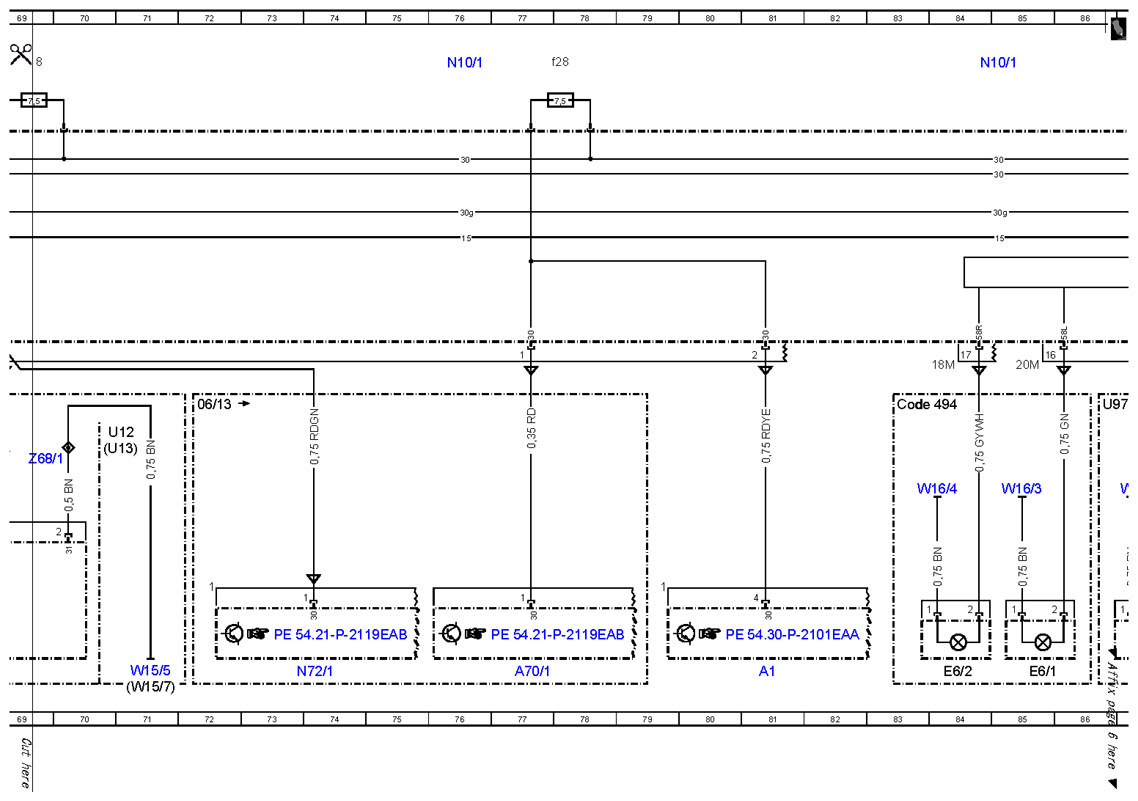

| N72/1 |
Upper control panel control unit |
74L |
| S1 |
Exterior lights switch |
61L |
| S1 |
Exterior lights switch |
68L |
| S1e1 |
Front fog lamps indicator lamp |
67K |
| S1e2 |
Rear fog lamp indicator lamp |
68K |
| S1e3 |
Standing lamps indicator lamp |
68L |
| S1e4 |
Switch illumination |
67K |
| S1s8 |
Headlamp range controller |
60K |
| S1s8 |
Headlamp range controller |
65K |
| U12 |
Valid for left-hand drive vehicles |
70G |
| U12 |
Valid for left-hand drive vehicles |
89G |
| U13 |
Valid for right-hand drive vehicles |
70G |
| U13 |
Valid for right-hand drive vehicles |
89H |
| U19 |
Valid for standard equipment |
89G |
| U2 |
Valid for all except USA |
56J |
| U2 |
Valid for all except USA |
57J |
| U2 |
Valid for all except USA |
59J |
| U2 |
Valid for all except USA |
58J |
| U225 |
Valid without code 483 Vehicle dynamics package |
11G |
| U240 |
Valid for all except ECO start/stop function |
1K |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
56J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
57J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
58J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
59J |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
64G |
| U255 |
Valid for front fog lamps |
89G |
| U501 |
Valid for xenon headlamps |
11G |
| U501 |
Valid for xenon headlamps |
16G |
| U501 |
Valid for xenon headlamps |
24G |
| U501 |
Valid for xenon headlamps |
45G |
| U501 |
Valid for xenon headlamps |
52G |
| U679 |
Valid for version without xenon headlamps |
24G |
| U679 |
Valid for version without xenon headlamps |
31G |
| U679 |
Valid for version without xenon headlamps |
45G |
| U679 |
Valid for version without xenon headlamps |
38G |
| U679 |
Valid for version without xenon headlamps |
55G |
| U910 |
Valid for Blind Spot Assist |
4G |
| U971 |
Valid for daytime running lamps |
86G |
| W15/5 |
Left front footwell ground point |
71L |
| W15/7 |
Right front footwell ground point |
71L |
| W16/3 |
Left major assembly compartment ground point |
85H |
| W16/4 |
Right wheelhouse ground point |
88H |
| W16/4 |
Right wheelhouse ground point |
83H |
| W16/4 |
Right wheelhouse ground point |
90G |
| W9 |
Left front ground point (at lamp unit) |
87H |
| W9 |
Left front ground point (at lamp unit) |
91G |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
9L |
| X62/32 |
Rear axle electrical connector, left distributor |
13J |
| Z36/5 |
Headlamp range adjustment sensor ground connector sleeve |
16J |
| Z36/5 |
Headlamp range adjustment sensor ground connector sleeve |
21J |
| Z36/6 |
Sensor voltage supply connector sleeve |
17J |
| Z36/6 |
Sensor voltage supply connector sleeve |
21J |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
69H |
| Z68/10 |
Instrument panel LIN connector sleeve |
66H |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
68H |
