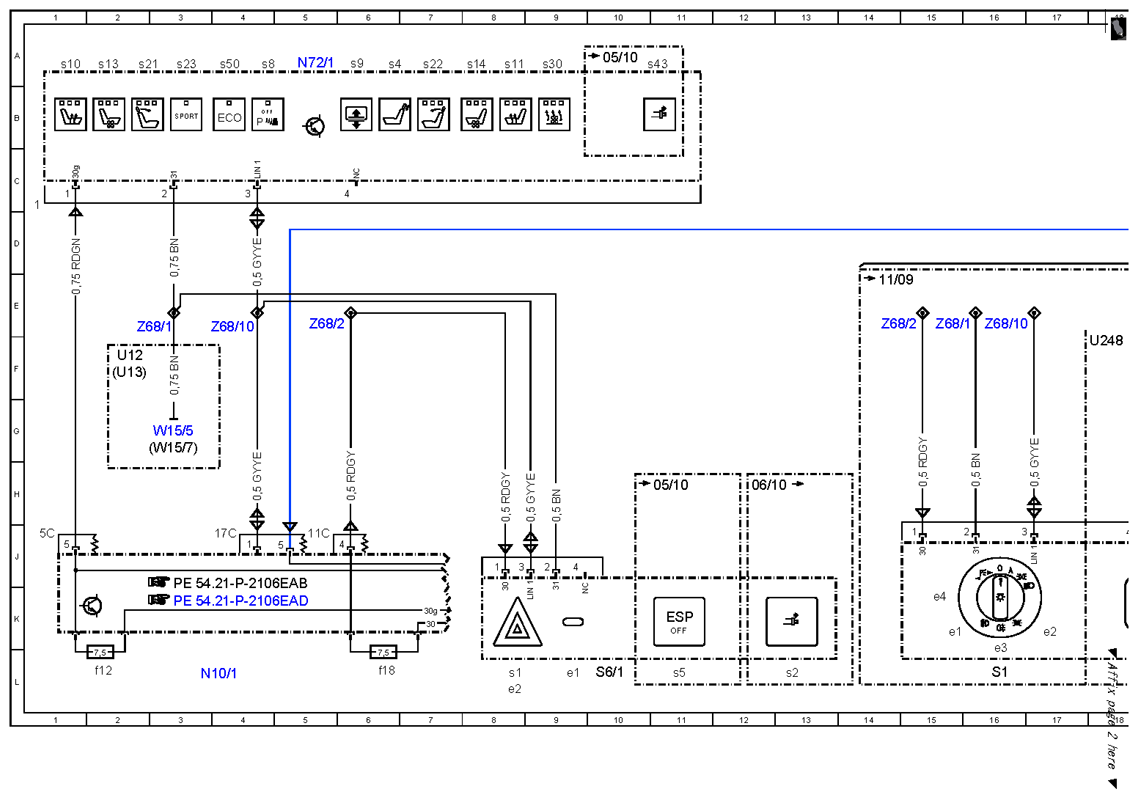

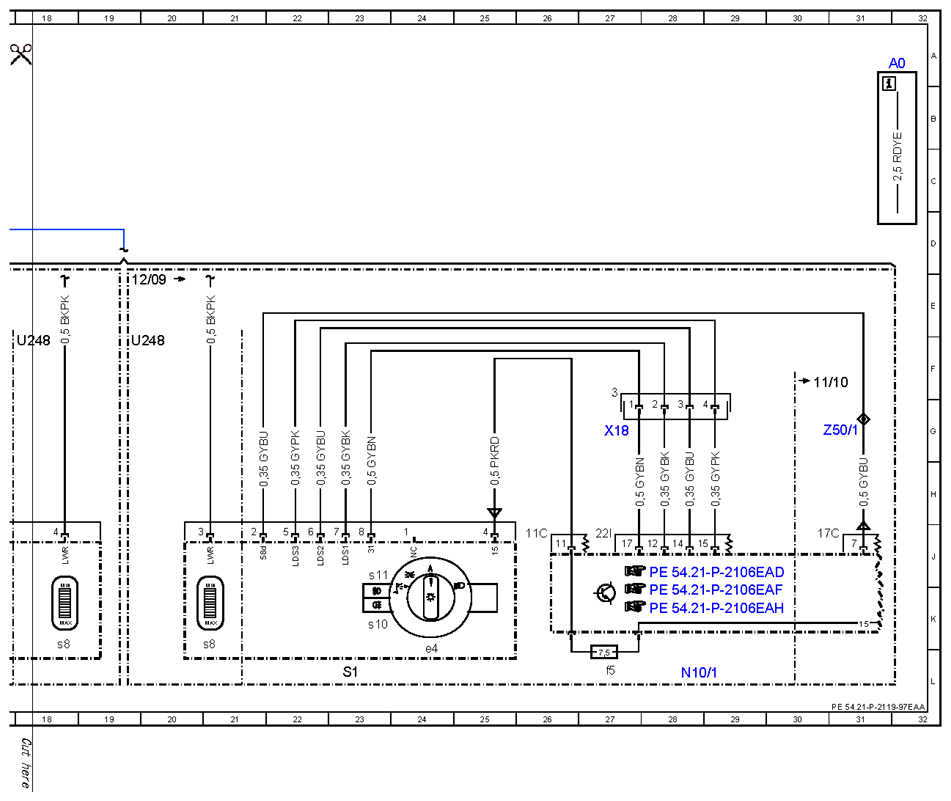

| A0 |
Color code key |
32A |
| LIN 1 |
Instrument panel LIN |
8J |
| LIN 1 |
Instrument panel LIN |
4C |
| LIN 1 |
Instrument panel LIN |
16J |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28L |
| N10/1f12 |
Fuse 12 |
2L |
| N10/1f18 |
Fuse 18 |
6L |
| N10/1f5 |
Fuse 5 |
27L |
| N72/1 |
Upper control panel control unit |
5A |
| N72/1s10 |
Left front heated seat button |
1A |
| N72/1s11 |
Right front heated seat button |
8A |
| N72/1s13 |
Left front seat ventilation button |
2A |
| N72/1s14 |
Right front seat ventilation button |
8A |
| N72/1s21 |
Left AIRSCARF button |
2A |
| N72/1s22 |
Right AIRSCARF button |
7A |
| N72/1s23 |
Vehicle dynamics button |
3A |
| N72/1s30 |
Stationary heater button |
9A |
| N72/1s4 |
Rear head restraints button |
6A |
| N72/1s43 |
Belt extender button |
11A |
| N72/1s50 |
ECO start/stop function button |
4A |
| N72/1s8 |
Parking system button |
4A |
| N72/1s9 |
Rear window roller sun blind button |
6A |
| S1 |
Exterior lights switch |
16L |
| S1 |
Exterior lights switch |
23L |
| S1e1 |
Front fog lamps indicator lamp |
15K |
| S1e2 |
Rear fog lamp indicator lamp |
17K |
| S1e3 |
Standing lamps indicator lamp |
16L |
| S1e4 |
Switch illumination |
15K |
| S1e4 |
Switch illumination |
24L |
| S1s10 |
Rear fog light button |
23K |
| S1s11 |
Front fog lamp button |
23J |
| S1s8 |
Headlamp range controller |
18K |
| S1s8 |
Headlamp range controller |
21K |
| S6/1 |
Instrument panel switch group |
10L |
| S6/1e1 |
Automatic child seat recognition warning lamp |
9L |
| S6/1e2 |
Anti-theft alarm system indicator lamp |
8L |
| S6/1s1 |
Hazard warning flasher switch |
8L |
| S6/1s2 |
Belt extender button |
13L |
| S6/1s5 |
ESP button |
11L |
| U12 |
Valid for left-hand drive vehicles |
2F |
| U13 |
Valid for right-hand drive vehicles |
2F |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
18F |
| U248 |
Valid for headlamp range adjustment for halogen headlamps |
19F |
| W15/5 |
Left front footwell ground point |
3G |
| W15/7 |
Right front footwell ground point |
3G |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
27G |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
31G |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
3E |
| Z68/1 |
Instrument panel circuit 31 climate control LIN connector sleeve |
15E |
| Z68/10 |
Instrument panel LIN connector sleeve |
16E |
| Z68/10 |
Instrument panel LIN connector sleeve |
4E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
5E |
| Z68/2 |
Instrument panel climate control LIN positive line connector sleeve |
14E |
