| A0 |
Color code key |
64L |
| B41/1 |
Front passenger seat occupied recognition |
46L |
| B48 |
Front passenger seat occupied recognition and ACSR |
44L |
| CAN B |
Interior CAN |
31K |
| N10/1 |
Front SAM control unit with fuse and relay module |
56A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
8A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
33A |
| N110 |
Weight Sensing System (WSS) control unit |
35L |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
25A |
| N2/10 |
Supplemental restraint system control unit |
39A |
| N2/10 |
Supplemental restraint system control unit |
44A |
| N2/10 |
Supplemental restraint system control unit |
52A |
| R12/10 |
Front passenger sidebag squib |
41L |
| R12/41 |
Driver pelvis airbag squib |
17L |
| R12/42 |
Front passenger pelvis airbag squib |
49L |
| R12/9 |
Driver sidebag squib |
22L |

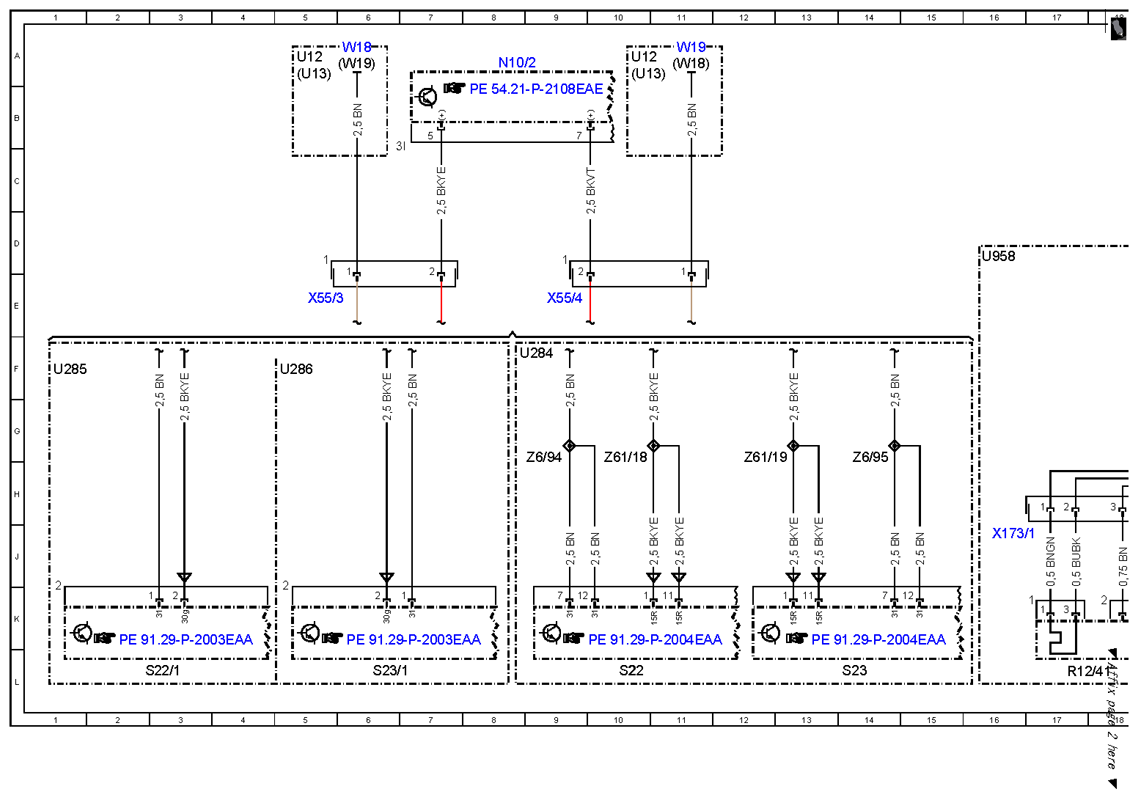

| S22 |
Left front seat adjustment switch group |
10L |
| S22/1 |
Driver seat partially electric seat adjustment switch |
3L |
| S23 |
Right front seat adjustment switch group |
14L |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
6L |
| S68/3 |
Driver seat belt buckle restraint system switch |
26L |
| S68/4 |
Front passenger seat belt buckle restraint system switch |
39L |
| U1 |
Valid for USA |
30E |
| U12 |
Valid for left-hand drive vehicles |
5A |
| U12 |
Valid for left-hand drive vehicles |
10A |
| U12 |
Valid for left-hand drive vehicles |
21D |
| U12 |
Valid for left-hand drive vehicles |
41D |
| U12 |
Valid for left-hand drive vehicles |
52E |
| U13 |
Valid for right-hand drive vehicles |
5A |
| U13 |
Valid for right-hand drive vehicles |
10A |
| U13 |
Valid for right-hand drive vehicles |
21E |
| U13 |
Valid for right-hand drive vehicles |
41E |
| U13 |
Valid for right-hand drive vehicles |
52E |
| U2 |
Valid for all except USA |
42D |
| U284 |
Valid for fully electric seat adjustment |
8F |
| U285 |
Valid for partially electric driver seat adjustment |
1F |
| U286 |
Valid for partially electric front passenger seat adjustment |
5F |
| U859 |
Valid for seat belt reminder warning |
45E |
| U916 |
Valid for weight sensing system (WSS) |
30E |
| U948 |
Valid for diesel engine 651 |
42E |
| U958 |
Valid for pelvis airbag |
16D |
| U958 |
Valid for pelvis airbag |
47D |
| W18 |
Left front seat crossmember ground point |
6A |
| W18 |
Left front seat crossmember ground point |
11A |
| W18 |
Left front seat crossmember ground point |
22E |
| W18 |
Left front seat crossmember ground point |
42E |
| W18 |
Left front seat crossmember ground point |
52E |
| W19 |
Right front seat crossmember ground point |
6A |
| W19 |
Right front seat crossmember ground point |
11A |
| W19 |
Right front seat crossmember ground point |
22E |
| W19 |
Right front seat crossmember ground point |
35E |
| W19 |
Right front seat crossmember ground point |
42E |
| W19 |
Right front seat crossmember ground point |
52E |
| X150/1 |
Driver NECK-PRO head restraint electrical connector |
28H |
| X150/2 |
Front passenger NECK-PRO head restraint electrical connector |
55H |
| X173/1 |
Driver pelvis airbag electrical connector |
16J |
| X173/2 |
Front passenger pelvis airbag electrical connector |
48J |

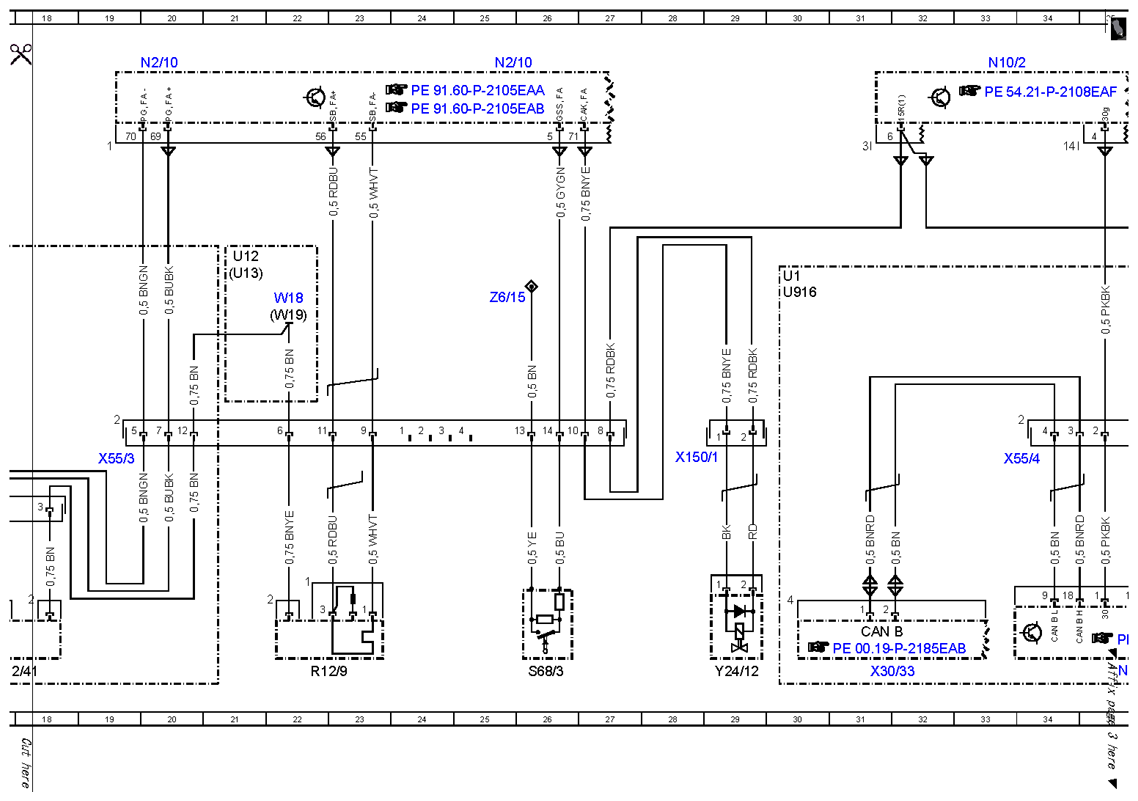

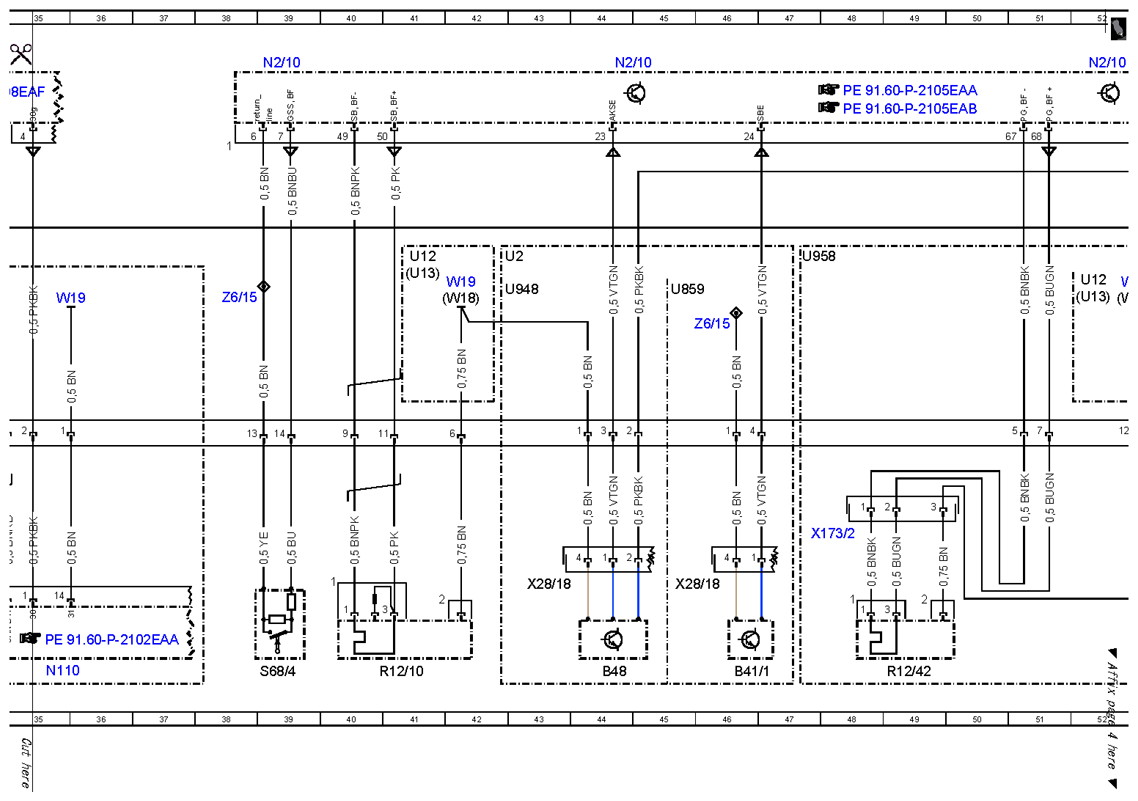

| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
46K |
| X28/18 |
ACSR [AKSE] seat occupied recognition electrical connector |
43K |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
31L |
| X55/3 |
Driver seat connector block |
19H |
| X55/3 |
Driver seat connector block |
5E |
| X55/4 |
Front passenger seat connector block |
9E |
| X55/4 |
Front passenger seat connector block |
34H |

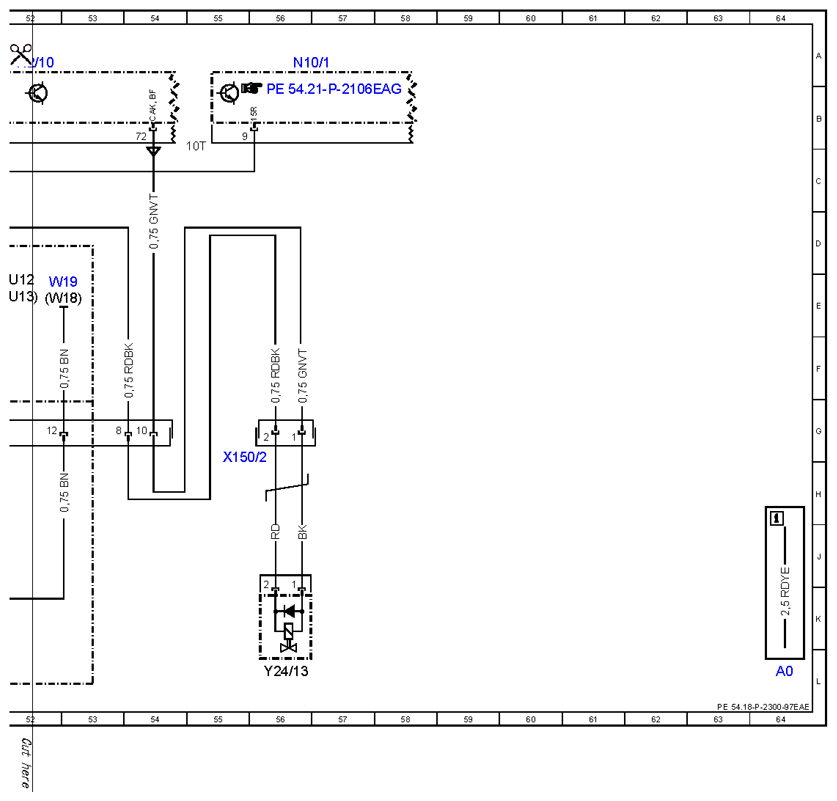

| Y24/12 |
Driver seat NECK-PRO head restraint solenoid |
29L |
| Y24/13 |
Front passenger seat NECK-PRO head restraint solenoid |
56L |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
25E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
38E |
| Z6/15 |
Right seat belt buckle circuit 31 connector sleeve |
46E |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
9G |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
14G |
| Z61/18 |
Left seat circuit 15R connector sleeve |
10G |
| Z61/19 |
Right seat circuit 15R connector sleeve |
12G |
