| A0 |
Color code key |
23L |

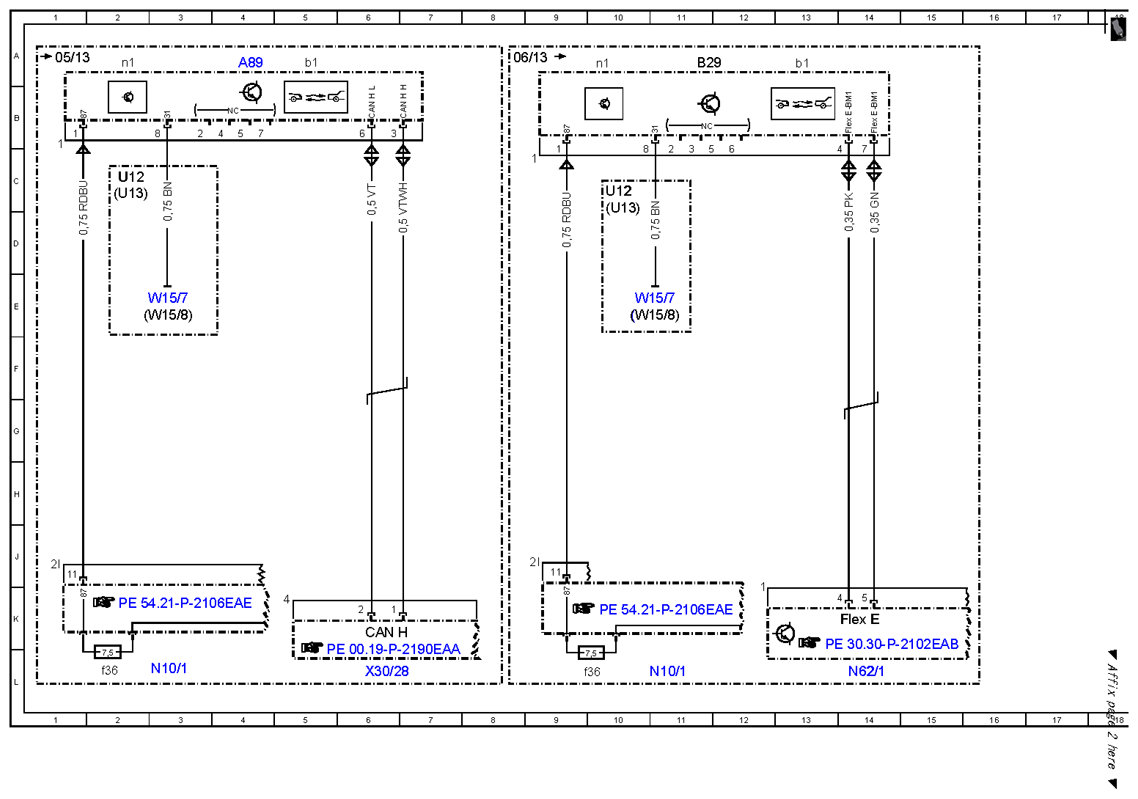

| A89 |
DISTRONIC electric controller unit |
4A |
| A89b1 |
DISTRONIC radar sensor |
5A |
| A89b1 |
DISTRONIC radar sensor |
13A |
| A89n1 |
DISTRONIC control unit |
2A |
| A89n1 |
DISTRONIC control unit |
10A |
| B29 |
Front long-range radar sensor |
11A |
| CAN H |
Vehicle dynamics CAN |
6K |
| Flex E |
Chassis FlexRay |
14K |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
11L |
| N10/1f36 |
Fuse 36 |
2L |
| N10/1f36 |
Fuse 36 |
9L |
| N62/1 |
Radar sensors control unit |
14L |
| U12 |
Valid for left-hand drive vehicles |
2C |
| U12 |
Valid for left-hand drive vehicles |
10C |
| U13 |
Valid for right-hand drive vehicles |
2C |
| U13 |
Valid for right-hand drive vehicles |
10D |
| W15/7 |
Right front footwell ground point |
3E |
| W15/7 |
Right front footwell ground point |
10E |
| W15/8 |
Ground point (right front footwell CAN) |
3E |
| W15/8 |
Ground point (right front footwell CAN) |
10E |
| X30/28 |
Vehicle dynamics CAN voltage distributor electrical connector |
6L |
