| A0 |
Color code key |
32L |
| A2 |
Radio |
29L |
| A2/19 |
|
10L |
| A2/19 |
|
14L |
| A28/11 |
Multifunction antenna |
19L |
| A40/3 |
COMAND control unit |
29L |
| A90/4 |
Tuner unit |
4A |
| A90/4 |
Tuner unit |
20A |
| A90/4 |
Tuner unit |
29A |
| A90/4 |
Tuner unit |
11A |

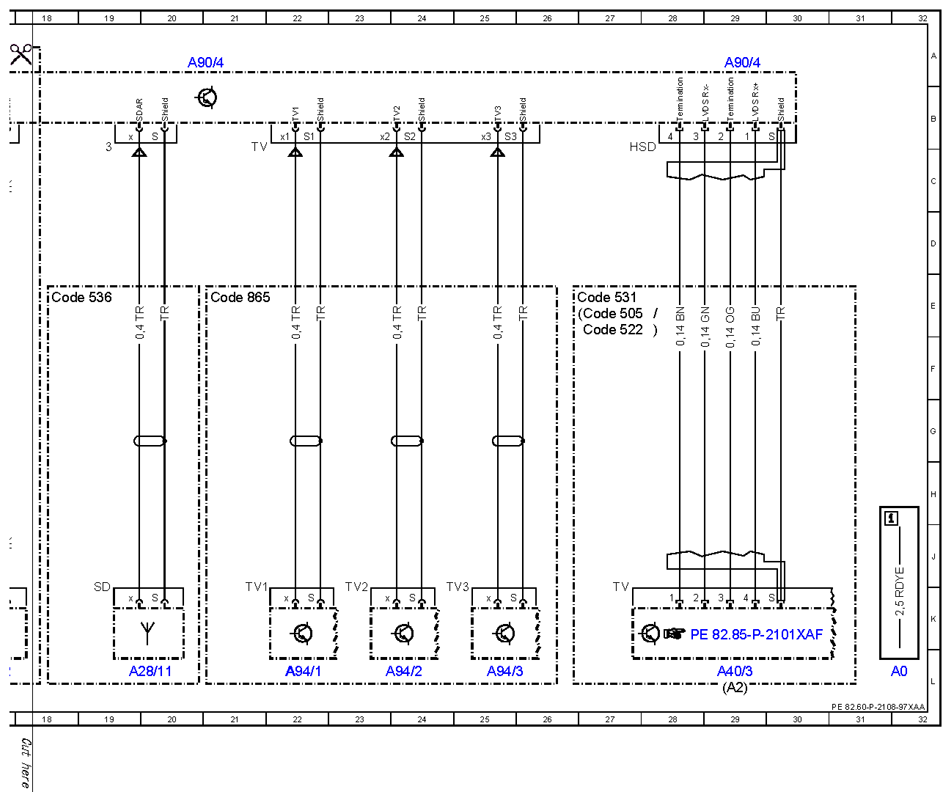

| A94/1 |
TV 1 antenna amplifier |
22L |
| A94/2 |
TV 2 antenna amplifier |
24L |
| A94/2 |
TV 2 antenna amplifier |
17L |
| A94/3 |
TV 3 antenna amplifier |
25L |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
27E |
| Code 522 |
Audio 20 radio |
27E |
| Code 531 |
COMAND APS |
26E |
| Code 536 |
SIRIUS satellite radio |
18E |
| Code 537 |
Digital radio |
8A |
| Code 537 |
Digital radio |
12A |
| Code 865 |
TV tuner (digital) |
21E |
| Code 865 |
TV tuner (digital) |
8A |

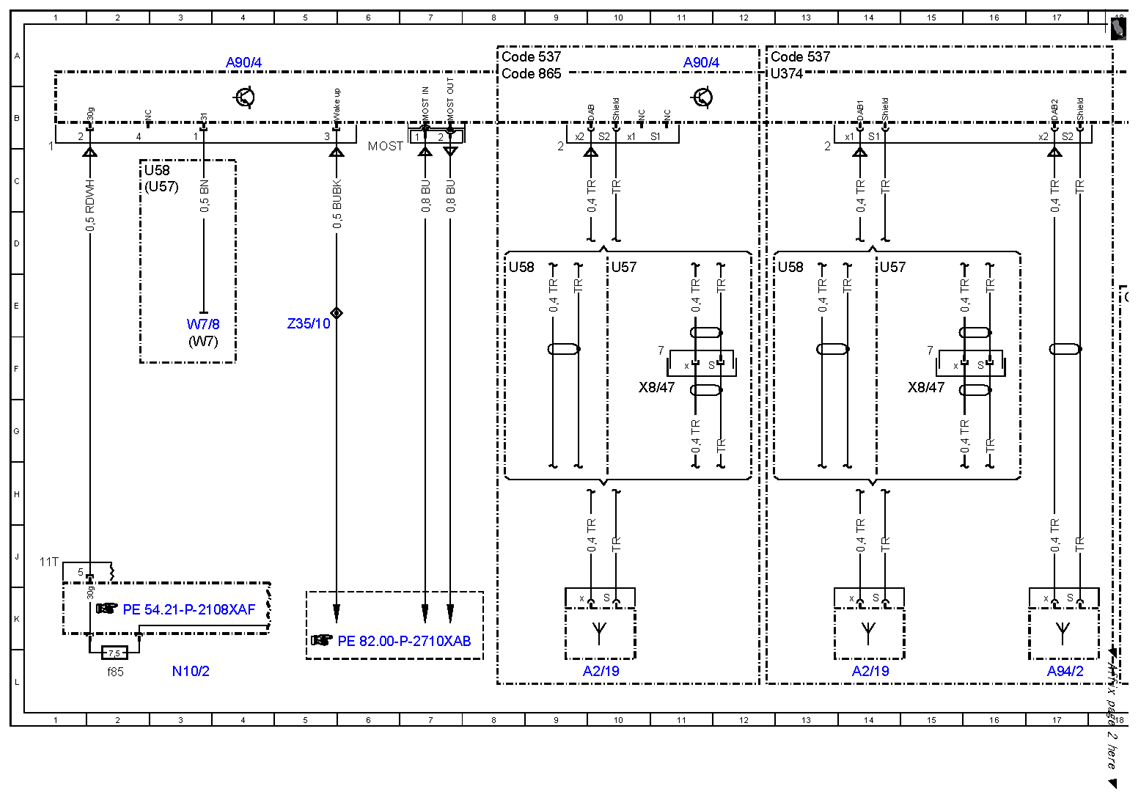

| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2f85 |
Fuse 85 |
2L |
| U374 |
|
12A |
| U57 |
Valid for model 218.9 |
2C |
| U57 |
Valid for model 218.9 |
10D |
| U57 |
Valid for model 218.9 |
14D |
| U58 |
Valid for model 218.3 |
2C |
| U58 |
Valid for model 218.3 |
8D |
| U58 |
Valid for model 218.3 |
13D |
| W7 |
Right rear wheel well ground point |
3F |
| W7/8 |
Right wheelhouse trunk ground point |
3E |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
11F |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
15F |
| Z35/10 |
MOST wake-up signal connector sleeve |
5E |
