| 1 |
Engine running, signal |
13G |
| 1 |
Engine running, signal |
16E |
| 1 |
Engine running, signal |
30E |
| 10 |
Synchronization, signal |
16C |
| 11 |
Cornering illumination, actuation |
19E |
| 11 |
Cornering illumination, actuation |
26E |
| 12 |
Navigation data, signal |
11H |
| 12 |
Navigation data, signal |
30E |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
3E |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
30F |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
4E |
| 14 |
Lane data, signal |
31E |
| 14 |
Lane data, signal |
27K |
| 15 |
Active curve illumination actuator motor, actuation |
20B |
| 15 |
Active curve illumination actuator motor, actuation |
26B |
| 16 |
Active curve lights position sensor, signal |
17C |
| 16 |
Active curve lights position sensor, signal |
29C |
| 17 |
Light distribution, request |
22F |
| 17 |
Light distribution, request |
26E |
| 18 |
Light distribution actuator motor, actuation |
20C |
| 18 |
Light distribution actuator motor, actuation |
26C |
| 19 |
Light distribution position sensor, signal |
17D |
| 19 |
Light distribution position sensor, signal |
28D |
| 2 |
Drivetrain operational, signal |
13H |
| 2 |
Drivetrain operational, signal |
16E |
| 2 |
Drivetrain operational, signal |
30E |
| 20 |
Adaptive high beam, actuation |
21E |
| 20 |
Adaptive high beam, actuation |
26E |
| 21 |
Rear fog lamp button, status |
13E |
| 22 |
Rear fog light, request |
30F |
| 3 |
Intelligent Light System, status |
14C |
| 3 |
Intelligent Light System, status |
31C |
| 4 |
Steering wheel angle sensor, signal |
7C |
| 5 |
Steering angle, signal |
10E |
| 5 |
Steering angle, signal |
30F |
| 6 |
Combination switch, status |
6B |
| 6 |
Combination switch, status |
10E |
| 6 |
Combination switch, status |
30F |
| 7 |
Wheel speed, signal |
10F |
| 7 |
Wheel speed, signal |
30F |
| 8 |
Gear range, status |
14H |
| 8 |
Gear range, status |
17H |
| 9 |
Reverse gear, status |
30E |

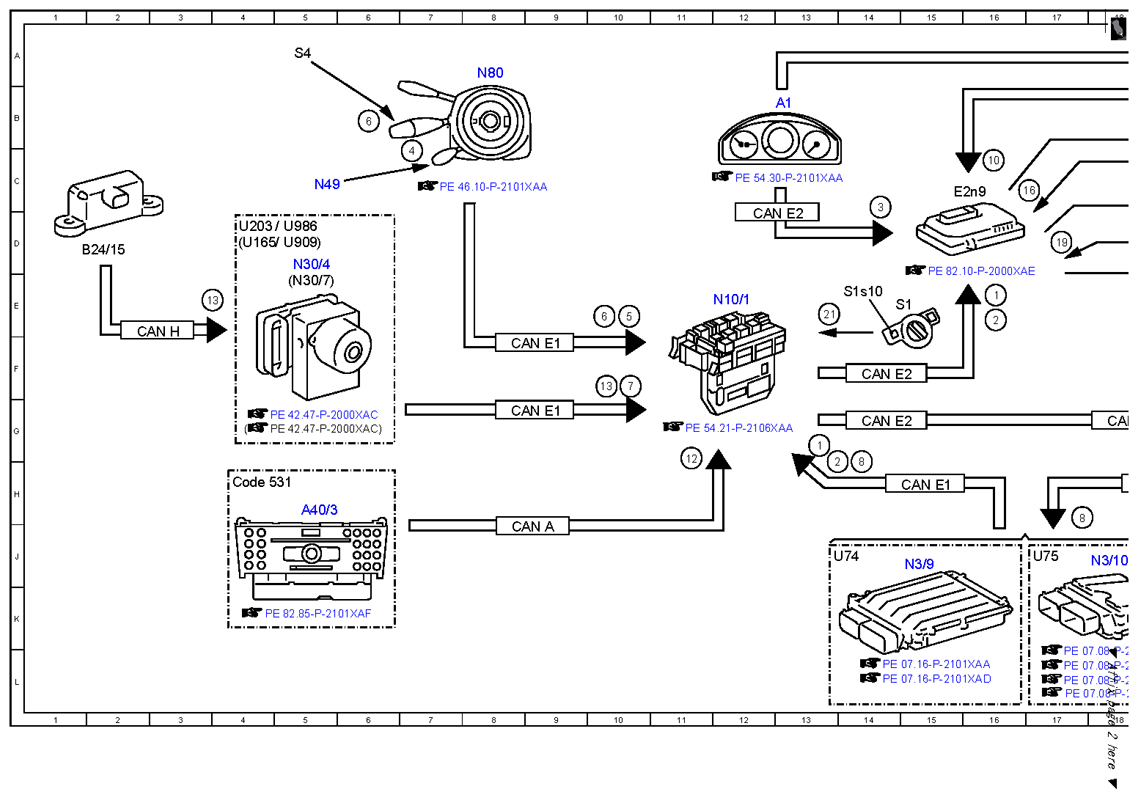

| A1 |
Instrument cluster |
13B |
| A40/11 |
Multifunction camera |
23J |
| A40/13 |
Stereo multifunction camera |
30K |
| A40/3 |
COMAND control unit |
5H |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
1D |
| CAN A |
Telematics CAN |
8J |
| CAN C |
Drive train CAN |
18H |
| CAN E1 |
Chassis CAN 1 |
8G |
| CAN E1 |
Chassis CAN 1 |
15H |
| CAN E1 |
Chassis CAN 1 |
8F |
| CAN E2 |
Chassis CAN 2 |
14G |
| CAN E2 |
Chassis CAN 2 |
14F |
| CAN E2 |
Chassis CAN 2 |
18G |
| CAN E2 |
Chassis CAN 2 |
27G |
| CAN E2 |
Chassis CAN 2 |
19B |
| CAN E2 |
Chassis CAN 2 |
27B |
| CAN E2 |
Chassis CAN 2 |
27F |
| CAN E2 |
Chassis CAN 2 |
19A |
| CAN E2 |
Chassis CAN 2 |
27A |
| CAN E2 |
Chassis CAN 2 |
12D |
| CAN E2 |
Chassis CAN 2 |
25F |
| CAN E2 |
Chassis CAN 2 |
28G |
| CAN H |
Vehicle dynamics CAN |
3E |
| Code 22P |
Track package |
22J |
| Code 23P |
Driver assistance package PLUS |
24J |
| Code 531 |
COMAND APS |
4H |

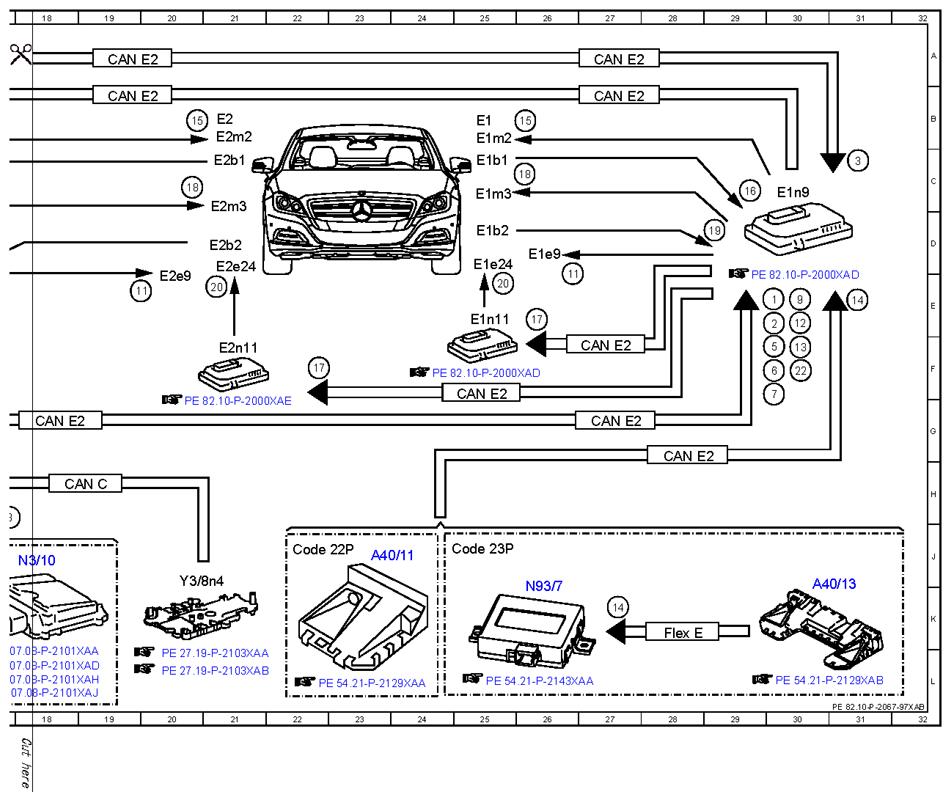

| E1 |
Left front lamp unit |
25B |
| E1b1 |
Left active curve illumination position sensor |
25C |
| E1b2 |
Left light distribution position sensor |
25D |
| E1e24 |
Left front adaptive high beam |
25D |
| E1e9 |
Left cornering illumination |
26D |
| E1m2 |
Left active curve illumination actuator motor |
25B |
| E1m3 |
Left light distribution actuator motor |
25C |
| E1n11 |
Left front LED matrix lamp unit control unit |
25E |
| E1n9 |
Left headlamp control unit |
30C |
| E2 |
Right front lamp unit |
21B |
| E2b1 |
Right active curve illumination position sensor |
21C |
| E2b2 |
Right light distribution position sensor |
21D |
| E2e24 |
Right front adaptive high beam |
21D |
| E2e9 |
Right cornering illumination |
20E |
| E2m2 |
Right active curve illumination actuator motor |
21B |
| E2m3 |
Right light distribution actuator motor |
21C |
| E2n11 |
Right front LED matrix lamp unit control unit |
21F |
| E2n9 |
Right headlamp control unit |
15C |
| Flex E |
Chassis FlexRay |
28K |
| N10/1 |
Front SAM control unit with fuse and relay module |
12E |
| N3/10 |
ME-SFI [ME] control unit |
18J |
| N3/9 |
CDI control unit |
15J |
| N30/4 |
Electronic Stability Program control unit |
5D |
| N30/7 |
Premium Electronic Stability Program control unit |
5E |
| N49 |
Steering angle sensor |
5C |
| N80 |
Steering column module control unit |
8A |
| N93/7 |
Chassis gateway control unit |
26K |
| S1 |
Exterior lights switch |
14E |
| S1s10 |
Rear fog lamp button |
14E |
| S4 |
Combination switch |
5A |
| U165 |
Valid for AMG |
4D |
| U203 |
Valid without DISTRONIC PLUS |
4D |
| U74 |
Valid for diesel engines |
13J |
| U75 |
Valid for gasoline engines |
17J |
| U909 |
Valid for DISTRONIC PLUS |
5D |
| U986 |
Not valid for AMG |
5D |
| Y3/8n4 |
Fully integrated transmission control control unit |
20J |
