| 1 |
Engine running, signal |
14G |
| 1 |
Engine running, signal |
18E |
| 1 |
Engine running, signal |
31E |
| 10 |
Cornering illumination, request |
19D |
| 10 |
Cornering illumination, request |
28D |
| 11 |
Cornering illumination, actuation |
20D |
| 11 |
Cornering illumination, actuation |
28D |
| 12 |
Intelligent Light System, status |
13D |
| 12 |
Intelligent Light System, status |
31C |
| 12 |
Intelligent Light System, status |
16C |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
3F |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
10F |
| 13 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
31F |
| 14 |
Active curve illumination actuator motor, actuation |
21B |
| 14 |
Active curve illumination actuator motor, actuation |
27B |
| 15 |
Active curve lights position sensor, signal |
19D |
| 15 |
Active curve lights position sensor, signal |
30D |
| 16 |
Headlamp range adjustment actuator motor, actuation |
27B |
| 17 |
Increase light output, request |
20F |
| 17 |
Increase light output, request |
28F |
| 18 |
Rear fog lamp button, status |
14E |
| 19 |
Rear fog light, request |
31F |
| 2 |
Drivetrain operational, signal |
14H |
| 2 |
Drivetrain operational, signal |
18F |
| 2 |
Drivetrain operational, signal |
31F |
| 3 |
Steering angle sensor, status |
6C |
| 4 |
Steering angle, signal |
11E |
| 4 |
Steering angle, signal |
31F |
| 5 |
Combination switch, status |
5B |
| 5 |
Combination switch, status |
10E |
| 5 |
Combination switch, status |
31F |
| 6 |
Wheel speed, signal |
11F |
| 6 |
Wheel speed, signal |
31G |
| 7 |
Gear range, status |
15H |
| 7 |
Gear range, status |
21H |
| 8 |
Reverse gear, status |
31E |
| 9 |
Synchronization, signal |
18C |

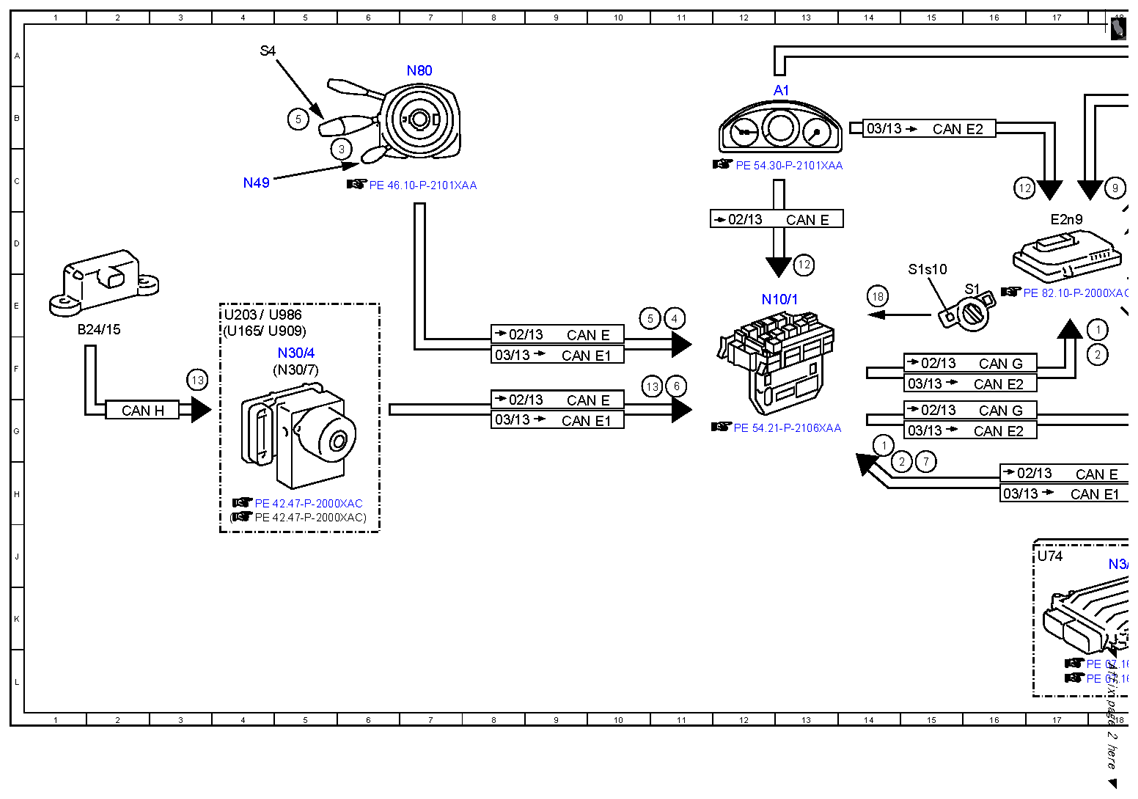

| A1 |
Instrument cluster |
12B |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
1E |
| CAN C |
Drive train CAN |
22H |
| CAN E |
Chassis CAN |
9F |
| CAN E |
Chassis CAN |
9G |
| CAN E |
Chassis CAN |
17H |
| CAN E |
Chassis CAN |
13D |
| CAN E1 |
Chassis CAN 1 |
9F |
| CAN E1 |
Chassis CAN 1 |
9G |
| CAN E1 |
Chassis CAN 1 |
17H |
| CAN E2 |
Chassis CAN 2 |
16F |
| CAN E2 |
Chassis CAN 2 |
16G |
| CAN E2 |
Chassis CAN 2 |
23G |
| CAN E2 |
Chassis CAN 2 |
29G |
| CAN E2 |
Chassis CAN 2 |
29B |
| CAN E2 |
Chassis CAN 2 |
20B |
| CAN E2 |
Chassis CAN 2 |
20A |
| CAN E2 |
Chassis CAN 2 |
29A |
| CAN E2 |
Chassis CAN 2 |
15B |
| CAN G |
Front end CAN |
16F |
| CAN G |
Front end CAN |
16G |
| CAN G |
Front end CAN |
23G |
| CAN G |
Front end CAN |
29G |
| CAN G |
Front end CAN |
29B |
| CAN G |
Front end CAN |
20B |
| CAN H |
Vehicle dynamics CAN |
2G |

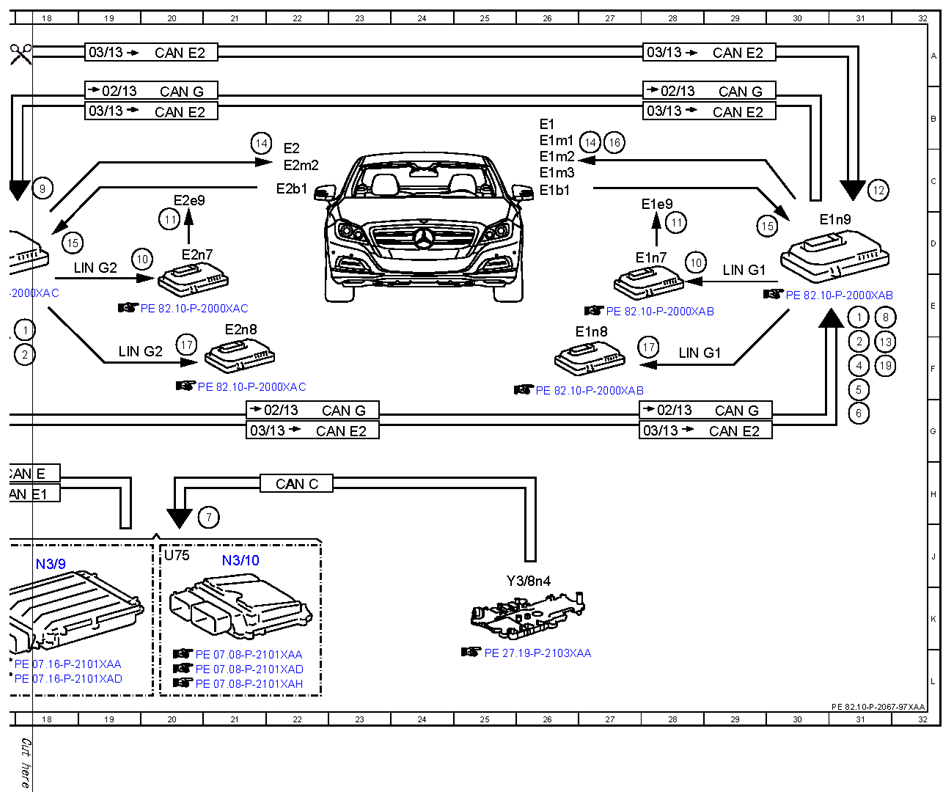

| E1 |
Left front lamp unit |
26B |
| E1b1 |
Left active curve illumination position sensor |
26C |
| E1e9 |
Left cornering illumination |
27C |
| E1m1 |
Left headlamp range adjustment actuator motor |
26B |
| E1m2 |
Left active curve illumination actuator motor |
26C |
| E1m3 |
Left light distribution actuator motor |
26C |
| E1n7 |
Actuation module 1 for left front exterior lights LED |
27D |
| E1n8 |
Actuation module 2 for left front exterior lights LED |
26E |
| E1n9 |
Left headlamp control unit |
30D |
| E2 |
Right front lamp unit |
22C |
| E2b1 |
Right active curve illumination position sensor |
22C |
| E2e9 |
Right cornering illumination |
20C |
| E2m2 |
Right active curve illumination actuator motor |
22C |
| E2n7 |
Actuation module 1 for right front exterior lights LED |
20D |
| E2n8 |
Actuation module 2 for right front exterior lights LED |
21E |
| E2n9 |
Right headlamp control unit |
17D |
| LIN G1 |
Left headlamp LIN |
28F |
| LIN G1 |
Left headlamp LIN |
29E |
| LIN G2 |
Right headlamp LIN |
19D |
| LIN G2 |
Right headlamp LIN |
19F |
| N10/1 |
Front SAM control unit with fuse and relay module |
12E |
| N3/10 |
ME-SFI [ME] control unit |
21J |
| N3/9 |
CDI control unit |
18J |
| N30/4 |
Electronic Stability Program control unit |
5F |
| N30/7 |
Premium Electronic Stability Program control unit |
5F |
| N49 |
Steering angle sensor |
4C |
| N80 |
Steering column module control unit |
7A |
| S1 |
Exterior lights switch |
16E |
| S1s10 |
Rear fog lamp button |
15E |
| S4 |
Combination switch |
4A |
| U165 |
Valid for AMG |
4E |
| U203 |
Valid without DISTRONIC PLUS |
4E |
| U74 |
Valid for diesel engines |
17J |
| U75 |
Valid for gasoline engines |
20J |
| U909 |
Valid for DISTRONIC PLUS |
4E |
| U986 |
Not valid for AMG |
4E |
| Y3/8n4 |
Fully integrated transmission control control unit |
26J |
