| 1 |
Exterior lights switch, status |
7D |
| 10 |
Instrument cluster message, request |
3D |
| 11 |
Warning buzzer, actuation |
4A |
| 2 |
Standing and parking lights, request |
10H |
| 2 |
Standing and parking lights, request |
8B |
| 2 |
Standing and parking lights, request |
34F |
| 2 |
Standing and parking lights, request |
28F |
| 2 |
Standing and parking lights, request |
33D |
| 2 |
Standing and parking lights, request |
39D |
| 3 |
Standing and parking lights, actuation |
17K |
| 3 |
Standing and parking lights, actuation |
21K |
| 3 |
Standing and parking lights, actuation |
19B |
| 3 |
Standing and parking lights, actuation |
15B |
| 3 |
Standing and parking lights, actuation |
21E |
| 3 |
Standing and parking lights, actuation |
13E |
| 3 |
Standing and parking lights, actuation |
11B |
| 3 |
Standing and parking lights, actuation |
30C |
| 3 |
Standing and parking lights, actuation |
23C |
| 3 |
Standing and parking lights, actuation |
38C |
| 3 |
Standing and parking lights, actuation |
33C |
| 4 |
License plate lamp, actuation |
20J |
| 5 |
Side-marker lamp, actuation |
19C |
| 5 |
Side-marker lamp, actuation |
15C |
| 5 |
Side-marker lamp, actuation |
30B |
| 5 |
Side-marker lamp, actuation |
23B |
| 5 |
Side-marker lamp, actuation |
39B |
| 5 |
Side-marker lamp, actuation |
32B |
| 6 |
Standing lights indicator lamp, request |
3D |
| 7 |
Circuit 15, status |
7E |
| 8 |
Door rotary tumbler switch, status |
7F |
| 9 |
Warning tone, request |
3D |

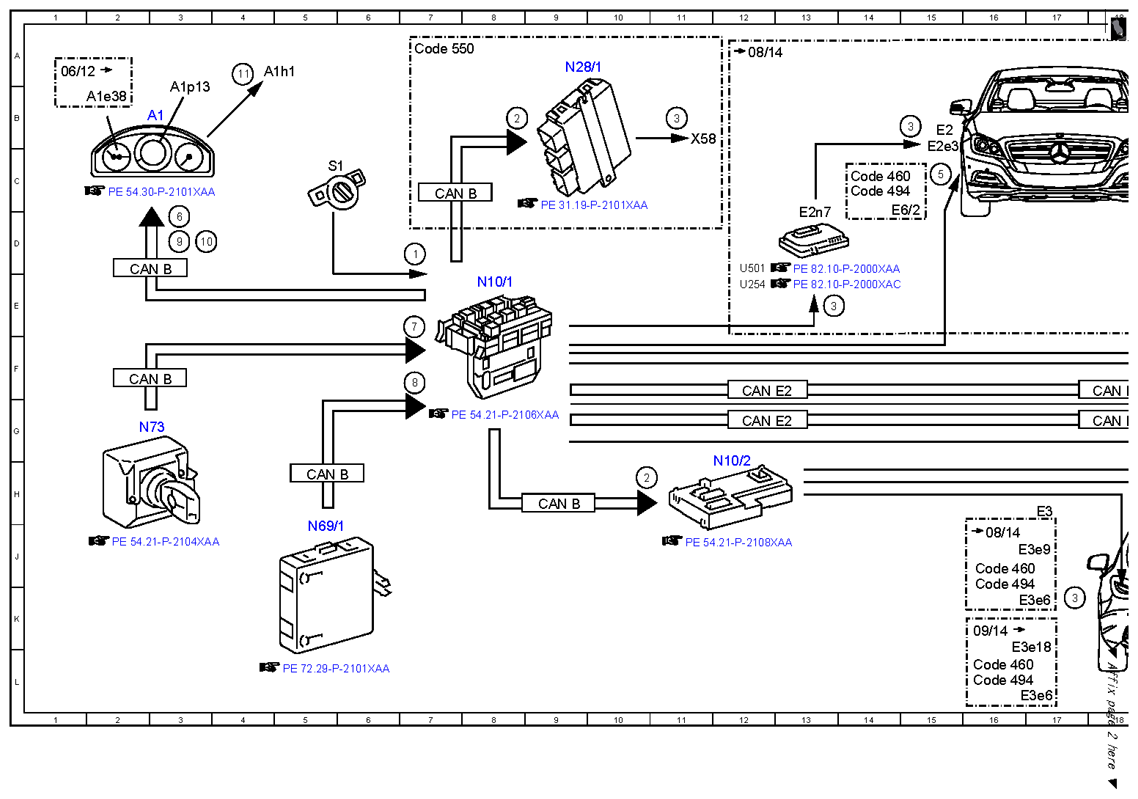

| A1 |
Instrument cluster |
2B |
| A1e38 |
Standing lamps indicator lamp |
2B |
| A1h1 |
Warning buzzer |
4A |
| A1p13 |
Multifunction display |
3B |
| CAN B |
Interior CAN |
9H |
| CAN B |
Interior CAN |
2D |
| CAN B |
Interior CAN |
2F |
| CAN B |
Interior CAN |
5H |
| CAN B |
Interior CAN |
7C |
| CAN E2 |
Chassis CAN 2 |
12G |
| CAN E2 |
Chassis CAN 2 |
31G |
| CAN E2 |
Chassis CAN 2 |
18G |
| CAN E2 |
Chassis CAN 2 |
12F |
| CAN E2 |
Chassis CAN 2 |
18F |
| CAN E2 |
Chassis CAN 2 |
26F |
| Code 460 |
Canada version |
22J |
| Code 460 |
Canada version |
16J |
| Code 460 |
Canada version |
19C |
| Code 460 |
Canada version |
14C |
| Code 460 |
Canada version |
29B |
| Code 460 |
Canada version |
24B |
| Code 460 |
Canada version |
38A |
| Code 460 |
Canada version |
33B |
| Code 460 |
Canada version |
16L |
| Code 460 |
Canada version |
22L |
| Code 494 |
USA version |
22K |
| Code 494 |
USA version |
16K |
| Code 494 |
USA version |
19C |
| Code 494 |
USA version |
14C |
| Code 494 |
USA version |
29B |
| Code 494 |
USA version |
24B |
| Code 494 |
USA version |
38B |
| Code 494 |
USA version |
33B |
| Code 494 |
USA version |
16L |
| Code 494 |
USA version |
22L |
| Code 550 |
Trailer hitch |
7A |
| Code 631 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for left-hand traffic |
31A |
| Code 632 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for right-hand traffic |
31A |
| Code 640 |
All-LED USA incl. ACTIVE MULTIBEAM LED |
22A |
| Code 641 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for left-hand traffic |
22A |
| Code 642 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for right-hand traffic |
22B |

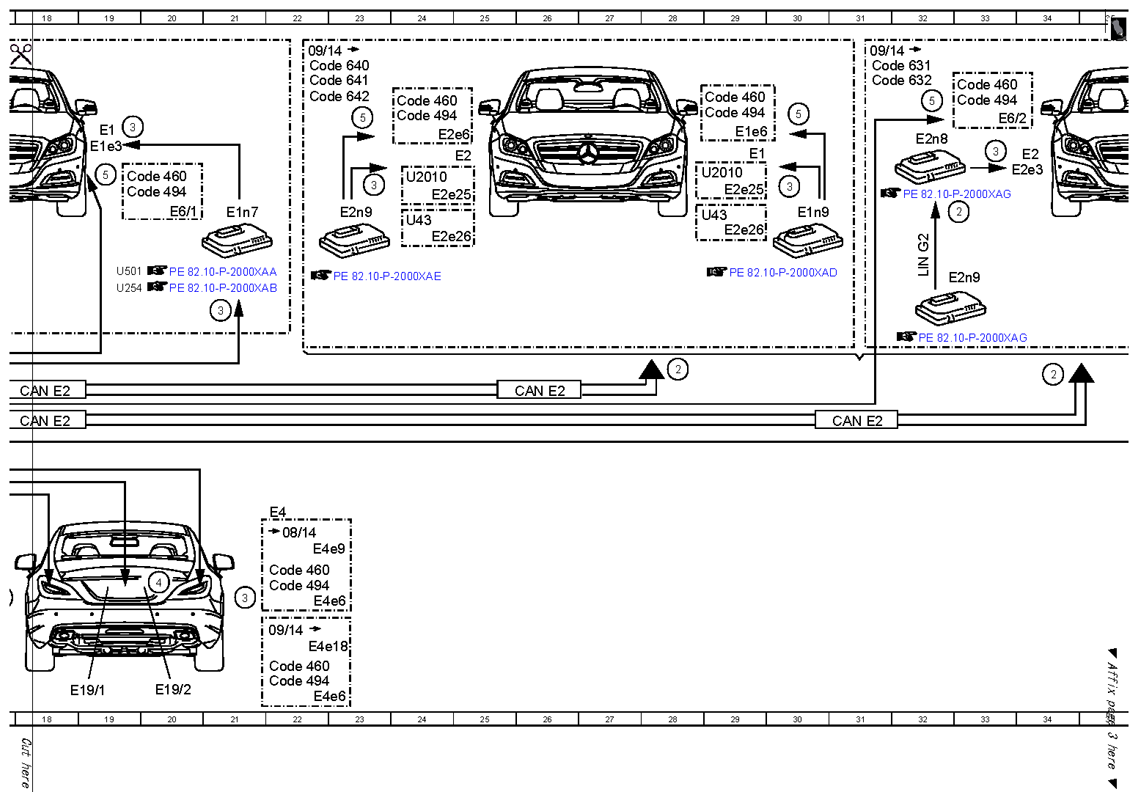

| E1 |
Left front lamp unit |
19B |
| E1 |
Left front lamp unit |
29C |
| E1 |
Left front lamp unit |
38C |
| E19/1 |
Left license plate lamp |
18L |
| E19/2 |
Right license plate lamp |
20L |
| E1e3 |
Left front standing and parking lamp |
19C |
| E1e3 |
Left front standing and parking lamp |
37C |
| E1e6 |
Left front side-marker lamp |
29B |
| E1n7 |
Actuation module 1 for left front exterior lights LED |
21D |

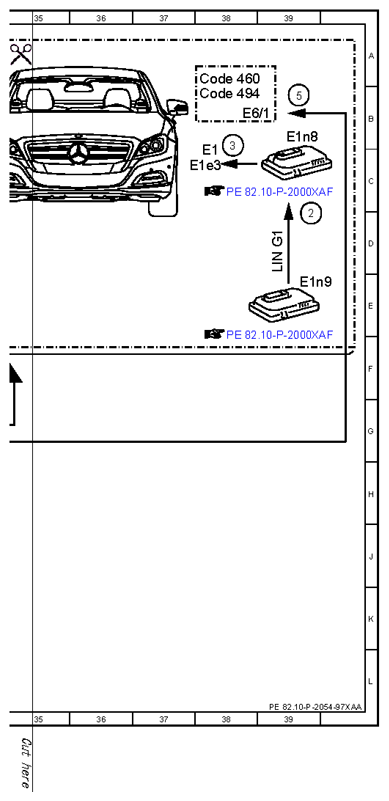

| E1n8 |
Actuation module 2 for left front exterior lights LED |
39B |
| E1n9 |
Left headlamp control unit |
30D |
| E1n9 |
Left headlamp control unit |
39E |
| E2 |
Right front lamp unit |
15B |
| E2 |
Right front lamp unit |
25C |
| E2 |
Right front lamp unit |
34C |
| E2e25 |
Right position light, daytime running light and turn signal light |
24C |
| E2e25 |
Right position light, daytime running light and turn signal light |
29C |
| E2e26 |
Right position light, daytime running light, turn signal light and ambient light |
24D |
| E2e26 |
Right position light, daytime running light, turn signal light and ambient light |
29D |
| E2e3 |
Right front standing and parking lamp |
15C |
| E2e3 |
Right front standing and parking lamp |
33C |
| E2e6 |
Right front side-marker lamp |
24B |
| E2n7 |
Actuation module 1 for right front exterior lights LED |
13D |
| E2n8 |
Actuation module 2 for right front exterior lights LED |
32B |
| E2n9 |
Right headlamp control unit |
23D |
| E2n9 |
Right headlamp control unit |
32E |
| E3 |
Left rear lamp unit |
17H |
| E3e18 |
Left taillamp |
16L |
| E3e6 |
Left side-marker lamp |
17L |
| E3e6 |
Left side-marker lamp |
17K |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
16J |
| E4 |
Right rear lamp unit |
22H |
| E4e18 |
Right taillamp |
22L |
| E4e6 |
Right side-marker lamp |
22L |
| E4e6 |
Right side-marker lamp |
22K |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
22J |
| E6/1 |
Left front side-marker lamp |
20D |
| E6/1 |
Left front side-marker lamp |
38B |
| E6/2 |
Right front side-marker lamp |
14D |
| E6/2 |
Right front side-marker lamp |
33B |
| LIN G1 |
Left headlamp LIN |
39D |
| LIN G2 |
Right headlamp LIN |
32D |
| N10/1 |
Front SAM control unit with fuse and relay module |
8E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12H |
| N28/1 |
Trailer recognition control unit |
9A |
| N69/1 |
Left front door control unit |
5J |
| N73 |
Electronic ignition switch control unit |
2G |
| S1 |
Exterior lights switch |
5C |
| U2010 |
Not valid for ECE |
24C |
| U2010 |
Not valid for ECE |
28C |
| U254 |
Valid for LED lamp unit |
19E |
| U254 |
Valid for LED lamp unit |
12E |
| U43 |
Valid for ECE |
24D |
| U43 |
Valid for ECE |
28D |
| U501 |
Valid for xenon headlamps |
19E |
| U501 |
Valid for xenon headlamps |
12D |
| X58 |
Trailer socket |
11B |
