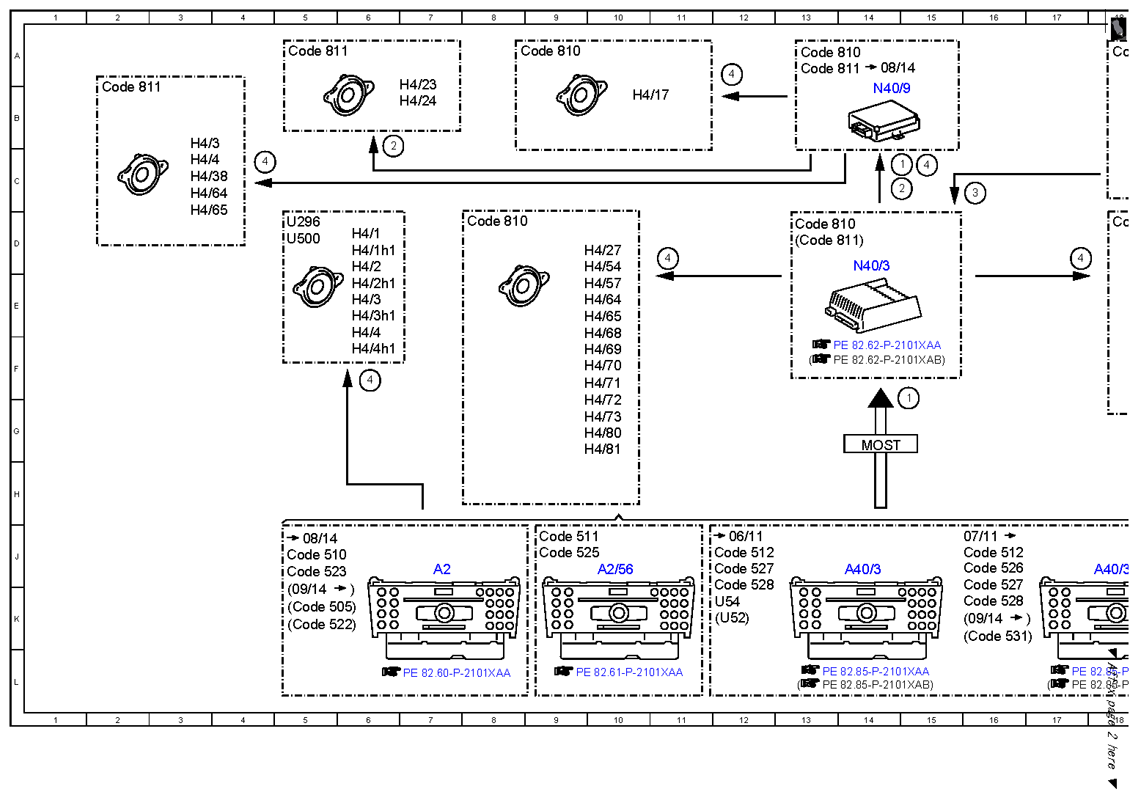

| 1 |
Audio, signal |
15G |
| 1 |
Audio, signal |
14C |
| 2 |
Speaker illumination, actuation |
6C |
| 2 |
Speaker illumination, actuation |
14C |
| 3 |
Microphone, signal |
16C |
| 4 |
Speaker, actuation |
17D |
| 4 |
Speaker, actuation |
12A |
| 4 |
Speaker, actuation |
11D |
| 4 |
Speaker, actuation |
4C |
| 4 |
Speaker, actuation |
6F |
| 4 |
Speaker, actuation |
15C |
| A2 |
Radio |
7J |
| A2/56 |
Radio with auto pilot system |
10J |
| A40/3 |
COMAND control unit |
14J |
| A40/3 |
COMAND control unit |
18J |

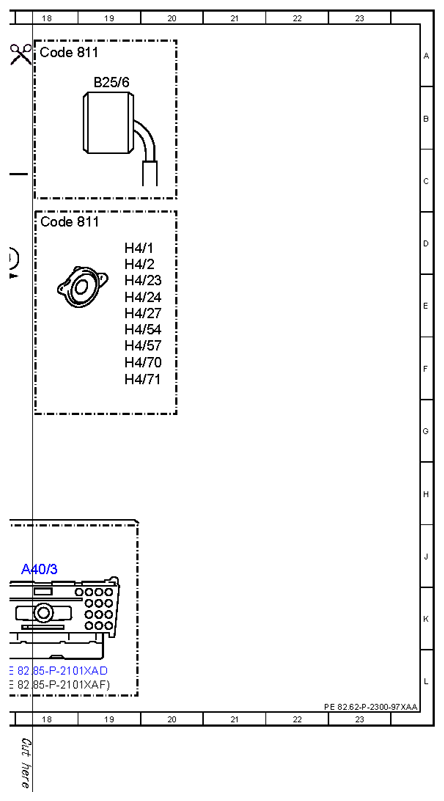

| B25/6 |
Sound system microphone |
19B |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
5K |
| Code 510 |
Audio 20 with CD changer |
5J |
| Code 511 |
Audio 50 APS incl. DVD changer |
9J |
| Code 512 |
COMAND APS with DVD changer |
12J |
| Code 512 |
COMAND APS with DVD changer |
16J |
| Code 522 |
Audio 20 radio |
5K |
| Code 523 |
Audio 20 radio |
5J |
| Code 525 |
Audio 50 APS radio (CD) |
9J |
| Code 526 |
COMAND with single DVD drive (without navigation) |
16J |
| Code 527 |
COMAND APS (with navigation) |
12J |
| Code 527 |
COMAND APS (with navigation) |
16K |
| Code 528 |
COMAND with DVD changer |
12K |
| Code 528 |
COMAND with DVD changer |
16K |
| Code 531 |
COMAND APS |
16K |
| Code 810 |
Sound system |
13D |
| Code 810 |
Sound system |
8D |
| Code 810 |
Sound system |
8A |
| Code 810 |
Sound system |
13A |
| Code 811 |
Extended sound system |
13D |
| Code 811 |
Extended sound system |
18D |
| Code 811 |
Extended sound system |
5A |
| Code 811 |
Extended sound system |
13A |
| Code 811 |
Extended sound system |
18A |
| Code 811 |
Extended sound system |
2B |
| H4/1 |
Left front door speaker |
6D |
| H4/1 |
Left front door speaker |
19D |
| H4/17 |
Bass speaker |
10B |
| H4/1h1 |
Left front door tweeter |
6D |
| H4/2 |
Right front door speaker |
6D |
| H4/2 |
Right front door speaker |
19D |
| H4/23 |
Left front door speaker, mirror triangle |
19E |
| H4/23 |
Left front door speaker, mirror triangle |
7B |
| H4/24 |
Right front door speaker, mirror triangle |
19E |
| H4/24 |
Right front door speaker, mirror triangle |
7B |
| H4/27 |
Center instrument panel speaker |
19E |
| H4/27 |
Center instrument panel speaker |
9D |
| H4/2h1 |
Right front door tweeter |
6E |
| H4/3 |
Left rear door speaker |
6E |
| H4/3 |
Left rear door speaker |
3B |
| H4/38 |
Rear bass speaker |
3C |
| H4/3h1 |
Left rear door tweeter |
6E |
| H4/4 |
Right rear door speaker |
6F |
| H4/4 |
Right rear door speaker |
3C |
| H4/4h1 |
Right rear door tweeter |
6F |
| H4/54 |
Left rear surround speaker |
19E |
| H4/54 |
Left rear surround speaker |
9D |
| H4/57 |
Right rear surround speaker |
19F |
| H4/57 |
Right rear surround speaker |
9E |
| H4/64 |
Left front door sound system bass speaker |
9E |
| H4/64 |
Left front door sound system bass speaker |
3C |
| H4/65 |
Right front door sound system bass speaker |
9E |
| H4/65 |
Right front door sound system bass speaker |
3D |
| H4/68 |
Left front door sound system tweeter |
9F |
| H4/69 |
Right front door sound system tweeter |
9F |
| H4/70 |
Left rear door sound system tweeter |
19F |
| H4/70 |
Left rear door sound system tweeter |
9F |
| H4/71 |
Right rear door sound system tweeter |
19F |
| H4/71 |
Right rear door sound system tweeter |
9F |
| H4/72 |
Left front door sound system midrange speaker |
9G |
| H4/73 |
Right front door sound system midrange speaker |
9G |
| H4/80 |
Left rear door sound system midrange speaker |
9G |
| H4/81 |
Right rear door sound system midrange speaker |
9G |
| MOST |
Media Oriented System Transport |
14G |
| N40/3 |
Sound system amplifier control unit |
14D |
| N40/9 |
Rear bass speaker amplifier |
14B |
| U296 |
Not valid for expanded sound system |
5D |
| U500 |
Not valid for sound system |
5D |
| U52 |
Valid for Japan |
12K |
| U54 |
Valid for all except Japan |
12K |
