| 1 |
Circuit 15, status |
9J |
| 2 |
Brake light switch, status |
8B |
| 3 |
Brake lights, request |
11H |
| 3 |
Brake lights, request |
13G |
| 3 |
Brake lights, request |
18J |
| 4 |
Circuit 54, status |
14E |
| 4 |
Circuit 54, status |
20H |
| 5 |
Brake lights, actuation |
20B |
| 5 |
Brake lights, actuation |
18D |
| 5 |
Brake lights, actuation |
22D |
| 5 |
Brake lights, actuation |
22J |
| 6 |
Vehicle speed, signal |
9H |
| 7 |
Emergency stop, signal |
13G |
| 7 |
Emergency stop, signal |
11G |
| 7 |
Emergency stop, signal |
17J |
| 8 |
Brake light dark phase, signal |
18H |
| 9 |
Flashing brake lights, actuation |
18D |
| 9 |
Flashing brake lights, actuation |
22D |
| 9 |
Flashing brake lights, actuation |
20B |
| 9 |
Flashing brake lights, actuation |
22J |
| A1 |
Instrument cluster |
6F |
| CAN B |
Interior CAN |
12H |
| CAN B |
Interior CAN |
6K |
| CAN B |
Interior CAN |
6H |
| CAN B |
Interior CAN |
16J |
| CAN B |
Interior CAN |
14K |
| CAN E |
Chassis CAN |
11F |
| CAN E1 |
Chassis CAN 1 |
11F |

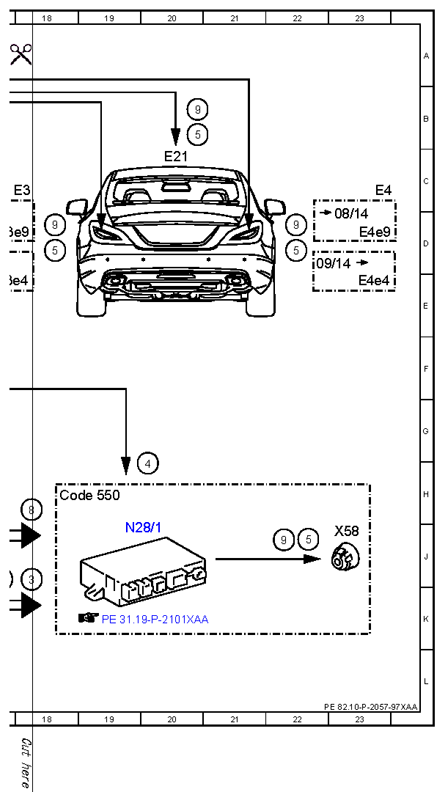

| Code 550 |
Trailer hitch |
18H |
| E21 |
Center stop lamp |
20C |
| E3 |
Left rear lamp unit |
17C |
| E3e4 |
Left stop lamp |
17E |
| E3e9 |
Left stop lamp and taillamp and parking lamp |
17D |
| E4 |
Right rear lamp unit |
23C |
| E4e4 |
Right stop lamp |
23E |
| E4e9 |
Right stop lamp and taillamp and parking lamp |
23D |
| N10/1 |
Front SAM control unit with fuse and relay module |
10H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
15F |
| N28/1 |
Trailer recognition control unit |
19J |
| N30/4 |
Electronic Stability Program control unit |
10B |
| N30/7 |
Premium Electronic Stability Program control unit |
10B |
| N73 |
Electronic ignition switch control unit |
2J |

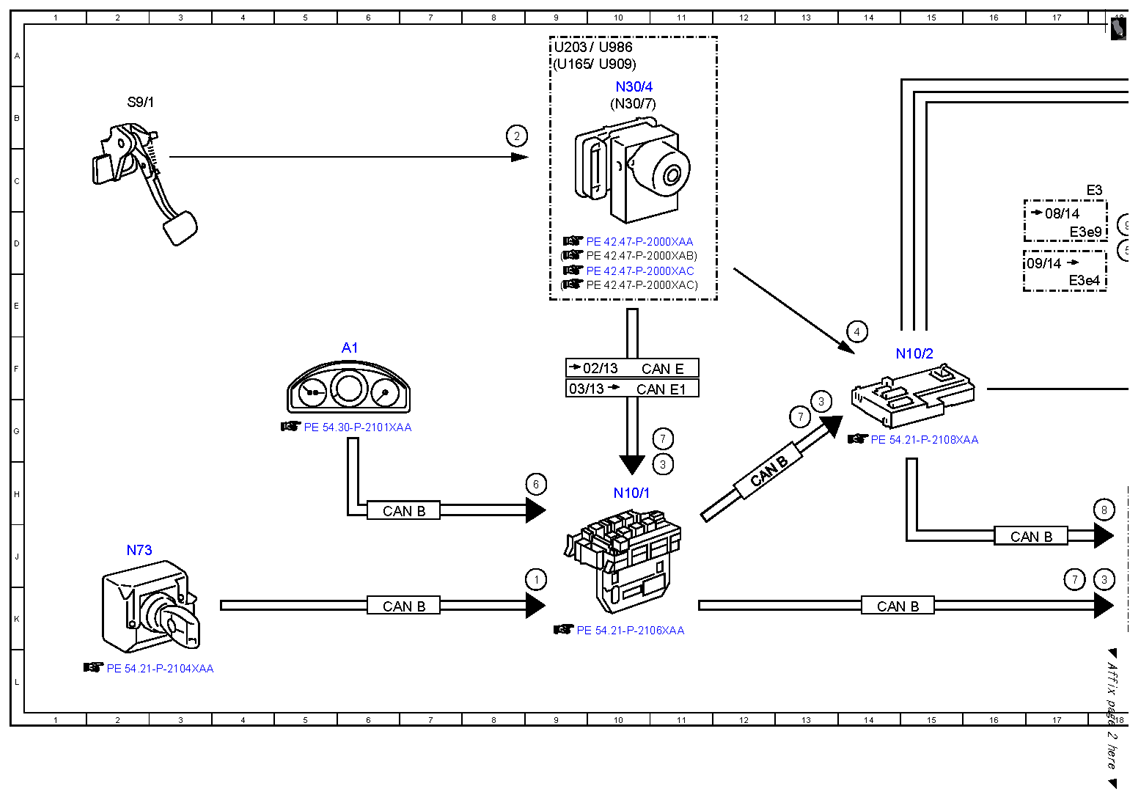

| S9/1 |
Stop lamp switch |
2B |
| U165 |
Valid for AMG |
9A |
| U203 |
Valid without DISTRONIC PLUS |
9A |
| U909 |
Valid for DISTRONIC PLUS |
10A |
| U986 |
Not valid for AMG |
10A |
| X58 |
Trailer socket |
23J |
