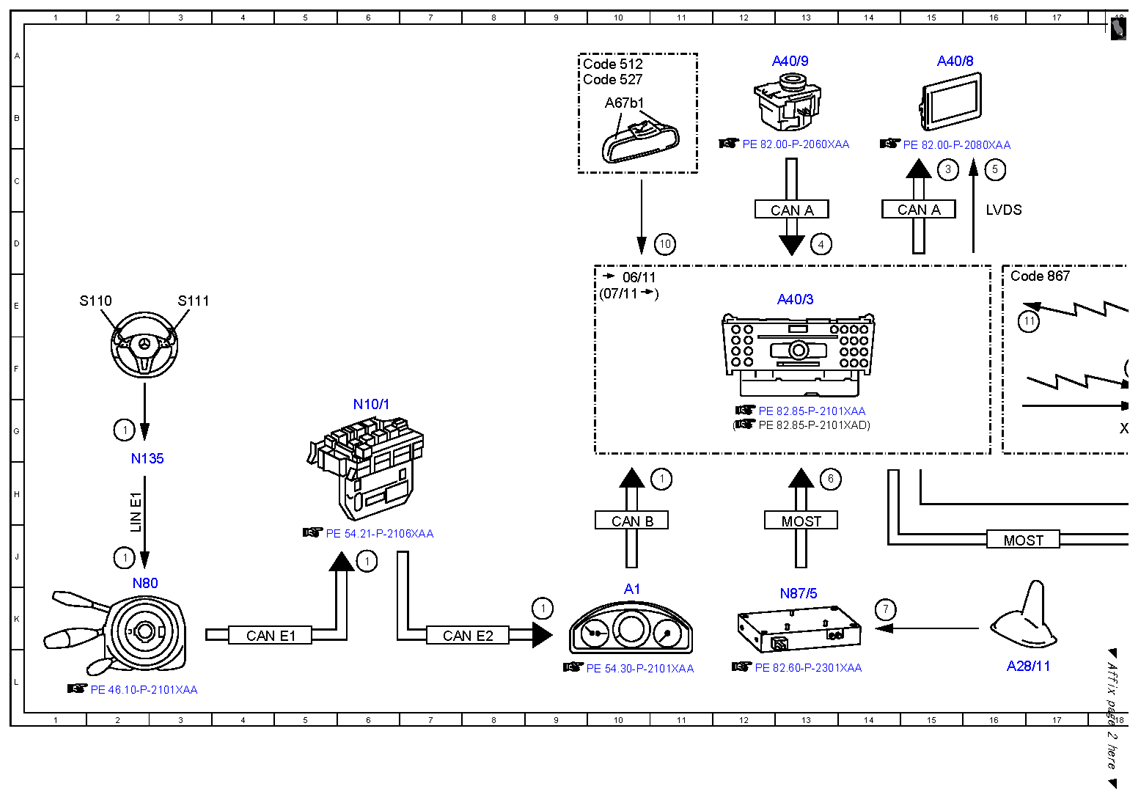

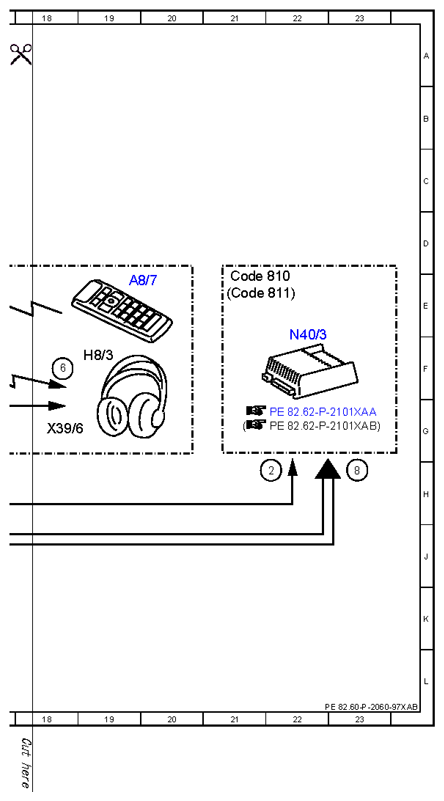

| 1 |
Multifunction steering wheel button group, signal |
2J |
| 1 |
Multifunction steering wheel button group, signal |
11H |
| 1 |
Multifunction steering wheel button group, signal |
2G |
| 1 |
Multifunction steering wheel button group, signal |
6J |
| 1 |
Multifunction steering wheel button group, signal |
9K |
| 10 |
Voice input, signal |
11D |
| 11 |
Operation, signal |
16E |
| 2 |
Wake-up, signal |
22H |
| 3 |
Switch-on request, signal |
15C |
| 4 |
Audio/COMAND controller, request |
13D |
| 5 |
Audio applications, signal |
16C |
| 6 |
Audio, signal |
13H |
| 6 |
Audio, signal |
18F |
| 7 |
SDAR antenna, signal |
14K |
| 8 |
Sound system amplifier, actuation |
23H |
| A1 |
Instrument cluster |
10K |
| A28/11 |
Multifunction antenna |
16L |
| A40/3 |
COMAND control unit |
13E |
| A40/8 |
Audio/COMAND display |
15A |
| A40/9 |
Audio/COMAND control panel |
13A |
| A67b1 |
Hands-free system microphone |
10B |
| A8/7 |
Remote control |
19E |
| CAN A |
Telematics CAN |
13D |
| CAN A |
Telematics CAN |
15D |
| CAN B |
Interior CAN |
10J |
| CAN E1 |
Chassis CAN 1 |
4K |
| CAN E2 |
Chassis CAN 2 |
7K |
| Code 512 |
COMAND APS with DVD changer |
9A |
| Code 527 |
COMAND APS (with navigation) |
9A |
| Code 810 |
Sound system |
21E |
| Code 811 |
Extended sound system |
21E |
| Code 867 |
SPLITVIEW |
16E |
| H8/3 |
Radio frequency headphones |
19F |
| LIN E1 |
Steering LIN |
2H |
| LVDS |
Low voltage differential signal |
16D |
| MOST |
Media Oriented System Transport |
13J |
| MOST |
Media Oriented System Transport |
16J |
| N10/1 |
Front SAM control unit with fuse and relay module |
6G |
| N135 |
Steering wheel electronics |
2H |
| N40/3 |
Sound system amplifier control unit |
22F |
| N80 |
Steering column module control unit |
2K |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
13K |
| S110 |
Left multifunction steering wheel button group |
2E |
| S111 |
Right multifunction steering wheel button group |
3E |
| X39/6 |
Headphones electrical connector (cabled) |
18G |
