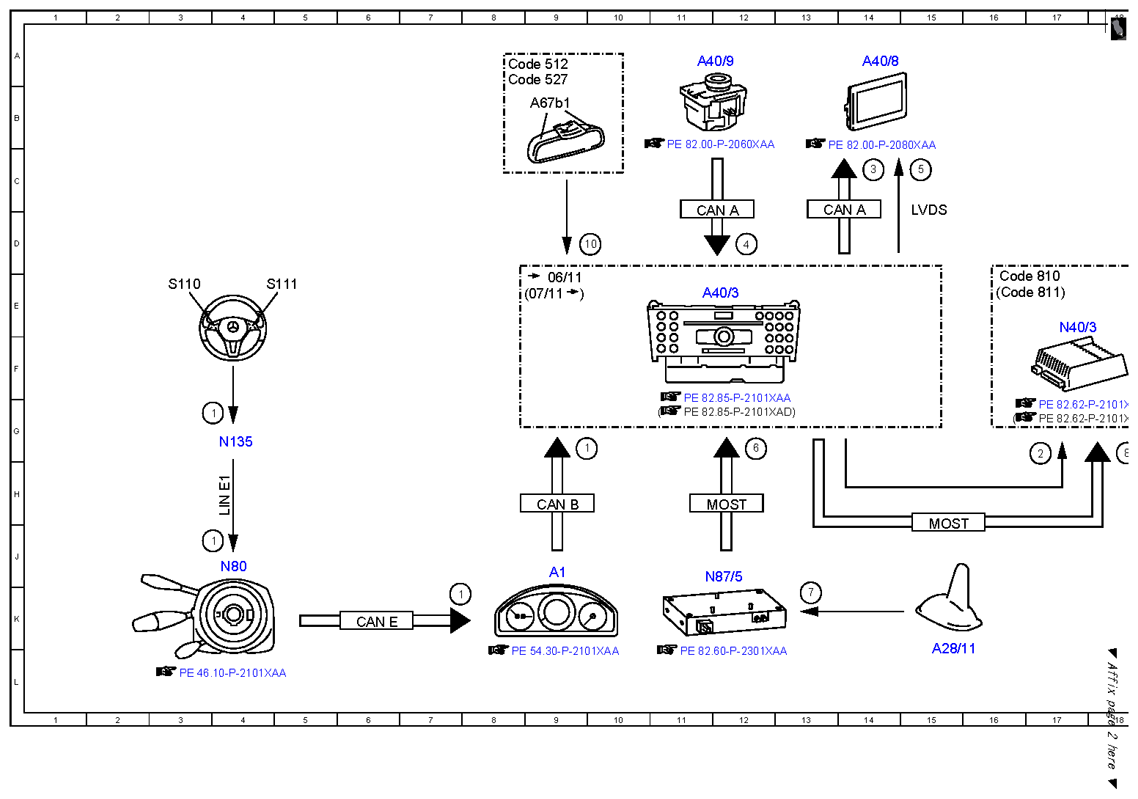

| 1 |
Multifunction steering wheel button group, signal |
3J |
| 1 |
Multifunction steering wheel button group, signal |
7K |
| 1 |
Multifunction steering wheel button group, signal |
9G |
| 1 |
Multifunction steering wheel button group, signal |
3G |
| 10 |
Voice input, signal |
9D |
| 2 |
Wake-up, signal |
17G |
| 3 |
Switch-on request, signal |
14C |
| 4 |
Audio/COMAND controller, request |
12D |
| 5 |
Audio applications, signal |
15C |
| 6 |
Audio, signal |
12G |
| 7 |
SDAR antenna, signal |
13K |
| 8 |
Sound system amplifier, actuation |
18G |
| A1 |
Instrument cluster |
9J |
| A28/11 |
Multifunction antenna |
15L |
| A40/3 |
COMAND control unit |
11E |
| A40/8 |
Audio/COMAND display |
14A |
| A40/9 |
Audio/COMAND control panel |
11A |
| A67b1 |
Hands-free system microphone |
9B |
| CAN A |
Telematics CAN |
11D |
| CAN A |
Telematics CAN |
13D |
| CAN B |
Interior CAN |
9H |
| CAN E |
Chassis CAN |
6K |
| Code 512 |
COMAND APS with DVD changer |
8A |
| Code 527 |
COMAND APS (with navigation) |
8A |
| Code 810 |
Sound system |
16E |
| Code 811 |
Extended sound system |
16E |
| LIN E1 |
Steering LIN |
4H |
| LVDS |
Low voltage differential signal |
15D |
| MOST |
Media Oriented System Transport |
12H |
| MOST |
Media Oriented System Transport |
15J |
| N135 |
Steering wheel electronics |
4G |
| N40/3 |
Sound system amplifier control unit |
17E |
| N80 |
Steering column module control unit |
4J |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
12J |
| S110 |
Left multifunction steering wheel button group |
3E |
| S111 |
Right multifunction steering wheel button group |
4E |
