| 1 |

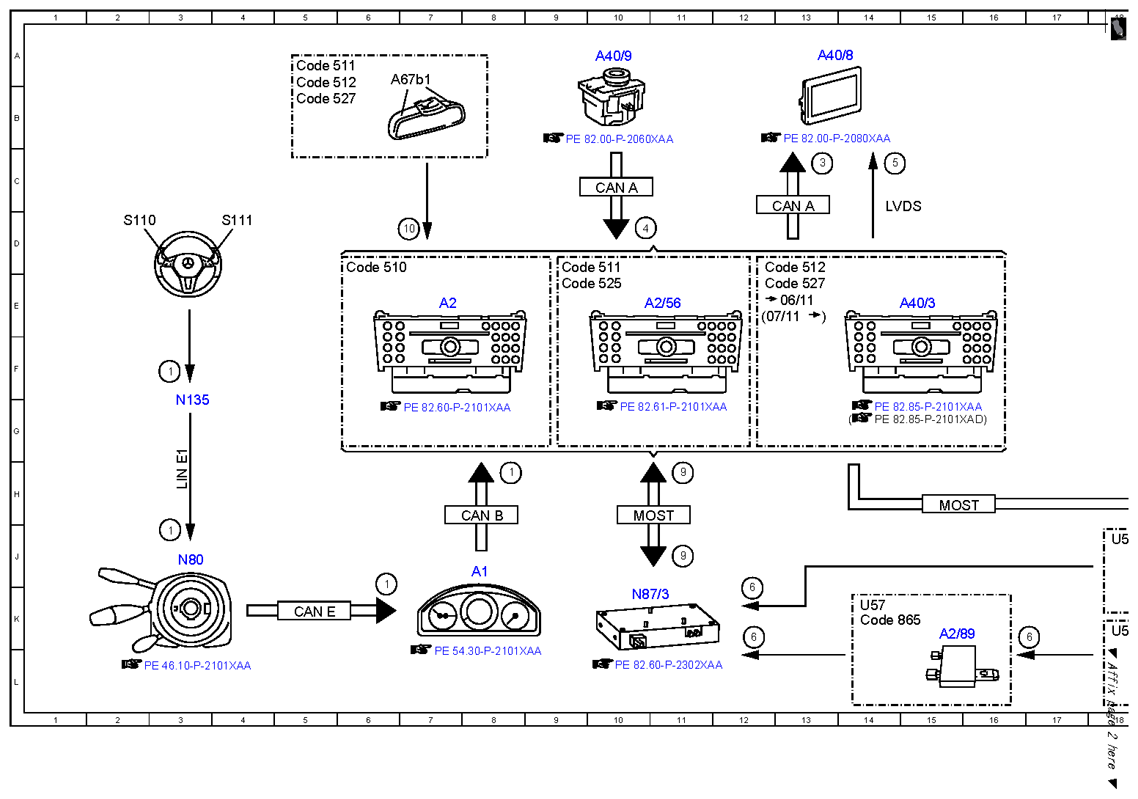

Multifunction steering wheel button group, signal |
3F |
| 1 |
Multifunction steering wheel button group, signal |
6K |
| 1 |
Multifunction steering wheel button group, signal |
8H |
| 1 |
Multifunction steering wheel button group, signal |
3J |
| 10 |
Voice input, signal |
7D |
| 3 |
Switch-on request, signal |
13C |
| 4 |
Audio/COMAND controller, request |
10D |
| 5 |
Audio/COMAND display, message |
14C |
| 6 |
DAB band III, signal |
12K |
| 6 |
DAB band III, signal |
17K |
| 7 |
Sound system amplifier, actuation |
20H |
| 9 |
DAB, communication |
11H |
| 9 |
DAB, communication |
11J |
| A1 |
Instrument cluster |
8J |
| A2 |
Radio |
7E |
| A2/19 |
FM 2 and DAB antenna amplifier |
19J |
| A2/19 |
FM 2 and DAB antenna amplifier |
19L |
| A2/56 |
Radio with auto pilot system |
10E |
| A2/89 |
TV antenna splitter |
15K |
| A40/3 |
COMAND control unit |
14E |
| A40/8 |
Audio/COMAND display |
13A |
| A40/9 |
Audio/COMAND control panel |
10A |
| A67b1 |
Hands-free system microphone |
7A |
| CAN A |
Telematics CAN |
10C |
| CAN A |
Telematics CAN |
13C |
| CAN B |
Interior CAN |
8H |
| CAN E |
Chassis CAN |
5K |
| Code 510 |
Audio 20 with CD changer |
6D |
| Code 511 |
Audio 50 APS incl. DVD changer |
5A |
| Code 511 |
Audio 50 APS incl. DVD changer |
9D |
| Code 512 |
COMAND APS with DVD changer |
5B |
| Code 512 |
COMAND APS with DVD changer |
12D |
| Code 525 |
Audio 50 APS radio (CD) |
9E |
| Code 527 |
COMAND APS (with navigation) |
5B |
| Code 527 |
COMAND APS (with navigation) |
12E |
| Code 810 |

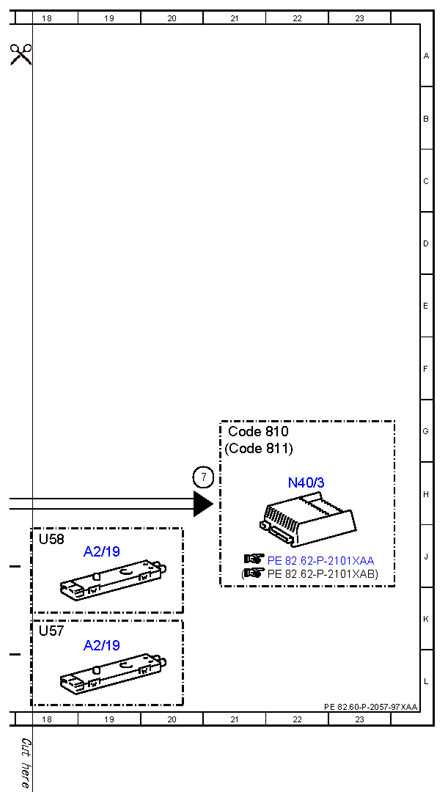

Sound system |
21G |
| Code 811 |
Extended sound system |
21G |
| Code 865 |
TV tuner (digital) |
14K |
| LIN E1 |
Steering LIN |
3H |
| LVDS |
Low voltage differential signal |
14C |
| MOST |
Media Oriented System Transport |
10H |
| MOST |
Media Oriented System Transport |
15H |
| N135 |
Steering wheel electronics |
3G |
| N40/3 |
Sound system amplifier control unit |
22H |
| N80 |
Steering column module control unit |
3J |
| N87/3 |
Digital Audio Broadcasting control unit |
10K |
| S110 |
Left multifunction steering wheel button group |
2D |
| S111 |
Right multifunction steering wheel button group |
4D |
| U57 |
Valid for model 218.9 |
18K |
| U57 |
Valid for model 218.9 |
14K |
| U58 |
Valid for model 218.3 |
18J |
