Remove/install radio display - AR82.60-P-7722EL
MODEL 218 up to model year 2015 with CODE 510 (Audio 20 with CD changer)
MODEL 218 up to model year 2015 with CODE 511 (Audio 50 APS with DVD changer)
MODEL 218 up to model year 2015 with CODE 512 (COMAND APS with DVD changer)
MODEL 218 up to model year 2015 with CODE 523 (MB Audio 20 radio)
MODEL 218 up to model year 2015 with CODE 525 (MB Audio 50 APS radio)
MODEL 218 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation))
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of Audio/COMAND display (A40/8) | When replacing Audio/COMAND display (A408). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove passenger side trim piece from instrument panel | AR68.10-P-1180EL | |

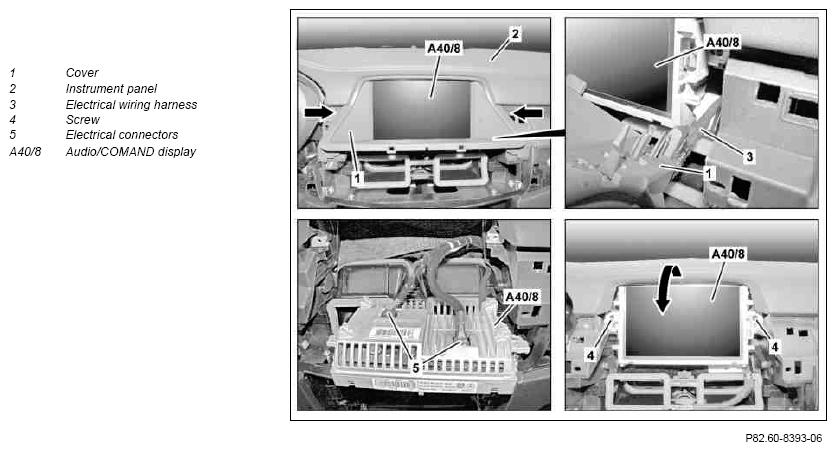

| 3 | Unclip cover (1) on catch hooks (arrows) from instrument cluster (2) by hand | ||
| 4 | Unclip electrical wiring harness (3) from cover (1) and remove cover (1) | ||
| 5 | Remove screws/bolts (4) | ||
| 6 | Tilt Audio/COMAND display (A40/8) backwards at the top and take out far enough from instrument panel (2) until electrical connectors (5) are accessible | Otherwise there is a risk that the electrical connectors (5) and the screen surface may be damaged. |
|
| 7 | Disconnect electrical connectors (5) and remove Audio/COMAND display (A40/8) | ||
| 8 | Install in the reverse order |
