Remove/install emergency call system backup antenna - AR82.95-P-0018EL
MODEL 218.3 with CODE 348 (Emergency call/assistant system)
MODEL 218.3 with CODE 350 (Ecall emergency call system, Europe)
MODEL 218.3 with CODE 359 (TELE AID emergency call system)
MODEL 218.3 with CODE B54 (Live Traffic Information)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 218.3 with CODE 348 (Emergency call/assistant system) without CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE 350 (Ecall emergency call system, Europe) without CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE 359 (TELE AID emergency call system) without CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE B54 (Live Traffic Information) without CODE 889 (KEYLESS-GO) |
|
| 1.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 218.3 with CODE 348 (Emergency call/assistant system) with CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE 350 (Ecall emergency call system, Europe) with CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE 359 (TELE AID emergency call system) with CODE 889 (KEYLESS-GO) MODEL 218.3 with CODE 889 (KEYLESS-GO) with CODE B54 (Live Traffic Information) |
|
| 2 | Remove C-pillar paneling | AR68.30-P-4490EL | |
| 3 | Remove rear shelf paneling | ||
| 4 | Lift up insulation mat | ||

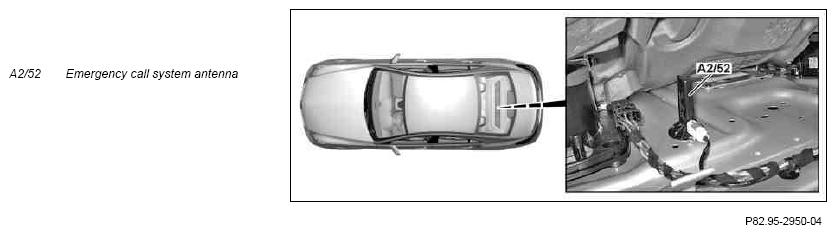

| 5 | Disconnect electrical connector from emergency call system antenna (A2/52) | ||
| 6 | Turn emergency call system antenna (A2/52) in counterclockwise direction and remove | ||
| 7 | Install in the reverse order |
