Remove/install driving lights actuation module - AR82.10-P-4650EL
MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic)
MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic)
MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED)
MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic)
MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic)
MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function)
MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic))
MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System)

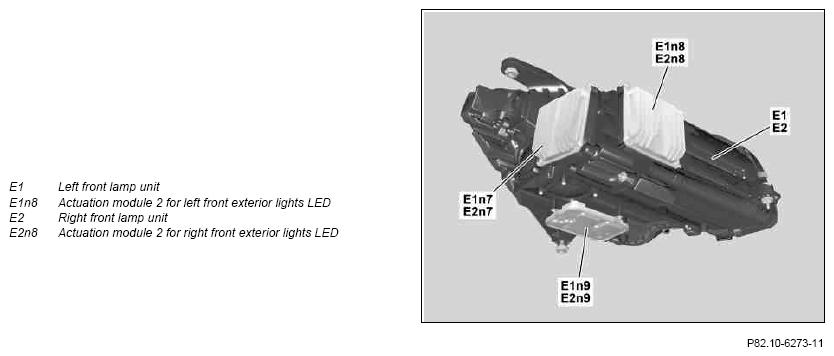

With CODE 615 (LED high performance headlamp) or with CODE 621 (Intelligent Light System (left-hand traffic)) or with CODE 622 (Intelligent Light System (right-hand traffic)), or with CODE 631 (Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for left-hand traffic) or CODE 632 (Full LED headlamp (without ILS) daytime running lamps integrated in headlamp, for right-hand traffic), shown on left front lamp unit (E1) up to model year 2015 with CODE 622 (Intelligent Light System (right-hand traffic))

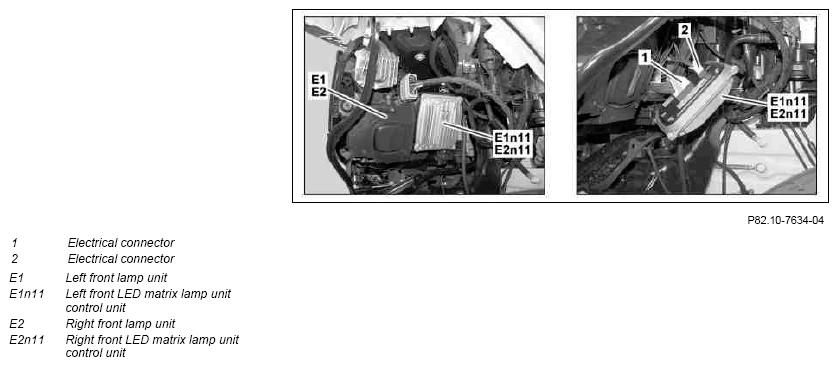

With CODE 640 (Full LED headlamp with ACTIVE MULTI-BEAM LED) or with CODE 641 (Full LED headlamp with ILS and ACTIVE MULTI-BEAM LED (USP!) with new light design, dynamic LED for left-hand traffic) or with CODE 642 (Full LED headlamp with ILS and ACTIVE MULTI-BEAM LED (USP!) with new light design, dynamic LED for right-hand traffic), shown on left front lamp unit (E1) with CODE 642 (Full LED headlamp with ILS and ACTIVE MULTI-BEAM LED (USP!) with new light design, dynamic LED for right-hand traffic)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Carry out initial startup of left front actuation module 2, LED exterior lighting (E1n8) or right front actuation module 2, LED exterior lighting (E2n8) | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System) When replacing left front actuation module 2, LED exterior lighting (E1n8) or right front actuation module 2, LED exterior lighting (E2n8). |
|
| AD00.00-P-2000-04A | |||
| 1.2 | Perform initial startup of left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) | MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) When replacing left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11). |
|
| AD00.00-P-2000-04A | |||
| 2.1 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | MODEL 218 except CODE 889 (KEYLESS-GO) | |
| 2.2 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | MODEL 218 with CODE 889 (KEYLESS-GO) | |
| 3.1 | Remove left front lamp unit (E1) or right front lamp unit (E2) | MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System) |
|
| AR82.10-P-4730EL | |||
| 3.2 | Remove fender liner front section from left or right front fender | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
|
| AR88.10-P-1300ELX | |||
| 4.1 | Unscrew screws/bolts from left front actuation module 2, LED exterior lighting (E1n8) or right front actuation module 2, LED exterior lighting (E2n8) | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System) |
|
| 4.2 | Unscrew screws/bolts from left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) | MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
|
| 5.1 | Pull out left front actuation module 2, LED exterior lighting (E1n8) or right front actuation module 2, LED exterior lighting (E2n8) far enough for electrical connectors to be disconnected | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System) |
|
| 5.2 | Pull out left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) far enough for electrical connectors (1, 2) to be disconnected | MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
|
| 6.1 | Disconnect electrical connectors and remove left front actuation module 2, LED exterior lighting (E1n8) or right front actuation module 2, LED exterior lighting (E2n8) | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Headlamps, LED, static, right-side traffic) MODEL 218 up to model year 2015 with CODE 615 (Bi-xenon headlamps with active light function) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System) |
|
| 6.2 | Disconnect electrical connectors (1, 2) and remove left front LED matrix lamp unit control unit (E1n11) or right front LED matrix lamp unit control unit (E2n11) | MODEL 218 as of model year 2015 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) MODEL 218 as of model year 2015 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) |
|
| 7 | Install in the reverse order |
