Retrofit Audio 50 APS with DVD changer - AN82.61-P-0007EL

MODEL 218.3## (except 218.362/374/375/376) 1# up to 2/28/13 up to model year 2014 with CODE 525 (MB Audio 50 APS radio) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 218.3## (except 218.374/375/376/392) 1# up to 2/28/13 up to model year 2014 with CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 218.3## (except 218.374/375/376/392) 1# up to 2/28/13 up to model year 2014 with CODE 523 (Audio 20 CD) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

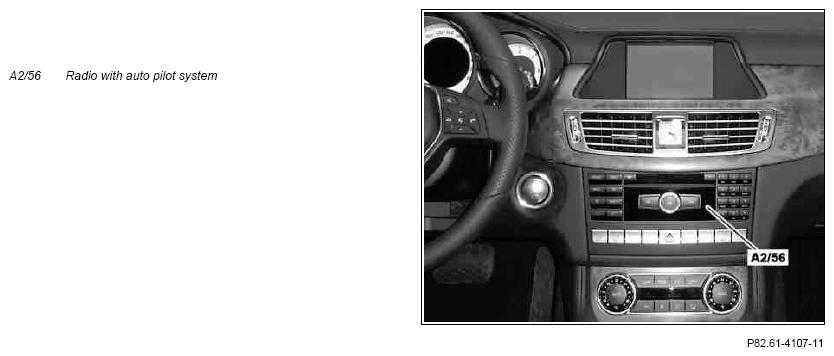

Fig 1: Identifying Radio With Auto Pilot System

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove Audio 20 radio or Audio 20 radio with CD changer or Audio 50 APS radio with auto pilot system (A2/56)
			AR82.60-P-7502EW
		The removed audio component is no longer required.	AR82.60-P-7502EW
2	Remove left front door sill	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
3	Remove left rear door sill molding	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
4	Remove molding from left C-pillar	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
	Remove molding from left C-pillar		AR68.30-P-4490EL
5.1	Remove multifunction antenna	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 228 (Stationary heater) with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 228 (Stationary heater) with CODE 523 (MB Audio 20 radio), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 386 (Comfort telephony) with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 386 (Comfort telephony) with CODE 523 (MB Audio 20 radio)
			AR82.70-P-8951EL
		The multifunction antenna is no longer required.	AR82.70-P-8951EL
5.2	Remove multifunction antenna mock-up	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer) and except CODE 228 (Stationary heater) except CODE 386 (Comfort telephony), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio) and except CODE 228 (Stationary heater) except CODE 386 (Comfort telephony) The removal of the multifunction antenna mock-up is performed in the same manner as the removal of the multifunction antenna. The multifunction antenna mock-up is no longer required.
6	Remove left side bolster of rear backrest	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 287 (Folding rear seat backrests) with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 287 (Folding rear seat backrests) with CODE 523 (MB Audio 20 radio)
	Remove left side bolster of rear backrest		AR91.12-P-1710CW
7	Remove backrest in rear	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer) and except CODE 287 (Folding rear seat backrests), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio) and except CODE 287 (Folding rear seat backrests)
	Remove backrest in rear		AR91.12-P-1620CW
8	Remove left side trim in rear passenger compartment	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
9	Remove front center console	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
	Remove front center console		AR68.20-P-2000EL
10	Remove upper paneling from left B-pillar and place to one side with seat belt installed	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
11	Remove lower molding from left B-pillar	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
12	Release driver seat and place toward rear with the electrical lines still connected	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
			AR91.10-P-1000CW
	Install
13	Install new multifunction antenna	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
	Install new multifunction antenna		AR82.70-P-8951EL
14	Retrofit global positioning system (GPS) antenna line	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio)
14	Retrofit global positioning system (GPS) antenna line		AN82.61-P-7474-01EL
15	Retrofit Audio 50 APS radio with auto pilot system (A2/56) with DVD changer
			AR82.60-P-7502EW
16	Install remaining parts	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer), MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio) Operation steps 12 to 6 and operation steps 4 to 2.
	Update Vehicle Documentation (VeDoc)
17.1	Delete special equipment in on-line vehicle data card	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 510 (Audio 20 with CD changer) Code 510 (Audio 20 with CD changer)
17.2	Delete special equipment in on-line vehicle data card	MODEL 218.3## (except 218.374/375/376/392) 1# up to 28.02.13 with CODE 523 (MB Audio 20 radio) CODE 523 (MB Audio 20 radio)
17.3	Delete special equipment in on-line vehicle data card	MODEL 218.3## (except 218.362/374/375/376) 1# up to 28.02.13 with CODE 525 (MB Audio 50 APS radio) CODE 525 (MB Audio 50 APS radio)
18	Enter special equipment in on-line vehicle data card	Code 511 (Audio 50 APS with DVD changer)
19	Attach note "Audio 50 APS with DVD changer retrofitted as per AN82.61-P-0007EL " under field organization texts to design group 82.
20	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
21	Carry out variant coding using software calibration number (SCN)	"Instrument cluster" "Radio with auto pilot system (A2/56) Audio 50 APS with DVD changer"
22	Disconnect diagnostic system
	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
23	Perform function test	See operator's manual for radio with auto pilot system (A2/56) Audio 50 APS with DVD changer.

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 99 (see EPC)	Audio 50 APS with DVD changer package	1
