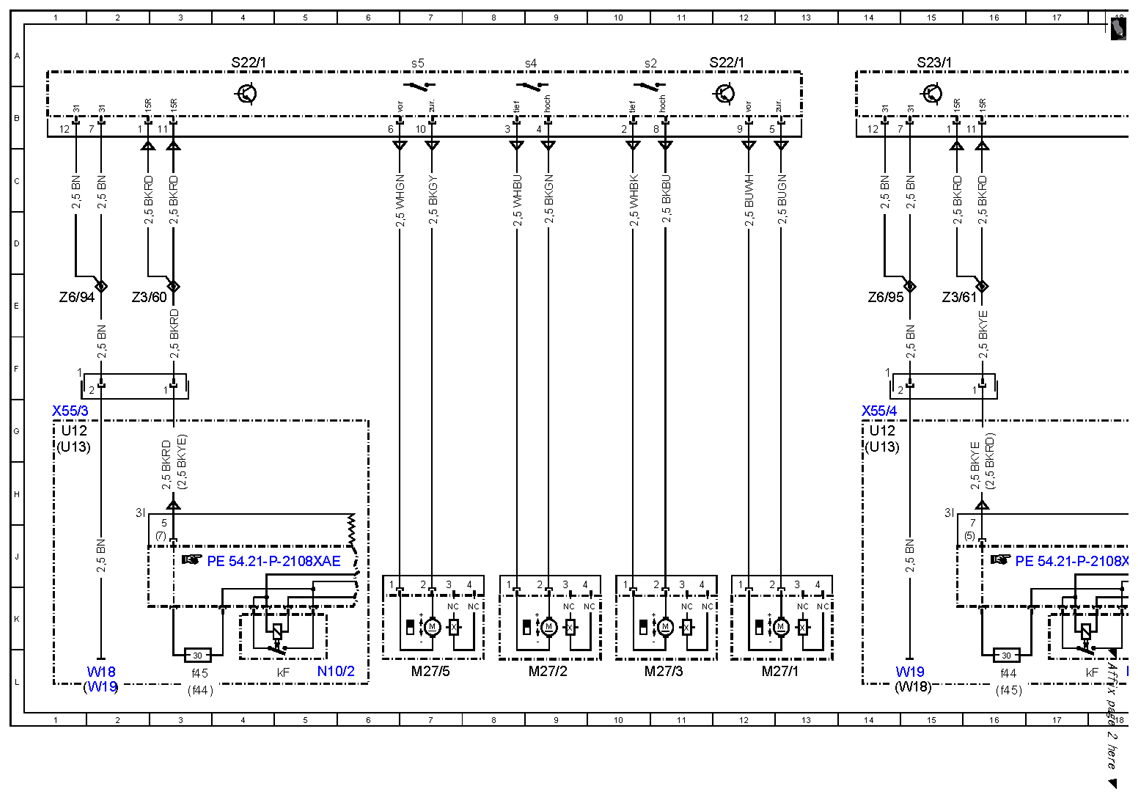

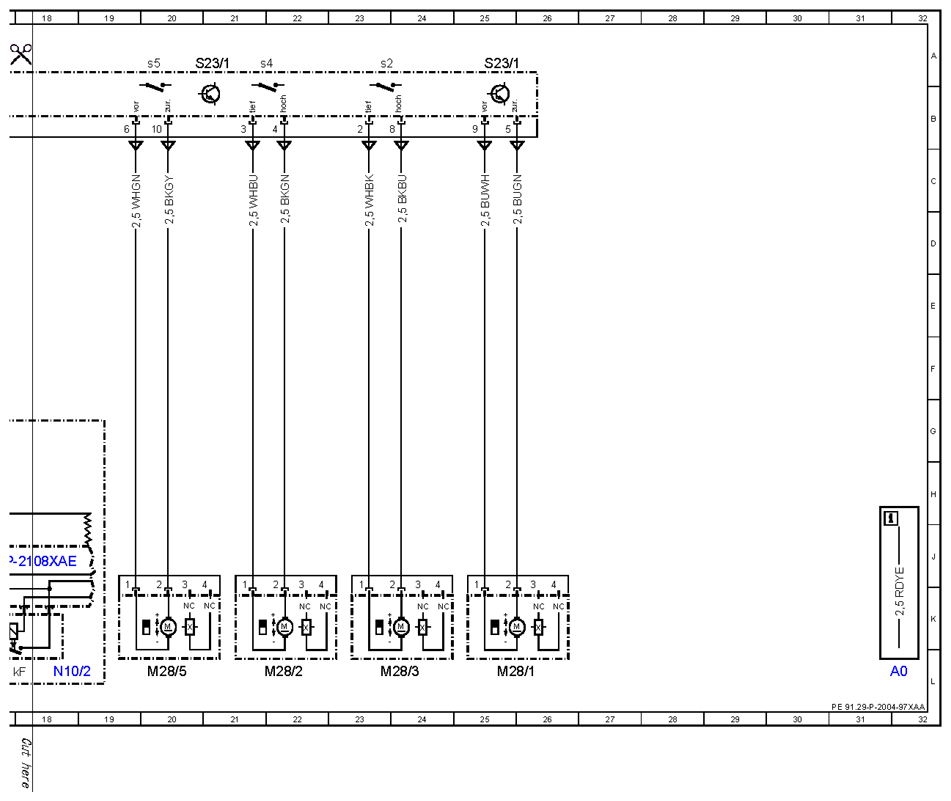

| A0 |
Color code key |
32L |
| M27/1 |
Driver seat fore/aft adjustment motor |
12L |
| M27/2 |
Driver seat height adjustment motor |
9L |
| M27/3 |
Driver seat inclination adjustment motor |
11L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
7L |
| M28/1 |
Front passenger seat fore/aft adjustment motor |
25L |
| M28/2 |
Front passenger seat height adjustment motor |
22L |
| M28/3 |
Front passenger seat inclination adjustment motor |
24L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
20L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
18L |
| N10/2f44 |
Fuse 44 |
3L |
| N10/2f44 |
Fuse 44 |
16L |
| N10/2f45 |
Fuse 45 |
3L |
| N10/2f45 |
Fuse 45 |
16L |
| N10/2kF |
Seat adjustment relay |
5L |
| N10/2kF |
Seat adjustment relay |
18L |
| S22/1 |
Driver seat adjustment switch |
4A |
| S22/1 |
Driver seat adjustment switch |
12A |
| S22/1s2 |
Rear switch, up/down |
11A |
| S22/1s4 |
Driver seat height adjustment switch |
9A |
| S22/1s5 |
Driver seat backrest adjustment switch |
7A |
| S22/1s5 |
Driver seat backrest adjustment switch |
20A |
| S23/1 |
Front passenger seat adjustment switch |
15A |
| S23/1 |
Front passenger seat adjustment switch |
20A |
| S23/1 |
Front passenger seat adjustment switch |
25A |
| S23/1s2 |
Rear switch, up/down |
23A |
| S23/1s4 |
Front passenger seat height adjustment switch |
22A |
| U12 |
Valid for left-hand drive vehicles |
1G |
| U12 |
Valid for left-hand drive vehicles |
14G |
| U13 |
Valid for right-hand drive vehicles |
1G |
| U13 |
Valid for right-hand drive vehicles |
14G |
| W18 |
Left front seat crossmember ground point |
2L |
| W18 |
Left front seat crossmember ground point |
14L |
| W19 |
Right front seat crossmember ground point |
2L |
| W19 |
Right front seat crossmember ground point |
15L |
| X55/3 |
Driver seat connector block |
1G |
| X55/4 |
Front passenger seat connector block |
14G |
| Z3/60 |
Driver circuit 15R connector sleeve |
3E |
| Z3/61 |
Front passenger circuit 15R connector sleeve |
15E |
| Z6/94 |
Driver seat circuit 31 connector sleeve |
1E |
| Z6/95 |
Front passenger seat circuit 31 connector sleeve |
14E |
