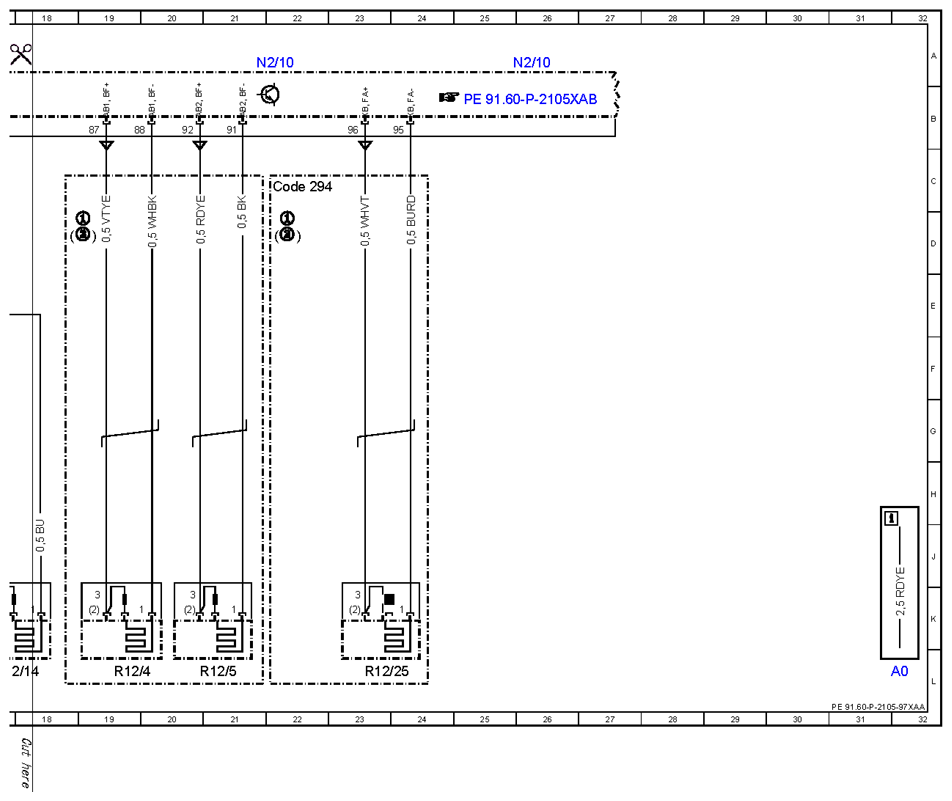

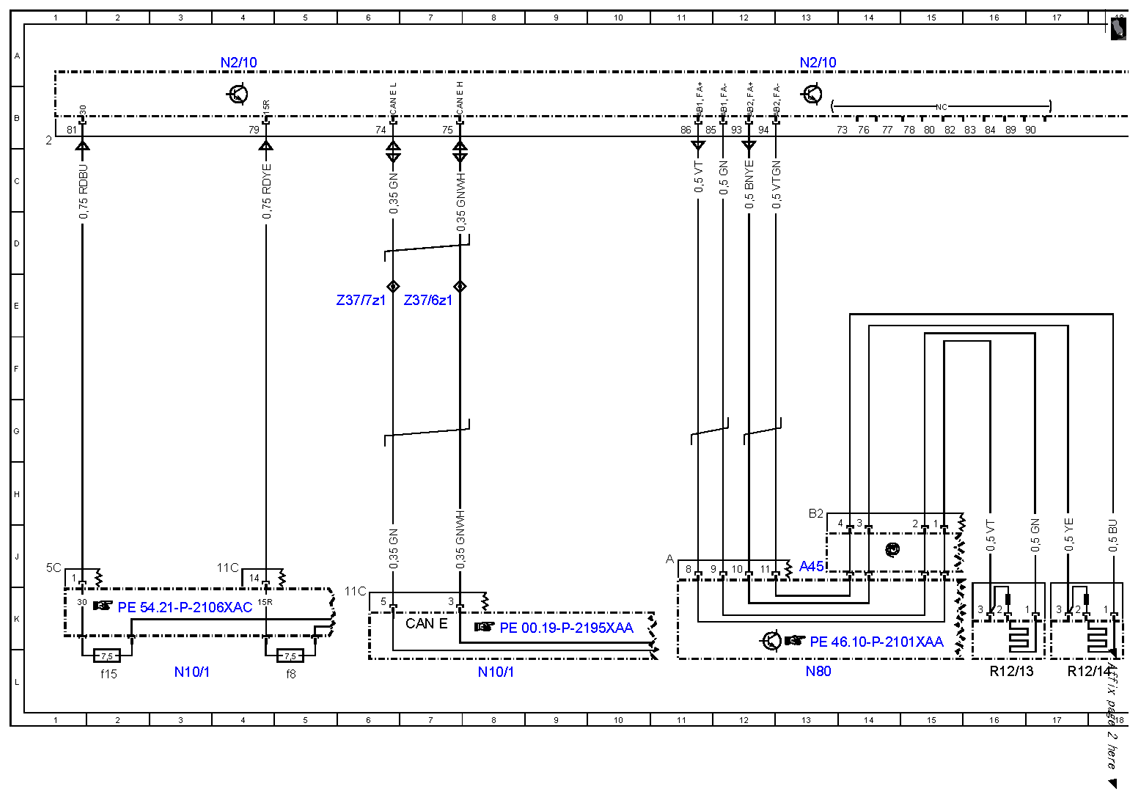

| A0 |
Color code key |
32L |
| A45 |
Fanfare horns and airbag clock spring contact |
13J |
| CAN E |
Chassis CAN |
7K |
| Code 294 |
Kneebag |
22C |
| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
8L |
| N10/1f15 |
Fuse 15 |
2L |
| N10/1f8 |
Fuse 8 |
5L |
| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
13A |
| N2/10 |
Supplemental restraint system control unit |
22A |
| N2/10 |
Supplemental restraint system control unit |
26A |
| N80 |
Steering column module control unit |
13L |
| R12/13 |
Driver airbag squib 1 |
16L |
| R12/14 |
Driver airbag squib 2 |
17L |
| R12/25 |
Driver kneebag squib |
23L |
| R12/4 |
Front passenger airbag squib 1 |
19L |
| R12/5 |
Front passenger airbag squib 2 |
21L |
| Z37/6z1 |
Chassis CAN (high) connector sleeve |
7E |
| Z37/7z1 |
Chassis CAN (low) connector sleeve |
6E |
