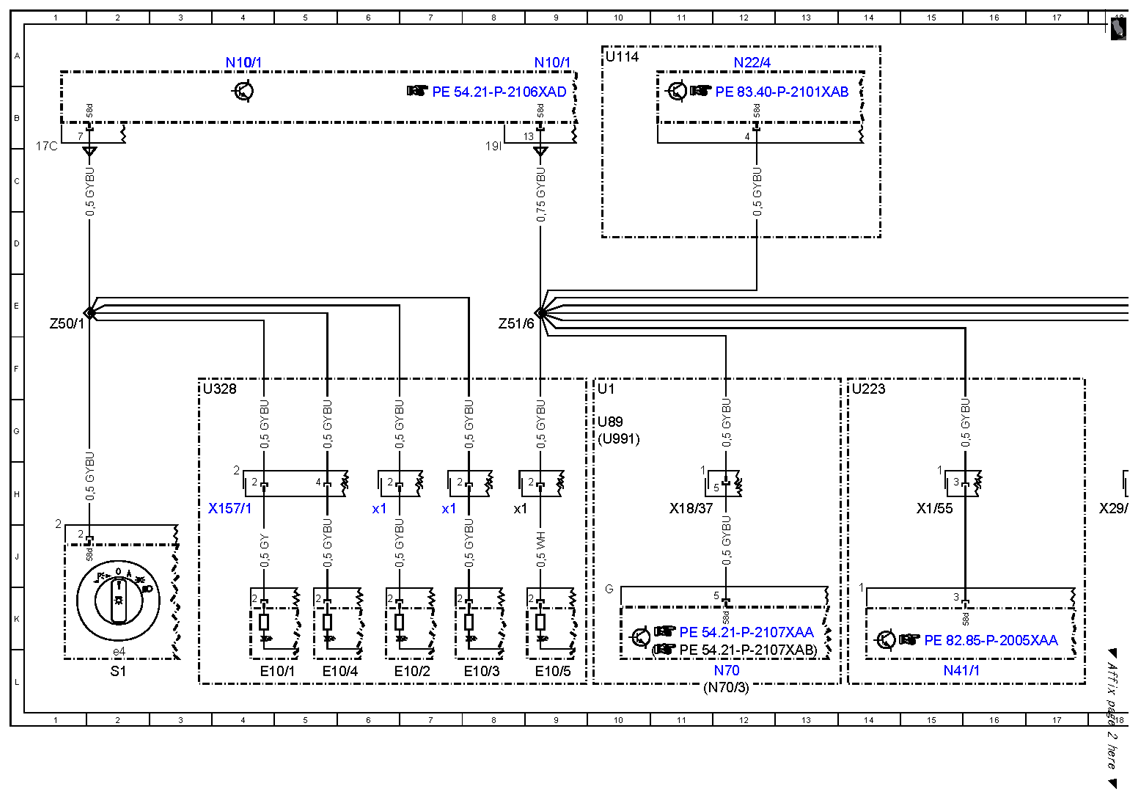

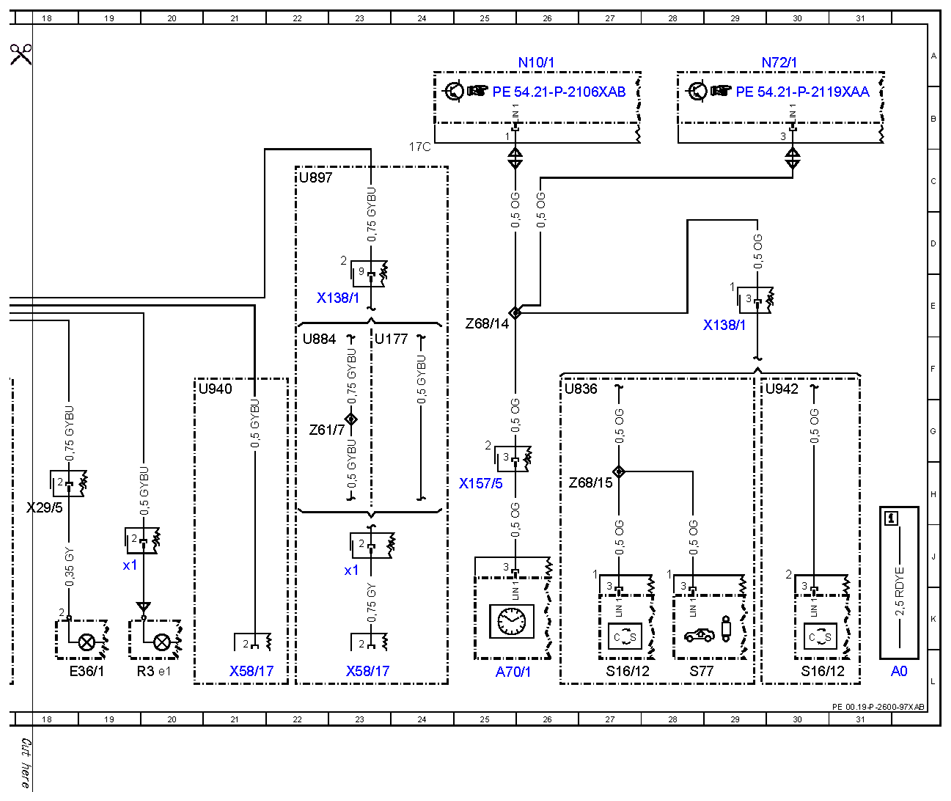

| A0 |
Color code key |
32L |
| A70/1 |
Analog clock |
25L |
| E10/1 |
Left center air outlet symbol illumination |
4L |
| E10/2 |
Left front side air outlet symbol illumination |
7L |
| E10/2x1 |
Left front side vent symbol illumination electrical connector |
6H |
| E10/3 |
Right front side air outlet symbol illumination |
8L |
| E10/3x1 |
Right front side vent symbol illumination electrical connector |
7H |
| E10/4 |
Right center air outlet symbol illumination |
5L |
| E10/5 |
Rear air outlet symbol illumination |
9L |
| E10/5x1 |
Rear vent symbol illumination electrical connector |
8H |
| E36/1 |
Center console armrest stowage compartment switch and controls illumination |
18L |
| LIN 1 |
Instrument panel LIN |
25B |
| LIN 1 |
Instrument panel LIN |
30B |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
9A |
| N10/1 |
Front SAM control unit with fuse and relay module |
26A |
| N22/4 |
Rear automatic air conditioning operating unit |
12A |
| N41/1 |
Navigation processor |
15L |
| N70 |
Overhead control panel control unit |
12L |
| N70/3 |
Overhead control panel electronics |
12L |
| N72/1 |
Upper control panel control unit |
30A |
| R3 |
Front cigarette lighter with ashtray illumination |
20L |
| R3e1 |
Ashtray illumination |
20L |
| R3x1 |
Front cigarette lighter with ashtray illumination electrical connector |
19J |
| S1 |
Exterior lights switch |
2L |
| S16/12 |
Automatic transmission mode button |
27L |
| S16/12 |
Automatic transmission mode button |
30L |
| S1e4 |
Switch illumination |
2L |
| S77 |
Suspension button group |
28L |
| U1 |
Valid for USA |
10F |
| U114 |
Valid for 3-zone THERMOTRONIC |
10A |
| U177 |
Not valid for ambiance illumination |
23F |
| U223 |
Valid for external navigation |
14F |
| U328 |
Valid for air outlet symbol illumination |
3F |
| U836 |
Valid for AIRMATIC |
26F |
| U884 |
Valid for ambiance illumination |
22F |
| U89 |
Valid for tilting/sliding roof |
10G |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
22C |
| U940 |
Valid without DIRECT SELECT |
20F |
| U942 |
Valid without AIRMATIC |
29F |
| U991 |
Valid for all except tilting/sliding roof |
10G |
| X1/55 |
External navigation electrical connector |
15H |
| X138/1 |
Front center console electrical connector |
23E |
| X138/1 |
Front center console electrical connector |
29E |
| X157/1 |
Center console ambiance illumination electrical connector |
4H |
| X157/5 |
Right front door ambiance illumination electrical connector |
25H |
| X18/37 |
Emergency call system button electrical connector |
11H |
| X29/5 |
Armrest stowage compartment interior illumination electrical connector |
18H |
| X58/17 |
Front vehicle interior power outlet |
21L |
| X58/17 |
Front vehicle interior power outlet |
23L |
| X58/17x1 |
Electrical connector/front vehicle interior socket |
23J |
| Z50/1 |
Circuit 58d instrument panel connector sleeve |
1E |
| Z51/6 |
Circuit 58d vehicle interior connector sleeve |
8E |
| Z61/7 |
Wiring harness connector sleeve for center console, terminal 58d |
22G |
| Z68/14 |
Cockpit LIN bus connector sleeve |
25E |
| Z68/15 |
Center console LIN bus connector sleeve |
27H |
