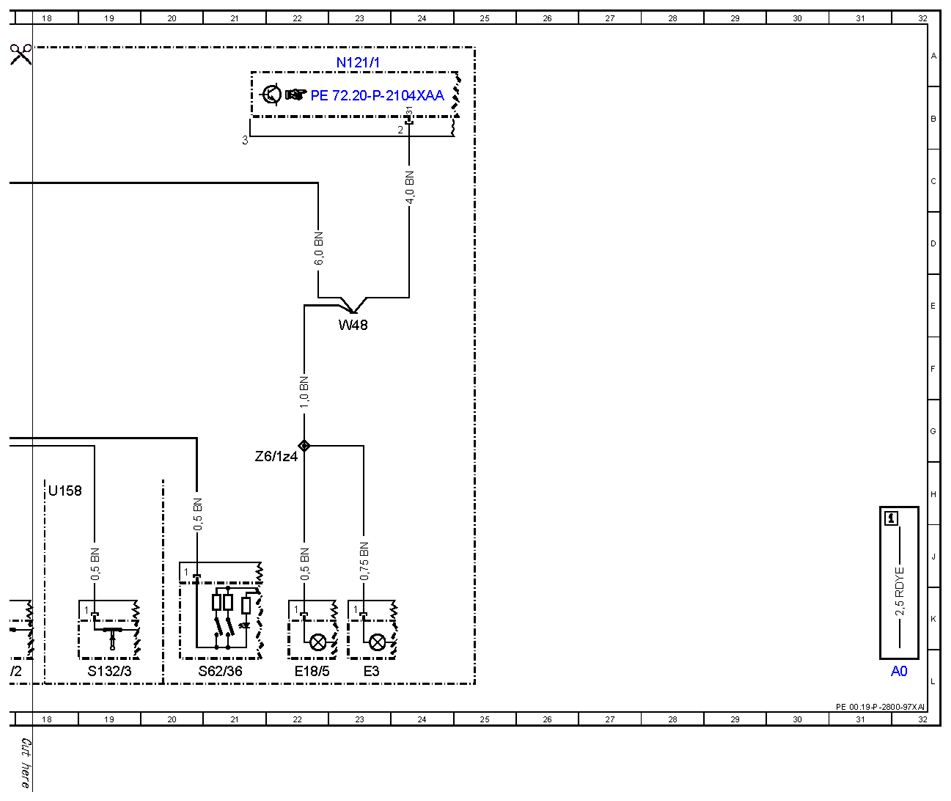

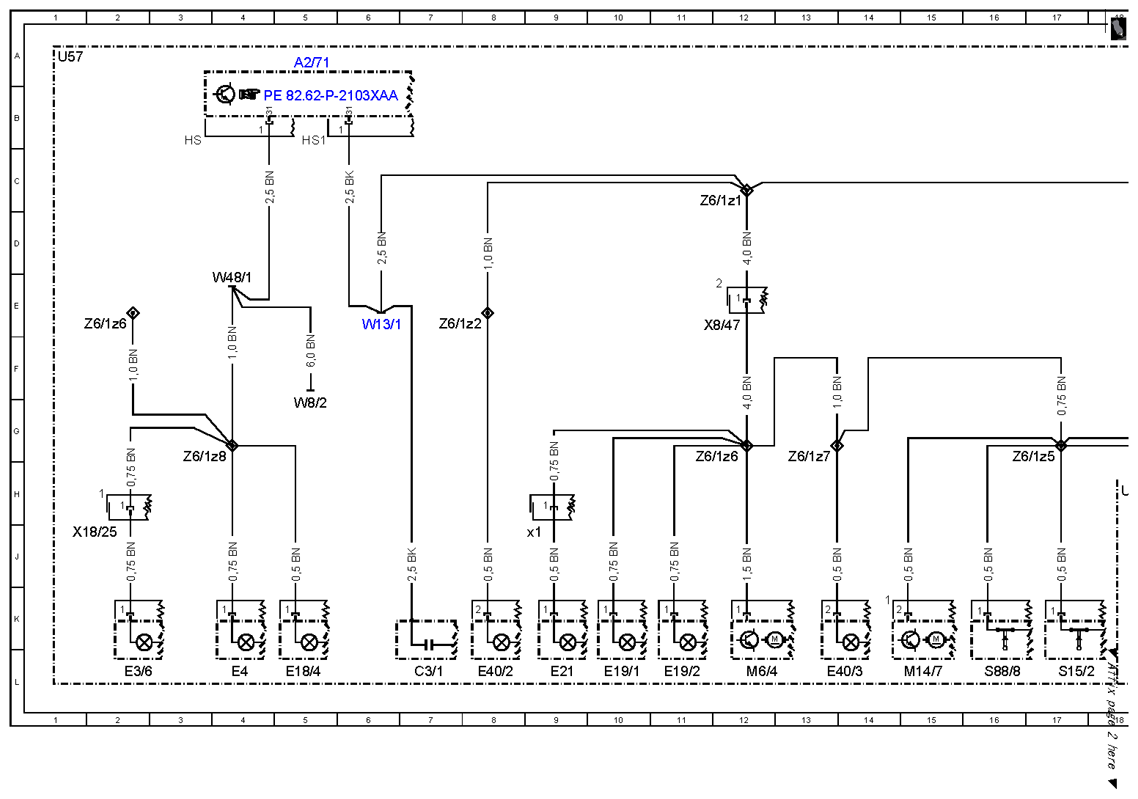

| A0 |
Color code key |
32L |
| A2/71 |
Rear window antenna amplifier 1 |
5A |
| C3/1 |
Rear window interference suppression capacitor 1 |
7L |
| E18/4 |
Right luggage compartment lamp |
5L |
| E18/5 |
Left luggage compartment lamp |
22L |
| E19/1 |
Left license plate lamp |
10L |
| E19/2 |
Right license plate lamp |
11L |
| E21 |
Center stop lamp |
9L |
| E21x1 |
Center brake lamp electrical connector |
9J |
| E3 |
Left rear lamp unit |
23L |
| E3/6 |
Rear fog lamp |
2L |
| E4 |
Right rear lamp unit |
4L |
| E40/2 |
Left trunk lid/liftgate ambient lamp and warning lamp |
8L |
| E40/3 |
Right trunk lid/liftgate ambient lamp and warning lamp |
13L |
| M14/7 |
Trunk lid/liftgate central locking motor |
15L |
| M6/4 |
Tailgate wiper motor |
12L |
| N121/1 |
Tailgate control unit |
23A |
| S132/3 |
3rd seat row switch |
19L |
| S15/2 |
Liftgate inside door handle |
17L |
| S62/36 |
Trunk lid/liftgate control button |
21L |
| S88/8 |
Trunk lid/liftgate external operation switch |
16L |
| U158 |
Valid for folding bench seat in load area |
18H |
| U57 |
Valid for model 218.9 |
1A |
| W13/1 |
Ground point (left rear window heater) |
6E |
| W48 |
Left rear roof frame ground point |
23E |
| W48/1 |
Right rear roof frame ground point |
4E |
| W8/2 |
Right trunk lid/liftgate ground point |
5G |
| X8/47 |
Left and right trunk lid/liftgate electrical connector |
12E |
| Z6/1z1 |
Circuit 31 connector sleeve |
12C |
| Z6/1z2 |
Circuit 31 connector sleeve |
7E |
| Z6/1z4 |
Circuit 31 connector sleeve |
22G |
| Z6/1z5 |
Circuit 31 connector sleeve |
17G |
| Z6/1z6 |
Circuit 31 connector sleeve |
12G |
| Z6/1z6 |
Circuit 31 connector sleeve |
2E |
| Z6/1z7 |
Circuit 31 connector sleeve |
13G |
| Z6/1z8 |
Circuit 31 connector sleeve |
3G |
