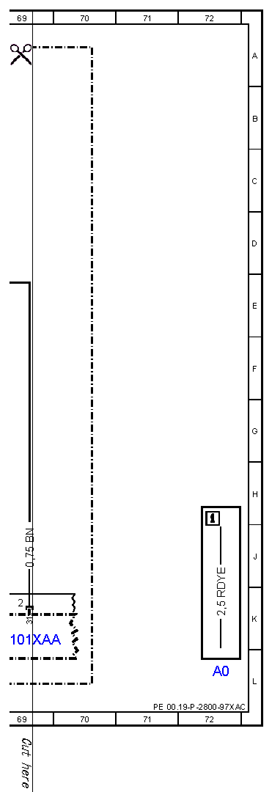

| A0 |
Color code key |
72L |
| A40/11 |
Multifunction camera |
29A |
| A40/11 |
Multifunction camera |
61A |
| A50/3 |
Electronic Toll Collection control unit |
36L |
| A80 |
Intelligent servo module for DIRECT SELECT |
16A |
| A80 |
Intelligent servo module for DIRECT SELECT |
53A |
| A85/4 |
Right rear door lock |
57L |
| A85/4s1 |
Right rear door rotary tumbler switch |
58L |
| Code 233 |
DISTRONIC PLUS |
18A |
| Code 233 |
DISTRONIC PLUS |
55A |
| Code 443 |
Steering wheel heater |
66F |
| Code B03 |
ECO start/stop function |
1F |
| Code B03 |
ECO start/stop function |
40F |
| N101 |
Night vision assist control unit |
29L |
| N101 |
Night vision assist control unit |
60L |
| N118 |
Fuel pump control unit |
10L |
| N118 |
Fuel pump control unit |
14L |
| N118 |
Fuel pump control unit |
48L |
| N118 |
Fuel pump control unit |
52L |
| N145 |
Transmission mode control unit |
18L |
| N150 |
DIRECT SELECT INTERFACE |
22L |
| N150 |
DIRECT SELECT INTERFACE |
44A |
| N25/7 |
Steering wheel heater control unit |
68L |
| N37/6 |
Right NOx sensor control unit |
7L |
| N51/3 |
AIRMATIC control unit |
25A |
| N62 |
Parking system control unit |
33A |
| N62/2 |
Video and radar sensor system control unit |
20A |
| N62/2 |
Video and radar sensor system control unit |
57A |
| N89 |
Transmission oil auxiliary pump control unit |
3L |
| N89 |
Transmission oil auxiliary pump control unit |
42L |
| N99/10 |
Right front illuminated door sill molding voltage converter |
32L |
| N99/10 |
Right front illuminated door sill molding voltage converter |
64L |
| R12/9 |
Driver sidebag squib |
39L |
| R2/10 |
Wiper park heater |
54L |
| R2/10x1 |
Wiper park position heater electrical connector |
54J |
| S193/1 |
AMG ESP sport off button |
24L |
| S193/2 |
AMG suspension button |
25L |
| S193/3 |
AMG button |
26L |
| S62/42 |
Right engine hood contact switch |
5L |
| S62/42 |
Right engine hood contact switch |
45L |
| U1014 |
Valid for Great Britain |
56F |
| U1018 |
Valid for gasoline engine 276 |
6F |
| U1018 |
Valid for gasoline engine 276 |
8F |
| U1018 |
Valid for gasoline engine 276 |
46F |
| U1019 |
Valid for gasoline engine 278 |
8G |
| U1019 |
Valid for gasoline engine 278 |
46G |
| U1028 |
Valid for engine 157 |
8G |
| U1028 |
Valid for engine 157 |
8G |
| U1028 |
Valid for engine 157 |
46G |
| U1028 |
Valid for engine 157 |
46G |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
38A |
| U135 |
Valid for Electronic Toll Collection |
34G |
| U165 |
Valid for AMG |
16F |
| U52 |
Valid for Japan |
34G |
| U538 |
Valid for parking system |
31A |
| U631 |
Valid for COMAND |
34F |
| U656 |
Valid for interior lights package |
27A |
| U656 |
Valid for interior lights package |
59A |
| U709 |
Valid for wiper park position heater |
54F |
| U715 |
Valid for illuminated door sills |
31F |
| U715 |
Valid for illuminated door sills |
62F |
| U836 |
Valid for AIRMATIC |
22A |
| U880 |
Valid for diesel engine 642 |
12F |
| U880 |
Valid for diesel engine 642 |
50F |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
14A |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
50A |
| U907 |
Valid for Night View Assist |
27F |
| U907 |
Valid for Night View Assist |
58F |
| U948 |
Valid for diesel engine 651 |
12G |
| U948 |
Valid for diesel engine 651 |
50G |
| U953 |
Valid for multifunction camera for automatic lane recognition |
27A |
| U953 |
Valid for multifunction camera for automatic lane recognition |
59A |
| U954 |
Valid for multifunction camera for Speed Limit Assist |
27B |
| U954 |
Valid for multifunction camera for Speed Limit Assist |
59B |
| W15/1 |
Right footwell ground point |
20F |
| W15/1 |
Right footwell ground point |
56F |
| X11/4 |
Diagnostic connector |
63A |
| X137/1 |
VICS and Electronic Toll Collection power supply electrical connector |
36H |
| X138/1 |
Front center console electrical connector |
21H |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
9A |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
41A |
| X35/4 |
Right rear door electrical connector |
57J |
| X55/3 |
Driver seat connector block |
39J |
| X86/4 |
Right nitrogen oxides control unit electrical connector |
7H |
| Y3/8 |
Fully integrated transmission control unit |
12A |
| Y3/8 |
Fully integrated transmission control unit |
48A |
| Z6/79z2 |
Front center console circuit 31 connector sleeve |
22H |
