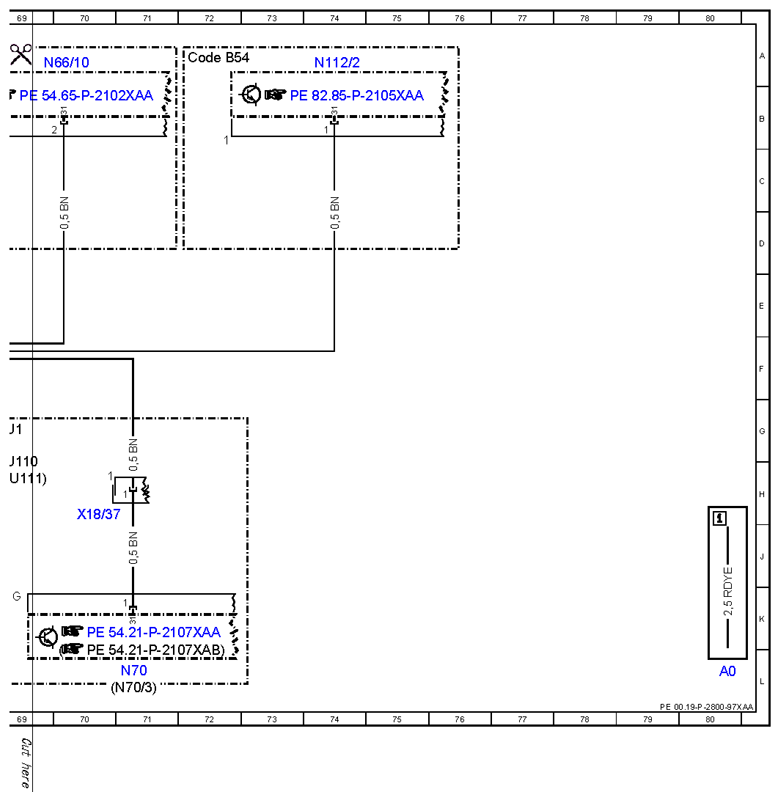

| A0 |
Color code key |
80L |

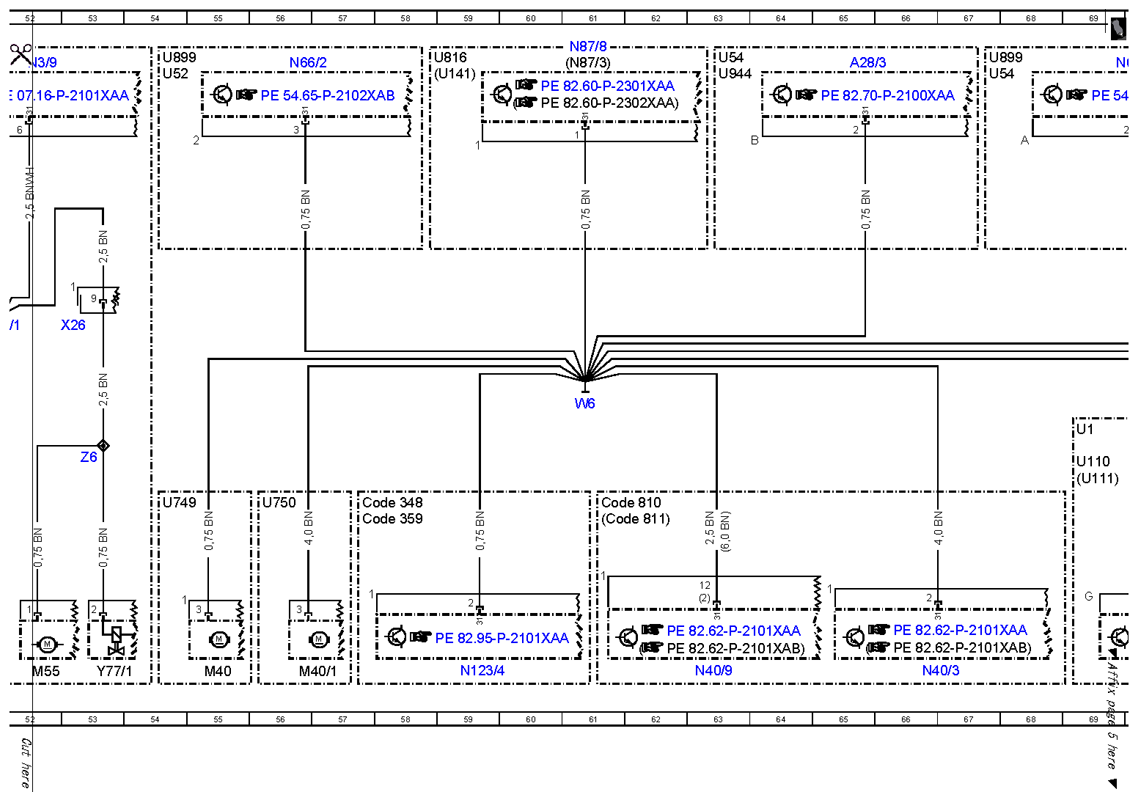

| A28/3 |
Cellular telephone system antenna amplifier/compensator |
65A |

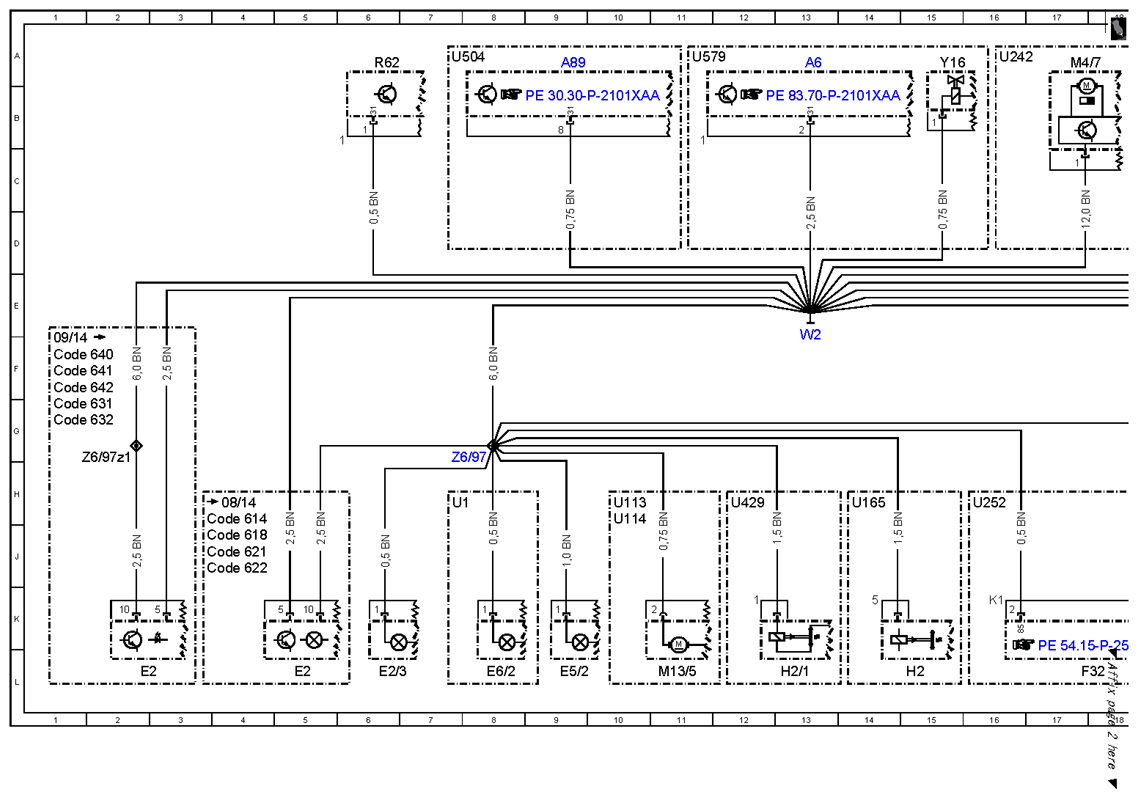

| A6 |
Stationary heater unit |
13A |
| A89 |
DISTRONIC electric controller unit |
9A |

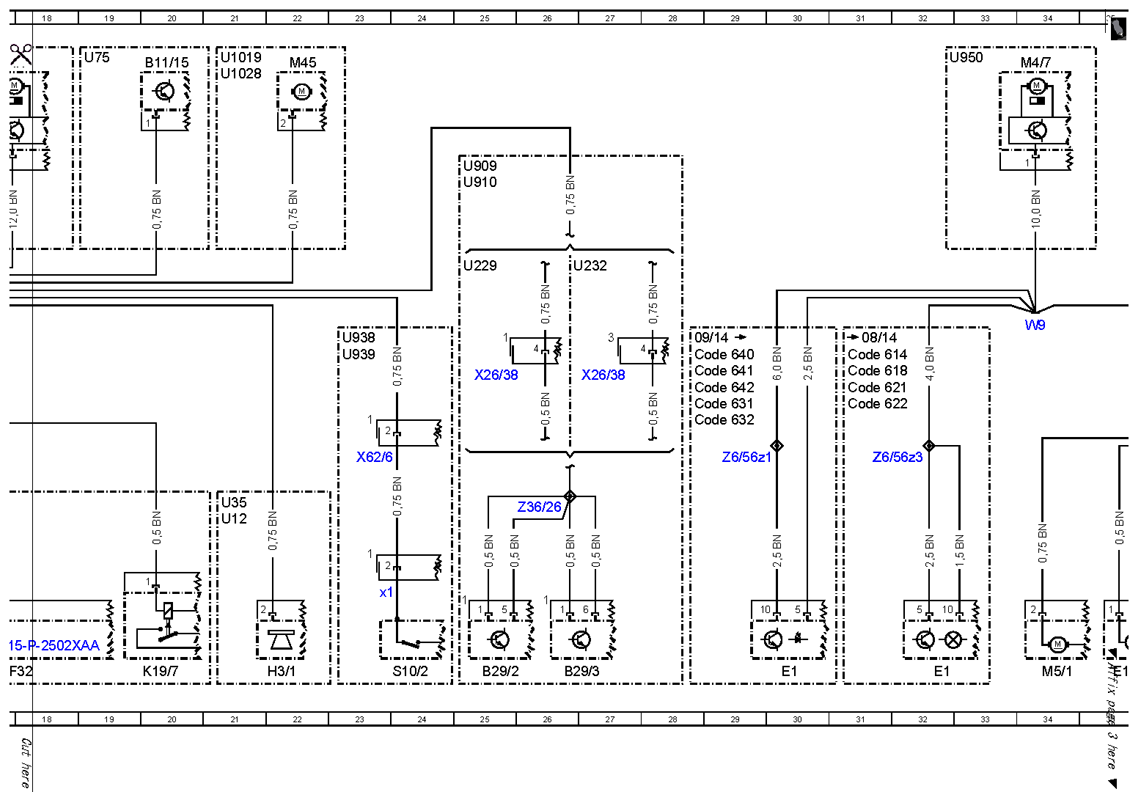

| B11/15 |
Radiator sensor for engine diagnosis |
20A |
| B29/2 |
DISTRONIC sensor (DTR)/left front bumper |
25L |
| B29/3 |
DISTRONIC sensor (DTR)/right front bumper |
26L |
| Code 348 |
Emergency call/assistance system |
57H |
| Code 359 |
TELEAID emergency call system |
57H |
| Code 614 |
Bi-xenon headlamp unit |
3H |
| Code 614 |
Bi-xenon headlamp unit |
31F |
| Code 618 |
Bi-xenon headlamps |
31F |
| Code 618 |
Bi-xenon headlamps |
3J |
| Code 621 |
Intelligent Light System (left-hand traffic) |
3J |
| Code 621 |
Intelligent Light System (left-hand traffic) |
31F |
| Code 622 |
Intelligent Light System (right-hand traffic) |
3J |
| Code 622 |
Intelligent Light System (right-hand traffic) |
31G |
| Code 631 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for left-hand traffic |
1G |
| Code 631 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for left-hand traffic |
28G |
| Code 632 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for right-hand traffic |
1G |
| Code 632 |
All-LED headlamps (without ILS), daytime running lamps integrated in headlamp, for right-hand traffic |
28G |
| Code 640 |
All-LED USA incl. ACTIVE MULTIBEAM LED |
1F |
| Code 640 |
All-LED USA incl. ACTIVE MULTIBEAM LED |
28F |
| Code 641 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for left-hand traffic |
28F |
| Code 641 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for left-hand traffic |
1F |
| Code 642 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for right-hand traffic |
1F |
| Code 642 |
All-LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new light design, dynamic LED for right-hand traffic |
28F |
| Code 810 |
Sound system |
61H |
| Code 811 |
Extended sound system |
61H |
| Code B54 |
COM module |
72A |
| E1 |
Left front lamp unit |
30L |
| E1 |
Left front lamp unit |
32L |

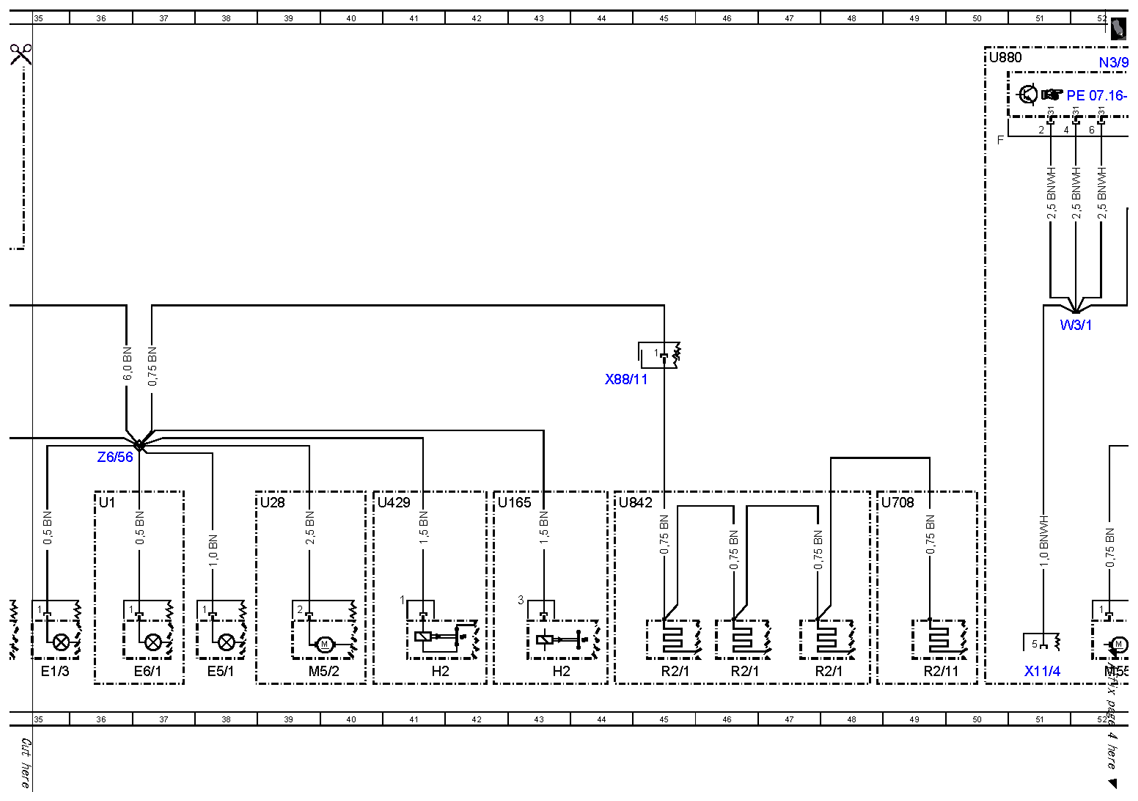

| E1/3 |
Left daytime running lamps headlamp |
35L |
| E2 |
Right front lamp unit |
5L |
| E2 |
Right front lamp unit |
2L |
| E2/3 |
Right daytime running lamps headlamp |
6L |
| E5/1 |
Left fog lamp |
38L |
| E5/2 |
Right fog lamp |
9L |
| E6/1 |
Left front side-marker lamp |
37L |
| E6/2 |
Right front side-marker lamp |
8L |
| F32 |
Front electrical prefuse box |
17L |
| H2 |
Left fanfare horn |
15L |
| H2 |
Left fanfare horn |
41L |
| H2 |
Left fanfare horn |
43L |
| H2/1 |
Right fanfare horn |
13L |
| H3/1 |
Alarm siren |
22L |
| K19/7 |
Decoupling relay |
20L |
| M13/5 |
Coolant circulation pump |
11L |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
17A |
| M4/7 |
Combustion engine and air conditioning with integrated control fan motor |
34A |
| M40 |
Multicontour seat pneumatic pump |
55L |
| M40/1 |
Active multicontour seat pneumatic pump |
56L |
| M45 |
Coolant circulation pump |
22A |
| M5/1 |
Windshield washer system pump |
34L |
| M5/2 |
Headlamp cleaning system pump |
39L |
| M55 |
Intake port shutoff actuator motor |
52L |
| N112/2 |
Telematics services communication module |
74A |
| N123/4 |
Emergency call system control unit |
59L |
| N3/9 |
CDI control unit |
52A |
| N40/3 |
Sound system amplifier control unit |
66L |
| N40/9 |
Rear bass speaker amplifier |
63L |
| N66/10 |
Backup camera voltage supply module |
70A |
| N66/2 |
Backup camera control unit |
56A |
| N70 |
Overhead control panel control unit |
71L |
| N70/3 |
Overhead control panel electronics |
71L |
| N87/3 |
Digital Audio Broadcasting control unit |
61A |
| N87/8 |
SDAR control unit/high definition tuner |
61A |
| R2/1 |
Spray nozzle heater |
46L |
| R2/1 |
Spray nozzle heater |
45L |
| R2/1 |
Spray nozzle heater |
48L |
| R2/11 |
Spray nozzle hose heater |
49L |
| R62 |
Voltage dip limiter |
6A |
| S10/2 |
Right front brake wear sensor |
24L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
23K |
| U1 |
Valid for USA |
7H |
| U1 |
Valid for USA |
36H |
| U1 |
Valid for USA |
69G |
| U1019 |
Valid for gasoline engine 278 |
21A |
| U1028 |
Valid for engine 157 |
21A |
| U110 |
Valid for overhead control panel with CAN |
69H |
| U111 |
Valid for overhead control panel without CAN |
69H |
| U113 |
Valid for 2-zone THERMATIC |
10H |
| U114 |
Valid for 3-zone THERMOTRONIC |
10H |
| U12 |
Valid for left-hand drive vehicles |
21H |
| U141 |
Valid for Digital Audio Broadcasting |
58A |
| U165 |
Valid for AMG |
14H |
| U165 |
Valid for AMG |
42H |
| U229 |
Valid for short range radar with active Park Assist without pedestrian protection |
25D |
| U232 |
Valid for short range radar without active Park Assist |
26D |
| U242 |
Valid for fan motor 800 W |
16A |
| U252 |
Valid for ECO start/stop function |
16H |
| U28 |
Valid for headlamp cleaning system |
39H |
| U35 |
Valid for anti-theft alarm system |
21H |
| U429 |
Valid for all except AMG |
12H |
| U429 |
Valid for all except AMG |
40H |
| U504 |
Valid for DISTRONIC |
7A |
| U52 |
Valid for Japan |
54A |
| U54 |
Valid for all except Japan |
63A |
| U54 |
Valid for all except Japan |
67A |
| U579 |
Valid for stationary heater |
11A |
| U708 |
Valid for spray nozzle hose heater |
48H |
| U749 |
Valid for multicontour seat |
54H |
| U75 |
Valid for gasoline engines |
19A |
| U750 |
Valid for active multicontour seat |
56H |
| U816 |
Valid for satellite digital audio radio (SDAR) |
58A |
| U842 |
Valid for spray nozzle heater |
44H |
| U880 |
Valid for diesel engine 642 |
50A |
| U899 |
Valid for backup camera |
54A |
| U899 |
Valid for backup camera |
67A |
| U909 |
Valid for DISTRONIC PLUS |
25C |
| U910 |
Valid for Blind Spot Assist |
25C |
| U938 |
Valid for ESP Basic |
23F |
| U939 |
Valid for ESP Premium |
23F |
| U944 |
Valid for comfort telephony with compensator |
63A |
| U950 |
Valid for fan motor 650 W |
32A |
| W2 |
Right front ground point at lamp unit |
13F |
| W3/1 |
Ground point (right front wheel well) |
51E |
| W6 |
Left rear wheel well ground point |
61G |
| W9 |
Left front ground point (at lamp unit) |
34E |
| X11/4 |
Diagnostic connector |
51L |
| X18/37 |
Emergency call system button electrical connector |
70H |
| X26 |
Interior and engine wiring harness electrical connector |
53E |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
27F |
| X26/38 |
Front bumper and frame wiring harness electrical connector |
25F |
| X62/6 |
Front axle electrical connector, right distributor |
23H |
| X88/11 |
Spray nozzle heater electrical connector |
44F |
| Y16 |
Stationary heater switchover valve |
15A |
| Y77/1 |
Boost pressure control pressure transducer |
53L |
| Z36/26 |
Front DISTRONIC PLUS sensor ground connector sleeve |
26H |
| Z6 |
Circuit 31 connector sleeve |
53G |
| Z6/56 |
Circuit 31 connector sleeve |
36G |
| Z6/56z1 |
Circuit 31 connector sleeve |
29G |
| Z6/56z3 |
Circuit 31 connector sleeve |
32G |
| Z6/97 |
Right lamp unit circuit 31 connector sleeve |
8G |
| Z6/97z1 |
|
2G |
