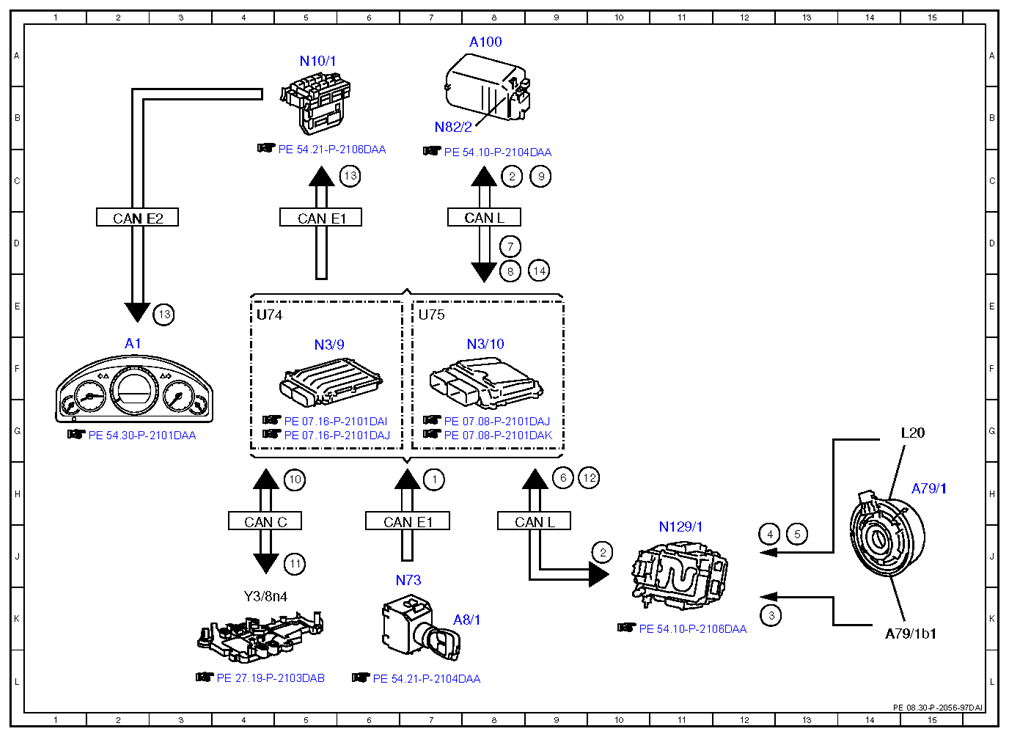

Electrical function schematic for starting the hybrid drive system - PE08.30-P-2056-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.952 in MODEL 212.095 as of model year 2014
ENGINE 651.924 in MODEL 212.098/298 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | |
| 10 | Wet clutch, status | 5H |
| 11 | Wet clutch, request | |
| 12 | Hybrid drive system, status | 9H |
| 13 | Hybrid drive system READY, message | |
| 13 | Hybrid drive system READY, message | |
| 14 | Contactor, status | 9E |
| 2 | Hybrid drive system ON, request | 8C |
| 2 | Hybrid drive system ON, request | 10J |
| 3 | Electric machine temperature, signal | 12K |
| 4 | Electrical machine rotor position, signal | 12J |
| 5 | Electric machine rpm, signal | 13J |
| 6 | Electric machine, status | 9H |
| 7 | High-voltage battery voltage, signal | 8D |
| 8 | High-voltage battery temperature, signal | 8E |
| 9 | Contactor, request | 9C |
| A1 | Instrument cluster | 2F |
| A100 | High-voltage battery module | 8A |
| A79/1 | Electric machine | 15H |
| A79/1b1 | Electric machine temperature sensor | 14K |
| A8/1 | Transmitter key | 7K |
| CAN C | Drive train CAN | 4J |
| CAN E1 | Chassis CAN 1 | 5D |
| CAN E1 | Chassis CAN 1 | 6J |
| CAN E2 | Chassis CAN 2 | 2D |
| CAN L | Hybrid CAN | 8D |
| CAN L | Hybrid CAN | 9J |
| L20 | Electric machine rotor position sensor | 15G |
| N10/1 | Front SAM control unit with fuse and relay module | 5A |
| N129/1 | Power electronics control unit | 11J |
| N3/10 | ME-SFI [ME] control unit | 8F |
| N3/9 | CDI control unit | 5F |
| N73 | Electronic ignition switch control unit | 7J |
| N82/2 | Battery management system control unit | 7B |
| U74 | Valid for diesel engines | 4E |
| U75 | Valid for gasoline engines | 7E |
| Y3/8n4 | Fully integrated transmission control unit | 4K |
