Wiring diagram of driver-side seat control unit - PE91.29-P-2104-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

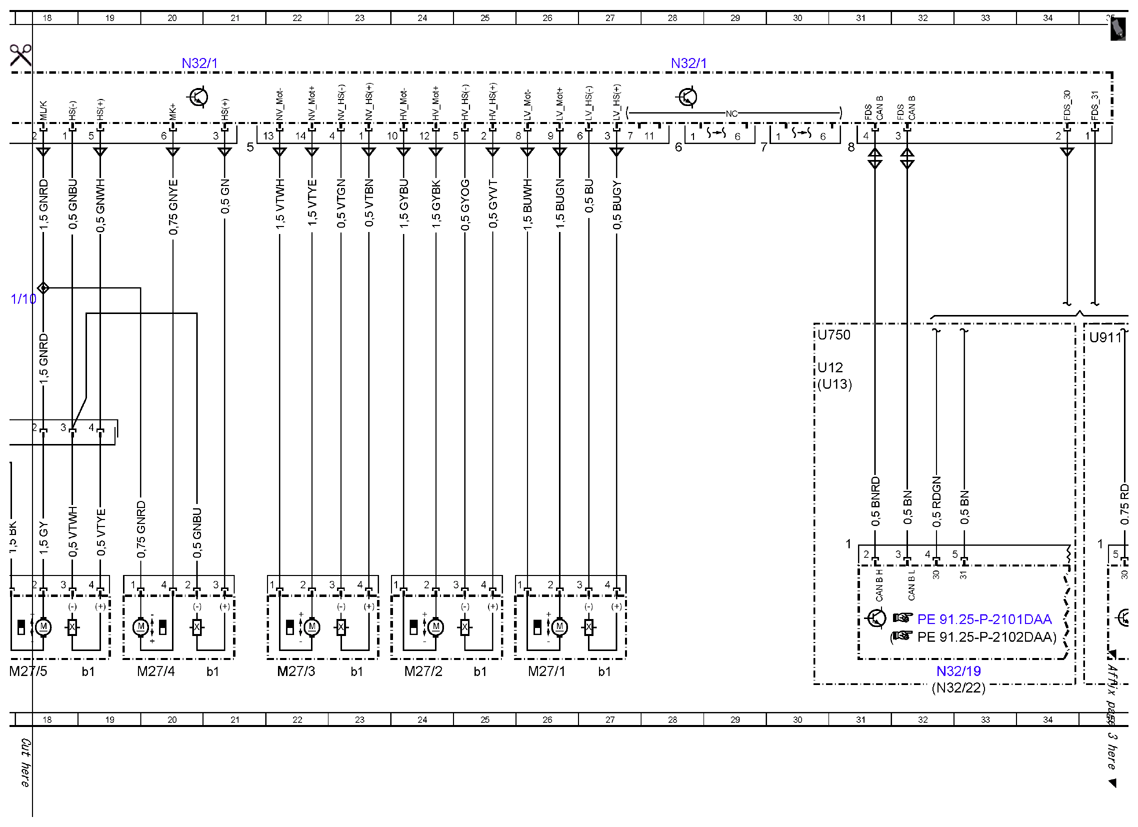

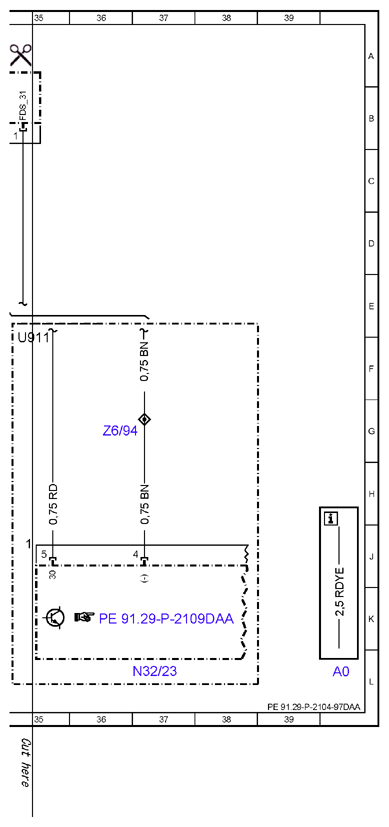

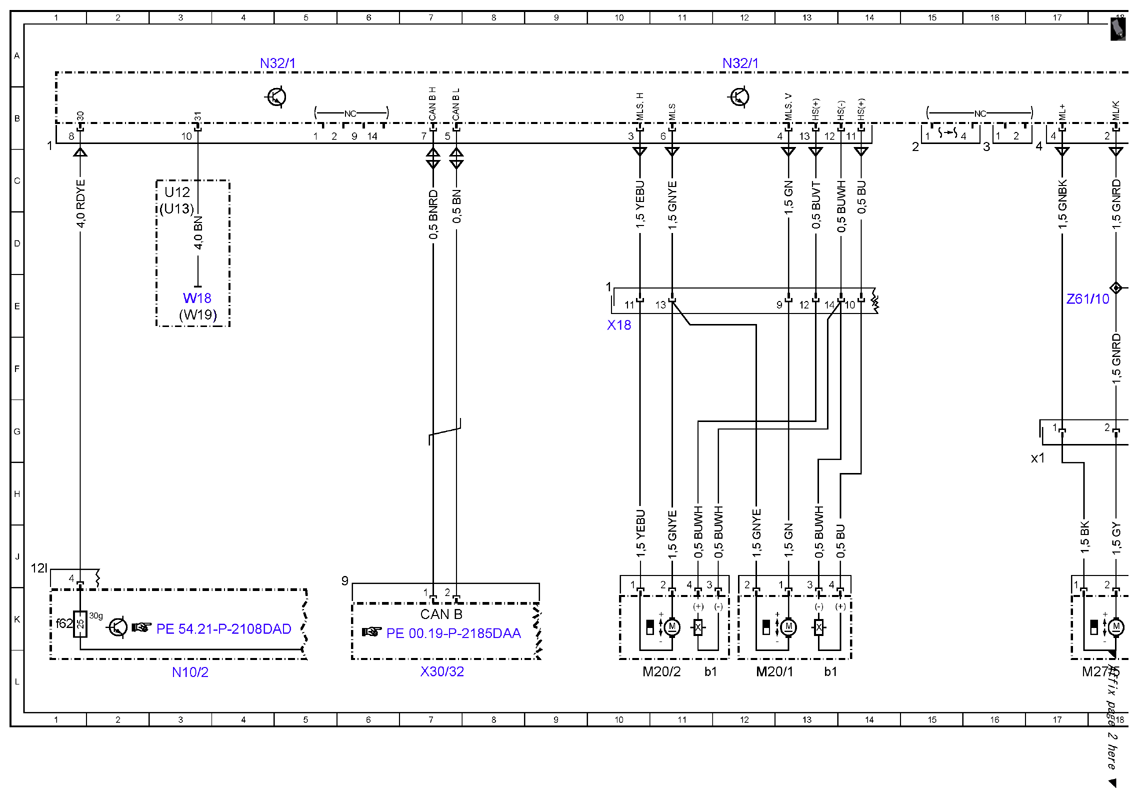

MODEL 212 with CODE 275 (Memory package) Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| CAN B | Interior CAN | 7K |
| M20/1 | Steering column in/out adjustment motor | 12L |
| M20/1b1 | Steering column in/out Hall sensor | 13L |
| M20/2 | Steering column up/down adjustment motor | 11L |
| M20/2b1 | Steering column up/down Hall sensor | 11L |
| M27/1 | Driver seat fore/aft adjustment motor | 26L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 27L |
| M27/2 | Driver seat height adjustment motor | 24L |
| M27/2b1 | Height adjustment Hall sensor, driver seat | 25L |
| M27/3 | Driver seat inclination adjustment motor | 22L |
| M27/3b1 | Inclination adjustment Hall sensor, driver seat | 23L |
| M27/4 | Driver seat head restraint adjustment motor | 20L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 21L |
| M27/5 | Driver seat backrest inclination adjustment motor | 18L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 18L |
| M27/5x1 | Seat backrest inclination adjustment motor electrical connector, driver seat | 17G |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f62 | Fuse 62 | 1K |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 28A |
| N32/19 | Left front dynamic multicontour seat control unit | 32L |
| N32/22 | Right front dynamic multicontour seat control unit | 32L |
| N32/23 | Driver seat lumbar support adjustment control unit | 37L |
| U12 | Valid for left-hand drive vehicles | 3C |
| U12 | Valid for left-hand drive vehicles | 30F |
| U13 | Valid for right-hand drive vehicles | 3D |
| U13 | Valid for right-hand drive vehicles | 30F |
| U750 | Valid for dynamic multicontour seat | 30F |
| U911 | Valid for lumbar support | 35F |
| W18 | Left front seat crossmember ground point | 3E |
| W19 | Right front seat crossmember ground point | 3E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 10E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 7L |
| Z6/94 | Driver seat circuit 31 connector sleeve | 36G |
| Z61/10 | Driver seat backrest and head restraint adjustment motor connector sleeve | 18E |
