Wiring diagram for left front dynamic seat control unit - PE91.25-P-2101-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) Control unit N32/19
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 6K |

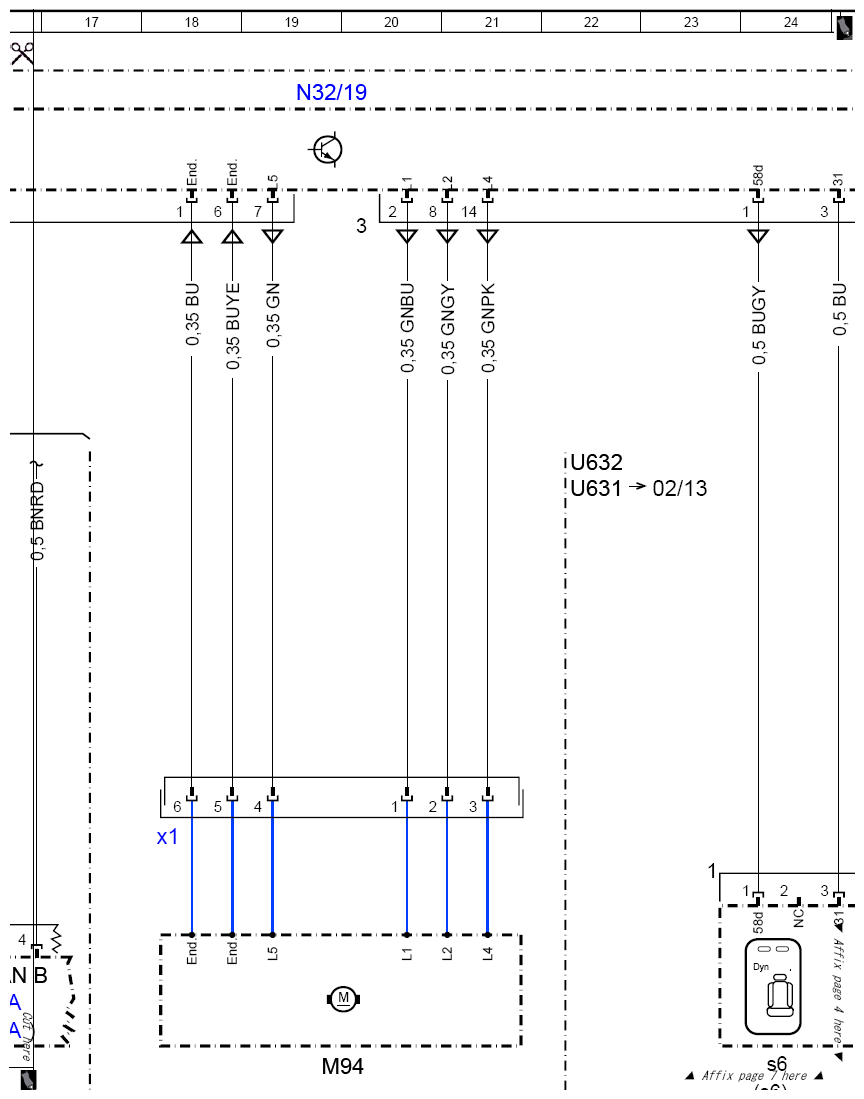

| M94 | Left front seat massage function actuator motor | 20L |
| M94x1 | Left front seat massage function actuator motor electrical connector | 18J |

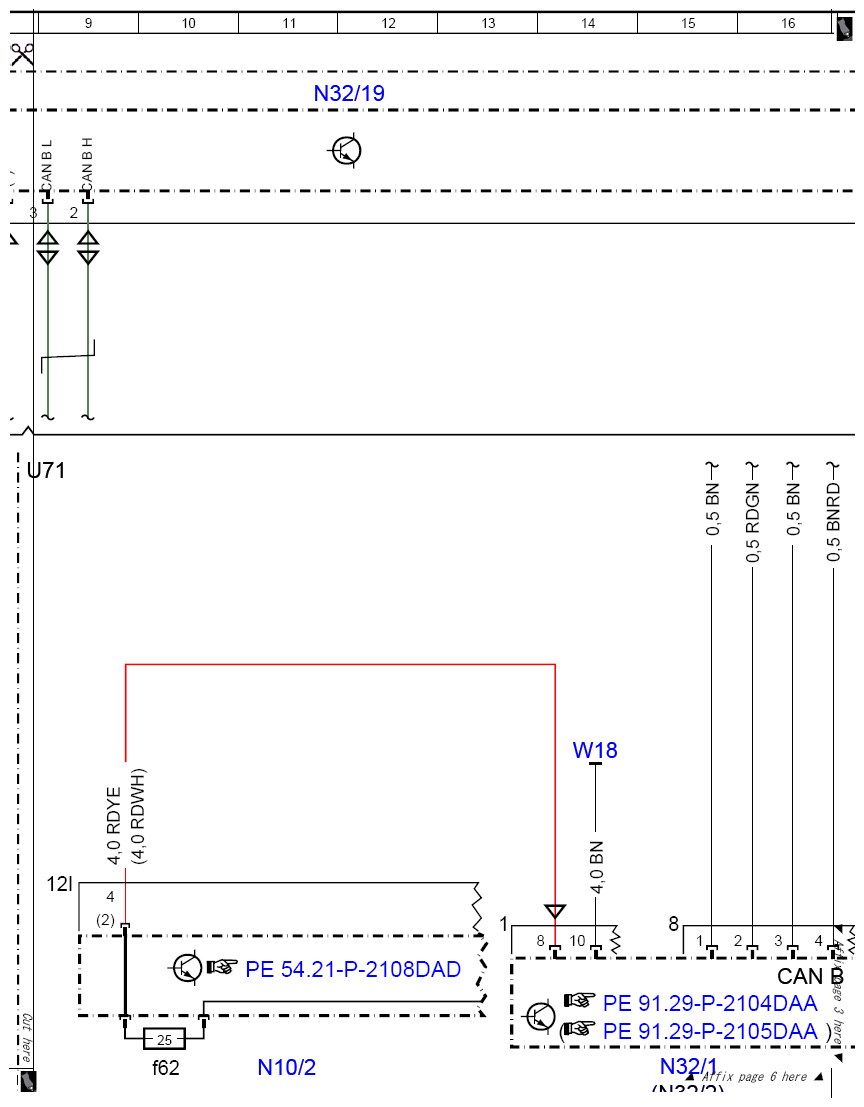

| N10/2 | Rear SAM control unit with fuse and relay module | 11L |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |

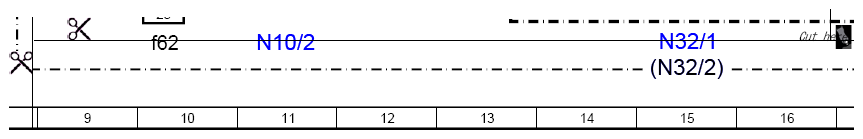

| N10/2f62 | Fuse 62 | 10L |
| N32/1 | Driver seat control unit | 15L |

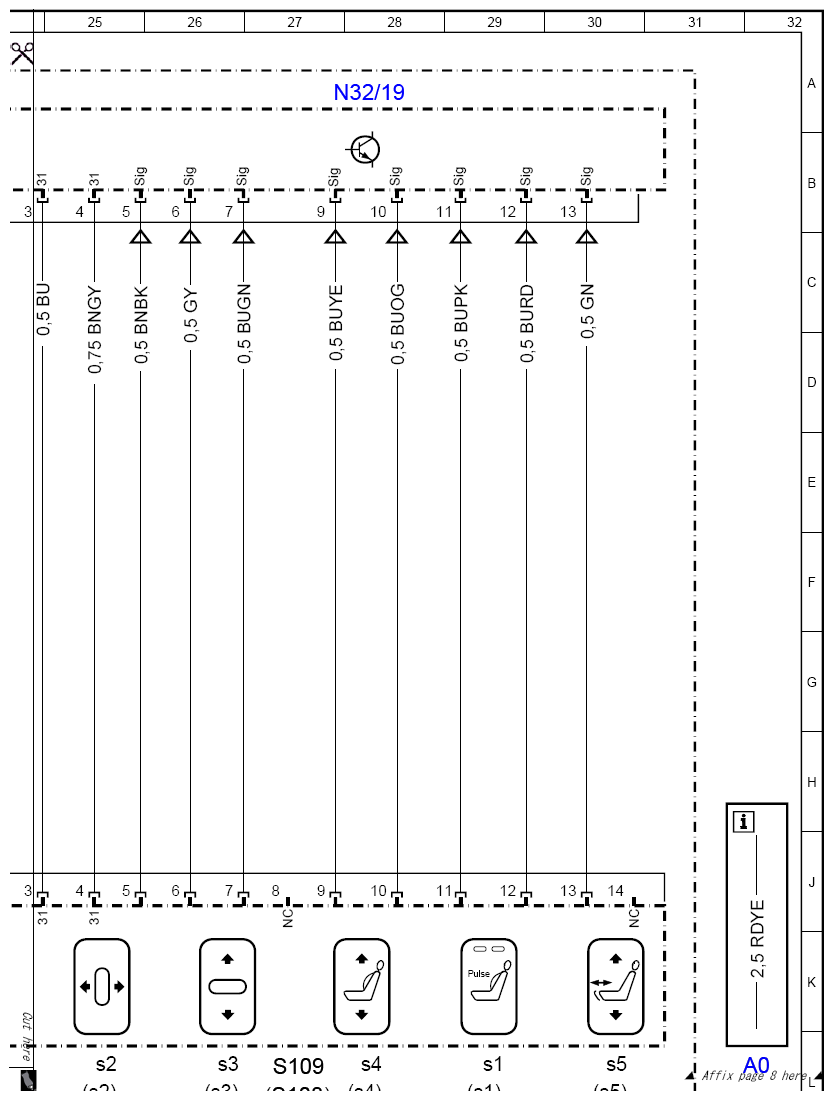

| N32/19 | Left front dynamic multicontour seat control unit | 19A |
| N32/19 | Left front dynamic multicontour seat control unit | 11A |
| N32/19 | Left front dynamic multicontour seat control unit | 28A |
| N32/2 | Front passenger seat control unit | 15L |
| S108 | Front passenger dynamic multicontour seat button group | 27L |
| S108s1 | Massage function button | 29L |
| S108s2 | Front passenger seat side bolster air cushion adjustment button | 25L |
| S108s3 | Lumbar support +/- adjustment button | 26L |
| S108s4 | Lumbar support up/down adjustment button | 28L |
| S108s5 | Seat cushion length button | 30L |
| S108s6 | Dynamic button | 24L |

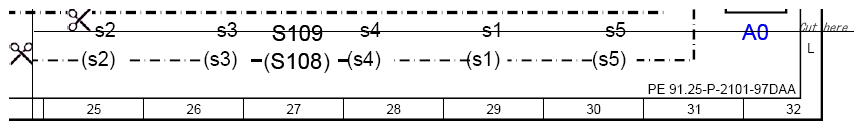

| S109 | Driver dynamic multicontour seat button group | 27L |
| S109s1 | Massage function button | 29L |
| S109s2 | Driver seat side bolster air cushion adjustment button | 25L |
| S109s3 | Lumbar support +/- adjustment button | 26L |
| S109s4 | Lumbar support up/down adjustment button | 28L |
| S109s5 | Seat cushion length button | 30L |
| S109s6 | Dynamic button | 24L |
| U12 | Valid for left-hand drive vehicles | 1A |
| U13 | Valid for right-hand drive vehicles | 1A |
| U631 | Valid for COMAND | 22E |
| U632 | Valid for version without COMAND | 22E |
| U71 | Valid for fully electric seat adjustment with memory function | 8E |
| W18 | Left front seat crossmember ground point | 2K |
| W18 | Left front seat crossmember ground point | 14H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 7L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 7L |

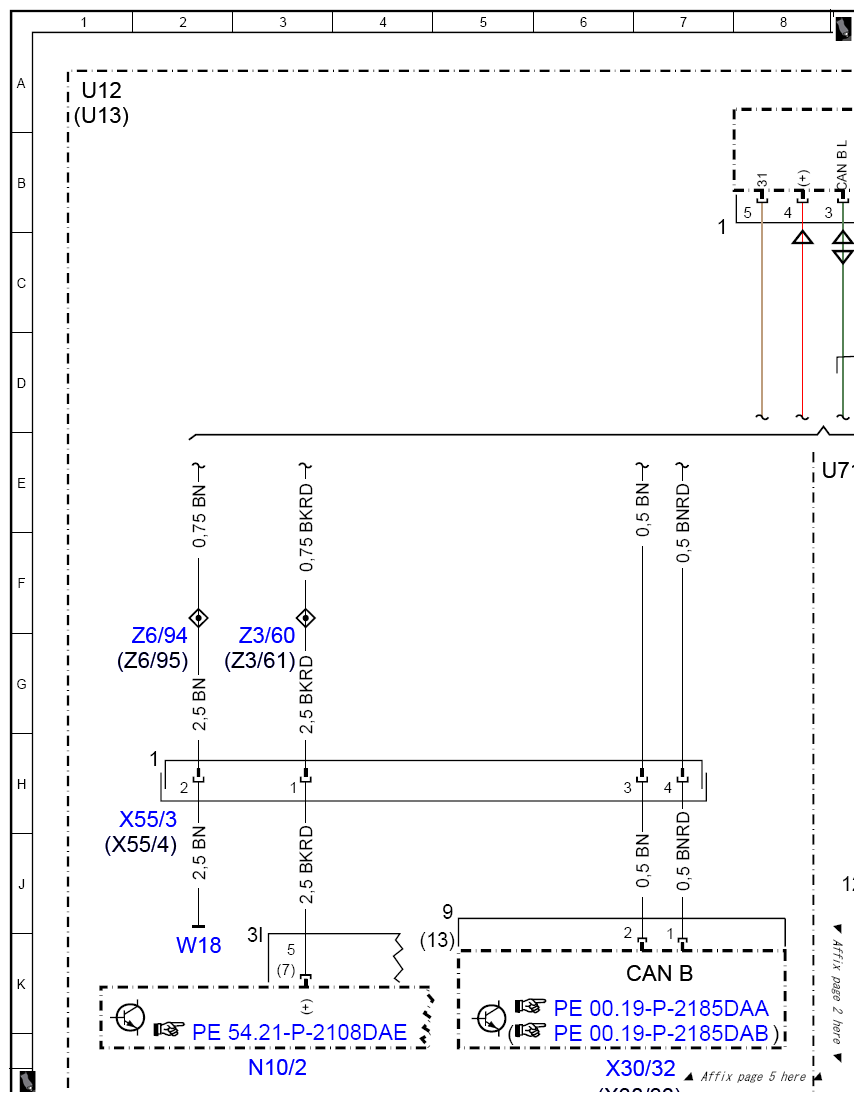

| X55/3 | Driver seat connector block | 2H |
| X55/4 | Front passenger seat connector block | 2J |
| Z3/60 | Driver circuit 15R connector sleeve | 3G |
| Z3/61 | Front passenger circuit 15R connector sleeve | 3G |
| Z6/94 | Driver seat circuit 31 connector sleeve | 2G |
| Z6/95 | Front passenger seat circuit 31 connector sleeve | 2G |
