Wiring diagram for airbag control unit - PE91.60-P-2105-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

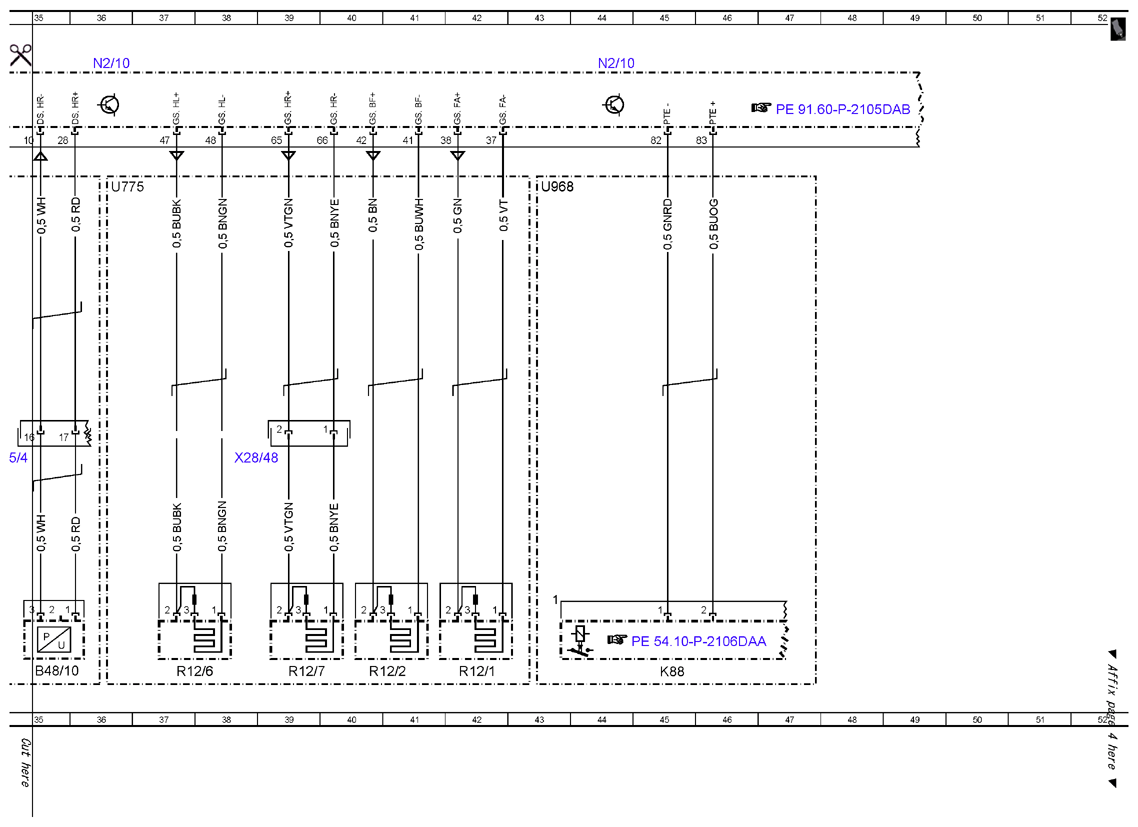

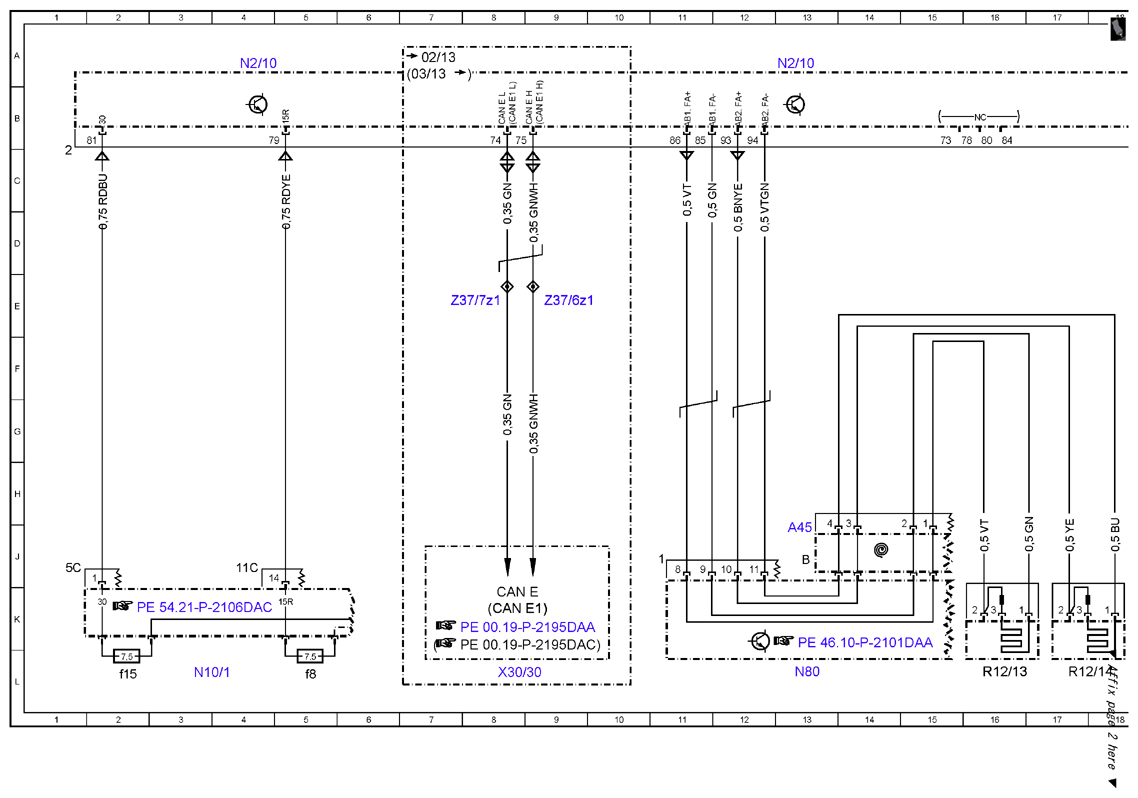

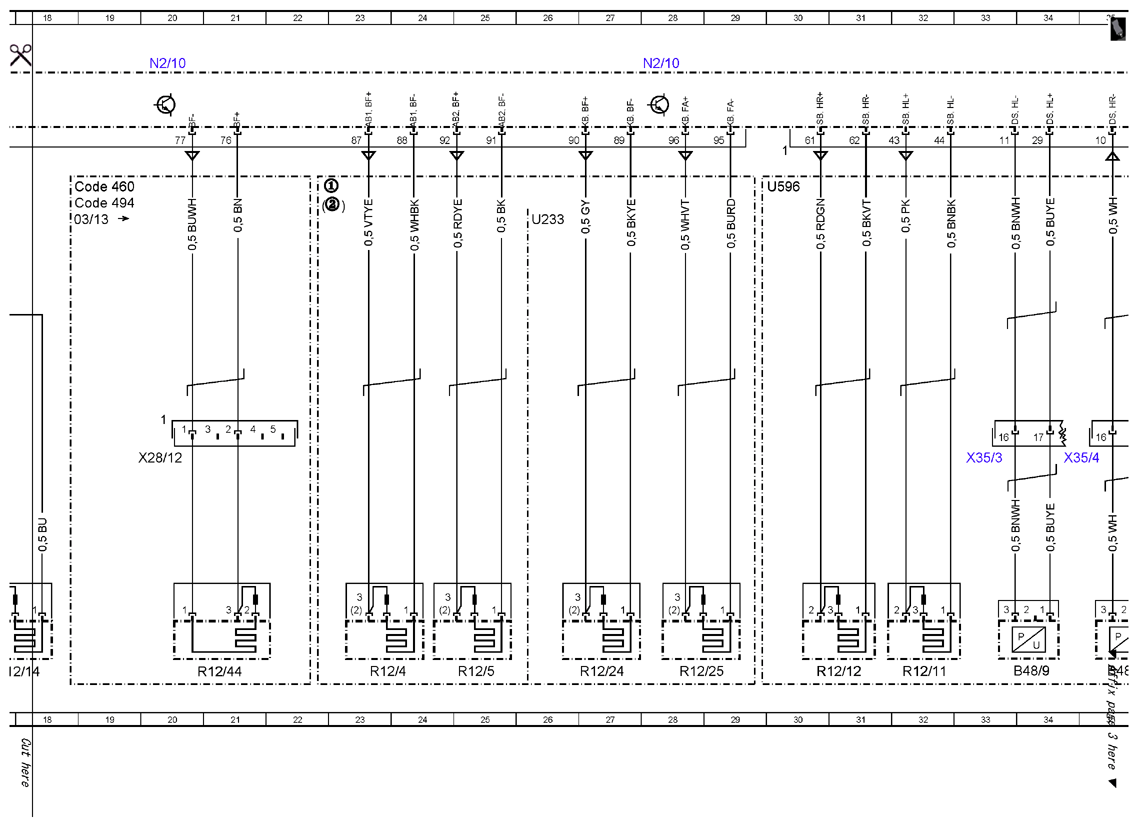

MODEL 212 Control unit N2/10, sheet 1
| Code: | Designation: | Position: |
|---|---|---|

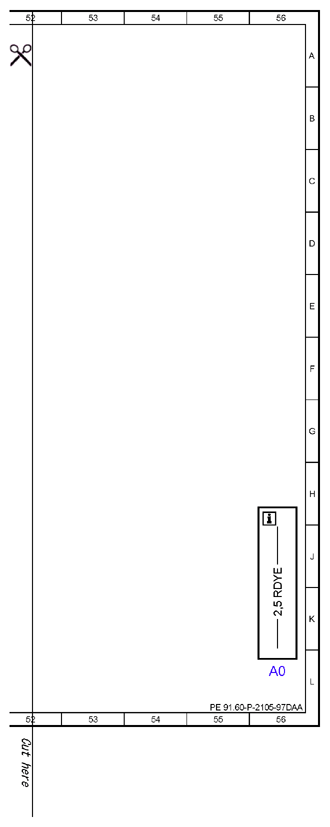

| A0 | Color code key | 56L |
| A45 | Fanfare horns and airbag clock spring contact | 13J |
| B48/10 | Right rear door pressure sensor | 35L |
| B48/9 | Left rear door pressure sensor | 34L |
| CAN E | Chassis CAN | 8K |
| CAN E1 | Chassis CAN 1 | 8K |
| Code 460 | Canada version | 18C |
| Code 494 | USA version | 18C |
| K88 | Pyrotechnical separator | 45L |
| N10/1 | Front SAM control unit with fuse and relay module | 3L |
| N10/1f15 | Fuse 15 | 2L |
| N10/1f8 | Fuse 8 | 5L |
| N2/10 | Supplemental restraint system control unit | 4A |
| N2/10 | Supplemental restraint system control unit | 13A |
| N2/10 | Supplemental restraint system control unit | 20A |
| N2/10 | Supplemental restraint system control unit | 28A |
| N2/10 | Supplemental restraint system control unit | 36A |
| N2/10 | Supplemental restraint system control unit | 44A |
| N80 | Steering column module control unit | 13L |
| R12/1 | Driver ETR [GUS] squib | 42L |
| R12/11 | Left rear sidebag squib | 32L |
| R12/12 | Right rear sidebag squib | 30L |
| R12/13 | Driver airbag squib 1 | 16L |
| R12/14 | Driver airbag squib 2 | 17L |
| R12/2 | Front passenger ETR [GUS] squib | 40L |
| R12/24 | Front passenger kneebag squib | 27L |
| R12/25 | Driver kneebag squib | 28L |
| R12/4 | Front passenger airbag squib 1 | 23L |
| R12/44 | Front passenger airbag ventilation valve squib | 21L |
| R12/5 | Front passenger airbag squib 2 | 25L |
| R12/6 | Left rear emergency tensioning retractor squib | 37L |
| R12/7 | Right rear emergency tensioning retractor squib | 39L |
| U233 | Valid for kneebag | 26D |
| U596 | Valid for rear sidebag | 30C |
| U775 | Valid for emergency tensioning retractor | 36C |
| U968 | Valid for mild hybrid drive | 43C |
| X28/12 | Airbag electrical connector | 20H |
| X28/48 | Right rear emergency tensioning retractor squib electrical connector | 39H |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 8L |
| X35/3 | Left rear door electrical connector | 33H |
| X35/4 | Right rear door electrical connector | 35H |
| Z37/6z1 | CAN bus high connector sleeve | 9E |
| Z37/7z1 | CAN bus low connector sleeve | 8E |
