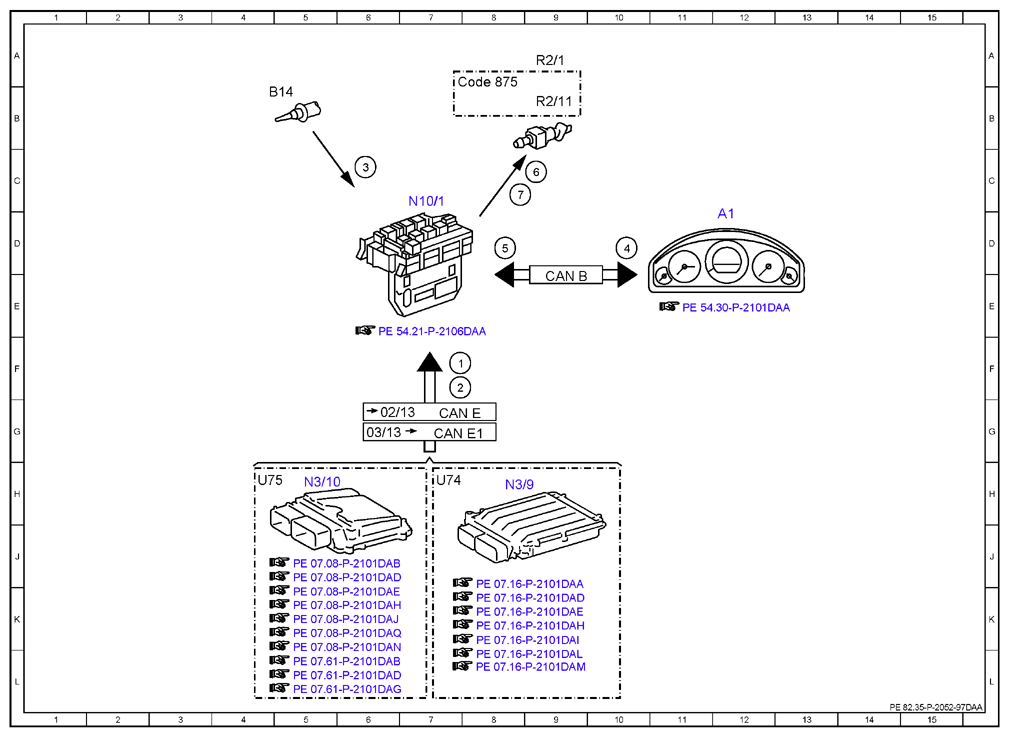

Electrical function diagram for washer nozzle/washer nozzle hose heater - PE82.35-P-2052-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 7F |
| 2 | Drivetrain operational, signal | 7F |
| 3 | Outside temperature sensor, signal | 6C |
| 4 | Outside temperature, signal | 10D |
| 5 | Displayed outside temperature, signal | 8D |
| 6 | Spray nozzle heater, actuation | 9C |
| 7 | Spray nozzle hose heater, actuation | 8C |
| A1 | Instrument cluster | 12D |
| B14 | Outside temperature sensor | 5B |
| CAN B | Interior CAN | 9E |
| CAN E | Chassis CAN | 7G |
| CAN E1 | Chassis CAN 1 | 7G |
| Code 875 | Heated windshield washer system | 7A |
| N10/1 | Front SAM control unit with fuse and relay module | 7C |
| N3/10 | ME-SFI [ME] control unit | 5H |
| N3/9 | CDI control unit | 8H |
| R2/1 | Spray nozzle heater | 9A |
| R2/11 | Spray nozzle hose heater | 9B |
| U74 | Valid for diesel engines | 7H |
| U75 | Valid for gasoline engines | 4H |
