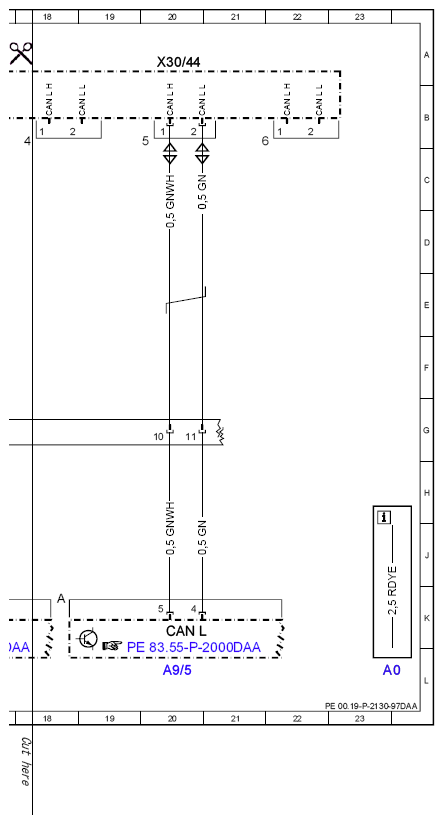

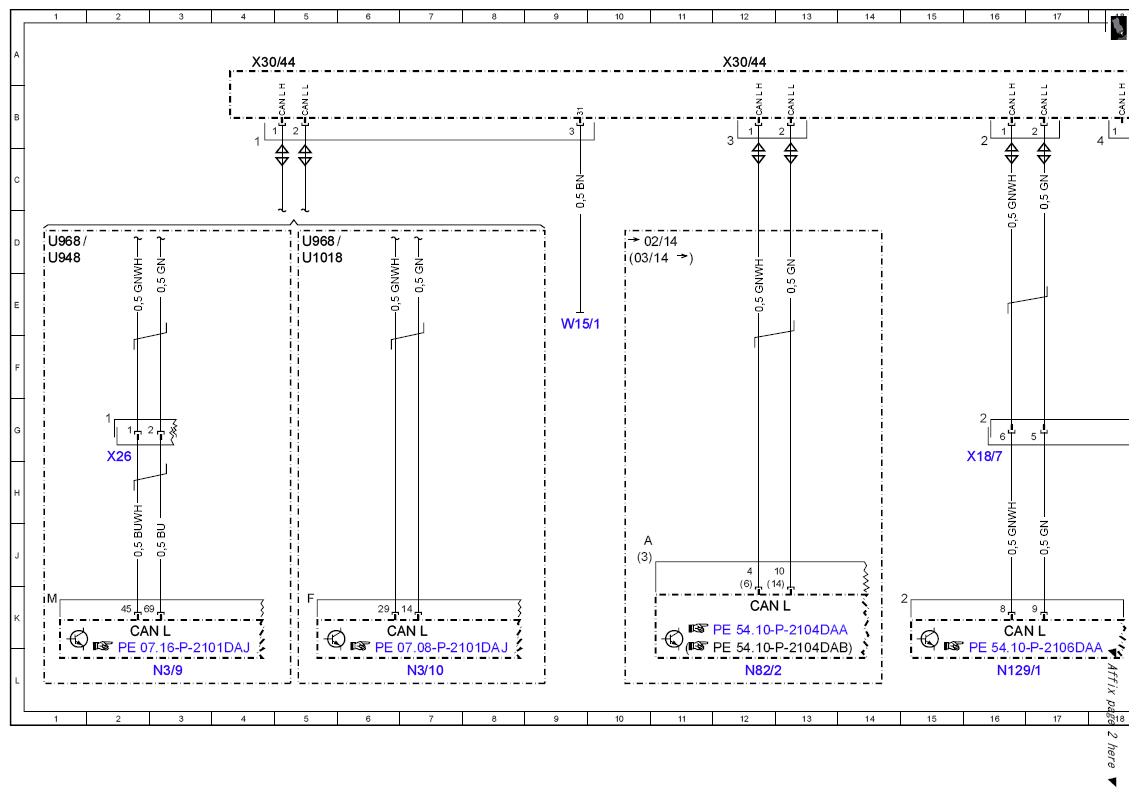

Wiring diagram, hybrid CAN - PE00.19-P-2130-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Potential distributor X30/44
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A9/5 | Electric refrigerant compressor | 20L |
| CAN L | Hybrid CAN | 20K |
| CAN L | Hybrid CAN | 2K |
| CAN L | Hybrid CAN | 16K |
| CAN L | Hybrid CAN | 12K |
| CAN L | Hybrid CAN | 6K |
| N129/1 | Power electronics control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 7L |
| N3/9 | CDI control unit | 3L |
| N82/2 | Battery management system control unit | 12L |
| U1018 | Valid for gasoline engine 276 | 5D |
| U948 | Valid for diesel engine 651 | 1D |
| U968 | Valid for mild hybrid drive | 1D |
| U968 | Valid for mild hybrid drive | 5D |
| W15/1 | Right footwell ground point | 9E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 16G |
| X26 | Interior and engine wiring harness electrical connector | 2G |
| X30/44 | Hybrid CAN potential distributor electrical connector | 4A |
| X30/44 | Hybrid CAN potential distributor electrical connector | 12A |
| X30/44 | Hybrid CAN potential distributor electrical connector | 20A |
