Wiring diagram of interior CAN - PE00.19-P-2185-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

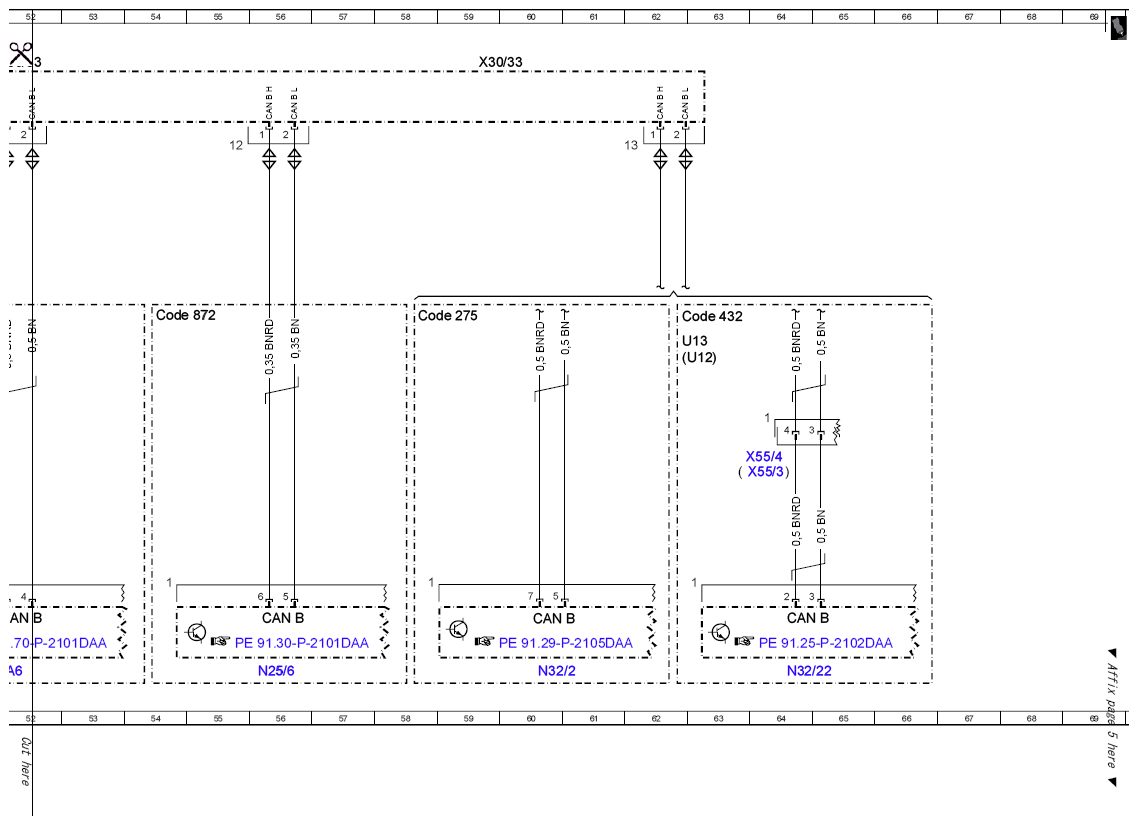

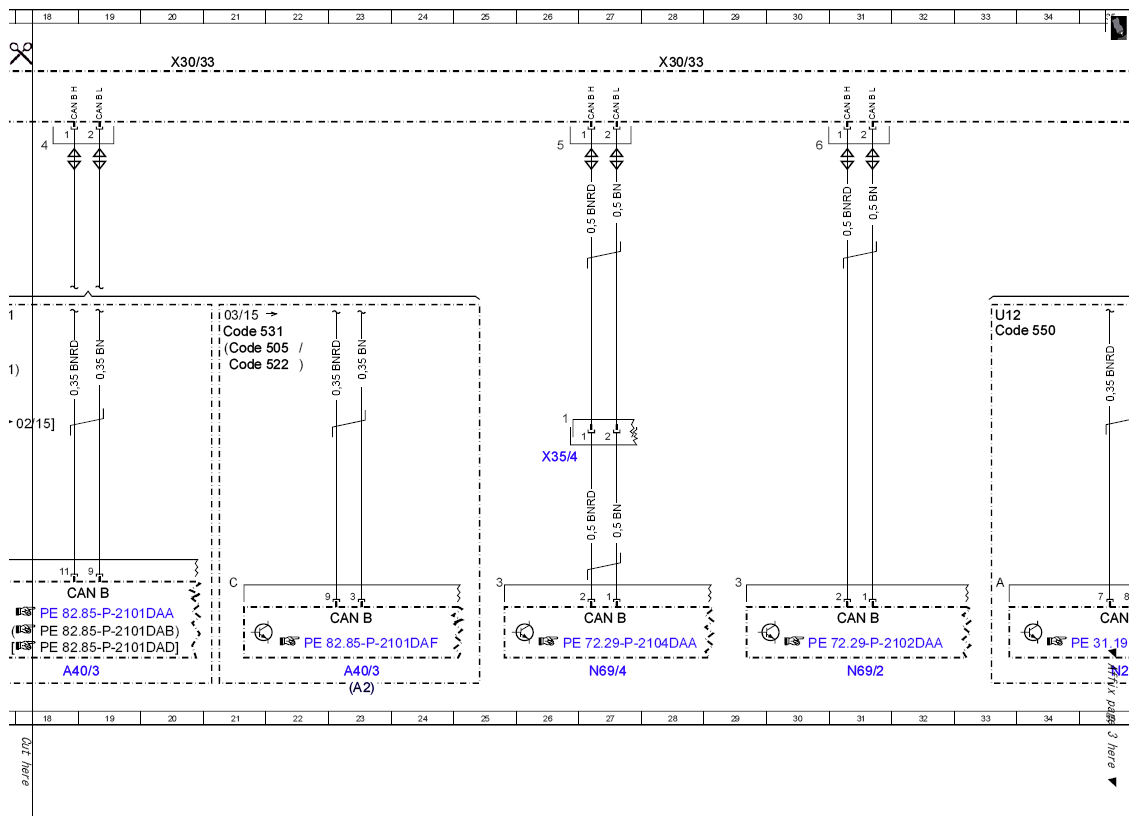

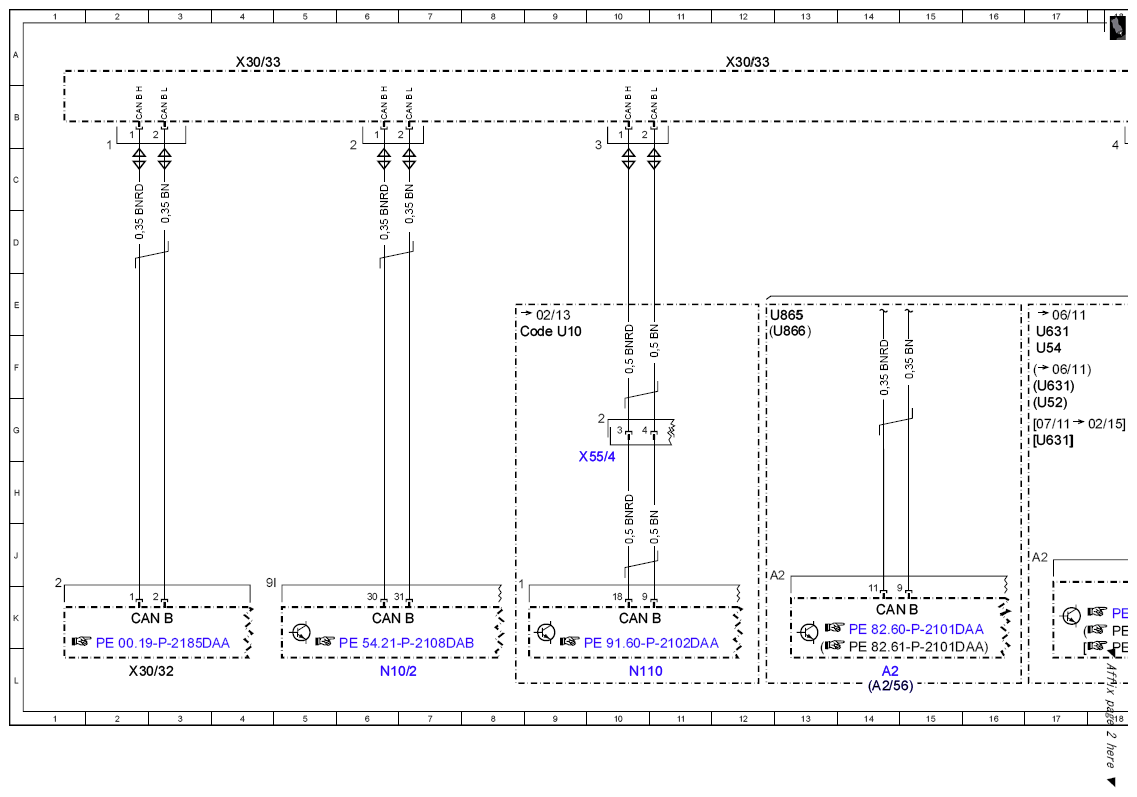

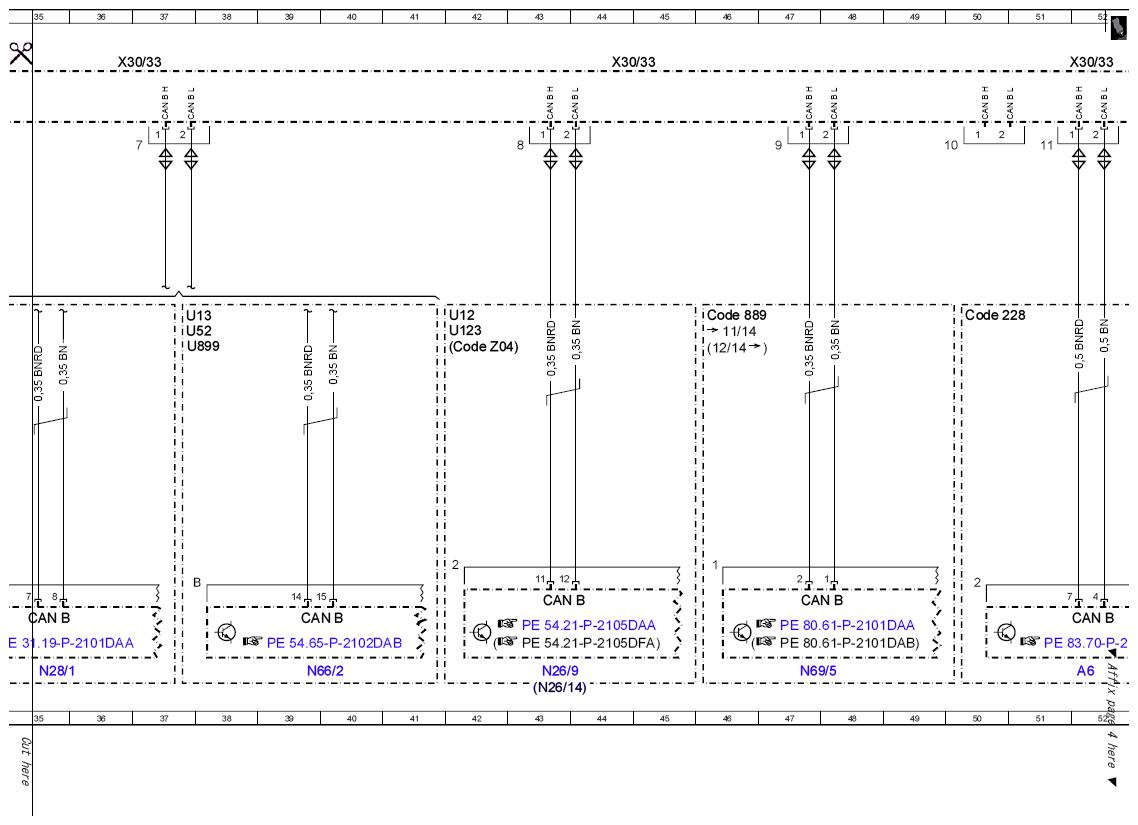

MODEL 212 Potential distributor X30/33, sheet 2
| Code: | Designation: | Position: |
|---|---|---|

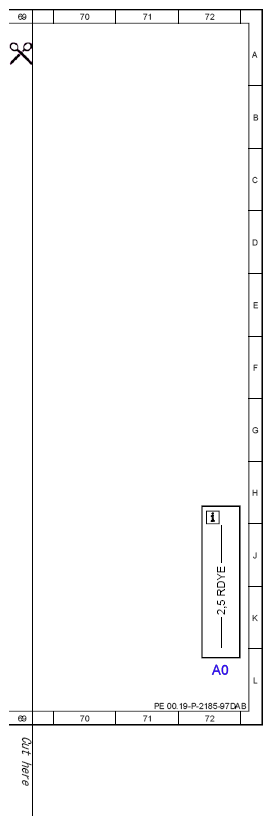

| A0 | Color code key | 72L |
| A2 | Radio | 14L |
| A2 | Radio | 23L |
| A2/56 | Radio with auto pilot system | 14L |
| A40/3 | COMAND control unit | 18L |
| A40/3 | COMAND control unit | 23L |
| A6 | Stationary heater unit | 52L |
| CAN B | Interior CAN | 2K |
| CAN B | Interior CAN | 6K |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 19K |
| CAN B | Interior CAN | 14K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 35K |
| CAN B | Interior CAN | 56K |
| CAN B | Interior CAN | 39K |
| CAN B | Interior CAN | 43K |
| CAN B | Interior CAN | 47K |
| CAN B | Interior CAN | 52K |
| CAN B | Interior CAN | 60K |
| CAN B | Interior CAN | 64K |
| CAN B | Interior CAN | 23K |
| Code 228 | Stationary heater | 50E |
| Code 275 | Front passenger seat memory package / electrically adjustable driver seat | 58E |
| Code 432 | Left and right front dynamic multicontour seats | 62E |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 21F |
| Code 522 | Audio 20 radio | 21F |
| Code 531 | COMAND APS | 21F |
| Code 550 | Trailer hitch | 33E |
| Code 872 | Left and right rear seat heaters | 54E |
| Code 889 | KEYLESS-GO | 46E |
| Code U10 | Weight sensing system (WSS) | 8F |
| Code Z04 | High protection B4 | 42F |
| N10/2 | Rear SAM control unit with fuse and relay module | 6L |
| N110 | Weight Sensing System (WSS) control unit | 10L |
| N25/6 | Rear seat heaters control unit | 56L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 43L |
| N26/9 | Special-purpose vehicle multifunction control unit | 43L |
| N28/1 | Trailer recognition control unit | 35L |
| N32/2 | Front passenger seat control unit | 60L |
| N32/22 | Right front dynamic multicontour seat control unit | 64L |
| N66/2 | Backup camera control unit | 39L |
| N69/2 | Right front door control unit | 31L |
| N69/4 | Right rear door control unit | 27L |
| N69/5 | KEYLESS-GO control unit | 47L |
| U12 | Valid for left-hand drive vehicles | 33E |
| U12 | Valid for left-hand drive vehicles | 42E |
| U12 | Valid for left-hand drive vehicles | 62F |
| U123 | Valid for taxi electrical system | 42E |
| U13 | Valid for right-hand drive vehicles | 37E |
| U13 | Valid for right-hand drive vehicles | 62F |
| U52 | Valid for Japan | 37E |
| U52 | Valid for Japan | 17G |
| U54 | Valid for all except Japan | 17F |
| U631 | Valid for COMAND | 17F |
| U631 | Valid for COMAND | 17F |
| U631 | Valid for COMAND | 17G |
| U865 | Valid for Audio 20 | 12E |
| U866 | Valid for Audio 50 | 12E |
| U899 | Valid for backup camera | 37F |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 2L |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 12A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 4A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 20A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 28A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 52A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 36A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 44A |
| X30/33 | Right vehicle floor interior CAN voltage distributor electrical connector | 59A |
| X35/4 | Right rear door electrical connector | 26H |
| X55/3 | Driver seat connector block | 64H |
| X55/4 | Front passenger seat connector block | 10H |
| X55/4 | Front passenger seat connector block | 64H |
