Secure vehicle on vehicle lift - AR00.60-P-0100EWS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

Shown on model 212

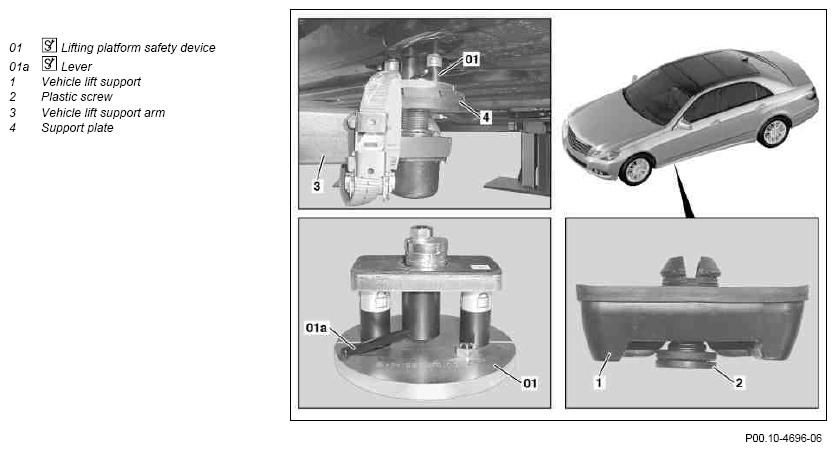

Fig 1: Securing Vehicle On Vehicle Lift

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
		The vehicle lift safety devices (01) must always be mounted in pairs i.e. at two positions in the vehicle longitudinal members. The vehicle lift safety devices (01) can both be mounted at the front, at the rear or on one side.
1	Remove plastic screws (2) from vehicle lift supports (1)
2	Pry lifting platform supports (1) out of longitudinal members	Do not use any sharp-edge tools, as this will result in damage to the longitudinal member.
3	Insert lifting platform safety devices (01) into longitudinal members	Lifting platform retainer	Fig 2
4	Swivel lever (01a) of vehicle lift safety devices (01) to the right	The vehicle lift safety devices (01) are then locked onto the longitudinal members.
5	Adjust support plates (4) of vehicle lift support arms (3) until they are level with the vehicle lift safety devices (01) or the remaining vehicle lift supports (1)	Rotate support plates (4) until they make contact with the lifting platform safety devices (01) or the lifting platform supports (1) of the longitudinal members.
6	Lift vehicle on lifting platform.
7	Secure lifting platform safety devices (01) using tensioning straps on the lifting platform support arms (3)
8	Dismantle in reverse order.

Fig 2: Identifying Vehicle Lift Safety Device (171 589 01 31 00)
