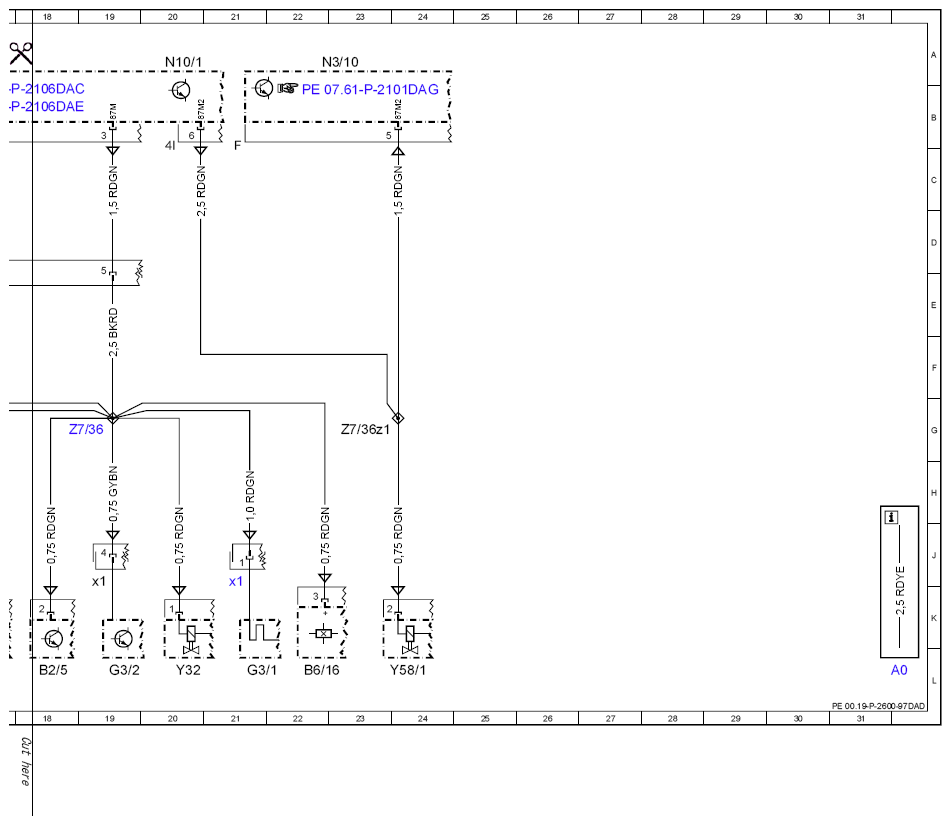

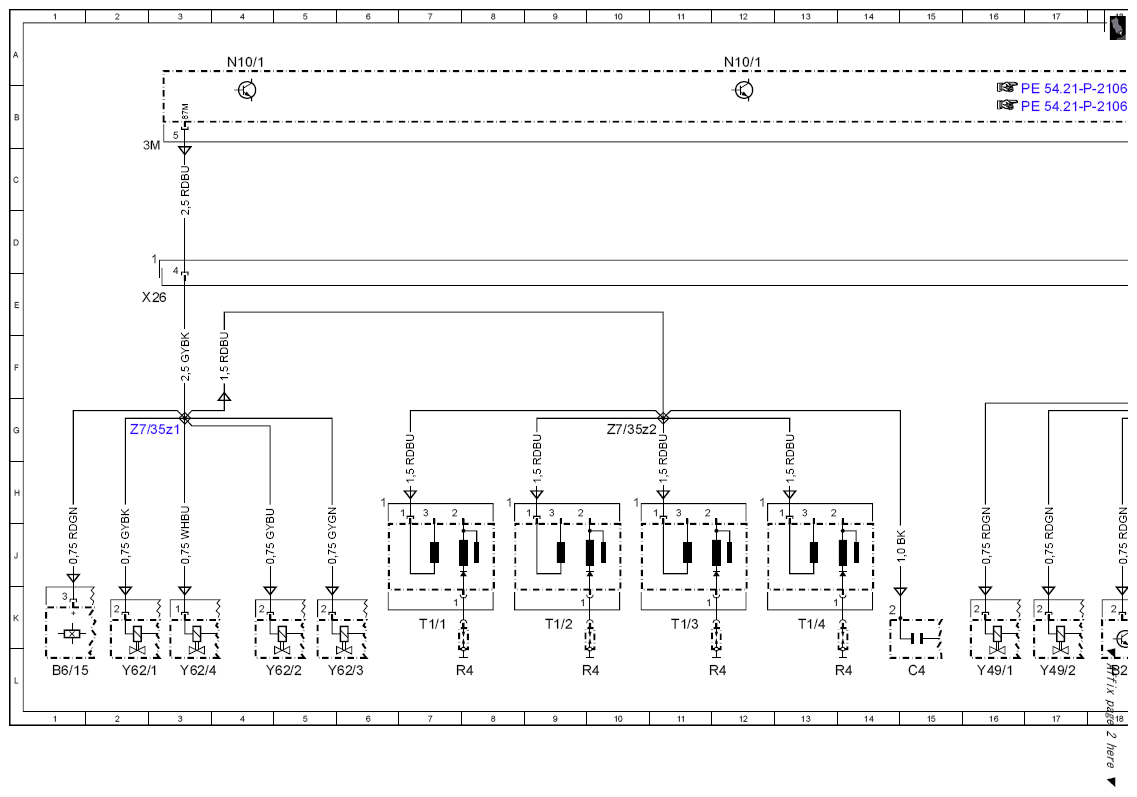

Wiring diagram of soldered points / Z connector sleeves - PE00.19-P-2600-97DAD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Z7/35z1 (M271 KE), Z7/35z2 (M271 KE), Z7/36 (M271 KE), Z7/36z1 (M271 KE)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B2/5 | Hot film mass air flow sensor | 18L |
| B6/15 | Intake camshaft Hall sensor | 1L |
| B6/16 | Exhaust camshaft Hall sensor | 22L |
| C4 | Interference suppression capacitor | 15L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 21L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 19L |
| G3/2x1 | Electrical connector for oxygen sensor upstream of converter catalytic | 19J |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 21J |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N3/10 | ME-SFI [ME] control unit | 23A |
| R4 | Spark plugs | 10L |
| R4 | Spark plugs | 7L |
| R4 | Spark plugs | 14L |
| R4 | Spark plugs | 12L |
| T1/1 | Cylinder 1 ignition coil | 7K |
| T1/2 | Cylinder 2 ignition coil | 9K |
| T1/3 | Cylinder 3 ignition coil | 11K |
| T1/4 | Cylinder 4 ignition coil | 13K |
| X26 | Interior and engine wiring harness electrical connector | 3E |
| Y32 | Air pump switchover valve | 20L |
| Y49/1 | Intake camshaft solenoid | 16L |
| Y49/2 | Exhaust camshaft solenoid | 17L |
| Y58/1 | Purge control valve | 24L |
| Y62/1 | Cylinder 1 injection valve | 2L |
| Y62/2 | Cylinder 2 injection valve | 5L |
| Y62/3 | Cylinder 3 injection valve | 6L |
| Y62/4 | Cylinder 4 injection valve | 3L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 3G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 10G |
| Z7/36 | Circuit 87 M2e connector sleeve | 19G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 23G |
