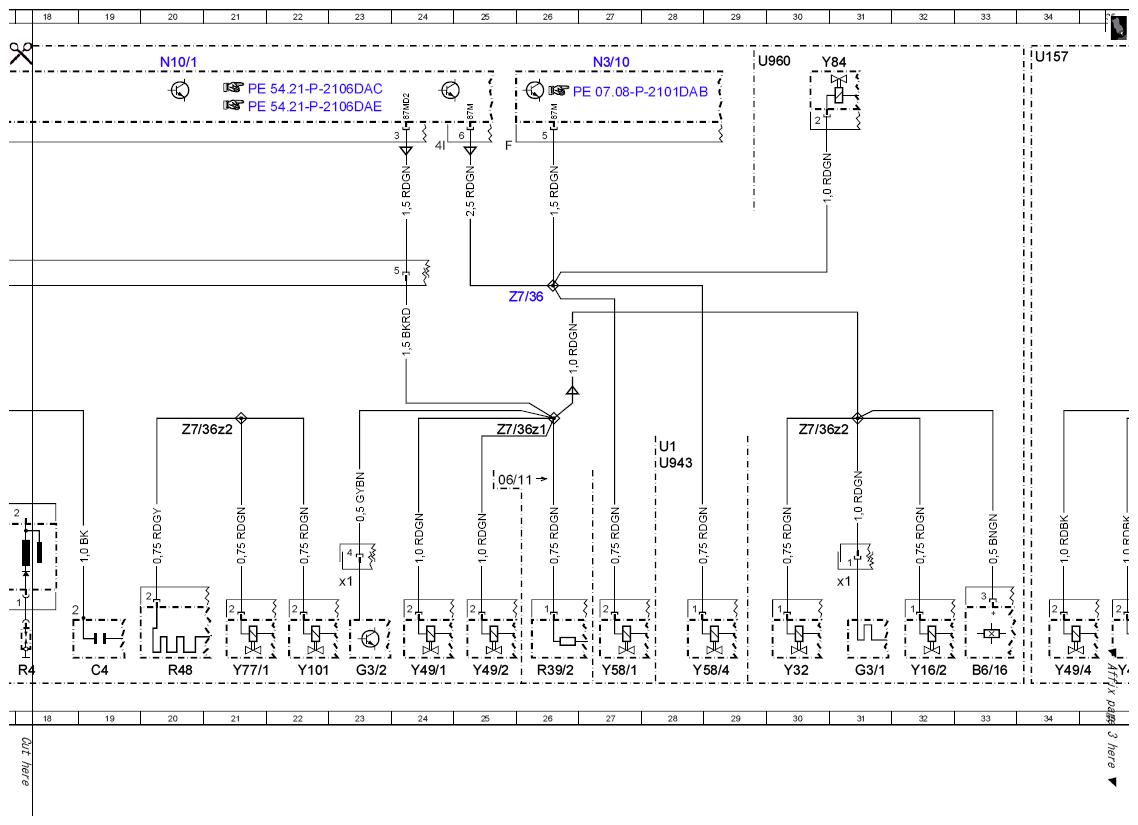

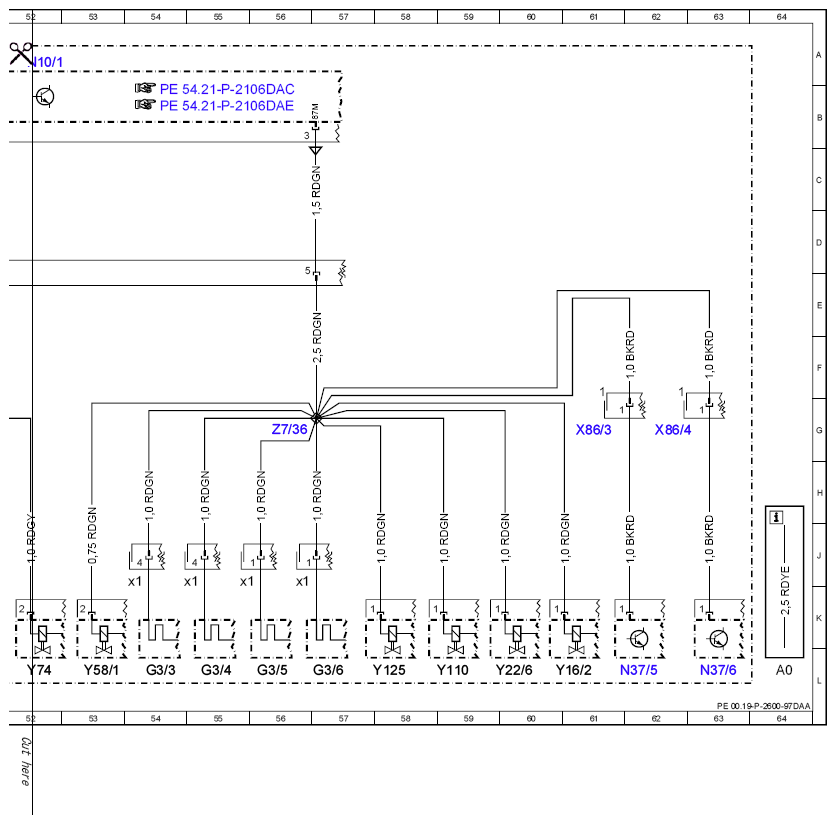

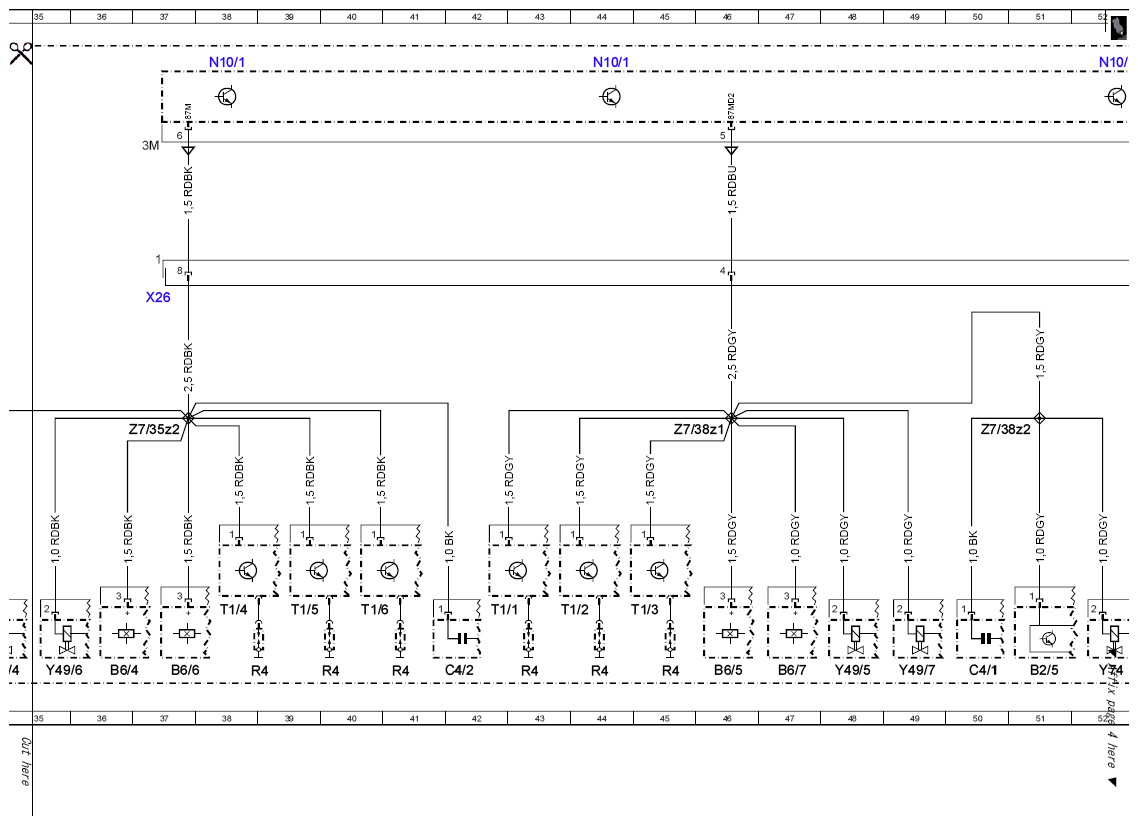

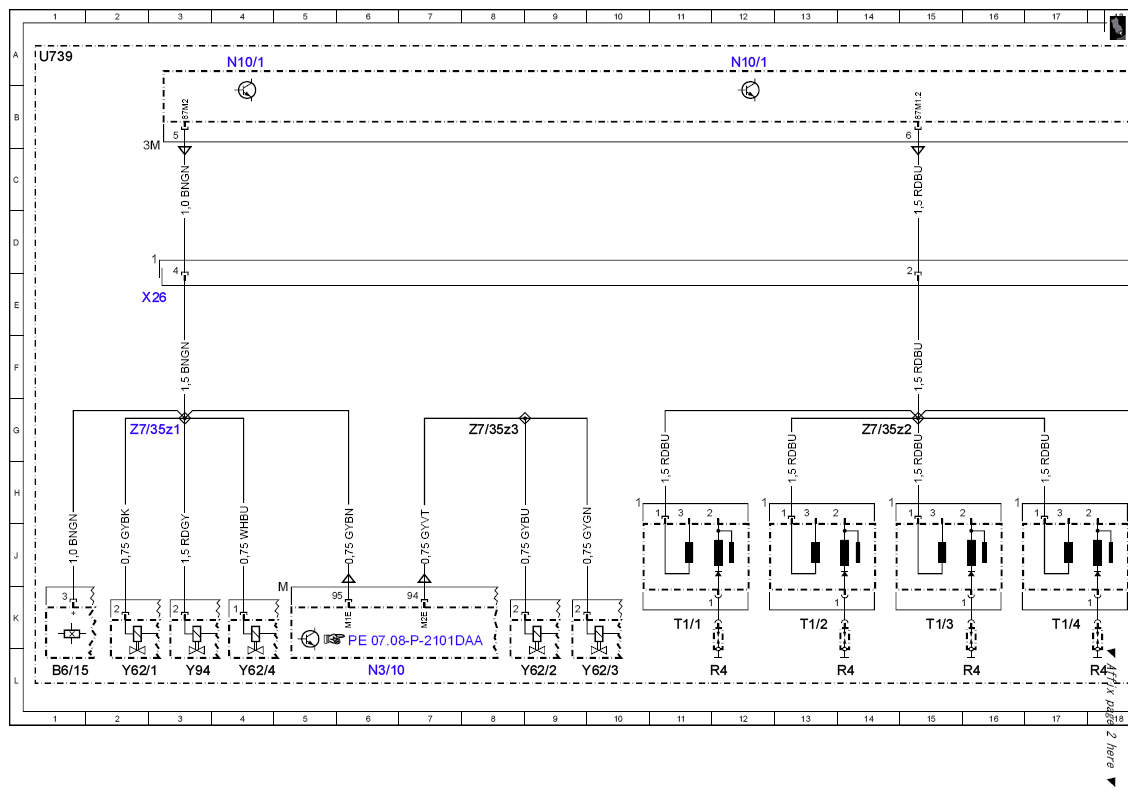

Wiring diagram of soldered points / Z connector sleeves - PE00.19-P-2600-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 Z7/35z1 (M 271 DE), Z7/35z2 (M 271 DE), Z7/35z3 (M 271 DE), Z7/36 (M 271 DE), Z7/35z2 (M 272 DE), Z7/36 (M 272 DE), Z7/38z1 (M 272 DE), Z7/38z2 (M 272 DE)
| Code: | Designation: | Position: |
|---|---|---|
| B2/5 | Hot film mass air flow sensor | 51L |
| B6/15 | Intake camshaft Hall sensor | 1L |
| B6/16 | Exhaust camshaft Hall sensor | 33L |
| B6/4 | Left intake camshaft Hall sensor | 36L |
| B6/5 | Right intake camshaft Hall sensor | 46L |
| B6/6 | Left exhaust camshaft Hall sensor | 37L |
| B6/7 | Right exhaust camshaft Hall sensor | 47L |
| C4 | Interference suppression capacitor | 19L |
| C4/1 | Radio interference suppression capacitor 1 | 50L |
| C4/2 | Radio interference suppression capacitor 2 | 42L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 31L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 23L |
| G3/2x1 | Electrical connector for oxygen sensor upstream of converter catalytic | 23J |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 54L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of converter catalytic | 54J |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 55L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of converter catalytic | 55J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 56L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of converter catalytic | 56J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 57L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of converter catalytic | 56J |
| N10/1 | Front SAM control unit with fuse and relay module | 4A |
| N10/1 | Front SAM control unit with fuse and relay module | 12A |
| N10/1 | Front SAM control unit with fuse and relay module | 20A |
| N10/1 | Front SAM control unit with fuse and relay module | 38A |
| N10/1 | Front SAM control unit with fuse and relay module | 44A |
| N10/1 | Front SAM control unit with fuse and relay module | 52A |
| N3/10 | ME-SFI [ME] control unit | 6L |
| N3/10 | ME-SFI [ME] control unit | 27A |
| N37/5 | Left NOx sensor control unit | 62L |
| N37/6 | Right NOx sensor control unit | 63L |
| R39/2 | Full-load operation vent line heater element | 26L |
| R4 | Spark plugs | 14L |
| R4 | Spark plugs | 12L |
| R4 | Spark plugs | 18L |
| R4 | Spark plugs | 16L |
| R4 | Spark plugs | 43L |
| R4 | Spark plugs | 41L |
| R4 | Spark plugs | 40L |
| R4 | Spark plugs | 38L |
| R4 | Spark plugs | 44L |
| R4 | Spark plugs | 45L |
| R48 | Coolant thermostat heating element | 20L |
| T1/1 | Cylinder 1 ignition coil | 11K |
| T1/1 | Cylinder 1 ignition coil | 42K |
| T1/2 | Cylinder 2 ignition coil | 13K |
| T1/2 | Cylinder 2 ignition coil | 43K |
| T1/3 | Cylinder 3 ignition coil | 15K |
| T1/3 | Cylinder 3 ignition coil | 45K |
| T1/4 | Cylinder 4 ignition coil | 17K |
| T1/4 | Cylinder 4 ignition coil | 38K |
| T1/5 | Cylinder 5 ignition coil | 39K |
| T1/6 | Cylinder 6 ignition coil | 40K |
| U1 | Valid for USA | 28G |
| U157 | Valid for combustion engine 272 DE | 34A |
| U739 | Valid for gasoline engine 271 DE | 1A |
| U943 | Valid for South Korea | 28H |
| U960 | Valid for radiator shutters | 29A |
| X26 | Interior and engine wiring harness electrical connector | 3E |
| X26 | Interior and engine wiring harness electrical connector | 37E |
| X86/3 | Nitrogen oxides control unit electrical connector | 61G |
| X86/4 | Right nitrogen oxides control unit electrical connector | 62G |
| Y101 | Divert air switchover valve | 22L |
| Y110 | Coolant thermostat | 59L |
| Y125 | Low-temperature circuit shutoff valve | 58L |
| Y16/2 | Heating system shutoff valve | 32L |
| Y16/2 | Heating system shutoff valve | 61L |
| Y22/6 | Intake manifold switchover valve | 60L |
| Y32 | Air pump switchover valve | 30L |
| Y49/1 | Intake camshaft solenoid | 24L |
| Y49/2 | Exhaust camshaft solenoid | 25L |
| Y49/4 | Left intake camshaft solenoid | 34L |
| Y49/5 | Right intake camshaft solenoid | 48L |
| Y49/6 | Left exhaust camshaft solenoid | 35L |
| Y49/7 | Right exhaust camshaft solenoid | 49L |
| Y58/1 | Purge control valve | 27L |
| Y58/1 | Purge control valve | 53L |
| Y58/4 | Activated charcoal filter shutoff valve | 28L |
| Y62/1 | Cylinder 1 injection valve | 2L |
| Y62/2 | Cylinder 2 injection valve | 9L |
| Y62/3 | Cylinder 3 injection valve | 10L |
| Y62/4 | Cylinder 4 injection valve | 4L |
| Y74 | Pressure regulator valve | 52L |
| Y77/1 | Boost pressure positioner | 21L |
| Y84 | Radiator shutters actuator | 30A |
| Y94 | Quantity control valve | 3L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 3G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 14G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 37G |
| Z7/35z3 | Circuit 87 M1e connector sleeve | 8G |
| Z7/36 | Circuit 87 M2e connector sleeve | 56G |
| Z7/36 | Circuit 87 M2e connector sleeve | 26E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 26G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 21G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 30G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 46G |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 50G |
