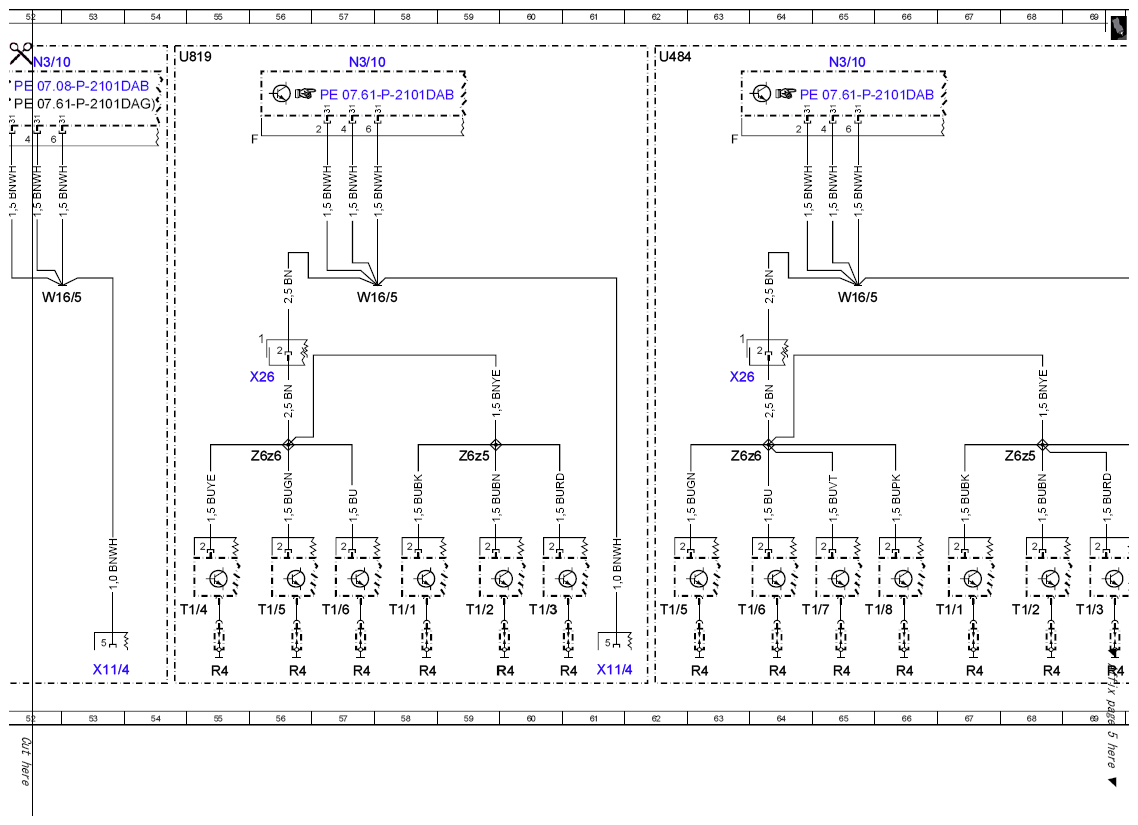

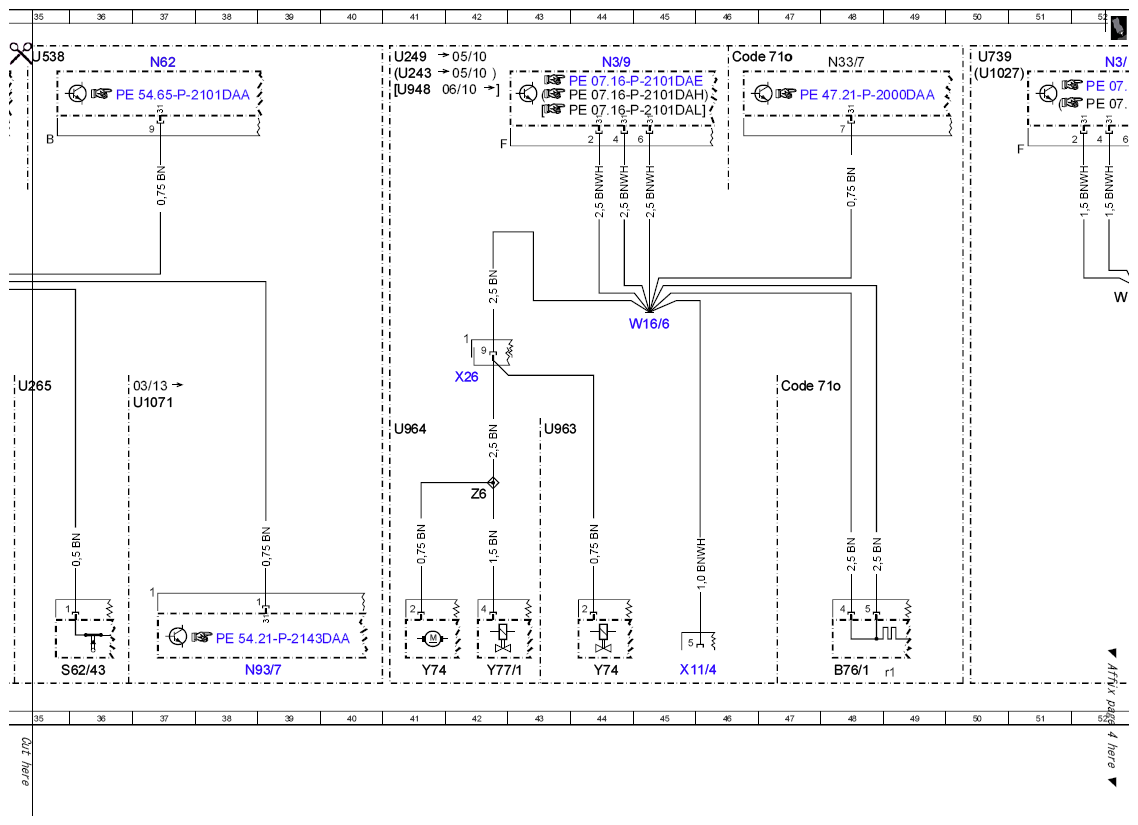

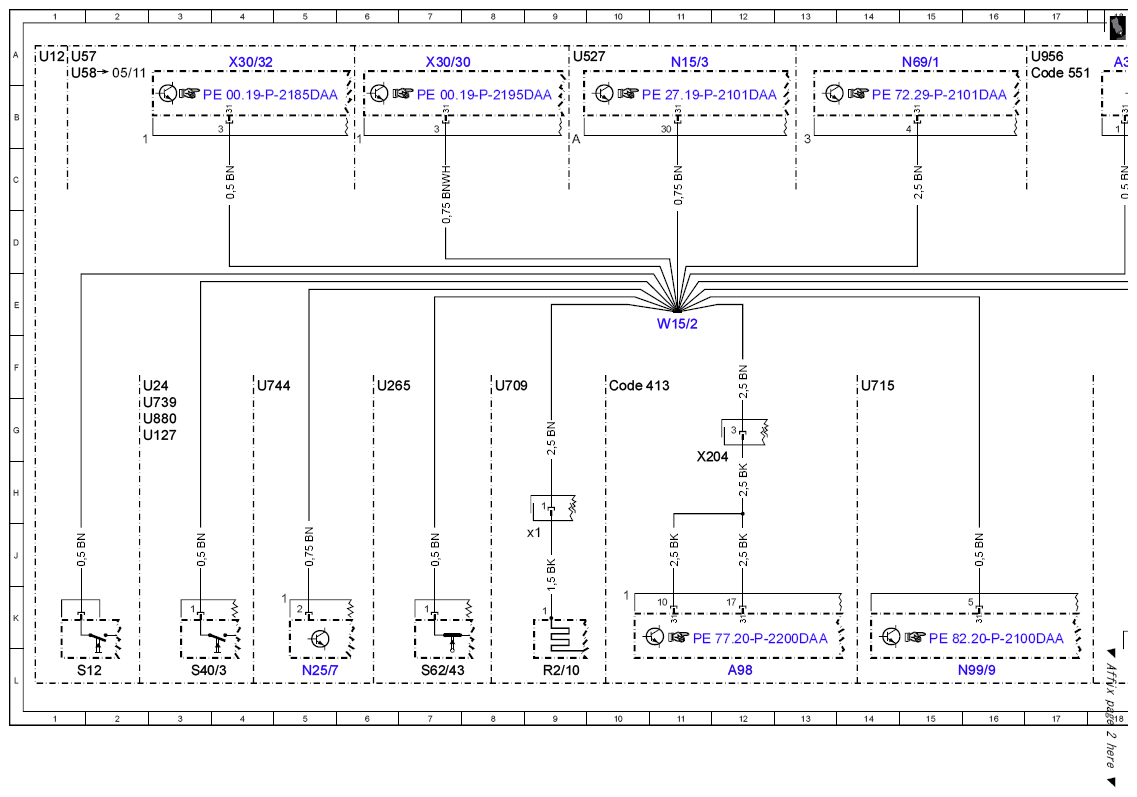

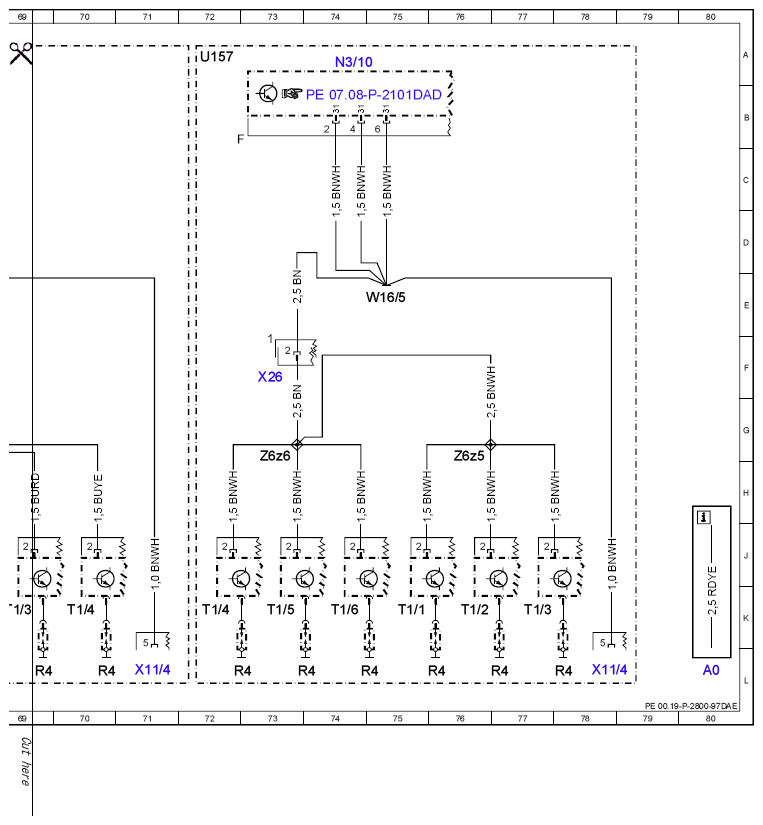

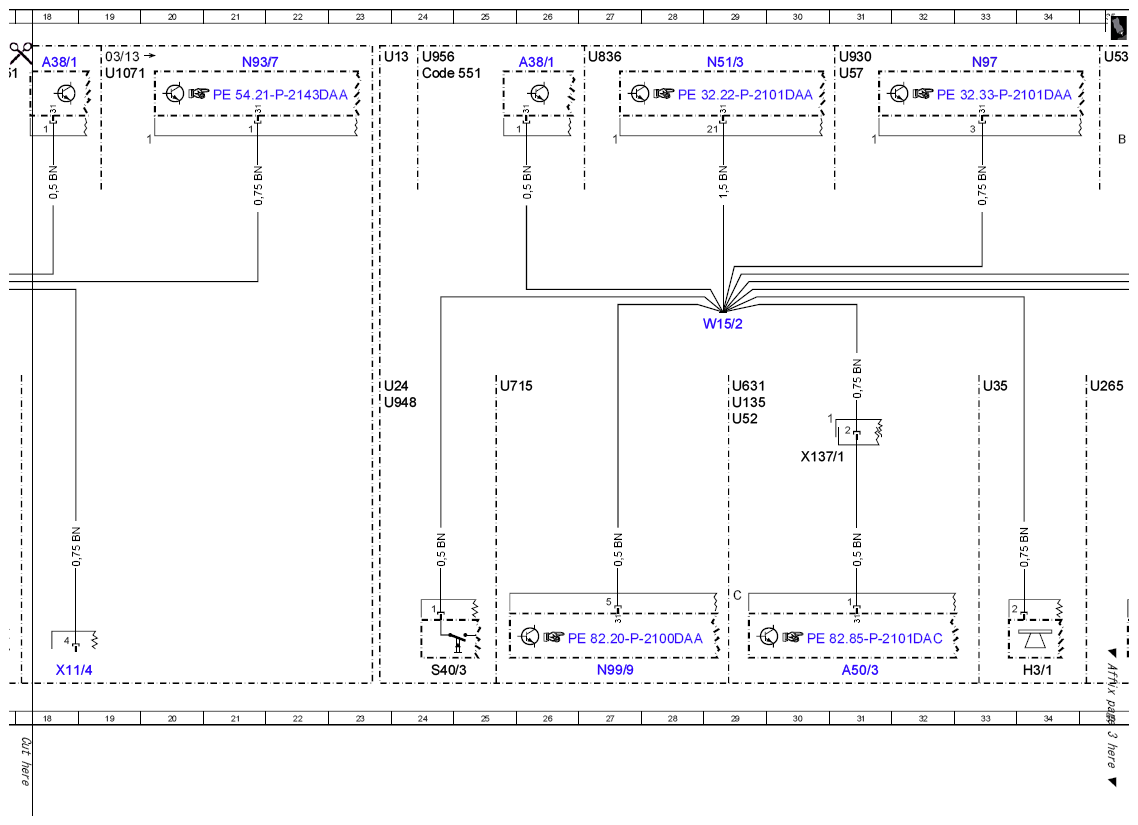

Wiring diagram of ground cabling - PE00.19-P-2800-97DAE
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W15/2, W16/5, W16/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 18A |
| A38/1 | Pedestrian protection Hall sensor + engine hood ATA [EDW] switch | 26A |
| A50/3 | Electronic Toll Collection control unit | 31L |
| A98 | Panoramic sliding roof control module | 12L |
| B76/1 | Condensation sensor for fuel filter with heating element | 48L |
| B76/1r1 | Fuel filter heater heating element | 49L |
| Code 413 | Panoramic sliding sunroof | 10F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 17A |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 24A |
| Code 71o | Heated fuel filter retrofit | 47F |
| Code 71o | Heated fuel filter retrofit | 46A |
| H3/1 | Alarm siren | 34L |
| N15/3 | Electronic transmission control unit | 11A |
| N25/7 | Steering wheel heater control unit | 5L |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 57A |
| N3/10 | ME-SFI [ME] control unit | 65A |
| N3/10 | ME-SFI [ME] control unit | 74A |
| N3/9 | CDI control unit | 44A |
| N51/3 | AIRMATIC control unit | 29A |
| N62 | Parking system control unit | 37A |
| N69/1 | Left front door control unit | 15A |
| N93/7 | Chassis gateway control unit | 38L |
| N93/7 | Chassis gateway control unit | 21A |
| N97 | Rear axle electronic level control unit | 33A |
| N99/9 | Left front illuminated door sill molding voltage converter | 16L |
| N99/9 | Left front illuminated door sill molding voltage converter | 27L |
| R2/10 | Wiper park heater | 9L |
| R2/10x1 | Wiper park position heater electrical connector | 9J |
| R4 | Spark plugs | 66L |
| R4 | Spark plugs | 60L |
| R4 | Spark plugs | 58L |
| R4 | Spark plugs | 56L |
| R4 | Spark plugs | 55L |
| R4 | Spark plugs | 57L |
| R4 | Spark plugs | 61L |
| R4 | Spark plugs | 63L |
| R4 | Spark plugs | 64L |
| R4 | Spark plugs | 65L |
| R4 | Spark plugs | 67L |
| R4 | Spark plugs | 69L |
| R4 | Spark plugs | 68L |
| R4 | Spark plugs | 70L |
| R4 | Spark plugs | 72L |
| R4 | Spark plugs | 76L |
| R4 | Spark plugs | 74L |
| R4 | Spark plugs | 73L |
| R4 | Spark plugs | 77L |
| R4 | Spark plugs | 78L |
| S12 | Parking brake indicator switch | 1L |
| S40/3 | Clutch pedal switch | 3L |
| S40/3 | Clutch pedal switch | 24L |
| S62/43 | Left engine hood contact switch | 7L |
| S62/43 | Left engine hood contact switch | 36L |
| T1/1 | Cylinder 1 ignition coil | 58K |
| T1/1 | Cylinder 1 ignition coil | 75K |
| T1/1 | Cylinder 1 ignition coil | 67K |
| T1/2 | Cylinder 2 ignition coil | 59K |
| T1/2 | Cylinder 2 ignition coil | 76K |
| T1/2 | Cylinder 2 ignition coil | 68K |
| T1/3 | Cylinder 3 ignition coil | 60K |
| T1/3 | Cylinder 3 ignition coil | 77K |
| T1/3 | Cylinder 3 ignition coil | 69K |
| T1/4 | Cylinder 4 ignition coil | 54K |
| T1/4 | Cylinder 4 ignition coil | 72K |
| T1/4 | Cylinder 4 ignition coil | 70K |
| T1/5 | Cylinder 5 ignition coil | 62K |
| T1/5 | Cylinder 5 ignition coil | 56K |
| T1/5 | Cylinder 5 ignition coil | 73K |
| T1/6 | Cylinder 6 ignition coil | 57K |
| T1/6 | Cylinder 6 ignition coil | 63K |
| T1/6 | Cylinder 6 ignition coil | 74K |
| T1/7 | Cylinder 7 ignition coil | 64K |
| T1/8 | Cylinder 8 ignition coil | 65K |
| U1027 | Valid for gasoline engine 271 continuous fuel injection system (electronic) | 50A |
| U1071 | Valid for stereo multifunction camera | 36G |
| U1071 | Valid for stereo multifunction camera | 19A |
| U12 | Valid for left-hand drive vehicles | 1A |
| U127 | Valid for combustion engines 272 and 273 KE | 2G |
| U13 | Valid for right-hand drive vehicles | 23A |
| U135 | Valid for Electronic Toll Collection | 29G |
| U157 | Valid for combustion engine 272 DE | 72A |
| U24 | Valid for manual transmission | 2F |
| U24 | Valid for manual transmission | 23F |
| U243 | Valid for diesel engine 651 with all-wheel drive | 41A |
| U249 | Valid for diesel engine 651 without all-wheel drive | 41A |
| U265 | Not valid for pedestrian protection | 6F |
| U265 | Not valid for pedestrian protection | 35F |
| U35 | Valid for anti-theft alarm system | 33F |
| U484 | Valid for gasoline engine 273 | 62A |
| U52 | Valid for Japan | 29G |
| U527 | Valid for electronic transmission control | 9A |
| U538 | Valid for PARKTRONIC | 35A |
| U57 | Valid for model 212.2 | 1A |
| U57 | Valid for model 212.2 | 31A |
| U58 | Valid for model 212.0/1 | 1A |
| U631 | Valid for COMAND | 29F |
| U709 | Valid for wiper park position heater | 8F |
| U715 | Valid for illuminated door sills | 14F |
| U715 | Valid for illuminated door sills | 25F |
| U739 | Valid for gasoline engine 271 DE | 2G |
| U739 | Valid for gasoline engine 271 DE | 50A |
| U744 | Valid for steering wheel heater | 4F |
| U819 | Valid for gasoline engine 272 | 54A |
| U836 | Valid for AIRMATIC | 27A |
| U880 | Valid for diesel engine 642 | 2G |
| U930 | Valid for electronic level control with hydraulics | 31A |
| U948 | Valid for diesel engine 651 | 23G |
| U948 | Valid for diesel engine 651 | 41B |
| U956 | Valid for pedestrian protection | 17A |
| U956 | Valid for pedestrian protection | 24A |
| U963 | Valid for piezo fuel injector | 43G |
| U964 | Valid for all except piezo fuel injector | 41G |
| W15/2 | Left footwell ground point | 11E |
| W15/2 | Left footwell ground point | 29E |
| W16/5 | Left major assembly compartment electronics ground point | 52E |
| W16/5 | Left major assembly compartment electronics ground point | 57E |
| W16/5 | Left major assembly compartment electronics ground point | 65E |
| W16/5 | Left major assembly compartment electronics ground point | 75E |
| W16/6 | Right major assembly compartment ground point | 45E |
| X11/4 | Diagnostic connector | 18L |
| X11/4 | Diagnostic connector | 53L |
| X11/4 | Diagnostic connector | 46L |
| X11/4 | Diagnostic connector | 61L |
| X11/4 | Diagnostic connector | 71L |
| X11/4 | Diagnostic connector | 78L |
| X137/1 | VICS and Electronic Toll Collection power supply electrical connector | 30H |
| X204 | Panoramic sliding roof electrical connector | 12H |
| X26 | Interior and engine wiring harness electrical connector | 73F |
| X26 | Interior and engine wiring harness electrical connector | 63F |
| X26 | Interior and engine wiring harness electrical connector | 56F |
| X26 | Interior and engine wiring harness electrical connector | 42F |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 7A |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 4A |
| Y74 | Pressure regulator valve | 41L |
| Y74 | Pressure regulator valve | 44L |
| Y77/1 | Boost pressure positioner | 42L |
| Z6 | Circuit 31 connector sleeve | 42H |
| Z6z5 | Circuit 31 connector sleeve | 59G |
| Z6z5 | Circuit 31 connector sleeve | 68G |
| Z6z5 | Circuit 31 connector sleeve | 76G |
| Z6z6 | Circuit 31 connector sleeve | 56G |
| Z6z6 | Circuit 31 connector sleeve | 63G |
| Z6z6 | Circuit 31 connector sleeve | 73G |
