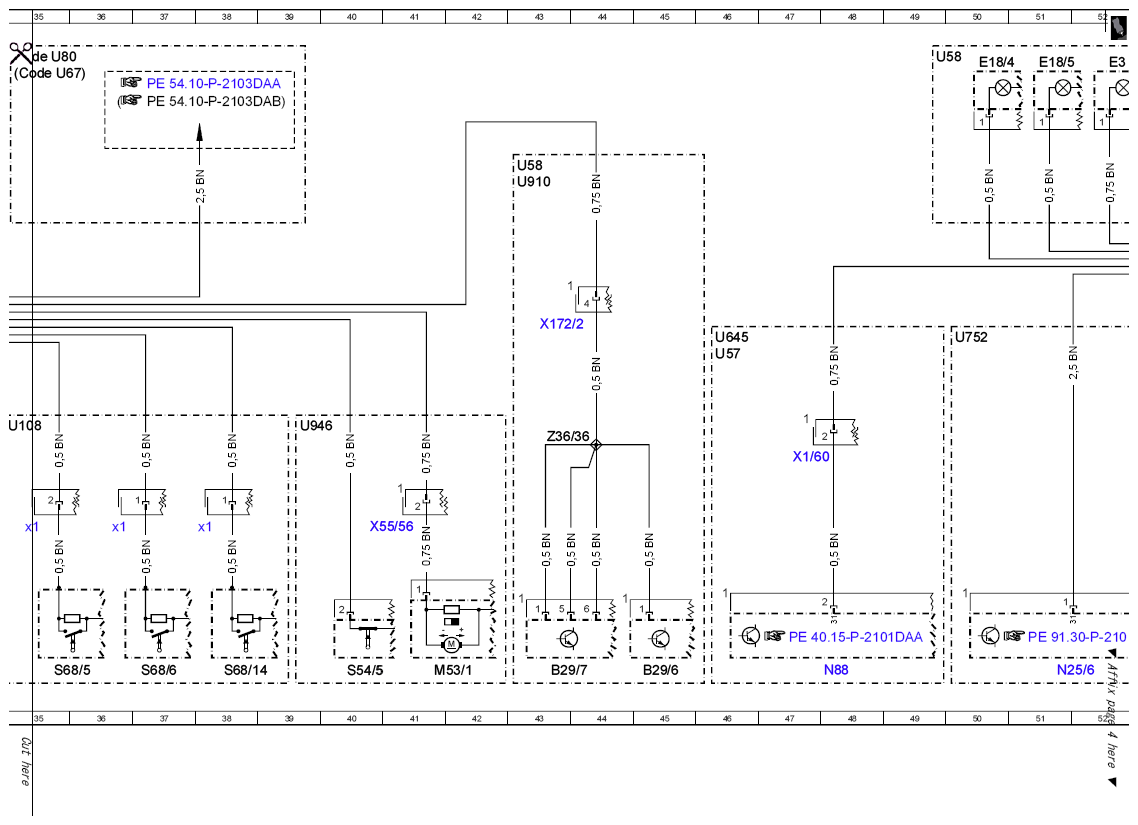

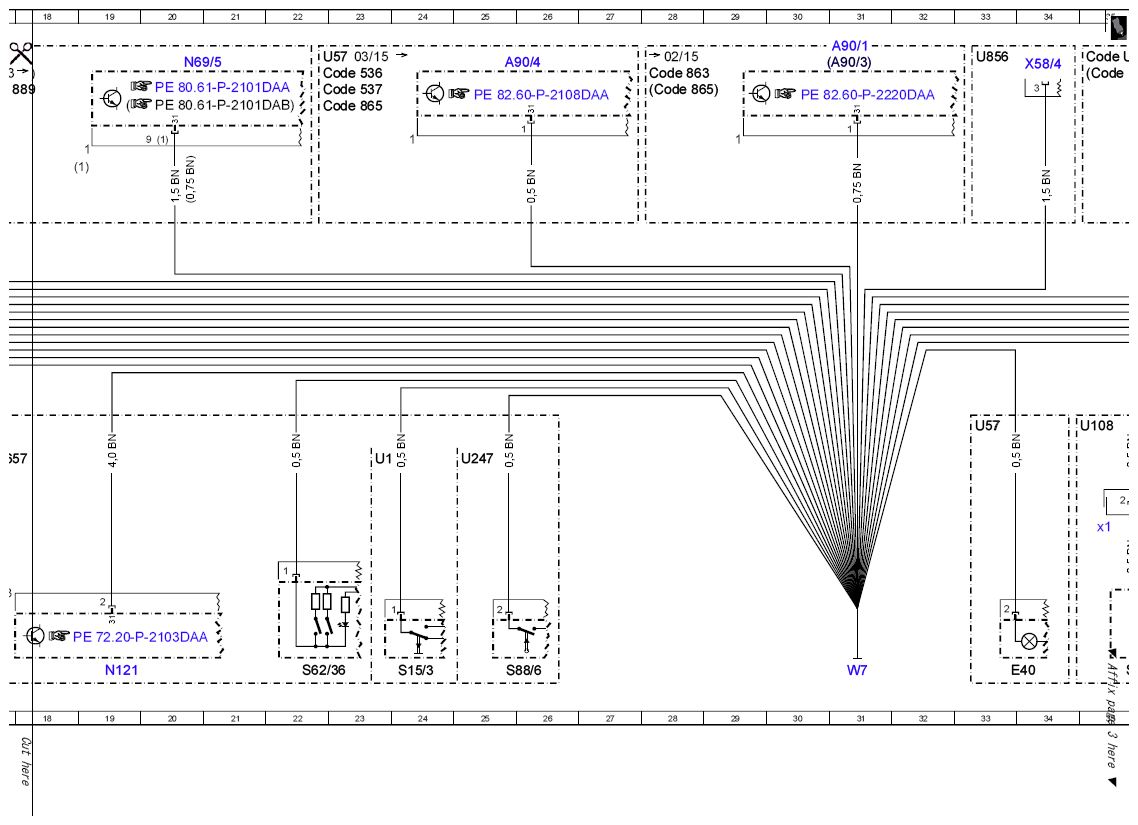

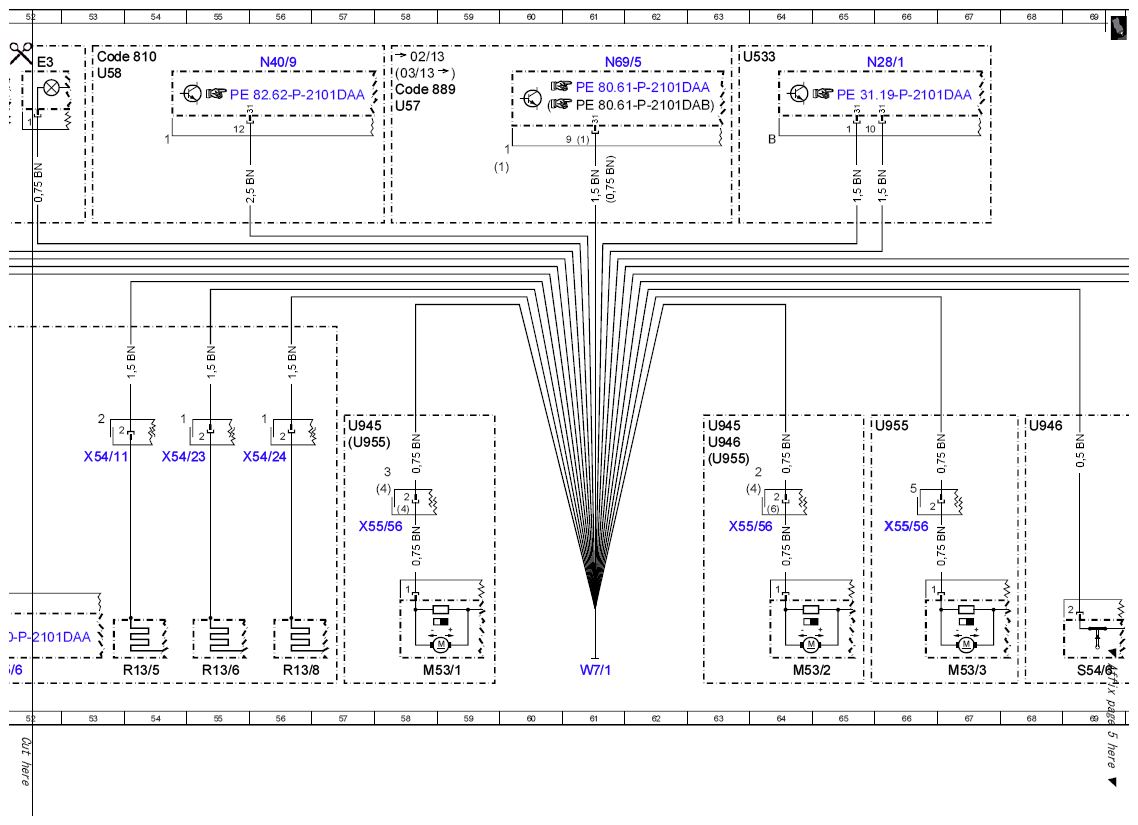

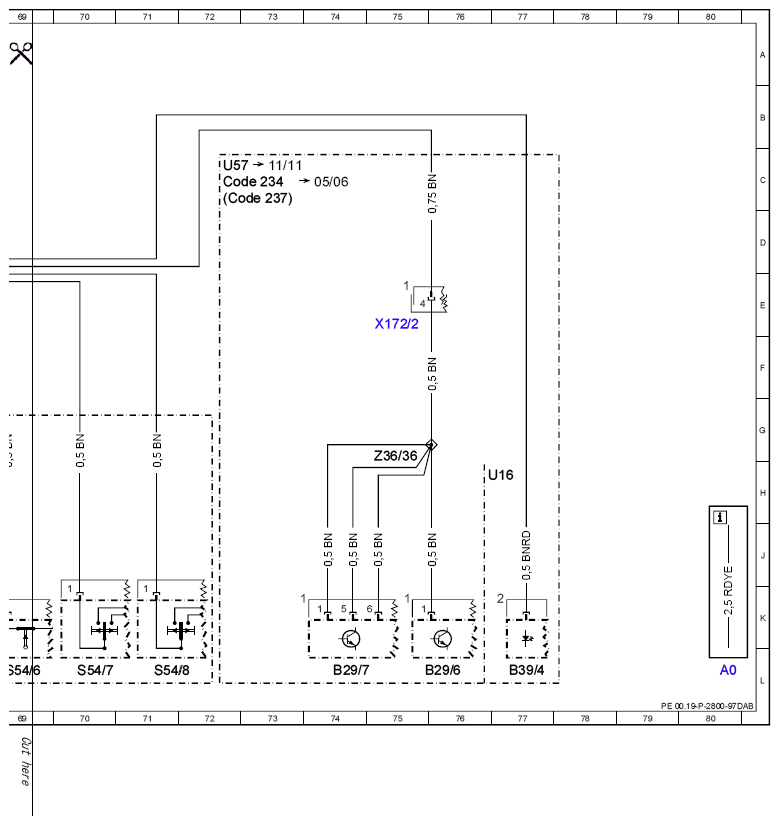

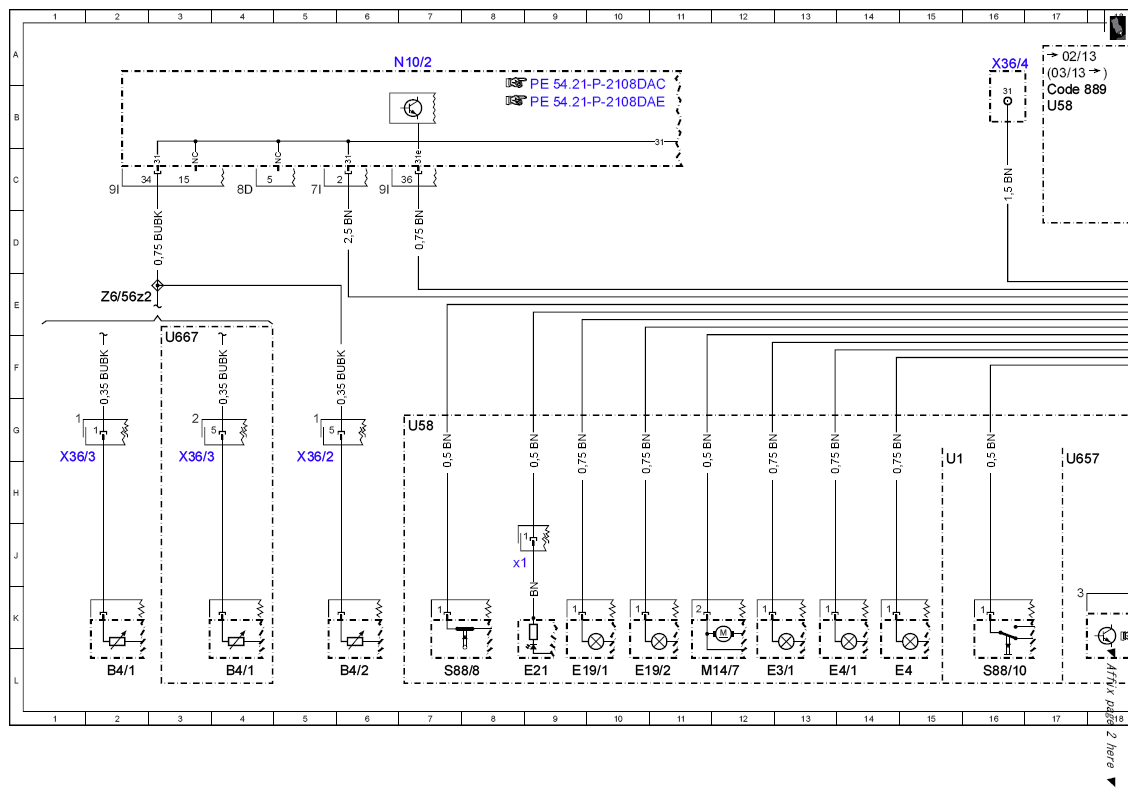

Wiring diagram of ground cabling - PE00.19-P-2800-97DAB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 W7, W7/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| A90/1 | TV tuner (analog/digital) | 31A |
| A90/3 | TV digital tuner | 31A |
| A90/4 | Tuner unit | 25A |
| B29/6 | Left rear bumper radar sensor | 45L |
| B29/6 | Left rear bumper radar sensor | 76L |
| B29/7 | Right rear bumper radar sensor | 43L |
| B29/7 | Right rear bumper radar sensor | 74L |
| B39/4 | Rear window glass breakage sensor | 77L |
| B4/1 | Left fuel level indicator sensor | 2L |
| B4/1 | Left fuel level indicator sensor | 4L |
| B4/2 | Right fuel level indicator sensor | 6L |
| Code 234 | Blind spot assist | 72C |
| Code 237 | Active Blind Spot Assist | 72C |
| Code 536 | SIRIUS satellite radio | 22A |
| Code 537 | Digital radio | 22B |
| Code 810 | Sound system | 53A |
| Code 863 | Digital/analog TV tuner | 28A |
| Code 865 | TV tuner (digital) | 28B |
| Code 865 | TV tuner (digital) | 22B |
| Code 889 | KEYLESS-GO | 17B |
| Code 889 | KEYLESS-GO | 58B |
| Code U67 | 230 V socket in rear passenger compartment | 35A |
| Code U80 | 115 V socket | 35A |
| E18/4 | Right luggage compartment lamp | 50A |
| E18/5 | Left luggage compartment lamp | 51A |
| E19/1 | Left license plate lamp | 9L |
| E19/2 | Right license plate lamp | 10L |
| E21 | Center stop lamp | 9L |
| E21x1 | Center brake lamp electrical connector | 8J |
| E3 | Left rear lamp unit | 52A |
| E3/1 | Inner left rear lamp unit | 12L |
| E4 | Right rear lamp unit | 15L |
| E4/1 | Inner right rear lamp unit | 13L |
| E40 | Trunk lid ambient lamp | 34L |
| M14/7 | Tailgate central locking motor | 11L |
| M53/1 | Left rear head restraint seat adjustment motor | 41L |
| M53/1 | Left rear head restraint seat adjustment motor | 58L |
| M53/2 | Right rear head restraint seat adjustment motor | 64L |
| M53/3 | Center rear head restraint seat adjustment motor | 67L |
| N10/2 | Rear SAM control unit with fuse and relay module | 7A |
| N121 | Trunk lid control unit | 19L |
| N25/6 | Rear seat heaters control unit | 51L |
| N28/1 | Trailer recognition control unit | 66A |
| N40/9 | Rear bass speaker amplifier | 56A |
| N69/5 | KEYLESS-GO control unit | 20A |
| N69/5 | KEYLESS-GO control unit | 61A |
| N88 | Tire pressure monitor control unit | 48L |
| R13/5 | Left rear seat sitting surface heated cushion | 54L |
| R13/6 | Left rear backrest heated cushion | 55L |
| R13/8 | Right rear backrest heater pad | 56L |
| S15/3 | Driver trunk lid/liftgate control button | 24L |
| S54/5 | Left rear backrest inclination switch | 40L |
| S54/6 | Right rear backrest inclination switch | 69L |
| S54/7 | Left rear backrest lock switch | 70L |
| S54/8 | Right rear backrest lock switch | 71L |
| S62/36 | Tailgate control button | 22L |
| S68/14 | Center rear seat belt buckle switch | 38L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 38J |
| S68/5 | Left rear seat belt buckle switch | 35L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 35J |
| S68/6 | Right rear seat belt buckle switch | 37L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 36J |
| S88/10 | Trunk lid emergency opening switch | 16L |
| S88/6 | Tailgate contact switch | 25L |
| S88/8 | Tailgate external operation switch | 7L |
| U1 | Valid for USA | 15H |
| U1 | Valid for USA | 23H |
| U108 | Valid for rear seat belt buckles | 35G |
| U16 | Valid for ATA [EDW] with tow-away protection and interior protection | 76H |
| U247 | Valid for trunk lid contact switch | 25H |
| U533 | Valid for trailer hitch | 63A |
| U57 | Valid for model 212.2 | 33G |
| U57 | Valid for model 212.2 | 72C |
| U57 | Valid for model 212.2 | 46F |
| U57 | Valid for model 212.2 | 22A |
| U57 | Valid for model 212.2 | 58B |
| U58 | Valid for model 212.0/1 | 7G |
| U58 | Valid for model 212.0/1 | 17B |
| U58 | Valid for model 212.0/1 | 43C |
| U58 | Valid for model 212.0/1 | 53A |
| U58 | Valid for model 212.0/1 | 49A |
| U645 | Valid for tire pressure monitor | 46F |
| U657 | Valid for trunk lid control | 17H |
| U667 | Valid for California | 3F |
| U752 | Valid for rear heated seats | 50F |
| U856 | Valid for rear socket | 33A |
| U910 | Valid for Blind Spot Assist | 43C |
| U945 | Valid for rear comfort seat | 57G |
| U945 | Valid for rear comfort seat | 63G |
| U946 | Valid for folding rear backrest | 39G |
| U946 | Valid for folding rear backrest | 68G |
| U946 | Valid for folding rear backrest | 63G |
| U955 | Valid for rigid rear backrest | 57G |
| U955 | Valid for rigid rear backrest | 63H |
| U955 | Valid for rigid rear backrest | 65G |
| W7 | Right rear wheel well ground point | 31L |
| W7/1 | Right taillamp trunk ground point | 61L |
| X1/60 | Tire pressure monitor electrical connector | 47H |
| X172/2 | Rear bumper radar sensors electrical connector | 43E |
| X172/2 | Rear bumper radar sensors electrical connector | 75E |
| X36/2 | Fuel pump and vehicle rear wiring harness electrical connector | 5H |
| X36/3 | Fuel pump harness electrical connector | 3H |
| X36/3 | Fuel pump harness electrical connector | 1H |
| X36/4 | Filler neck/ground bolted connection | 16A |
| X54/11 | Left and right rear seat heater heated cushion electrical connector | 53H |
| X54/23 | Left rear seat heater electrical connector | 54H |
| X54/24 | Right rear seat heater electrical connector | 56H |
| X55/56 | Rear head restraint adjustment motor electrical connector | 41J |
| X55/56 | Rear head restraint adjustment motor electrical connector | 58J |
| X55/56 | Rear head restraint adjustment motor electrical connector | 64J |
| X55/56 | Rear head restraint adjustment motor electrical connector | 66J |
| X58/4 | Load compartment socket | 34A |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 43G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 75G |
| Z6/56z2 | Circuit 31 connector sleeve | 2E |
