Wiring diagram for common rail diesel injection (CDI) control unit - PE07.16-P-2101-97DAC

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 212 except CODE U42 (BlueTEC diesel exhaust treatment (SCR)) Control unit N3/9, engine connector, sheet 2

Code: Designation: Position:
A0 Color code key 64L
B2/6 Left hot film MAF sensor 23L
B2/6b1 Left intake air temperature sensor 24L
B2/7 Right hot film MAF sensor 26L
B2/7b1 Right intake air temperature sensor 27L
B4/34 Cylinder 1 combustion chamber pressure sensor 3L
B4/35 Cylinder 2 combustion chamber pressure sensor 6L
B4/36 Cylinder 3 combustion chamber pressure sensor 9L
B4/37 Cylinder 4 combustion chamber pressure sensor 12L
B4/38 Cylinder 5 combustion chamber pressure sensor 15L
B4/39 Cylinder 6 combustion chamber pressure sensor 18L
B76 Fuel filter condensation sensor 21L
B76/1 Condensation sensor for fuel filter with heating element 53L
G3/2 Oxygen sensor upstream of catalytic converter 29L
G3/2x1 Electrical connector for oxygen sensor upstream of catalytic converter 28J
M1 Starter 55L
N10/1 Front SAM control unit with fuse and relay module 51L
N10/1f22 Fuse 22 44L
N10/1f23 Fuse 23 43L
N10/1f24 Fuse 24 45L
N10/1f4 Fuse 4 49L
N10/1f7 Fuse 7 47L
N3/9 CDI control unit 4A
N3/9 CDI control unit 33L
N3/9 CDI control unit 36A
N3/9 CDI control unit 12A
N3/9 CDI control unit 19A
N3/9 CDI control unit 28A
U2 Valid for all except USA 31F
U42 Valid for countries with poor quality fuel 20F
U934 Valid for Euro 5 standard and increased engine power 25H
U934 Valid for Euro 5 standard and increased engine power 26H
U934 Valid for Euro 5 standard and increased engine power 23D
U935 Valid for USA BIN5 25H
U935 Valid for USA BIN5 26H
U935 Valid for USA BIN5 23D
W12 Ground point (center console) 53F
W3/1 Ground point (right front wheel well) 41L
X26 Interior and engine wiring harness electrical connector 41F
X26 Interior and engine wiring harness electrical connector 32H
Z300/12z2 Connector sleeve / power supply / sensors 24E
Z300/19 Connector sleeve / sensor 9E
Z300/21 Connector sleeve / switch 8H
Z300/5 Connector sleeve / sensor 21E
Z300/5 Connector sleeve / sensor 53D
Z6 Circuit 31 connector sleeve 41D
Z7/5z1 Circuit 87 connector sleeve 42D
Z7/5z2 Circuit 87 connector sleeve 43D
Z7/5z3 Circuit 87 connector sleeve 20G
Z7/5z3 Circuit 87 connector sleeve 45D
Z7/5z3 Circuit 87 connector sleeve 24G
Z7/5z4 Circuit 87 connector sleeve 46D
Z9 Connector sleeve 1 36G

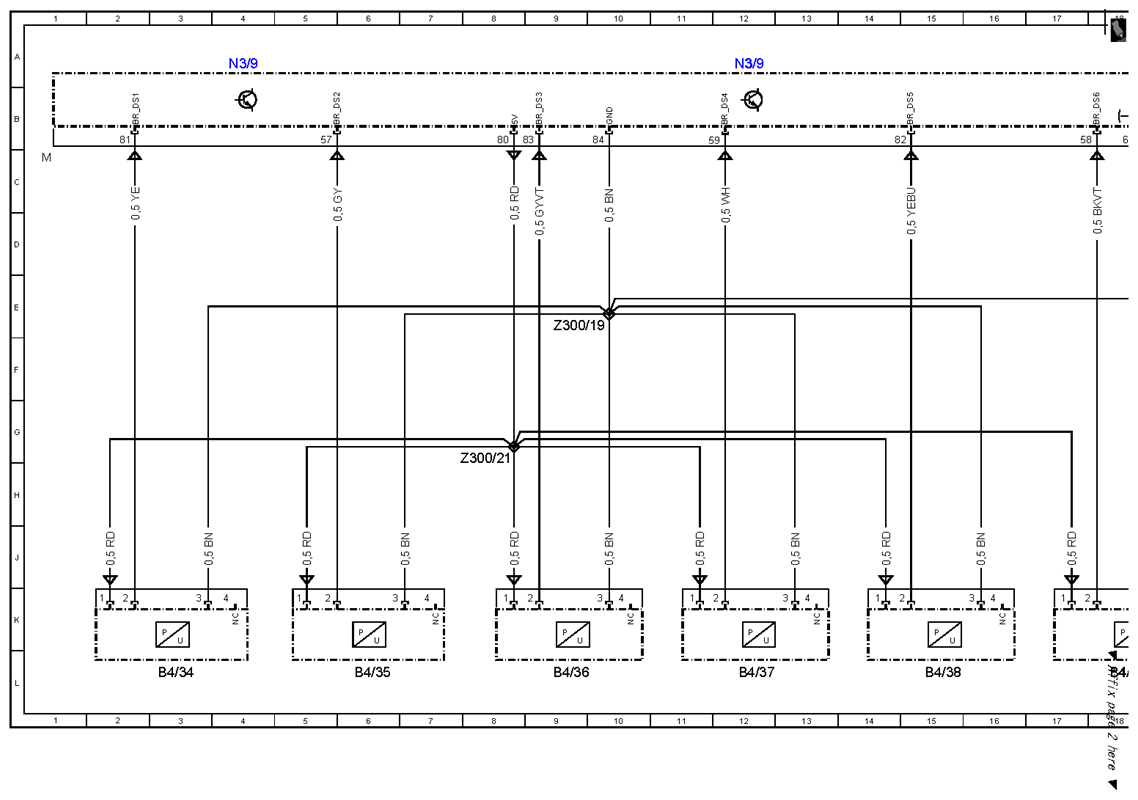

Fig 1: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (1 Of 4)
G10054327Courtesy of MERCEDES-BENZ USA

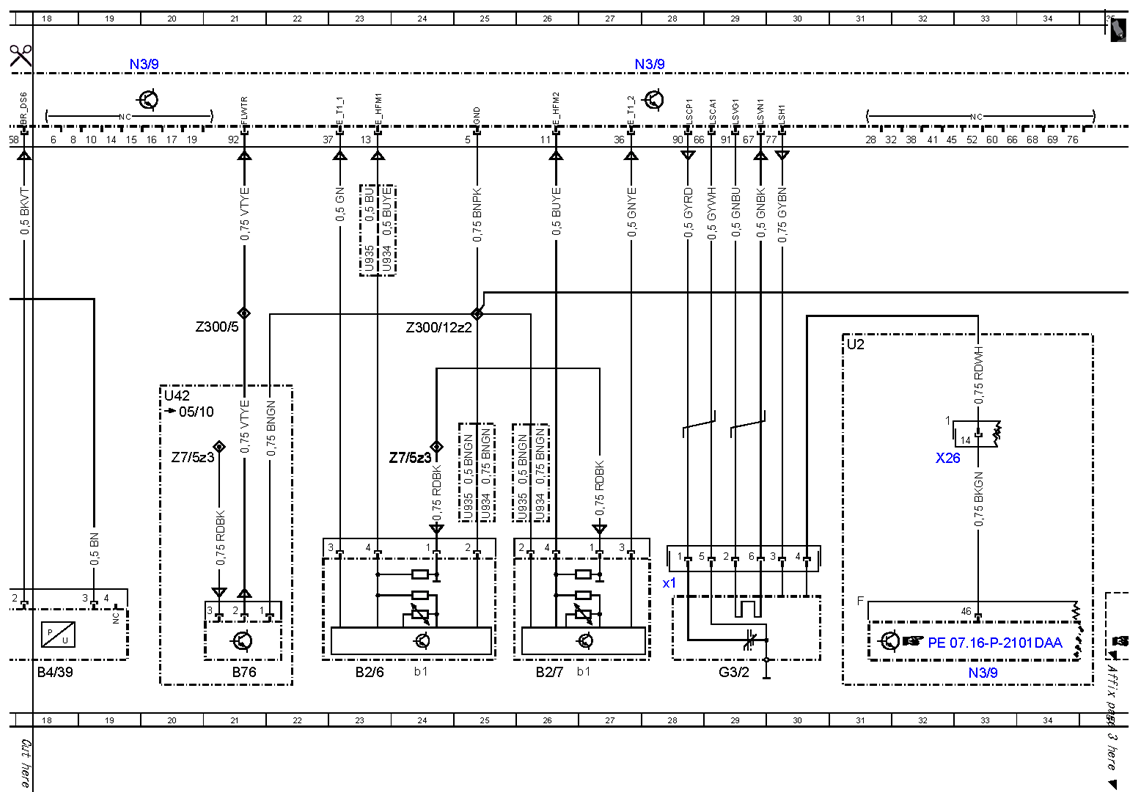

Fig 2: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (2 Of 4)
G10054328Courtesy of MERCEDES-BENZ USA

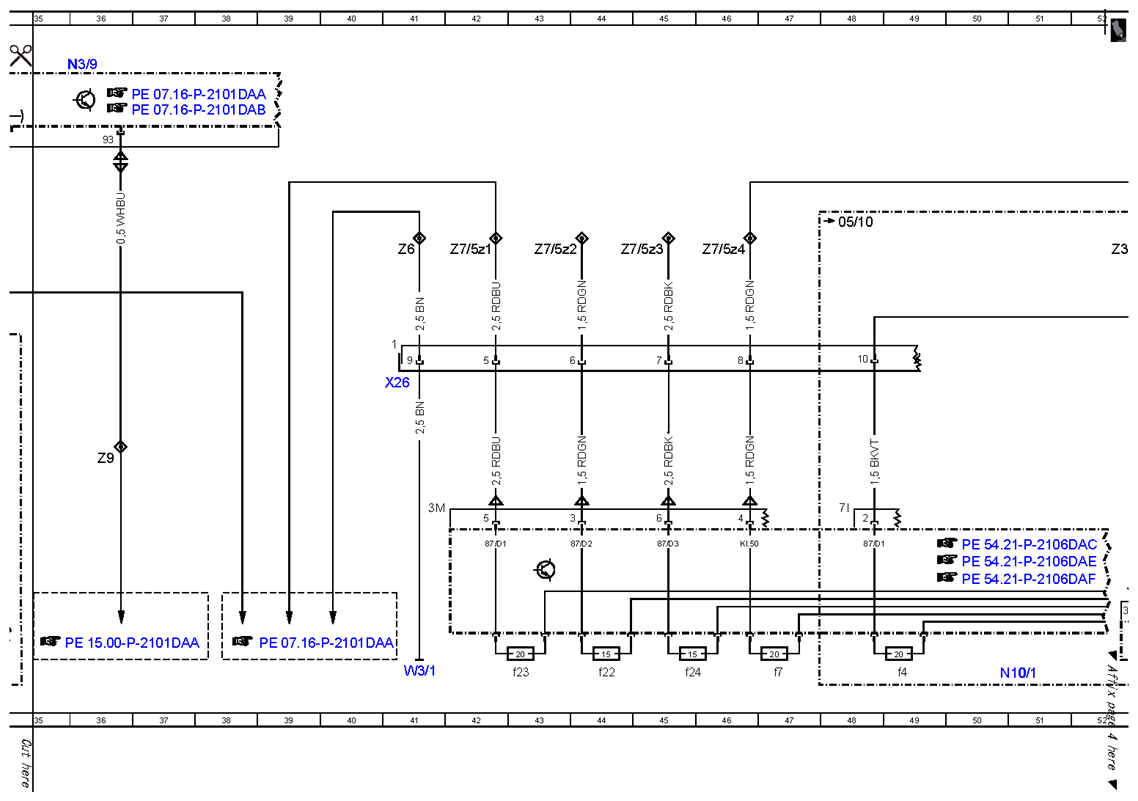

Fig 3: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (3 Of 4)
G10054329Courtesy of MERCEDES-BENZ USA

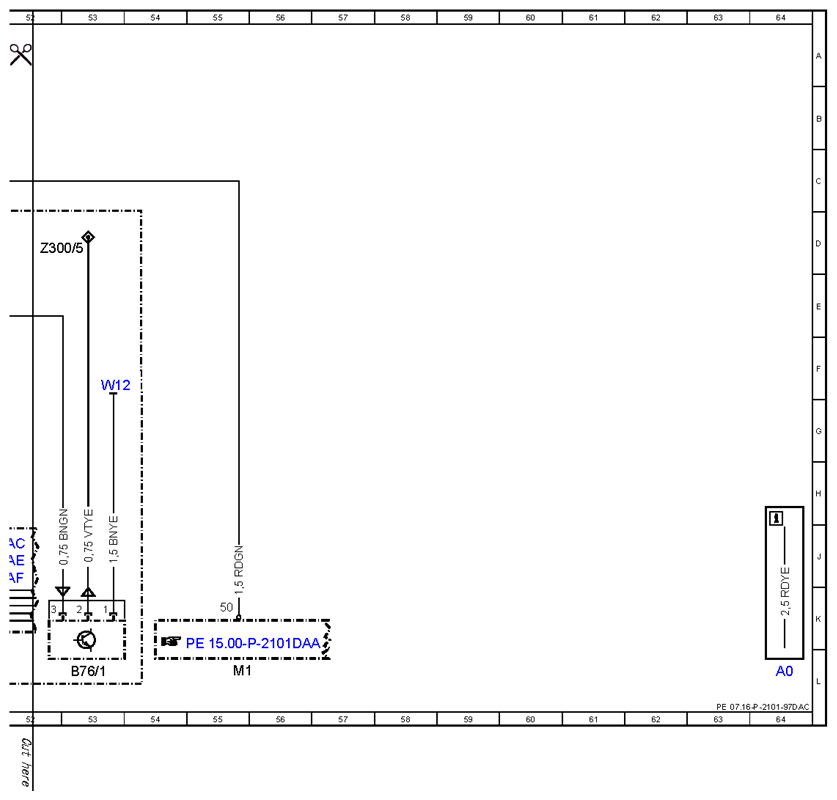

Fig 4: Common Rail Diesel Injection (CDI) Control Unit - Circuit Diagram (4 Of 4)
G10054330Courtesy of MERCEDES-BENZ USA
