Remove/install mechanical stop lamp switch - AR42.10-P-0040EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 172, 190, 197, 204, 205, 207, 212, 217, 218, 221, 222 (except 222.004/057/104/157), 231

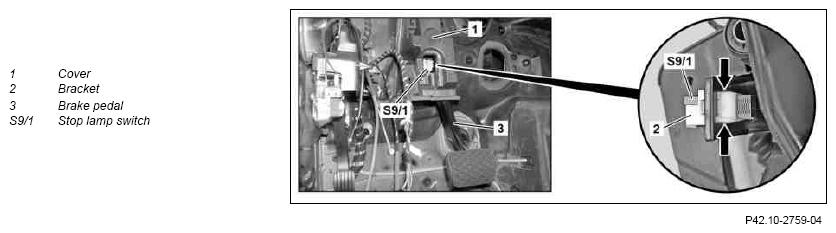

Fig 1: Mechanical Stop Lamp Switch Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover on driver side under the instrument panel	MODEL 166, 172, 190, 197, 204, 205, 207, 212, 217, 218, 221, 222 (except 222.004/057/104/157), 231
		MODEL 217, 222.0 (except 222.004/057), 222.1 (except 222.104/157)	AR68.10-P-1500LF
		MODEL 231	AR68.10-P-1500RK
		MODEL 205	AR68.10-P-1500LW
		MODEL 190, 197	AR68.10-P-1501RQ
2	Disconnect electrical connector from brake light switch (S9/1)
3	Detach cover (1)	If necessary.
4	Pull out brake light switch (S9/1), press catches together (arrows) and detach bracket (2)	Depress the brake pedal (3) fully and insert the brake light switch (S9/1) with bracket (2). Press in the brake light switch (S9/1) fully, release the brake pedal (3) and pull back using little force (recommended value 20 N).
5	Install in the reverse order
