Remove/install front axle brake caliper - AR42.10-P-0070EWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218 4-piston fixed-caliper brake
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Remove brake pads (6) | AR42.10-P-1610EWA | |
| 2 | Unscrew screw/bolt (3) and remove right front brake wear sensor electrical connector (S10/2x1) | When removing brake caliper (1) on right side of vehicle. | |

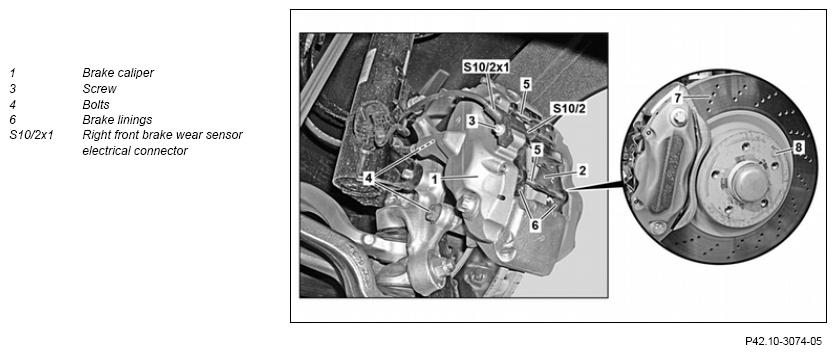

MODEL 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) 4-piston fixed-caliper brake MODEL 212.061 4-piston fixed-caliper brake MODEL 218 (except 218.374/375/376/392/974/975/976/992) 4-piston fixed-caliper brake |
*BA42.10-P-1002-10J | ||
| 3 | Detach brake hose from brake caliper (1) | AR42.10-P-0013EW | |
| 4 | Remove screws/bolts (4) | ||
MODEL 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) 4-piston fixed-caliper brake MODEL 212.061 4-piston fixed-caliper brake MODEL 218 (except 218.374/375/376/392/974/975/976/992) 4-piston fixed-caliper brake |
*BA42.10-P-1001-10J | ||
| 5 | Remove brake caliper (1) from wheel carrier | ||
| 6 | Unscrew brake caliper (1) from brake hose | AR42.10-P-0013EW | |
| 7 | Install in the reverse order | ||
| 8 | Bleed brake system | AR42.10-P-0010EW |
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) | MODEL 212.061 | ||
|---|---|---|---|---|---|
| BA42.10-P-1001-10J | Bolt, brake caliper to steering knuckle | M12 | Nm | 115 | 115 |
| M14 | Nm | - | - | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 218 (except 218.374/375/376/392/974/975/976/992) | ||
|---|---|---|---|---|
| BA42.10-P-1001-10J | Bolt, brake caliper to steering knuckle | M12 | Nm | 115 |
| M14 | Nm | - | ||
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 212 (except 212.061/074/075/076/077/092/274/275/276/277/292) | MODEL 212.061 | |
|---|---|---|---|---|
| BA42.10-P-1002-10J | Bolt, brake wear sensor to brake caliper | Nm | 8 | 8 |
FRONT AXLE BRAKE CALIPER
| Number | Designation | MODEL 218 (except 218.374/375/376/392/974/975/976/992) | |
|---|---|---|---|
| BA42.10-P-1002-10J | Bolt, brake wear sensor to brake caliper | Nm | 8 |
