Overview of system components for regenerative braking system - GF42.22-P-9999FLH
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.095/098/298 up to model year 2014

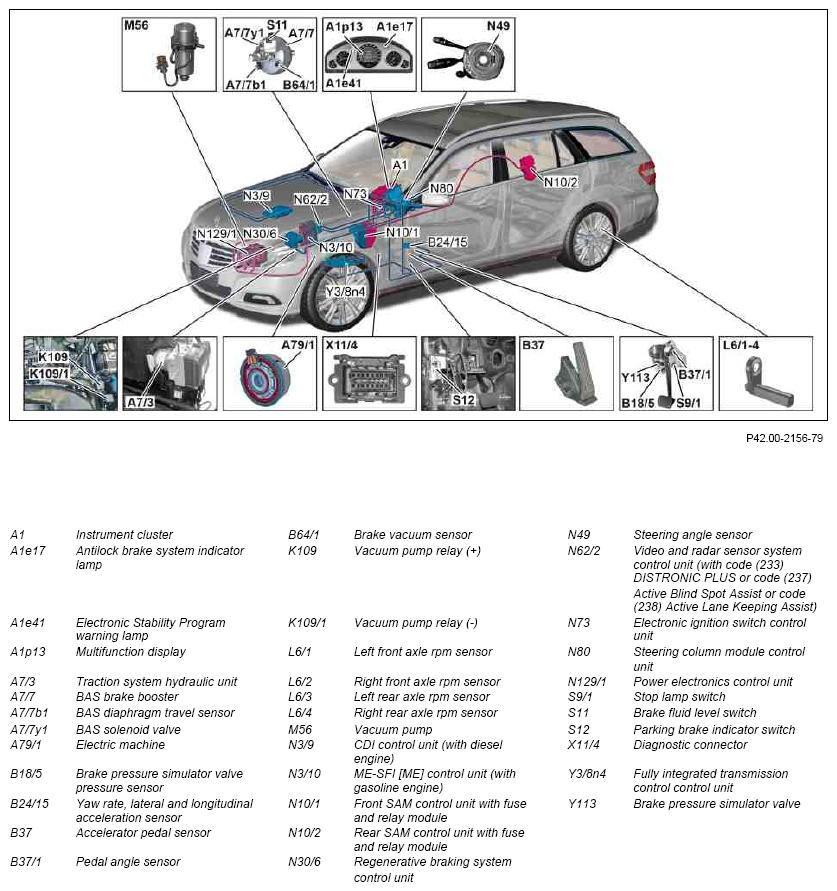

Vehicle phantom view
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Component description for CDI control unit | MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | |
| Component description for ME-SFI (ME) control unit | MODEL 212.095 with ENGINE 276.9 up to model year 2014 N3/10 |
GF07.61-P-6000MMO | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001FLH | |
| Component description for fully integrated transmission control unit | Y3/8n4 | GF27.60-P-5165AHO | |
| Component description for video and radar sensor system control unit | N62/2 | GF30.30-P-3304FL | |
| Table of contents for function description of regenerative brake system | GF42.22-P-0999FLH | ||
| Component description for regenerative braking system control unit | N30/6 | GF42.22-P-1100FLH | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL |
