Check vehicle level at front and rear axle with electronic inclinometer, adjust if necessary - AR40.20-P-0301EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

Fig 1: Inclinometer And Measuring Sensor

Courtesy of MERCEDES-BENZ USA

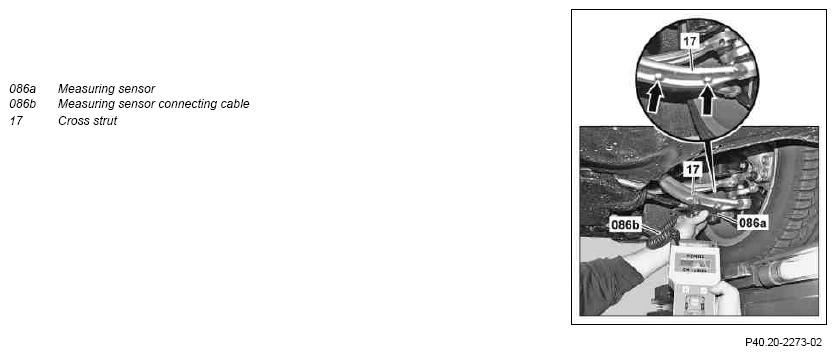

Illustration shows measuring point 2 at right front cross strut, model 204.0 without 4MATIC

Fig 2: Measuring Point 2 At Right Front Cross Strut - Model 204.0 Without 4MATIC

Courtesy of MERCEDES-BENZ USA

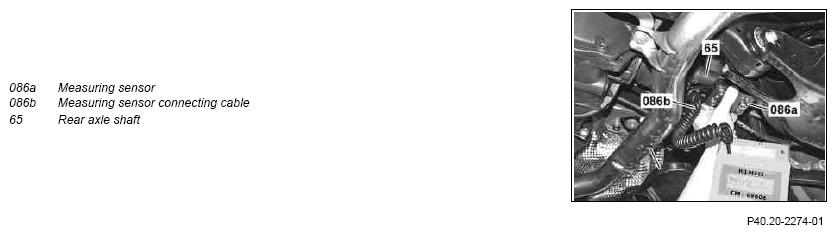

Illustration shows measuring point 4 at right rear axle shaft, model 204.0 without 4MATIC

Fig 3: Measuring Point 4 At Right Rear Axle Shaft - Model 204.0 Without 4MATIC

Courtesy of MERCEDES-BENZ USA

	Check
1	Carry out preconditions and tests for vehicle level measurement		AR40.00-P-0202A
2	Clean measuring points	This prevents any measuring errors.
3	Mount measuring sensor (086a) on cross strut (17) and read off vehicle level on inclinometer (086)	The connecting cable (086b) from the measuring sensor (086a) must point to the vehicle center otherwise an erroneous measurement takes place. Mount the measuring sensor (086a) between the cast-in humps (arrows). If there are no humps present (arrows), mount measuring sensor (086a) in the center on the cross strut (17). Measure the vehicle level at Measuring point 1 (left front) and Measuring point 2 (right front) and save the measured values.
		Model 212	*BE40.20-P-1001-02ZA
		MODEL 218	*BE40.20-P-1001-02V
4	Mount the measuring sensor (086a) on rear axle shaft (65) and read off vehicle level on the inclinometer (086)	The connecting cable (086b) from the measuring sensor (086a) must point to the vehicle center otherwise an erroneous measurement takes place. Measure the vehicle level at Measuring point 3 (left rear) and Measuring point 4 (right rear) and save the measured values.
		Model 212	*BE40.20-P-1001-03DA
		MODEL 218	*BE40.20-P-1001-03W
5	Check the maximum permissible difference in vehicle level between the left and right side of the vehicle	The specified test tolerance applies only when checking the vehicle level but not for calibration. If the vehicle level at the front or rear axle is out of tolerance, the springs and spring-rubber bushing must be checked for signs of wear and damage. Permissible difference in vehicle level at front axle between right and left sides of the vehicle ↓
		Model 212	*BE40.20-P-1002-02ZA
		MODEL 218 Permissible difference in vehicle level at rear axle between right and left sides of the vehicle ↓	*BE40.20-P-1002-02V
		Model 212	*BE40.20-P-1002-03DA
		MODEL 218	*BE40.20-P-1002-03W
6	Adjust headlamps	Only if the vehicle level was adjusted.
	Check and correct the adjustment of the headlamps		AP82.10-P-8260EW

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.3 except 4MATIC, except CODE 489	MODEL 218.9 except 4MATIC, except CODE 489
BE40.20-P-1001-02V	Vehicle level - front axle	∠°	+2, 59 (±1, 5)	+2, 59 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218 except 4MATIC, with CODE 489	MODEL 218.3 with 4MATIC, except CODE 489
BE40.20-P-1001-02V	Vehicle level - front axle	∠°	+2, 59 (±1, 5)	+0, 18 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.9 with 4MATIC except CODE 489	MODEL 218 with 4MATIC, with CODE 489
BE40.20-P-1001-02V	Vehicle level - front axle	∠°	+0, 85 (±1, 5)	+0, 85 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.3 AMG up to 11.2011	MODEL 218.3 AMG as of 12.2011 except 4MATIC
BE40.20-P-1001-02V	Vehicle level - front axle	∠°	+2, 67 (±1, 5)	+2, 67 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.9 AMG except 4MATIC	MODEL 218.3/9 AMG with 4MATIC
BE40.20-P-1001-02V	Vehicle level - front axle	∠°	+2, 67 (±1, 5)	+4, 20 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.0 with CODE 485, except 4MATIC	MODEL 212.0 with CODE 677, except 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	2, 56 (±1, 5)	0, 12 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.0 with CODE 485, with 4MATIC	MODEL 212.0 with CODE 677, with 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	2, 66 (±1, 5)	0, 25 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.002 with CODE P25	MODEL 212.0/2 with CODE 482
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	1, 49 (±1, 5)	4, 85 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.0/2 with CODE 489, except 4MATIC	MODEL 212.1 with CODE 482
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	0, 27 (±1, 5)	4, 08 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.1 with CODE 485	MODEL 212.2 with CODE 485, except 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	2, 56 (±1, 5)	2, 56 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.2 with CODE 677, except 4MATIC	MODEL 212.2 with CODE 485, with 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	0, 12 (±1, 5)	2, 66 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212.2 with CODE 677, with 4MATIC	MODEL 212.025/056/072 with CODE Z04
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	0, 25 (±1, 5)	0, 27 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212 AMG up to 11.2011, except 4MATIC	MODEL 212 AMG as of 12.2011, except 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	2, 67 (±1, 5)	2, 67 (±1, 5)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 212 AMG with 4MATIC
BE40.20-P-1001-02ZA	Vehicle level - front axle	∠°	4, 20 (±1, 5)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.0 with CODE 485, except 4MATIC	MODEL 212.0 with CODE 677, except 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	1, 60 (±1, 0)	-0, 06 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.0 with CODE 485, with 4MATIC	MODEL 212.0 with CODE 677, with 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	1, 6 (±1, 0)	-0, 06 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.002 with CODE P25	MODEL 212.0/2 with CODE 482
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	0, 72 (±1, 0)	3, 07 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.0/2 with CODE 489, except 4MATIC	MODEL 212.1 with CODE 482
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	-0, 26 (±1, 0)	2, 58 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.1 with CODE 485	MODEL 212.2 with CODE 485, except 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	1, 60 (±1, 0)	0, 03 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.2 with CODE 677, except 4MATIC	MODEL 212.2 with CODE 485, with 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	-1, 24 (±1, 0)	-0, 26 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212.2 with CODE 677, with 4MATIC	MODEL 212.025/056/072 with CODE Z04
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	-1, 24 (±1, 0)	-0, 26 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212 AMG up to 11.2011, except 4MATIC	MODEL 212 AMG as of 12.2011, except 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	-1, 24 (±1, 0)	0, 79 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 212 AMG with 4MATIC
BE40.20-P-1001-03DA	Vehicle level - rear axle	∠°	-1, 29 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.3 except 4MATIC, except CODE 489	MODEL 218.9 except 4MATIC, except CODE 489
BE40.20-P-1001-03W	Vehicle level - rear axle	∠°	-0, 35 (±1, 0)	-1, 46 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218 except 4MATIC, with CODE 489	MODEL 218.3 with 4MATIC, except CODE 489
BE40.20-P-1001-03W	Vehicle level - rear axle	∠°	-0, 45 (±1, 0)	-0, 65 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.9 with 4MATIC, except CODE 489	MODEL 218 with 4MATIC, with CODE 489
BE40.20-P-1001-03W	Vehicle level - rear axle	∠°	-1, 45 (±1, 0)	-0, 45 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.3 AMG up to 11.2011	MODEL 218.3 AMG as of 12.2011 except 4MATIC
BE40.20-P-1001-03W	Vehicle level - rear axle	∠°	-1, 24 (±1, 0)	-0, 79 (±1, 0)

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.9 AMG except 4MATIC	MODEL 218.3/9 AMG with 4MATIC
BE40.20-P-1001-03W	Vehicle level - rear axle	∠°	-1, 29 (±1, 0)	-1, 29 (±1, 0)

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.3 except 4MATIC, except CODE 489	MODEL 218.9 except 4MATIC, except CODE 489
BE40.20-P-1002-02V	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218 except 4MATIC, with CODE 489	MODEL 218.3 with 4MATIC, except CODE 489
BE40.20-P-1002-02V	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.9 with 4MATIC except CODE 489	MODEL 218 with 4MATIC, with CODE 489
BE40.20-P-1002-02V	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.3 AMG up to 11.2011	MODEL 218.3 AMG as of 12.2011 except 4MATIC
BE40.20-P-1002-02V	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation		MODEL 218.9 AMG except 4MATIC	MODEL 218.3/9 AMG with 4MATIC
BE40.20-P-1002-02V	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.0 with CODE 485, except 4MATIC	MODEL 212.0 with CODE 677, except 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.0 with CODE 485, with 4MATIC	MODEL 212.0 with CODE 677, with 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.002 with CODE P25	MODEL 212.0/2 with CODE 482
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.0/2 with CODE 489, except 4MATIC	MODEL 212.1 with CODE 482
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.1 with CODE 485	MODEL 212.2 with CODE 485, except 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.2 with CODE 677, except 4MATIC	MODEL 212.2 with CODE 485, with 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212.2 with CODE 677, with 4MATIC	MODEL 212.025/056/072 with CODE Z04
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212 AMG up to 11.2011, except 4MATIC	MODEL 212 AMG as of 12.2011, except 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8	0, 8

CHECK VALUES FOR VEHICLE LEVEL AT FRONT AXLE

Number	Designation			MODEL 212 AMG with 4MATIC
BE40.20-P-1002-02ZA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 8

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.0 with CODE 485, except 4MATIC	MODEL 212.0 with CODE 677, except 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.0 with CODE 485, with 4MATIC	MODEL 212.0 with CODE 677, with 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.002 with CODE P25	MODEL 212.0/2 with CODE 482
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.0/2 with CODE 489, except 4MATIC	MODEL 212.1 with CODE 482
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.1 with CODE 485	MODEL 212.2 with CODE 485, except 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.2 with CODE 677, except 4MATIC	MODEL 212.2 with CODE 485, with 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212.2 with CODE 677, with 4MATIC	MODEL 212.025/056/072 with CODE Z04
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212 AMG up to 11.2011, except 4MATIC	MODEL 212 AMG as of 12.2011, except 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation			MODEL 212 AMG with 4MATIC
BE40.20-P-1002-03DA	Permissible difference in vehicle level between right and left side of vehicle	When checking	∠°	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.3 except 4MATIC, except CODE 489	MODEL 218.9 except 4MATIC, except CODE 489
BE40.20-P-1002-03W	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218 except 4MATIC, with CODE 489	MODEL 218.3 with 4MATIC, except CODE 489
BE40.20-P-1002-03W	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.9 with 4MATIC, except CODE 489	MODEL 218 with 4MATIC, with CODE 489
BE40.20-P-1002-03W	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.3 AMG up to 11.2011	MODEL 218.3 AMG as of 12.2011 except 4MATIC
BE40.20-P-1002-03W	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 5	0, 5

CHECK VALUES FOR REAR AXLE VEHICLE LEVEL

Number	Designation		MODEL 218.9 AMG except 4MATIC	MODEL 218.3/9 AMG with 4MATIC
BE40.20-P-1002-03W	Permissible difference in vehicle level between right and left side of vehicle	∠°	0, 5	0, 5
