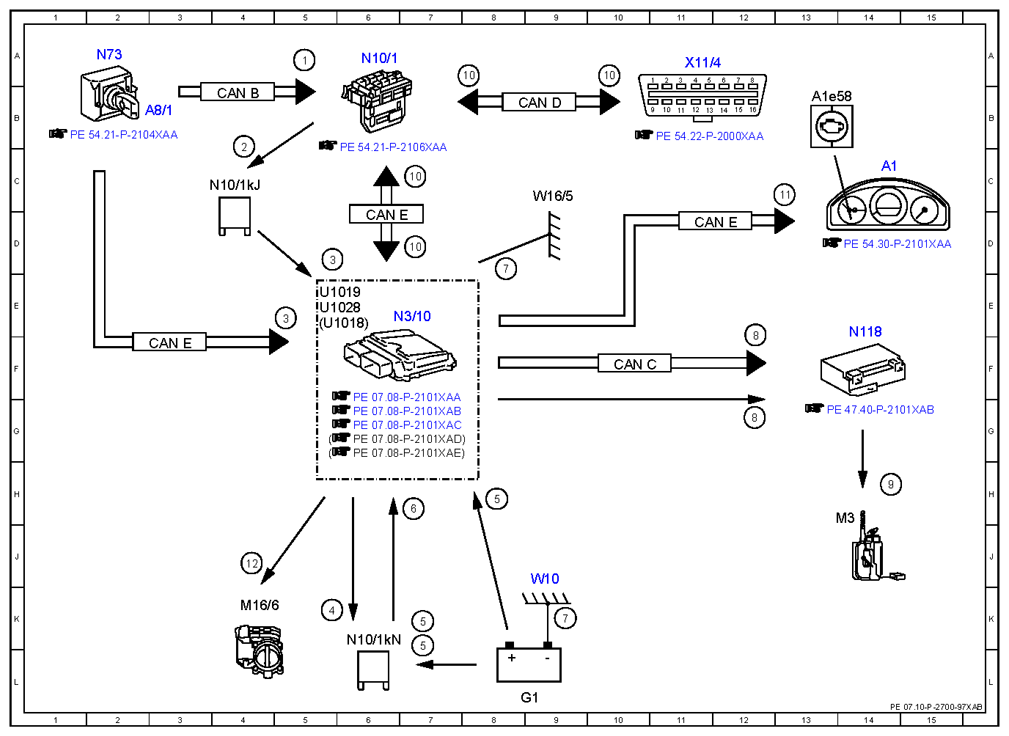

| 1 |
Circuit 15, request ON |
5A |
| 10 |
Correction programming, communication |
7D |
| 10 |
Correction programming, communication |
7C |
| 10 |
Correction programming, communication |
8A |
| 10 |
Correction programming, communication |
10A |
| 11 |
Engine diagnosis indicator lamp, actuation |
13C |
| 12 |
Throttle valve actuator, actuation |
4J |
| 2 |
Circuit 15 relay, actuation |
4C |
| 3 |
Circuit 15, status ON |
5E |
| 3 |
Circuit 15, status ON |
5D |
| 4 |
Combustion engine circuit 87 relay, actuation |
5K |
| 5 |
Circuit 30, status |
7K |
| 5 |
Circuit 30, status |
8H |
| 5 |
Circuit 30, status |
7K |
| 6 |
Circuit 87, status |
7H |
| 7 |
Circuit 31, status |
8D |
| 7 |
Circuit 31, status |
9K |
| 8 |
Fuel pump, request ON |
12G |
| 8 |
Fuel pump, request ON |
12F |
| 9 |
Fuel pump, actuation |
14H |
| A1 |
Instrument cluster |
14C |
| A1e58 |
Engine diagnosis indicator lamp |
13B |
| A8/1 |
Transmitter key |
3B |
| CAN B |
Interior CAN |
4B |
| CAN C |
Drive train CAN |
10F |
| CAN D |
Diagnostic CAN |
9B |
| CAN E |
Chassis CAN |
6D |
| CAN E |
Chassis CAN |
3F |
| CAN E |
Chassis CAN |
11D |
| G1 |
On-board electrical system battery |
9L |
| M16/6 |
Throttle valve actuator |
4K |
| M3 |
Fuel pump (FP) |
14H |
| N10/1 |
Front SAM control unit with fuse and relay module |
6A |
| N10/1kJ |
Circuit 15 relay |
4C |
| N10/1kN |
Engine circuit 87 relay |
6K |
| N118 |
Fuel pump control unit |
14E |
| N3/10 |
ME-SFI [ME] control unit |
7E |
| N73 |
Electronic ignition switch control unit |
2A |
| U1018 |
Valid for gasoline engine 276 |
5E |
| U1019 |
Valid for gasoline engine 278 |
5E |
| U1028 |
Valid for engine 157 |
5E |
| W10 |
Right front battery ground point |
9J |
| W16/5 |
Left major assembly compartment electronics ground point |
9C |
| X11/4 |
Diagnostic connector |
11A |
