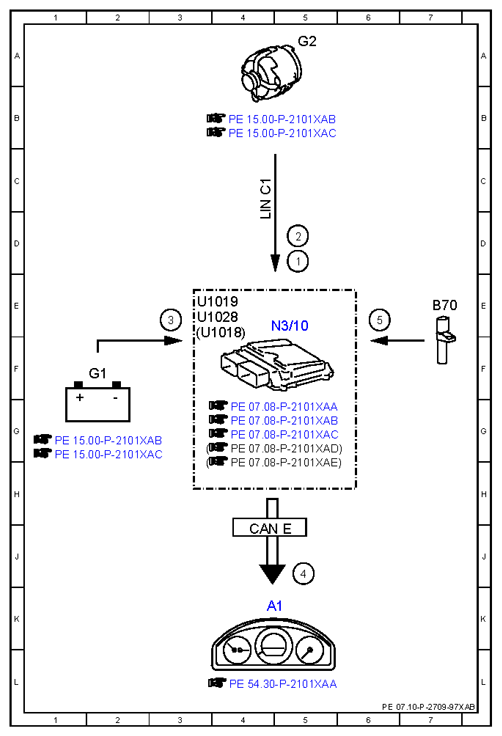

Electrical function schematic, alternator interface - PE07.10-P-2709-97XAB
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 5D |
| 2 | Circuit 61, status | 5D |
| 3 | Circuit 30, status | 3E |
| 4 | Instrument cluster, message | 5J |
| 5 | Engine speed, signal | 6E |
| A1 | Instrument cluster | 4K |
| B70 | Crankshaft Hall sensor | 7E |
| CAN E | Chassis CAN | 4J |
| G1 | On-board electrical system battery | 2F |
| G2 | Alternator | 5A |
| LIN C1 | Drive train LIN | 4C |
| N3/10 | ME-SFI [ME] control unit | 5E |
| U1018 | Valid for gasoline engine 276 | 3F |
| U1019 | Valid for gasoline engine 278 | 3E |
| U1028 | Valid for engine 157 | 3E |
