| A0 |
Color code key |
64L |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
50L |
| A2/19 |
FM 2 and DAB antenna amplifier |
48L |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
28A |
| A40/3 |
COMAND control unit |
36A |
| A40/3 |
COMAND control unit |
44A |
| A40/3 |
COMAND control unit |
52A |
| A40/3 |
COMAND control unit |
60A |
| A40/3 |
COMAND control unit |
62A |
| A40/3f1 |
COMAND electrical fuse |
2B |

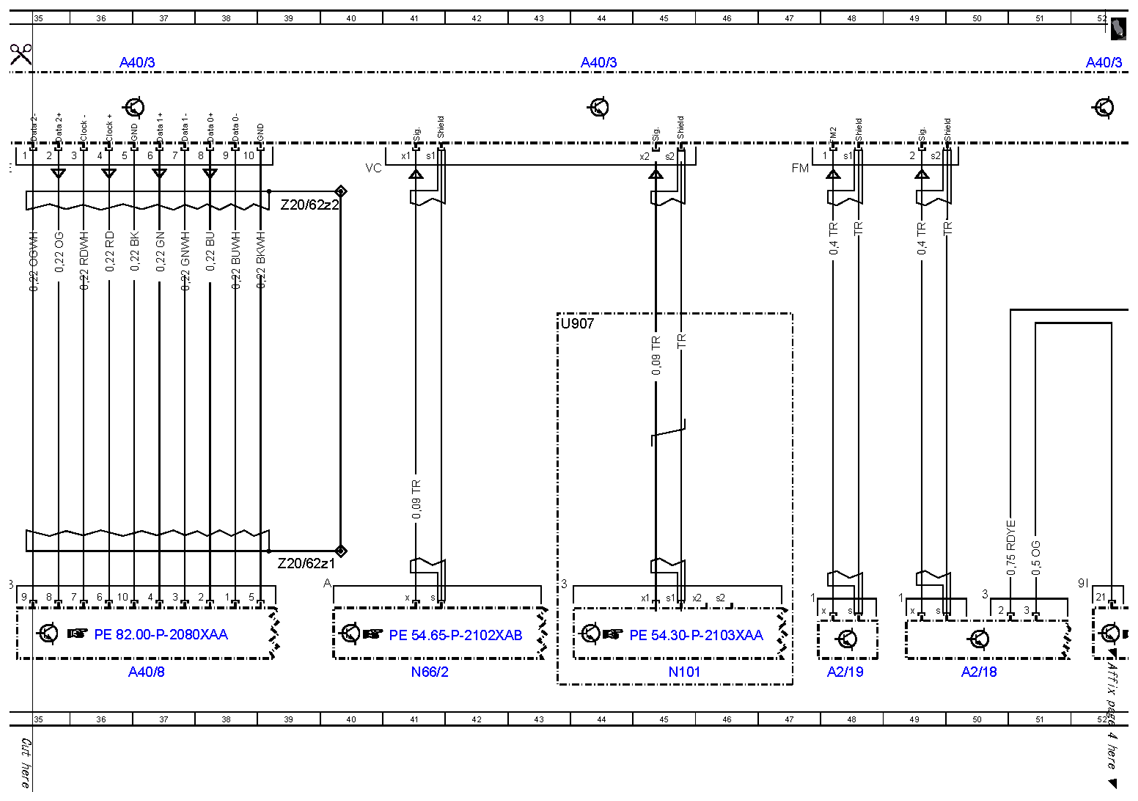

| A40/8 |
Audio/COMAND display |
37L |
| A67 |
Inside rearview mirror |
24L |
| A67b1 |
Hands-free system microphone |
24L |
| A67b1x1 |
Hands-free system and LINGUATRONIC microphone electrical connector |
23H |

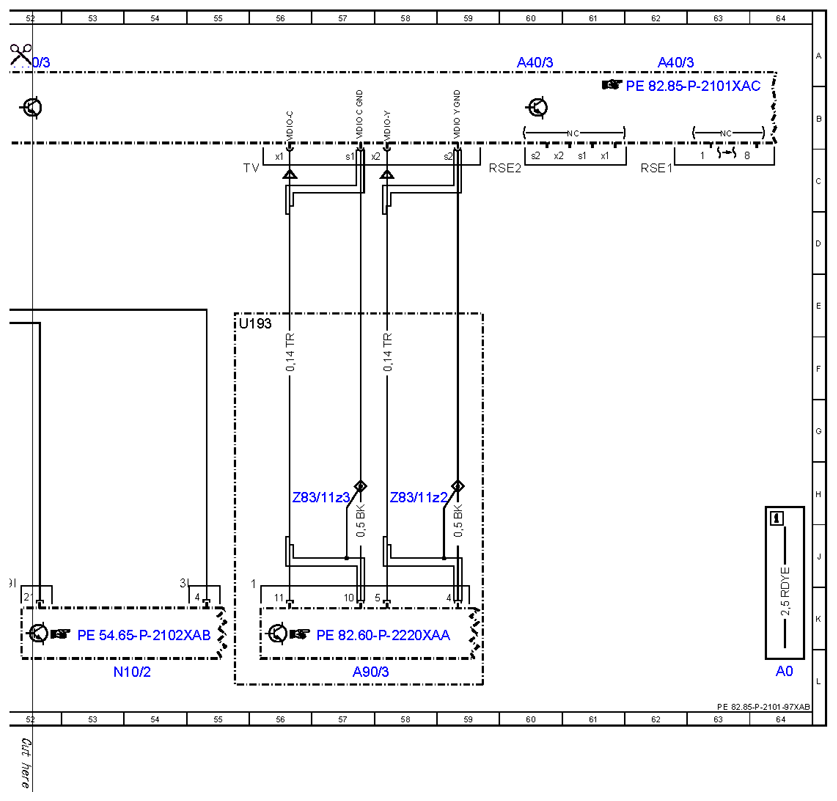

| A90/3 |
TV digital tuner |
57L |
| CAN A |
Telematics CAN |
31K |
| CAN B |
Interior CAN |
6K |
| H4/1h1 |
Left front door tweeter |
14L |
| H4/1h2 |
Left front door bass speaker |
12L |
| H4/2h1 |
Right front door tweeter |
16L |
| H4/2h2 |
Right front door bass speaker |
15L |

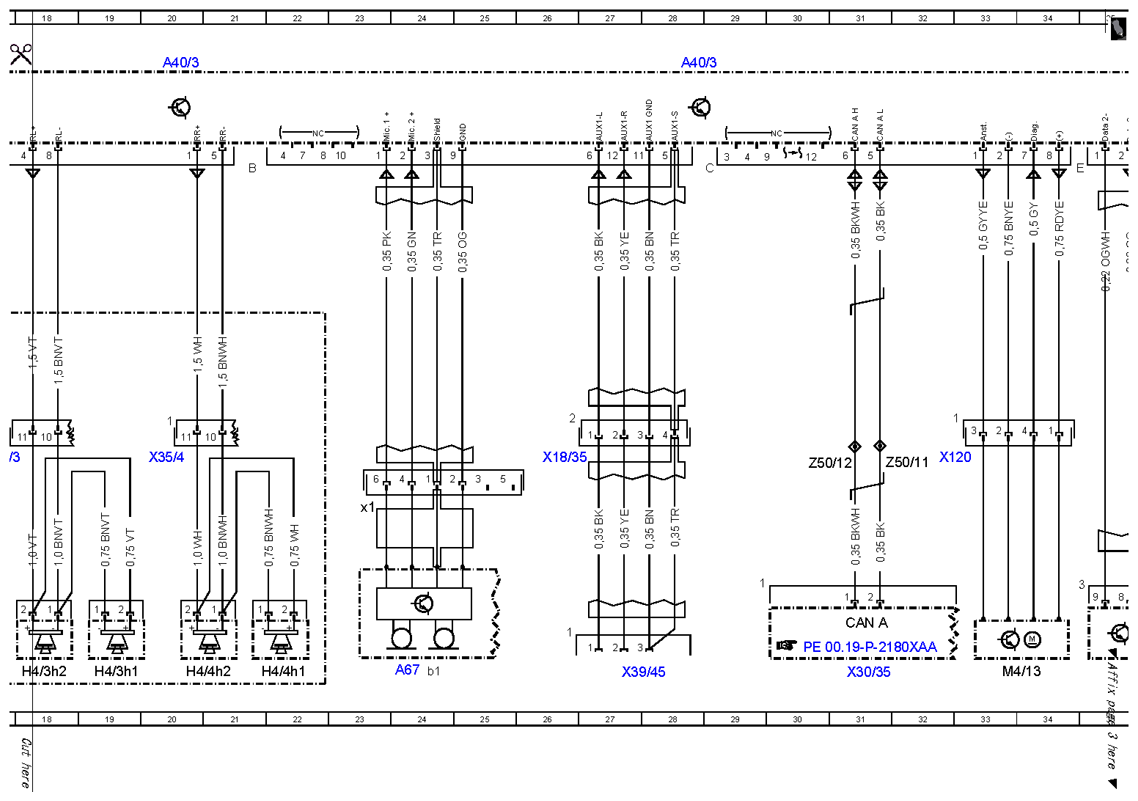

| H4/3h1 |
Left rear door tweeter |
19L |
| H4/3h2 |
Left rear door bass speaker |
18L |
| H4/4h1 |
Right rear door tweeter |
22L |
| H4/4h2 |
Right rear door bass speaker |
20L |
| M4/13 |
COMAND fan motor |
33L |
| MOST |
Media Oriented System Transport |
11K |

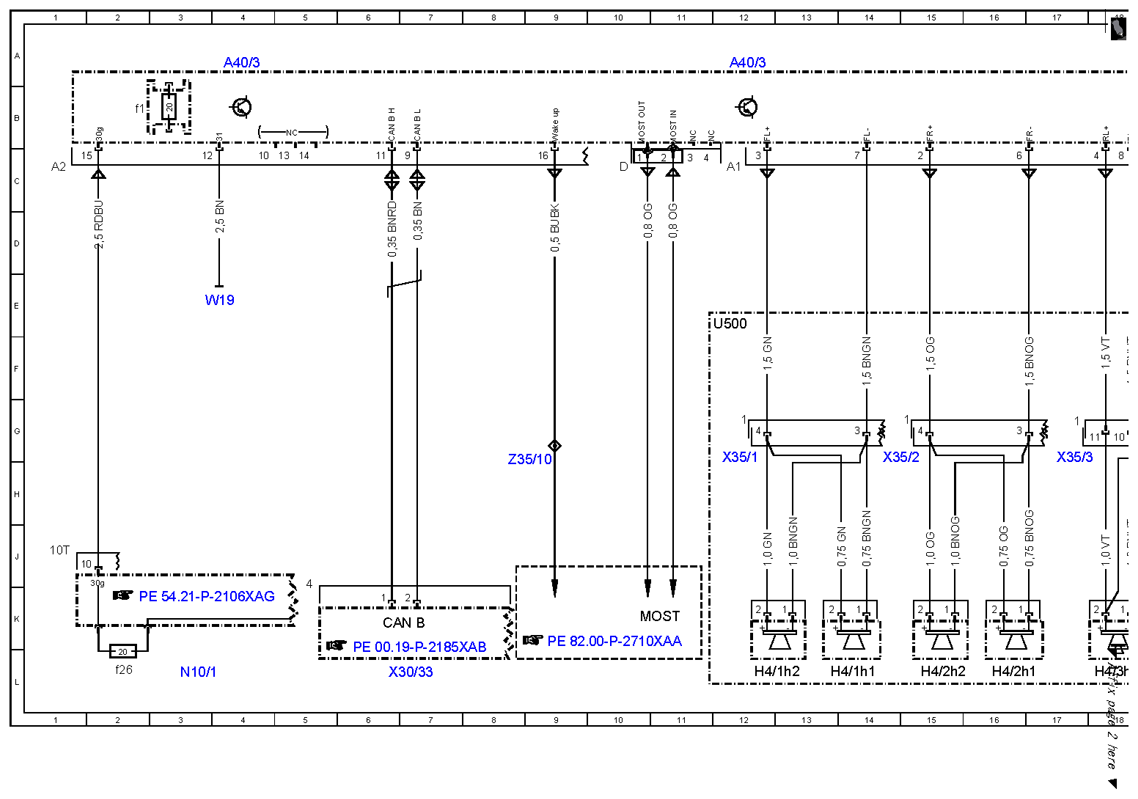

| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1f26 |
Fuse 26 |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
53L |
| N101 |
Night vision assist control unit |
45L |
| N66/2 |
Backup camera control unit |
41L |
| U193 |
Valid for TV and Video |
55E |
| U500 |
Not valid for sound system |
12E |
| U907 |
Valid for Night View Assist |
43E |
| W19 |
Right front seat crossmember ground point |
4E |
| X120 |
Radio fan electrical connector |
33H |
| X18/35 |
Instrument panel and vehicle floor electrical connector |
26H |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
7L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
31L |
| X35/1 |
Left front door electrical connector |
12H |
| X35/2 |
Right front door electrical connector |
15H |
| X35/3 |
Left rear door electrical connector |
17H |
| X35/4 |
Right rear door electrical connector |
20H |
| X39/45 |
AUX jack electrical connector |
28L |
| Z20/62z1 |
Shielding connector sleeve |
39J |
| Z20/62z2 |
Shielding connector sleeve |
39C |
| Z35/10 |
MOST wake-up signal connector sleeve |
9H |
| Z50/11 |
CAN bus low cockpit connector sleeve |
32H |
| Z50/12 |
CAN bus high cockpit connector sleeve |
31H |
| Z83/11z2 |
Shielding connector sleeve |
58H |
| Z83/11z3 |
Shielding connector sleeve |
57H |
