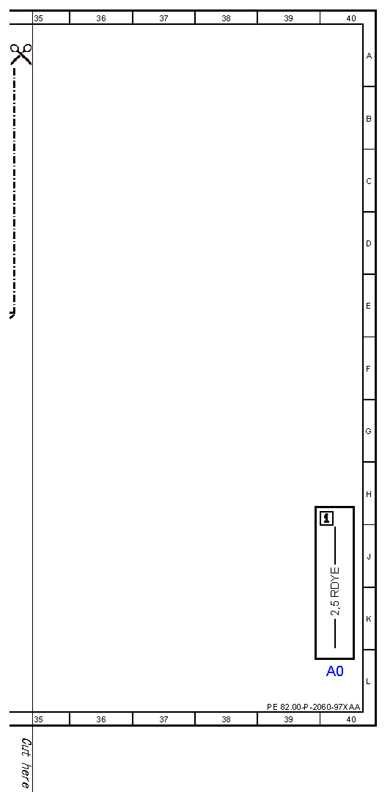

| A0 |
Color code key |
40L |
| A40/9 |
Audio/COMAND control panel |
25A |
| A40/9 |
Audio/COMAND control panel |
31A |
| A40/9s11 |
Audio/COMAND controller |
26A |
| A40/9s11 |
Audio/COMAND controller |
32A |

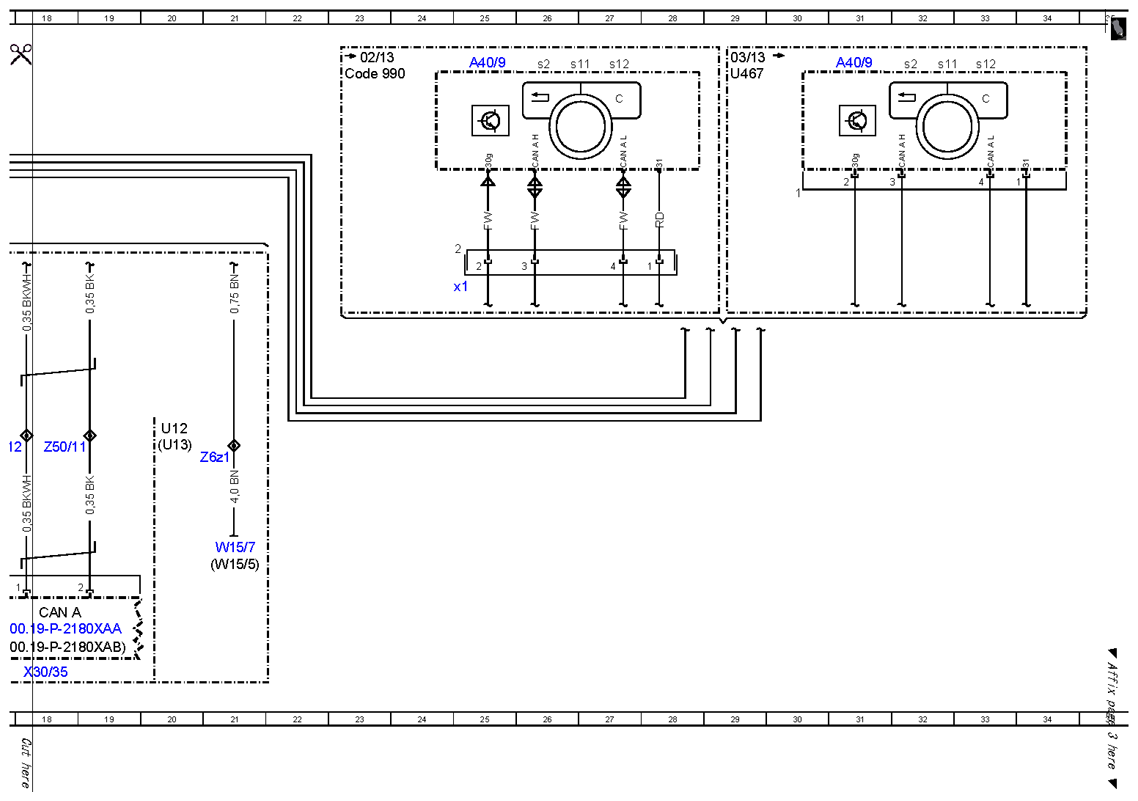

| A40/9s12 |
"Delete" button |
27A |
| A40/9s12 |
"Delete" button |
33A |
| A40/9s2 |
"Back" button |
26A |
| A40/9s2 |
"Back" button |
32A |
| A40/9x1 |
Audio/COMAND control panel electrical connector |
25E |
| CAN A |
Telematics CAN |
8K |
| CAN A |
Telematics CAN |
18K |
| Code 990 |
AMG vehicles |
23A |

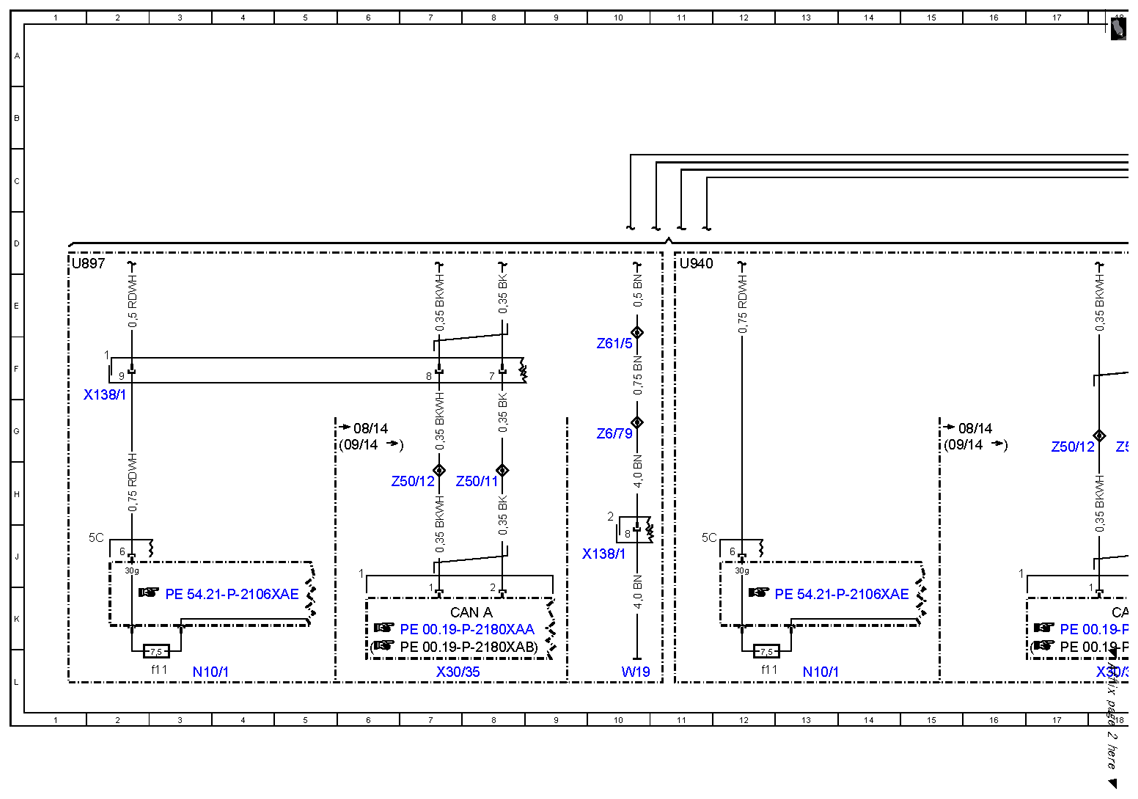

| N10/1 |
Front SAM control unit with fuse and relay module |
3L |
| N10/1 |
Front SAM control unit with fuse and relay module |
13L |
| N10/1f11 |
Fuse 11 |
3L |
| N10/1f11 |
Fuse 11 |
12L |
| U12 |
Valid for left-hand drive vehicles |
20G |
| U13 |
Valid for right-hand drive vehicles |
20G |
| U467 |
Not valid for code 990 AMG vehicles |
29A |
| U897 |
Valid for intelligent servo module for DIRECT SELECT |
1D |
| U940 |
Valid without DIRECT SELECT |
11D |
| W15/5 |
Left front footwell ground point |
21J |
| W15/7 |
Right front footwell ground point |
21J |
| W19 |
Right front seat crossmember ground point |
10L |
| X138/1 |
Front center console electrical connector |
2F |
| X138/1 |
Front center console electrical connector |
10J |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
7L |
| X30/35 |
Telematics CAN voltage distributor electrical connector |
18L |
| Z50/11 |
CAN bus low cockpit connector sleeve |
8H |
| Z50/11 |
CAN bus low cockpit connector sleeve |
18G |
| Z50/12 |
CAN bus high cockpit connector sleeve |
7H |
| Z50/12 |
CAN bus high cockpit connector sleeve |
17G |
| Z6/79 |
Front center console circuit 31 connector sleeve |
10G |
| Z61/5 |
Center console wiring harness circuit 31 connector sleeve |
10F |
| Z6z1 |
Circuit 31 connector sleeve |
21G |
