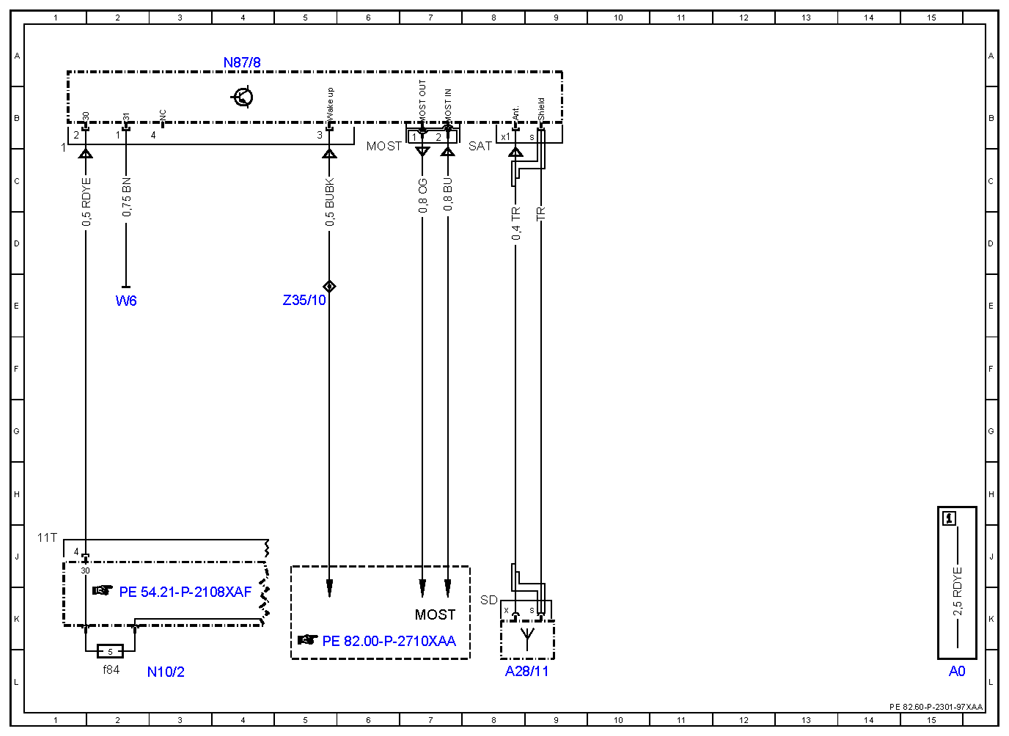

Wiring diagram for satellite digital audio radio system control unit (SDAR) - PE82.60-P-2301-97XAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A28/11 | Multifunction antenna | 8L |
| MOST | Media Oriented System Transport | 7K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f84 | Fuse 84 | 2L |
| N87/8 | SDAR control unit/high definition tuner | 4A |
| W6 | Left rear wheel well ground point | 2E |
| Z35/10 | MOST wake-up signal connector sleeve | 5E |
