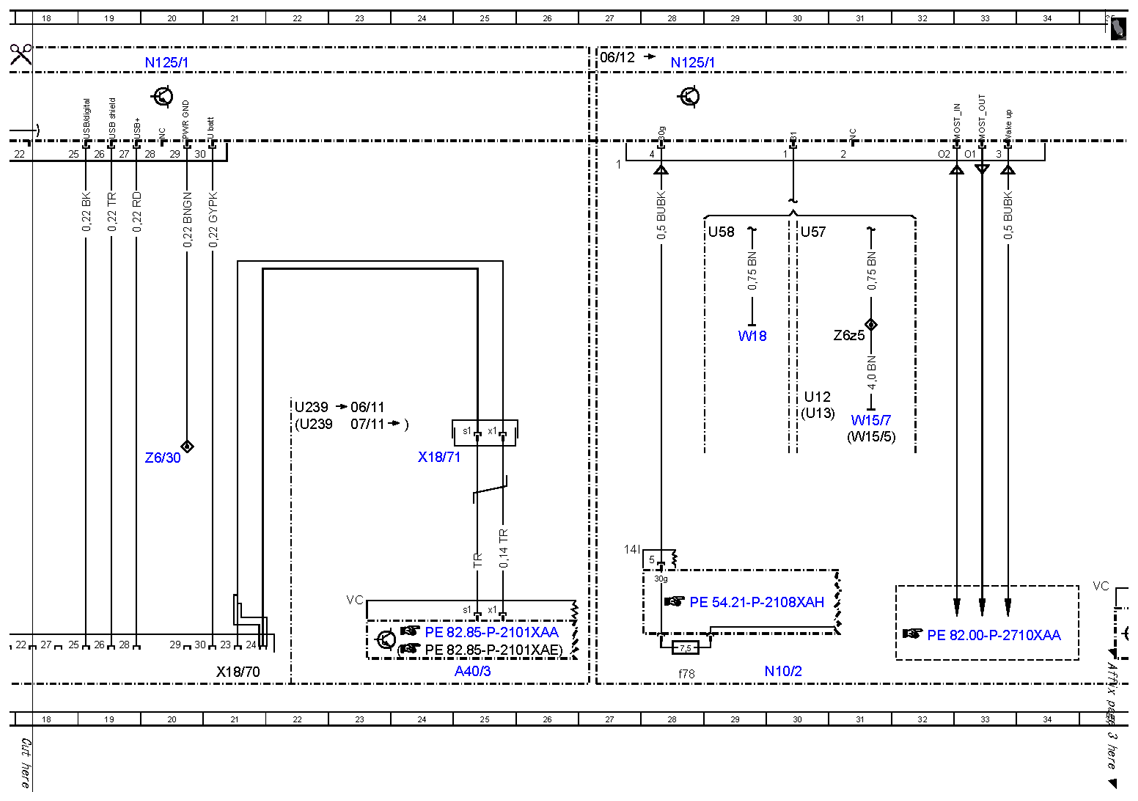

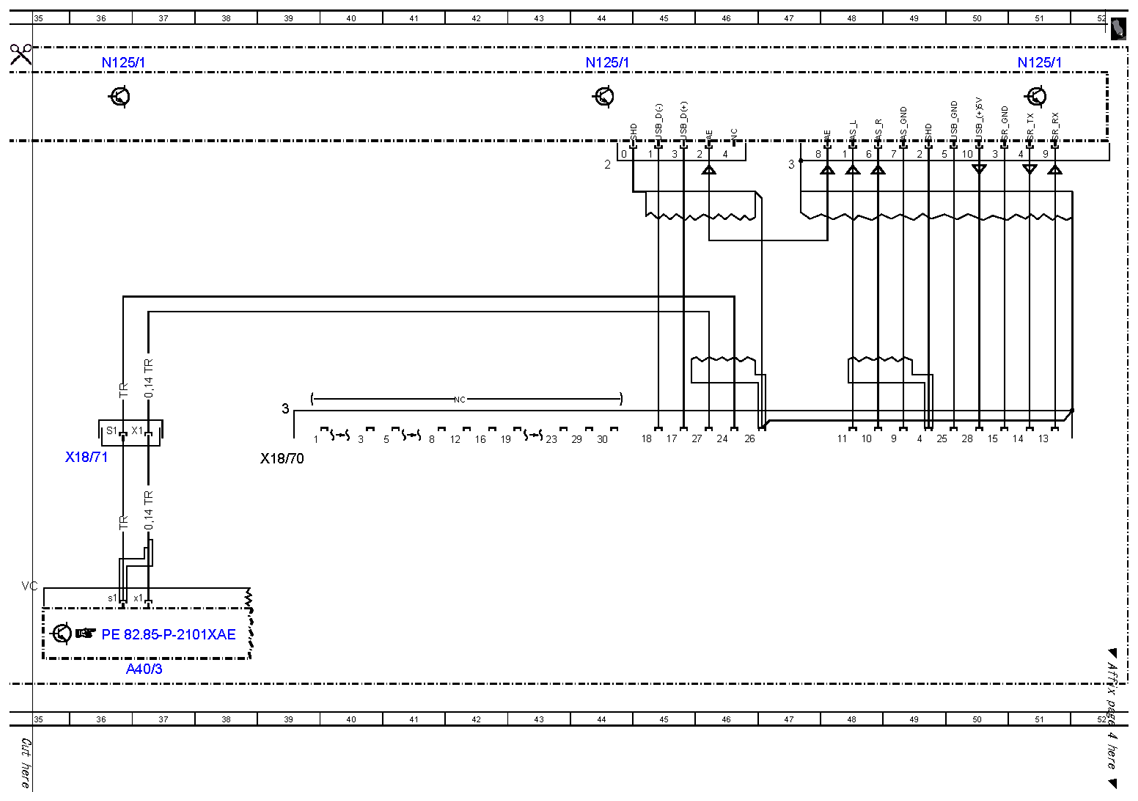

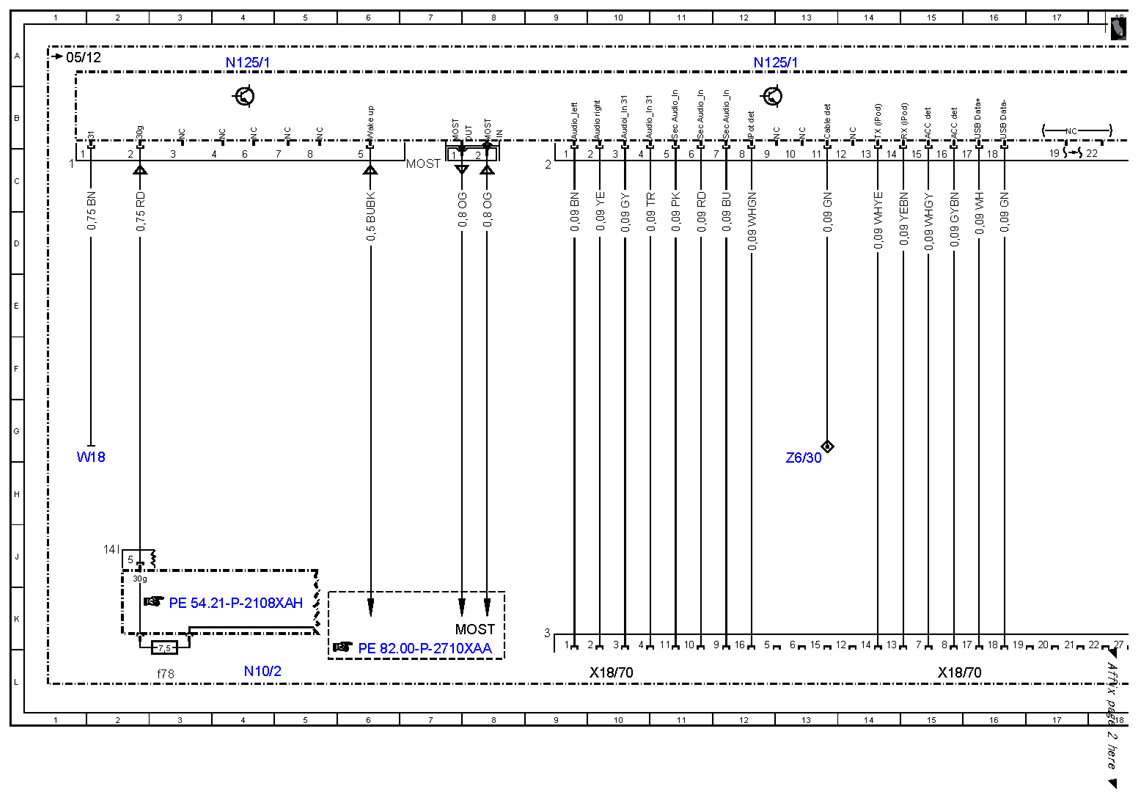

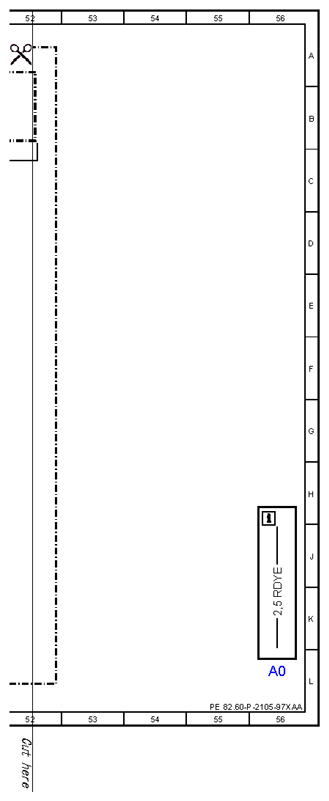

| A0 |
Color code key |
56L |
| A40/3 |
COMAND control unit |
25L |
| A40/3 |
COMAND control unit |
37L |
| MOST |
Media Oriented System Transport |
8K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
30L |
| N10/2f78 |
Fuse 78 |
3L |
| N10/2f78 |
Fuse 78 |
28L |
| N125/1 |
Media interface control unit |
28A |
| N125/1 |
Media interface control unit |
4A |
| N125/1 |
Media interface control unit |
20A |
| N125/1 |
Media interface control unit |
12A |
| N125/1 |
Media interface control unit |
36A |
| N125/1 |
Media interface control unit |
44A |
| N125/1 |
Media interface control unit |
51A |
| U12 |
Valid for left-hand drive vehicles |
30G |
| U13 |
Valid for right-hand drive vehicles |
30G |
| U239 |
Valid for media interface with video |
22G |
| U239 |
Valid for media interface with video |
22G |
| U57 |
Valid for model 218.9 |
30D |
| U58 |
Valid for model 218.3 |
29D |
| W15/5 |
Left front footwell ground point |
31G |
| W15/7 |
Right front footwell ground point |
31G |
| W18 |
Left front seat crossmember ground point |
1H |
| W18 |
Left front seat crossmember ground point |
29F |
| X18/70 |
Media interface electrical connector |
10L |
| X18/70 |
Media interface electrical connector |
15L |
| X18/70 |
Media interface electrical connector |
21L |
| X18/70 |
Media interface electrical connector |
39H |
| X18/71 |
Media interface electrical connector 2 |
24H |
| X18/71 |
Media interface electrical connector 2 |
36H |
| Z6/30 |
ME-SFI [ME] diagnosis connector sleeve |
20H |
| Z6/30 |
ME-SFI [ME] diagnosis connector sleeve |
13H |
| Z6z5 |
Z6z5 |
31F |
