Replace complete front end assembly together with reinforcement - AR62.30-P-1570EL

MODEL 218

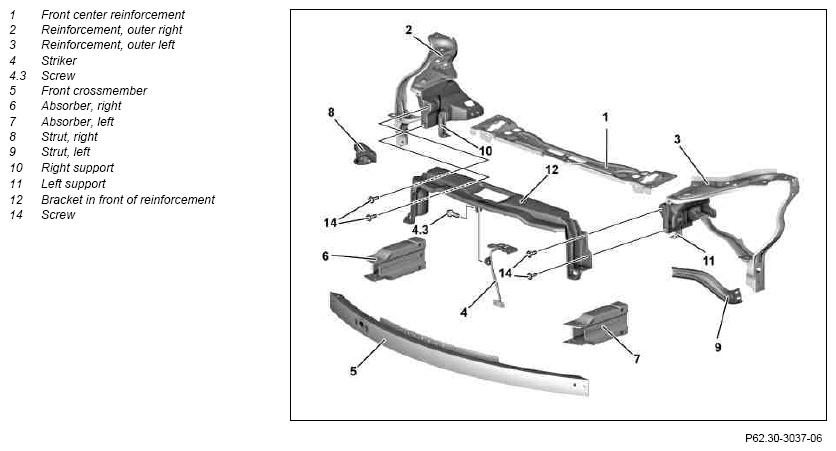

Fig 1: Replacing Front End Assembly Together With Reinforcement - Shown On Model 212
G10004413Courtesy of MERCEDES-BENZ USA

Shown on model 212

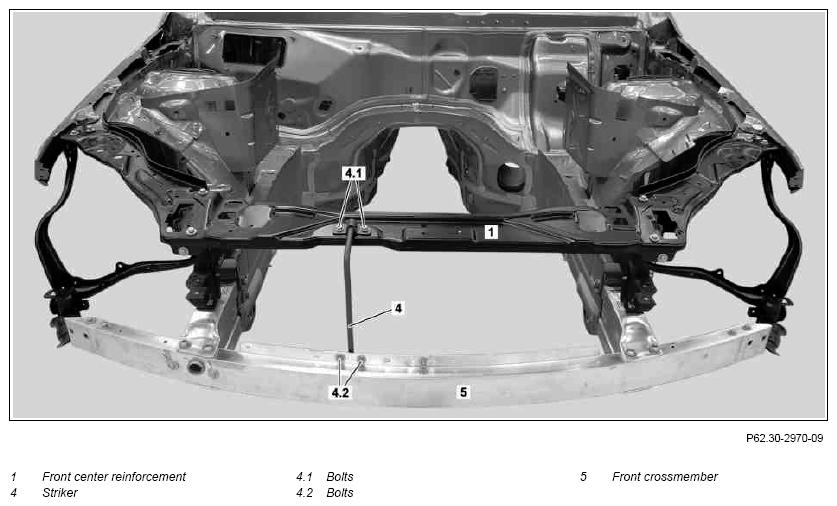

Fig 2: Replacing Front End Assembly Together With Reinforcement - Shown On Model 212 (1 Of 2)
G10004414Courtesy of MERCEDES-BENZ USA

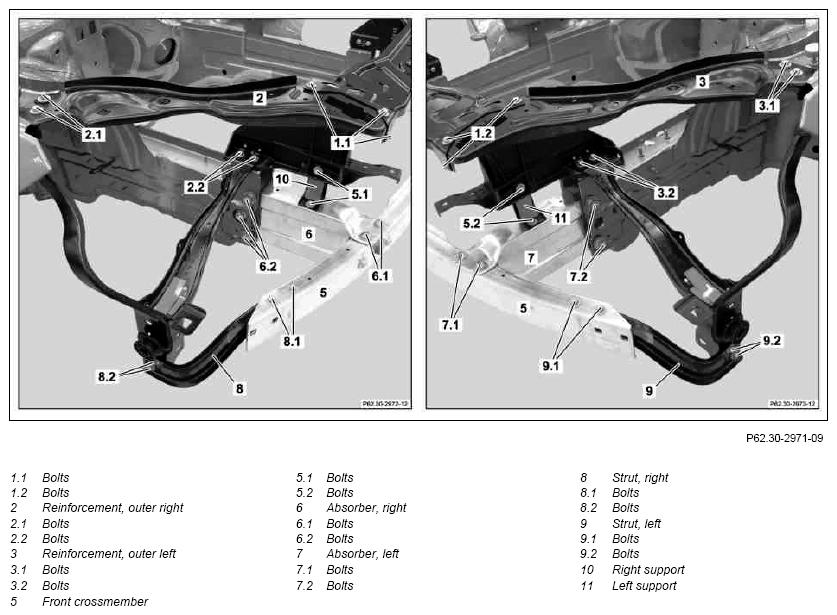

Fig 3: Replacing Front End Assembly Together With Reinforcement - Shown On Model 212 (2 Of 2)
G10004415Courtesy of MERCEDES-BENZ USA

Shown on model 212

MODIFICATION NOTES

25.10.10 Value changed: gap dimension *BE60.00-P-1001-01O
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
NOTES General information on body repair   AH60.00-N-0001-01A
1 Remove all detachable parts in repair area.
2 Unscrew bolts (4.1, 4.2, 4.3) and remove striker (4)
3 Unscrew bolt (14) and remove bracket in front of reinforcement (12)
4 Unscrew bolts (1.1, 1.2) and remove front center reinforcement (1)
5 Unscrew bolts (8.1, 8.2, 9.1, 9.2) and remove struts (8, 9)
6 Unscrew bolts (5.1, 5.2) and remove supports (10, 11)
7 Unscrew bolts (2.1, 2.2, 3.1, 3.2) and remove outer reinforcements (2, 3)
8 Unscrew bolts (6.1, 7.1) and remove front crossmember (5) TORQUE SPECIFICATION
INSTALLATION IMPORTANT Tighten bolts (6.1, 7.1) with specified tightening torque before installing headlamp.
*BA62.30-P-1002-02G
9 Unscrew bolts (6.2, 7.2) and remove absorber (6, 7)
10 Install in the reverse order
11 Fit front end assembly with reinforcement IMPORTANT Fit headlamp unit and bumper for adjustment work.
TORQUE SPECIFICATION *BA62.30-P-1001-02G
TORQUE SPECIFICATION *BA62.30-P-1002-02G
TORQUE SPECIFICATION *BA62.30-P-1003-02G
12 Adjust gap dimensions on hood, fenders, lamp units and bumpers   AR60.00-P-0700-01EL
SPECIAL TOOL Feeler gauge Fig 4
  *BE60.00-P-1001-01O
13 Apply wax preservation to connections on body After adjustment operations as well as removal and installation of front end assembly parts with reinforcement.
Preservation agent *BR00.45-Z-1003-05A
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number Designation Type 218.3
Engine hood to fender Dimension "A" mm 4.0 (±1)
Engine hood to headlamp Dimension "B" mm 4.0 (±1)
Engine hood to bumper Dimension "C" mm 4.0 (±1)
Engine hood to A-pillar Dimension "Q" mm 4.5 (±1)
Fender/headlamps Dimension "R" mm 4.0 (±1)
Bumper to headlamp (circumferential) Dimension "S" mm 3.5 (±1)
Mounting rail, bumper to engine hood Dimension "T" mm 7.5 (+0.5)
Mounting rail, bumper to engine hood Dimension "U" mm 1.0 (±0.5)
FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number Designation Model 218
BA62.30-P-1001-02G Bolt, absorber mount on longitudinal member Stage 1 Nm 90
Stage 2 ∠° 90
BA62.30-P-1002-02G Bolt, crossmember mount on absorber Stage 1 Nm 28
Stage 2 ∠° 135
BA62.30-P-1003-02G Bolt for attaching striker Nm 10
Fig 4: Identifying Feeler Gauge (129 589 03 21 00)
G10004416Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-05A Cavity preservation, solvent-free (1 l container) A 000 986 72 70 05
