Component description for yaw rate sensor for lateral and longitudinal acceleration - GF42.45-P-4810FQ
MODEL 218
Location
The yaw rate sensor for lateral and longitudinal acceleration is underneath the driver seat on the vehicle floor.
Illustrated on model 218.3

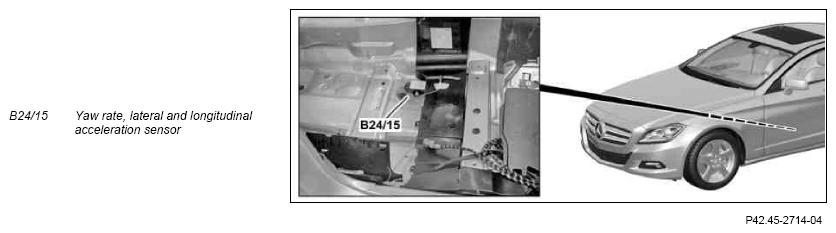

Fig 1: Identifying Yaw Rate, Lateral And Longitudinal Acceleration Sensor - Illustrated On Model 218.3
Task
The yaw rate, lateral and longitudinal acceleration sensor measures the rotational speed about the vertical axis.
The integrated lateral acceleration sensor (AY sensor) measures the lateral acceleration.
The integrated longitudinal acceleration sensor (AX pickup) determines the pitching motion.
The respective signals are read in via the vehicle dynamics CAN (CAN H) by the Electronic Stability Program control unit (N30/4) (except CODE (233) DISTRONIC PLUS) or by the Premium Electronic Stability Program control unit (N30/7) (with CODE (233) DISTRONIC PLUS).
