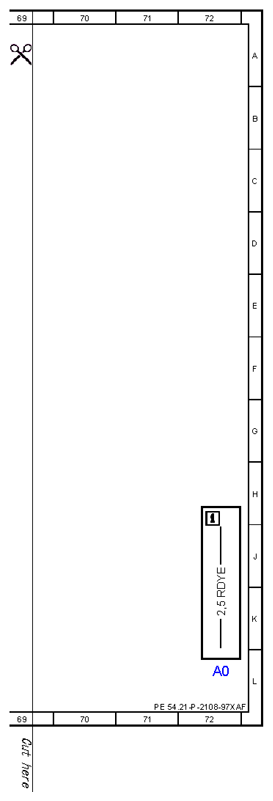

| A0 |
Color code key |
72L |
| A28/3 |
Cellular telephone system antenna amplifier/compensator |
62L |
| A50/6 |
Dedicated Short-Range Communications control unit |
21J |
| A90/1 |
TV tuner (analog/digital) |
54L |
| A90/3 |
TV digital tuner |
54L |
| A90/4 |
Tuner unit |
58L |
| B84/3 |
Backup camera |
13L |
| B84/3 |
Backup camera |
50L |
| B84/3x1 |
Backup camera electrical connector |
50K |
| Code 218 |
Backup camera |
39G |
| Code 218 |
Backup camera |
12G |
| Code 218 |
Backup camera |
43G |
| Code 218 |
Backup camera |
47G |
| Code 228 |
Stationary heater |
60G |
| Code 348 |
Emergency call/assistance system |
23G |
| Code 359 |
TELEAID emergency call system |
23G |
| Code 359 |
TELEAID emergency call system |
25H |
| Code 386 |
Mobile phone preinstallation with universal interface |
60G |
| Code 536 |
SIRIUS satellite radio |
56G |
| Code 537 |
Digital radio |
56H |
| Code 863 |
Digital/analog TV tuner |
52H |
| Code 865 |
TV tuner (digital) |
52H |
| Code 865 |
TV tuner (digital) |
56H |
| Code B03 |
ECO start/stop function |
1G |
| F32 |
Front electrical prefuse box |
4L |
| F32f158 |
Prefuse 158 |
2K |
| F32f159 |
Prefuse 159 |
6K |
| F32f163 |
Prefuse 163 |
2K |
| F32f164 |
Prefuse 164 |
6K |
| K60 |
Coolant circulation pump relay |
29L |

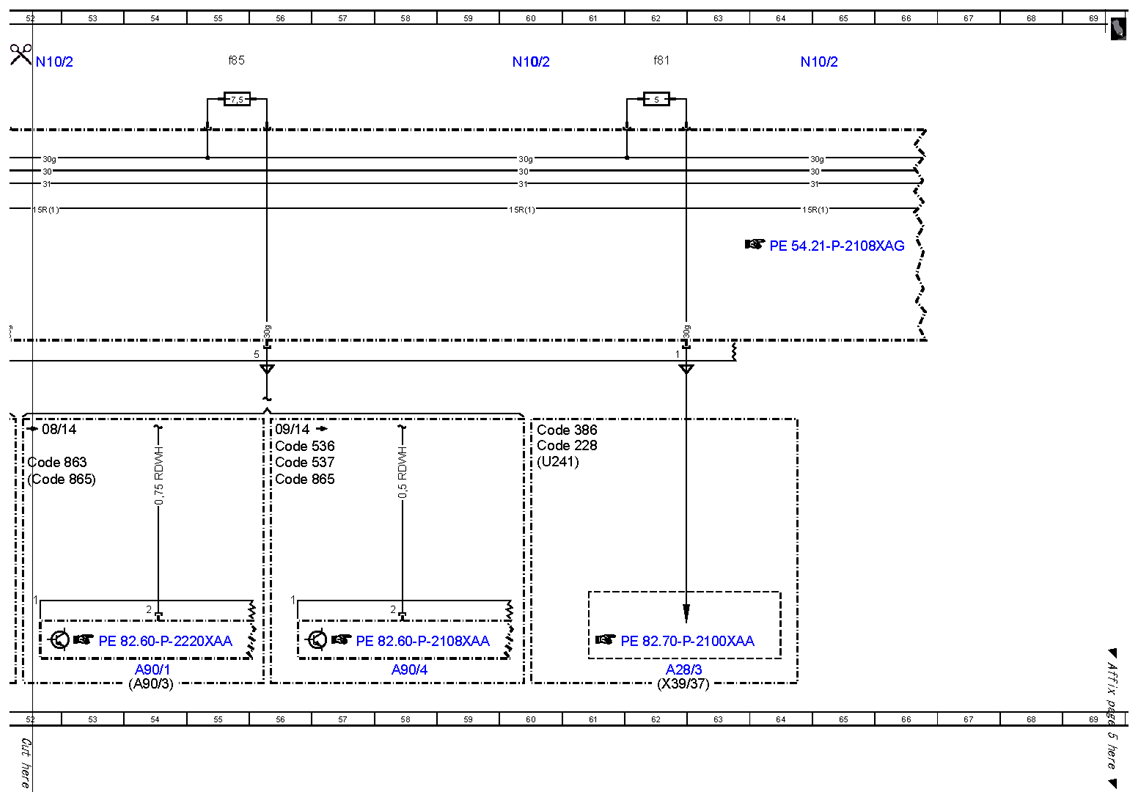

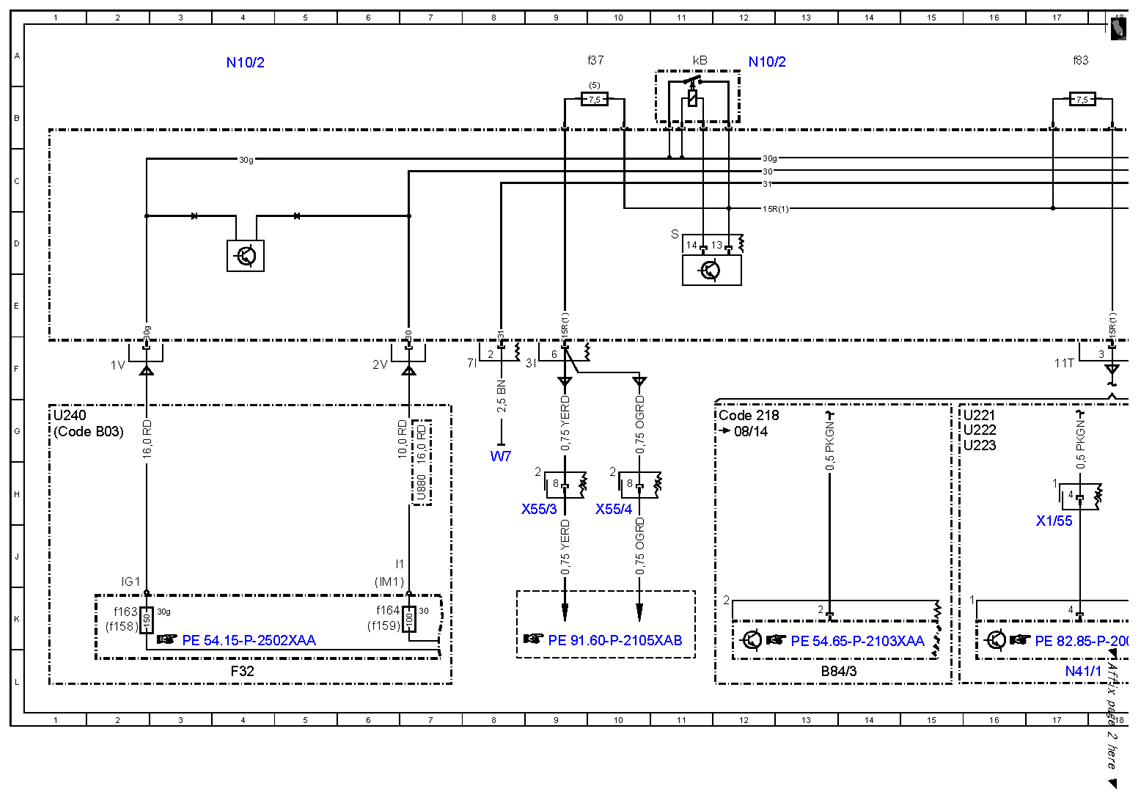

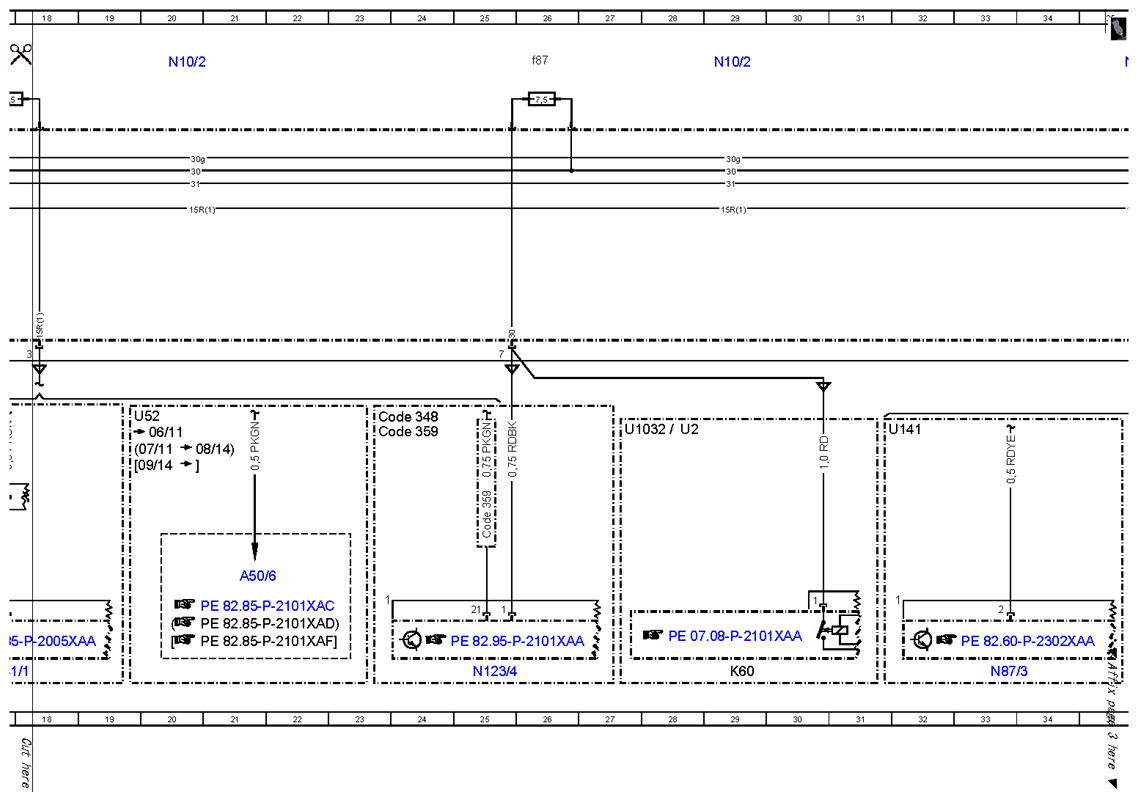

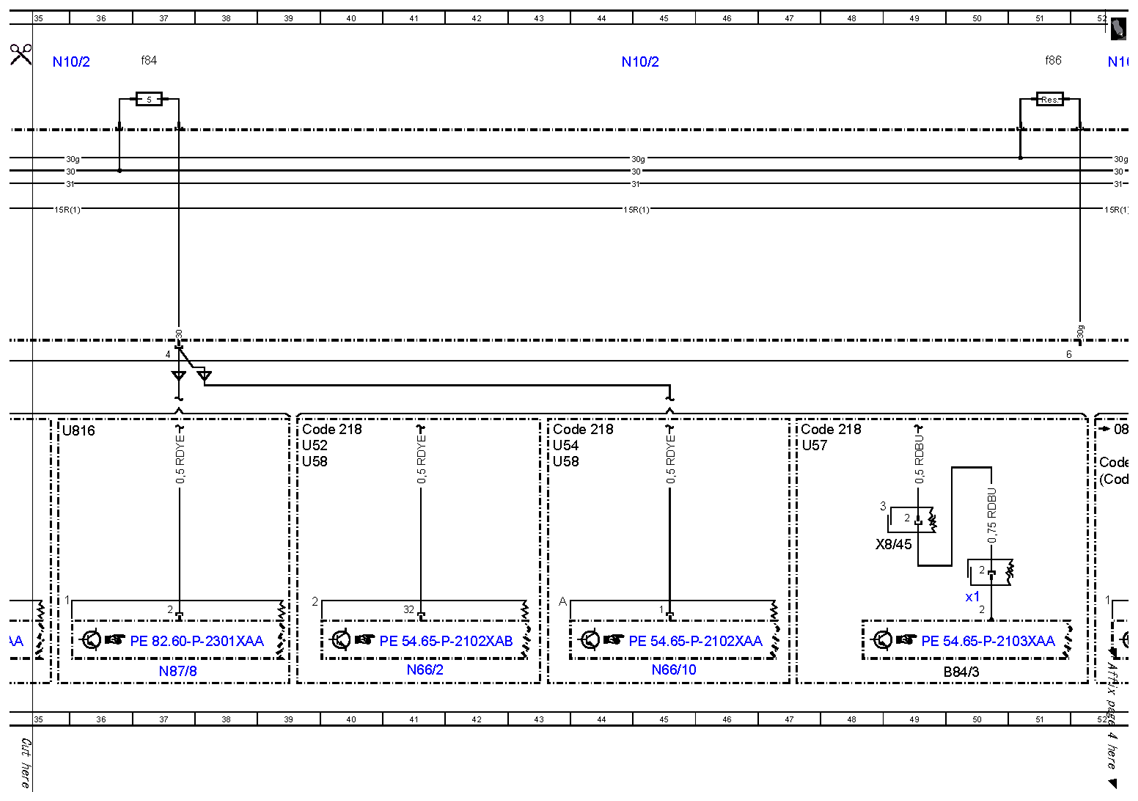

| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
20A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
29A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
35A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
44A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
52A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
64A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
60A |
| N10/2f37 |
Fuse 37 |
10A |
| N10/2f81 |
Fuse 81 |
62A |
| N10/2f83 |
Fuse 83 |
17A |
| N10/2f84 |
Fuse 84 |
37A |
| N10/2f85 |
Fuse 85 |
55A |
| N10/2f86 |
Fuse 86 |
51A |
| N10/2f87 |
Fuse 87 |
26A |
| N10/2kB |
Circuit 15R relay (1) |
11A |
| N123/4 |
Emergency call system control unit |
25L |
| N41/1 |
Navigation processor |
17L |
| N66/10 |
Backup camera voltage supply module |
45L |
| N66/2 |
Backup camera control unit |
41L |
| N87/3 |
Digital Audio Broadcasting control unit |
33L |
| N87/8 |
SDAR control unit/high definition tuner |
37L |
| U1032 |
Valid for engine 278 and 157 |
27G |
| U141 |
Valid for Digital Audio Broadcasting |
31G |
| U2 |
Valid for all except USA |
28G |
| U221 |
Valid for China |
16G |
| U222 |
Valid for Korea |
16G |
| U223 |
Valid for external navigation |
16G |
| U240 |
Valid for all except ECO start/stop function |
1G |
| U241 |
Valid for comfort telephony without compensator |
60H |
| U52 |
Valid for Japan |
19G |
| U52 |
Valid for Japan |
39G |
| U54 |
Valid for all except Japan |
43G |
| U57 |
Valid for model 218.9 |
47G |
| U58 |
Valid for model 218.3 |
39H |
| U58 |
Valid for model 218.3 |
43H |
| U816 |
Valid for satellite digital audio radio (SDAR) |
35G |
| U880 |
Valid for diesel engine 642 |
7H |
| W7 |
Right rear wheel well ground point |
8G |
| X1/55 |
External navigation electrical connector |
17J |
| X39/37 |
Mobile phone electrical connector |
62L |
| X55/3 |
Driver seat connector block |
9H |
| X55/4 |
Front passenger seat connector block |
10H |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
49J |
